TB-204 IP-67 Enclosure with Moulded-on Cable Gland

[TB-204-C-0-G-V0] 80 x 50 x 25 mm http://www.altinkaya.com/web/image/product.template/1390/image_1920?unique=1f7501c

A high-quality enclosure suitable for a wide range of applications, including junction boxes, embedded systems, transmitters, barometers, gas and humidity sensors, temperature control, and measurement devices.

Not Available For Sale

  • In Hole
  • Color
  • Body
  • Custom Production
  • Material
  • Top Cover
  • Type
  • UL94

This combination does not exist.

You can view product prices by logging in.

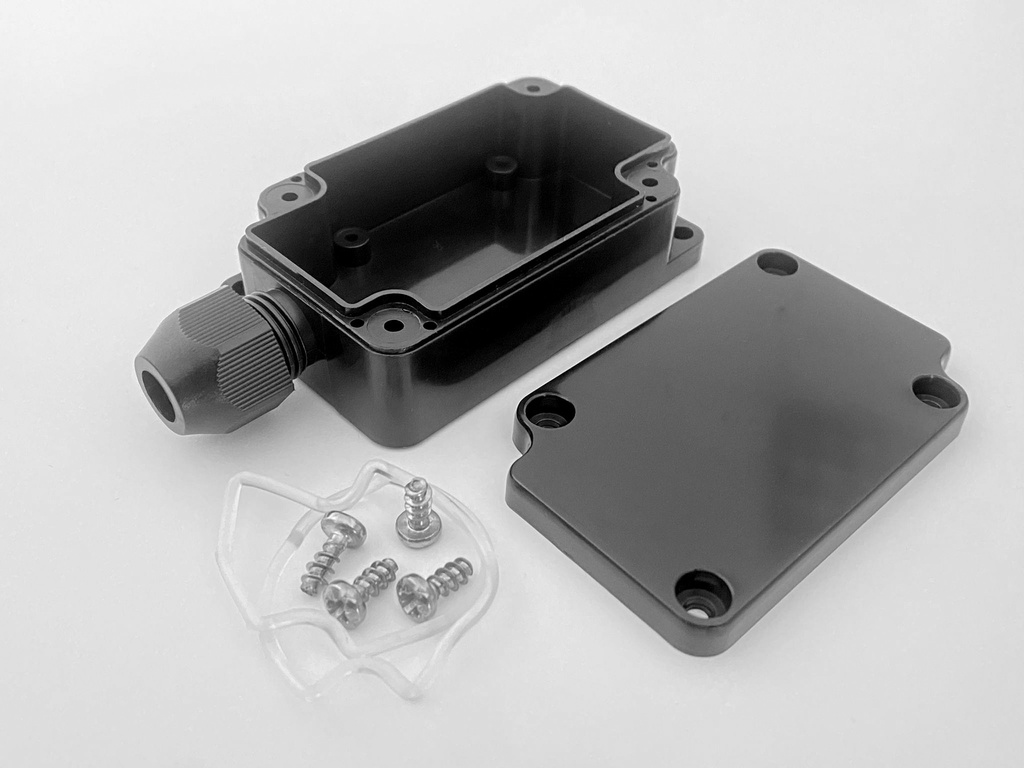

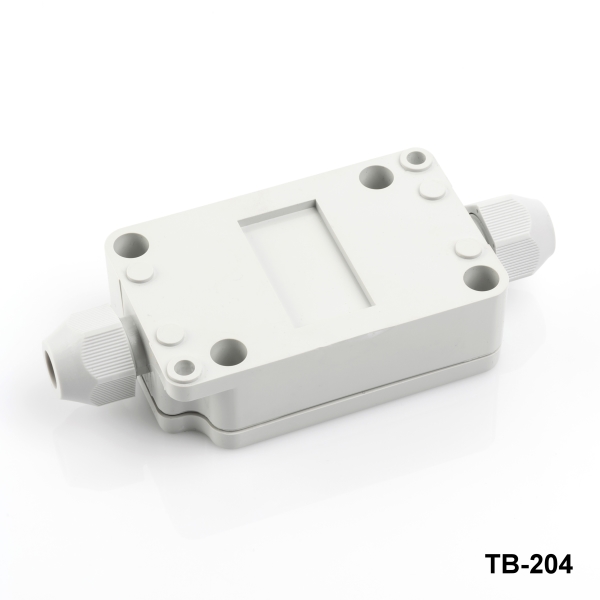

TB-204 is an IP67 enclosure with cable glands, can be mountable on the wall thanks to its mounting ears. The product is manufactured by ABS V0 material, for the non-flammability degree. Continuous seal is included for providing IP67. Cable glands are molded on and supports IP67 feature.

Specifications

In Hole 1x8 mm
Color Light Gray, Black

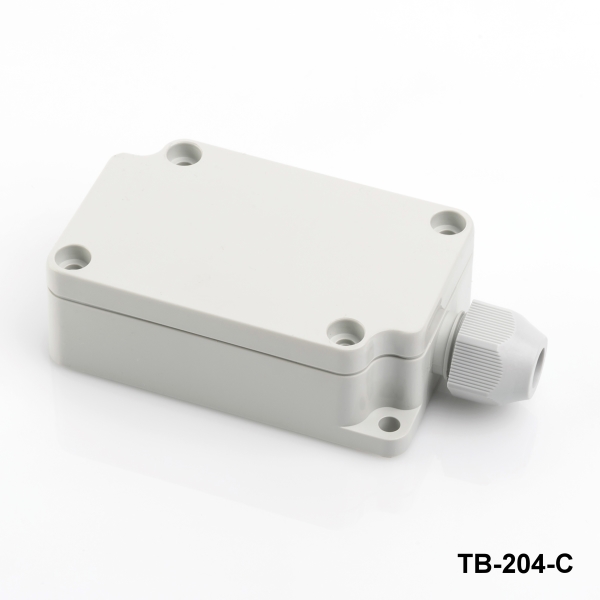

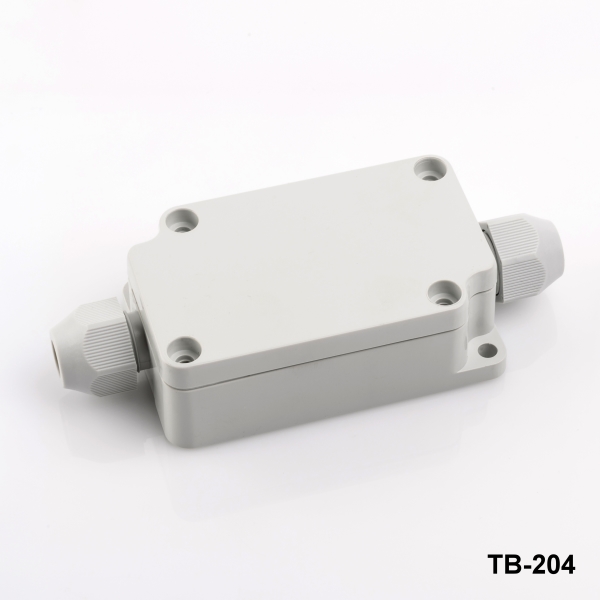

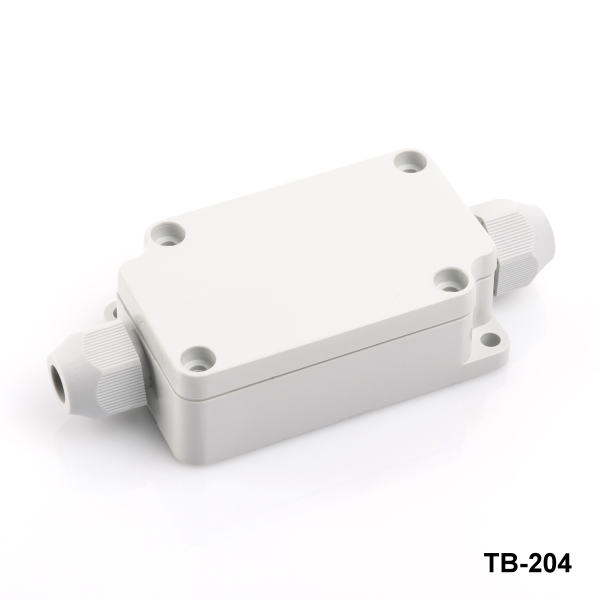

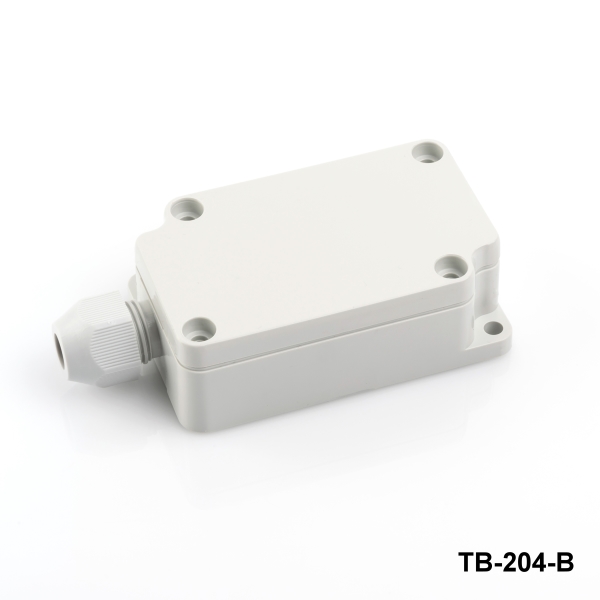

Body w Double Gland, w One Gland
Material ABS
Top Cover Flat Cover

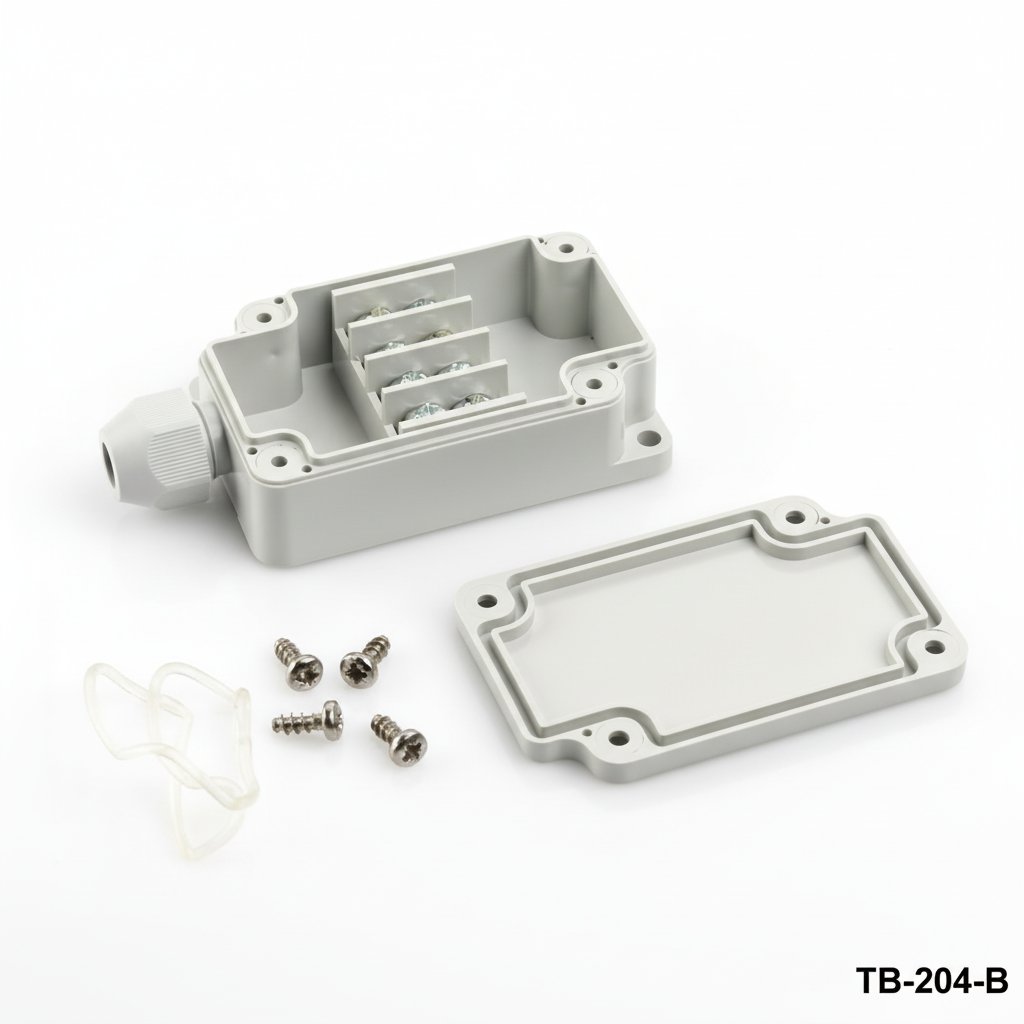

Type No Terminal, w Terminal
UL94 V0
A (mm) 80
B (mm) 50
C (mm) 25
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 50
3D
TB-204-0_3D.zip

DXF
TB-204_drawing.zip

PDF
TB-204_drawing.pdf

3D
TB-204-C_3D.zip

3D
TB-204-A_3D.zip

3D
TB-204-B_3D.zip

IP Certificate
TB-204_IP.pdf
