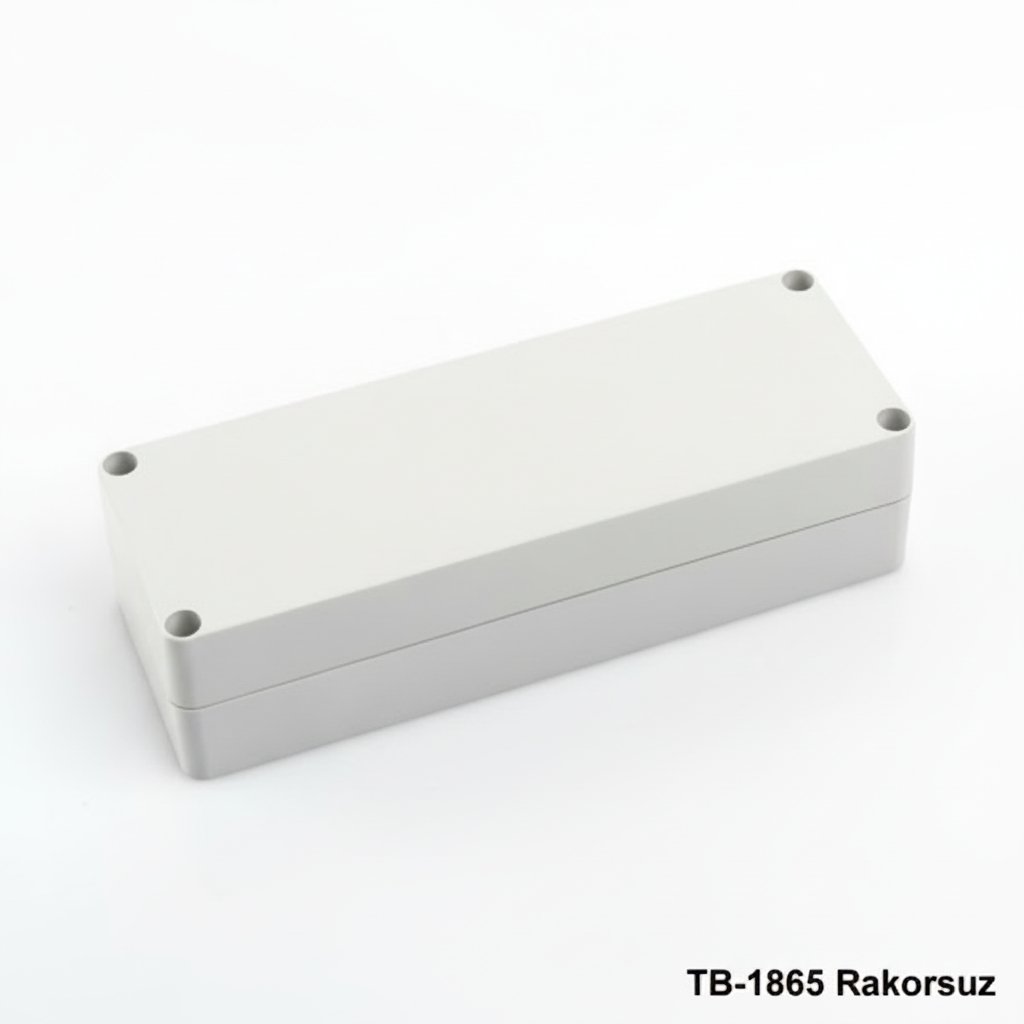

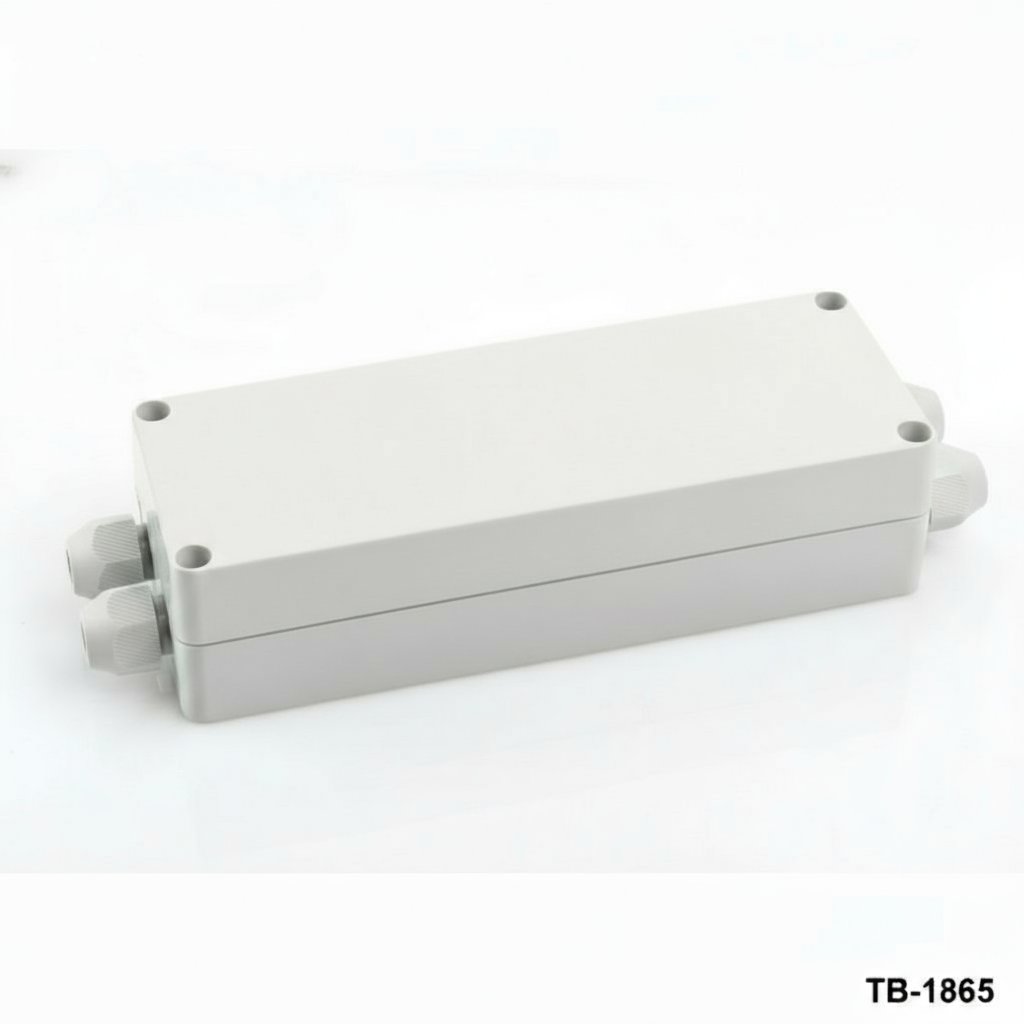

TB-1865 IP-67 Enclosure with Moulded

[TB-1865-0-0-G-V0] 180 x 65 x 45 mm http://www.altinkaya.com/web/image/product.template/1389/image_1920?unique=5ce2984

A high-quality enclosure suitable for a wide range of applications, including junction boxes, embedded systems, transmitters, barometers, gas and humidity sensors, temperature control, and measurement devices.

Not Available For Sale

  • Color
  • Body
  • Custom Production
  • Material
  • UL94

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

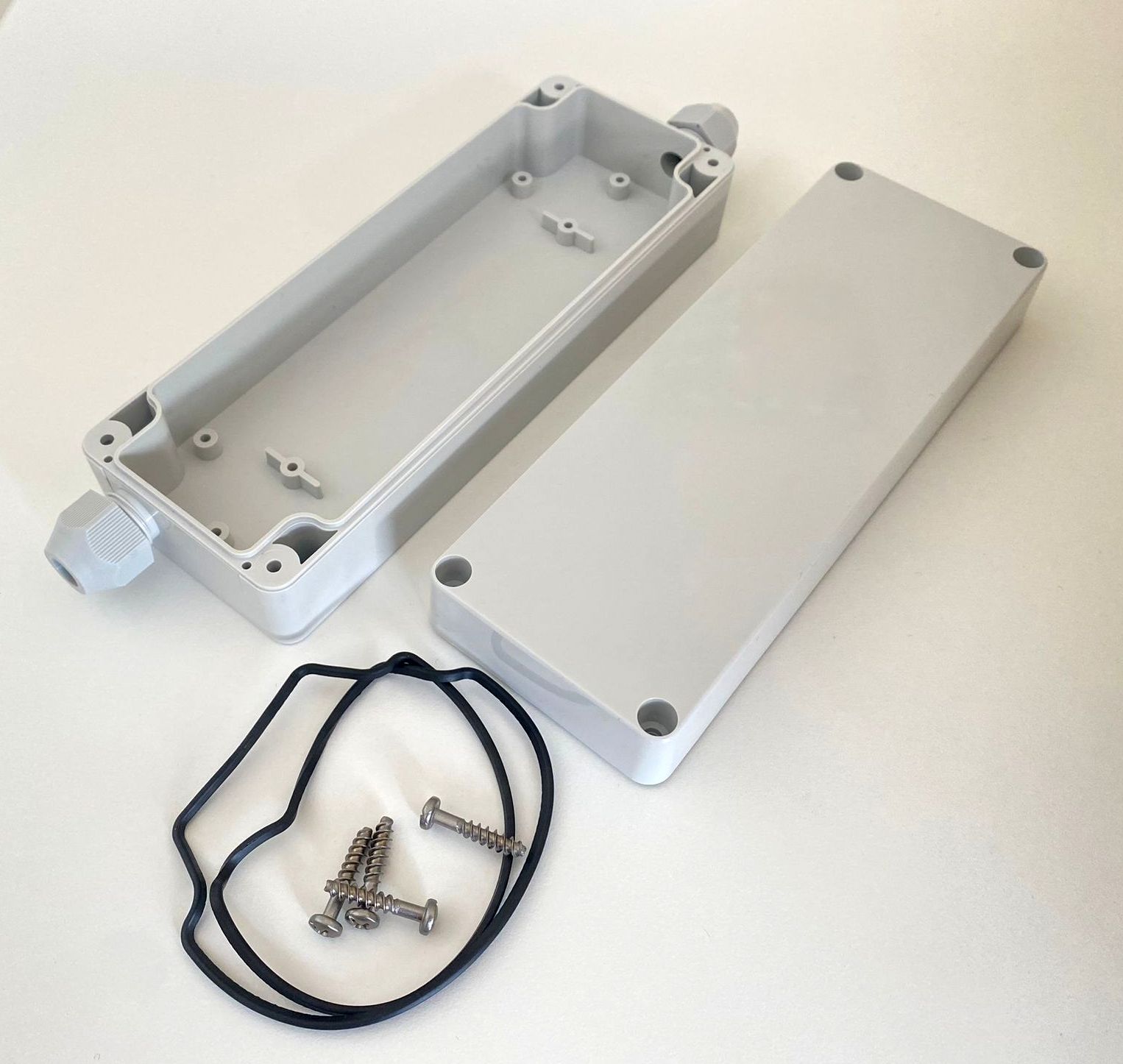

TB-1865 is an IP67 enclosure with cable glands. The product is manufactured by ABS V0 material, for the non-flammability degree. Continuous seal is included for providing IP67. Cable glands are molded on and support IP67 feature.


Specifications

Color Light Gray
Body w 2 Glands, w 4 Glands, no gland
Material ABS
UL94 V0
A (mm) 180
B (mm) 65
C (mm) 45
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 10
PDF
TB-1865_drawing.pdf

DXF
TB-1865_drawing.zip

IP Certificate
TB-1865_IP.pdf

3D
TB-1865_3D.zip
