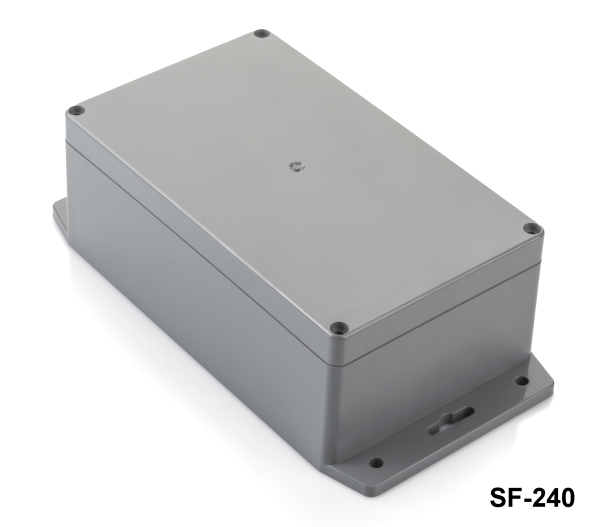

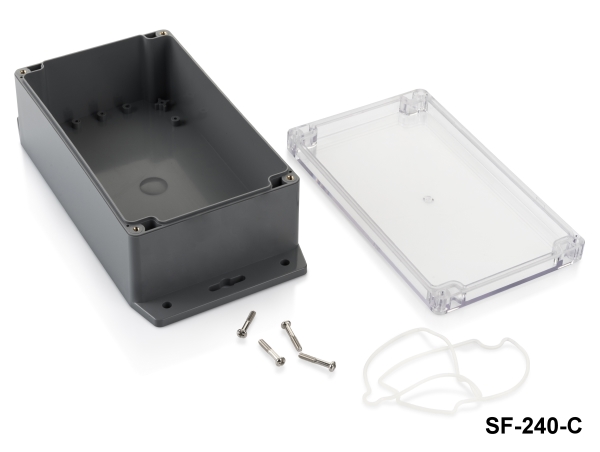

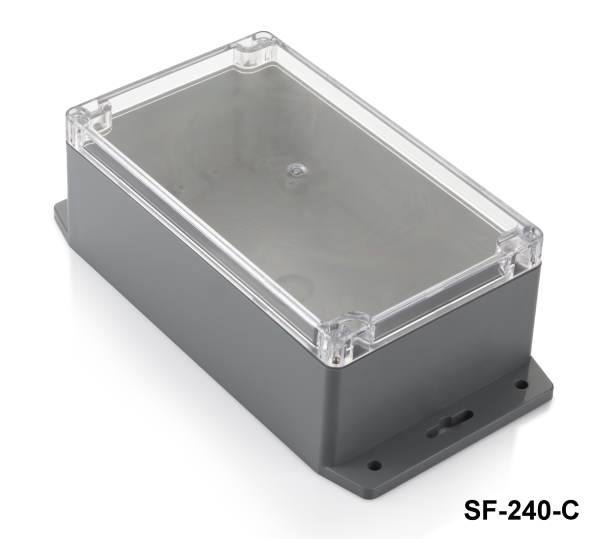

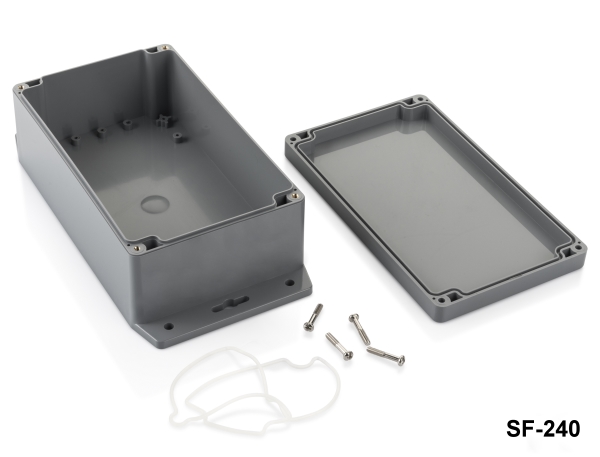

SF-240 IP-67 Sealed Enclosure

[SF-240-0-0-D-0] 242 x 122 x 77 mm http://www.altinkaya.com/web/image/product.template/2606/image_1920?unique=067ca21

Flanges facilitate mounting on surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production with ASA material resistant to sun exposure is also possible.

Not Available For Sale

  • Color
  • Top Cover

This combination does not exist.

You can view product prices by logging in.


Specifications

Color Dark Gray
Top Cover Transparent Cover, Flat Cover
Material ABS, PC
UL94 HB
A (mm) 242
B (mm) 122
C (mm) 77
Operating Temperature -30° / +70°
IP Rate IP67
PDF
SF-240.pdf

DXF
SF-240_dxf.zip
