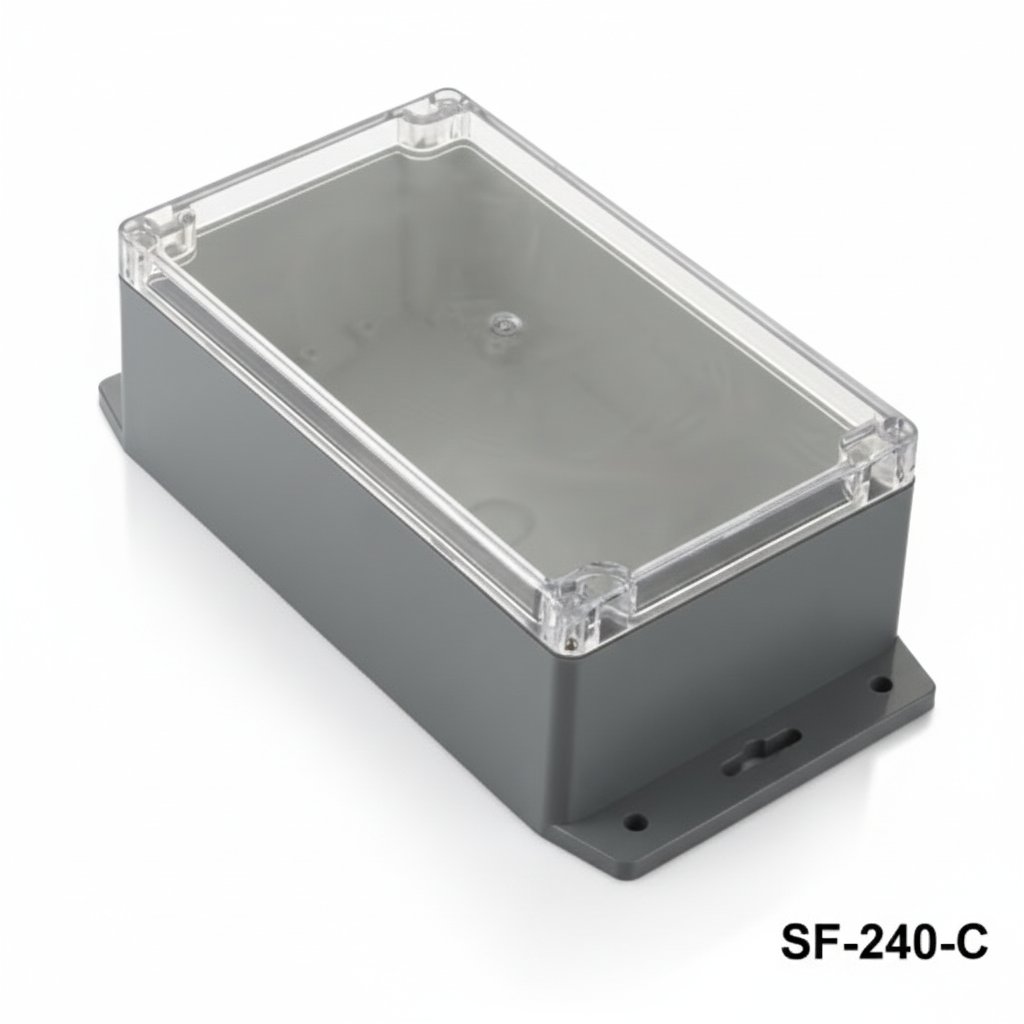

SF-240 IP-67 Sealed Enclosure
[SF-240-0-0-D-0]
242 x 122 x 77 mm
(9.53 x 4.8 x 3.03 in)
Flanges facilitate mounting on surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production with ASA material resistant to sun exposure is also possible.
باركود :
2416700302579المواصفات
| Color | Dark Gray |
| Top Cover | Transparent Cover, Flat Cover |
| E1 | 242 |
| E2 | 192 |
| E3 | 160,7 |
| E4 | 220 |
| B1 (mm) | 122 |
| B2 (mm) | 112 |
| B3 (mm) | 90 |
| B4 (mm) | 85 |
| D1 (mm) | 77 |
| D2 (mm) | 62 |
| D3 (mm) | 61,7 |
| D4 (mm) | 15 |
| Material | ABS, PC |
| UL94 | HB |
| A (mm) | 242 |
| B (mm) | 122 |
| C (mm) | 77 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP67 |
