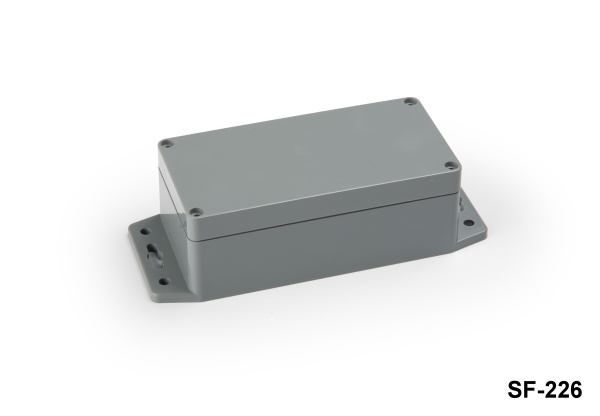

SF-226 IP-67 Flanged Heavy Duty Enclosures

[SF-226-0-0-D-0] 202.5 x 80 x 58.5 mm (7.97 x 3.15 x 2.3 in)
https://www.altinkaya.com/web/image/product.template/1868/image_1920?unique=439de38

Flanges ease mounting on the surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production is also possible with ASA material resistant to sun exposure.

Login or Register to see price

Not Available For Sale


  • Color
  • Top Cover

This combination does not exist.


Barcode :
8698651334517
Share :
Customization options available
Quality guaranteed
Worldwide delivery

SF-226 is a flanged heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Material ABS, PC
UL94 HB
A (mm) 202.5
B (mm) 80
C (mm) 58.5
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 10
Machining Template
SF-226-0-0-CNC.pdf
Download
IP Certificate
SF-226_IP.pdf
Download
PDF
SF-226_drawing.pdf
Download
3D
SF-226_3D.zip
Download
DXF
SF-226_drawing.zip
Download
