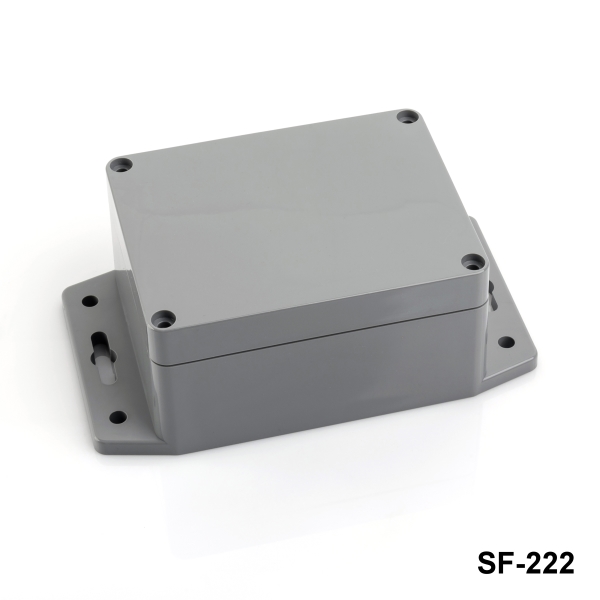

SF-222 IP-67 Flanged Heavy Duty Enclosures

[SF-222-C-0-D-0] 157.5 x 90 x 58.5 mm http://www.altinkaya.com/web/image/product.template/1391/image_1920?unique=97cdc60

Flanges ease mounting on the surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production is also possible with ASA material resistant to sun exposure.

Not Available For Sale

  • Color
  • Custom Production
  • Top Cover
  • UL94

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

SF-222 is a flanged heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray
Top Cover Transparent Cover, Flat Cover
UL94 HB
Material ABS
A (mm) 157.5
B (mm) 90
C (mm) 58.5
Operating Temperature -30° / +70°
Units per box 10
PDF
SF-222_drawing.pdf

DXF
SF-222_drawing.zip

3D
SF-222_3D.zip

IP Certificate
SF-222_IP.pdf
