RT-212-24 DIN Rail Enclosure
Designed to protect electrical and electronic devices in a variety of applications including time relays, automation, IOT, testing and measuring, smart home, and KNX.
Barcode :
8698651436914RT-212 Din Rail Enclosure
The RT-212 Din Rail Enclosure is a versatile and robust solution for electrical and electronic devices. Made with UL94-V0 material, it offers superior durability and reliability. With its compact dimensions of 212 mm x 90 mm x 59 mm, it is compatible with twelve modules and has 5 different body options related to the terminal outputs. The panel color options include transparent and smokey and can be customized to suit your design needs. Ideal for time relays, automation, IOT, testing and measuring, smart home and KNX systems, the RT-212 Din Rail Enclosure provides a secure and protected environment for your devices.
Specifications
| Color | Light Gray, Black |
| Panel Color | Transparent Panel, Smoke Panel |

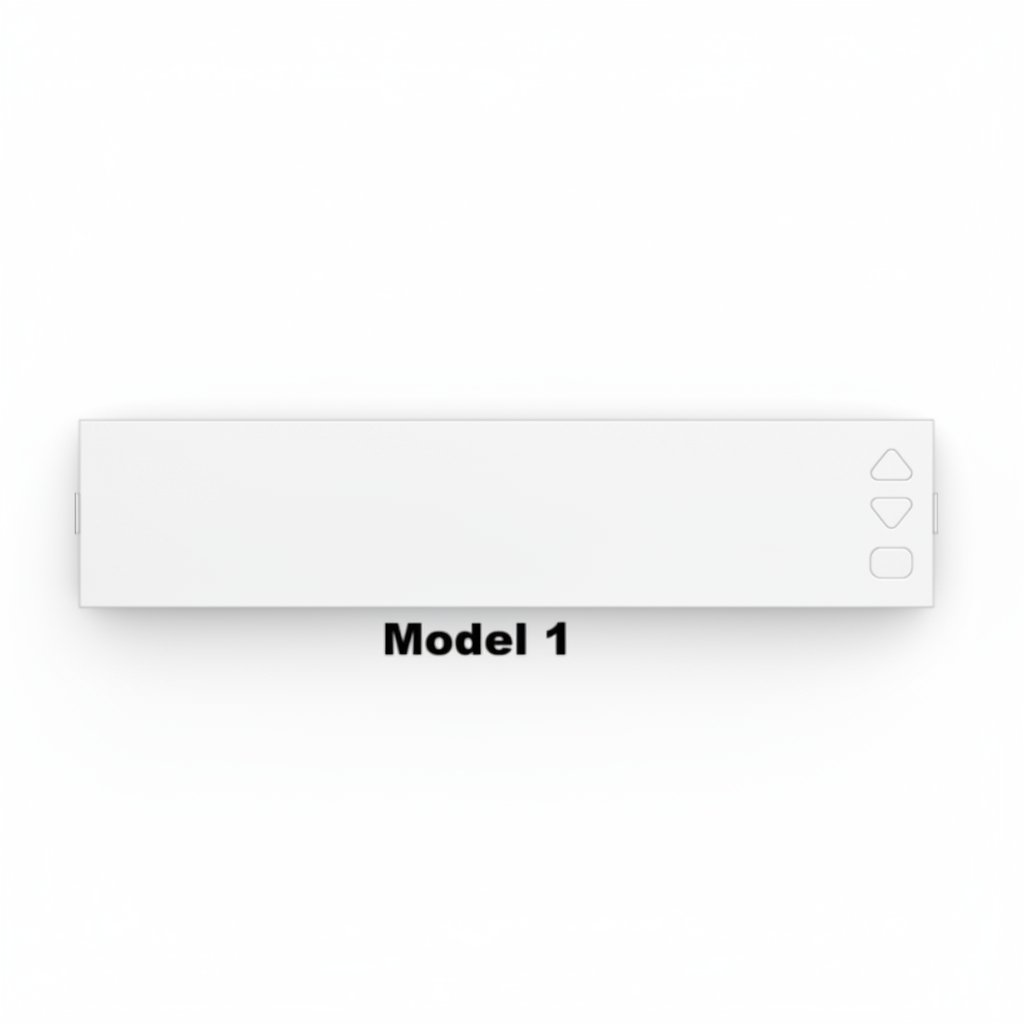

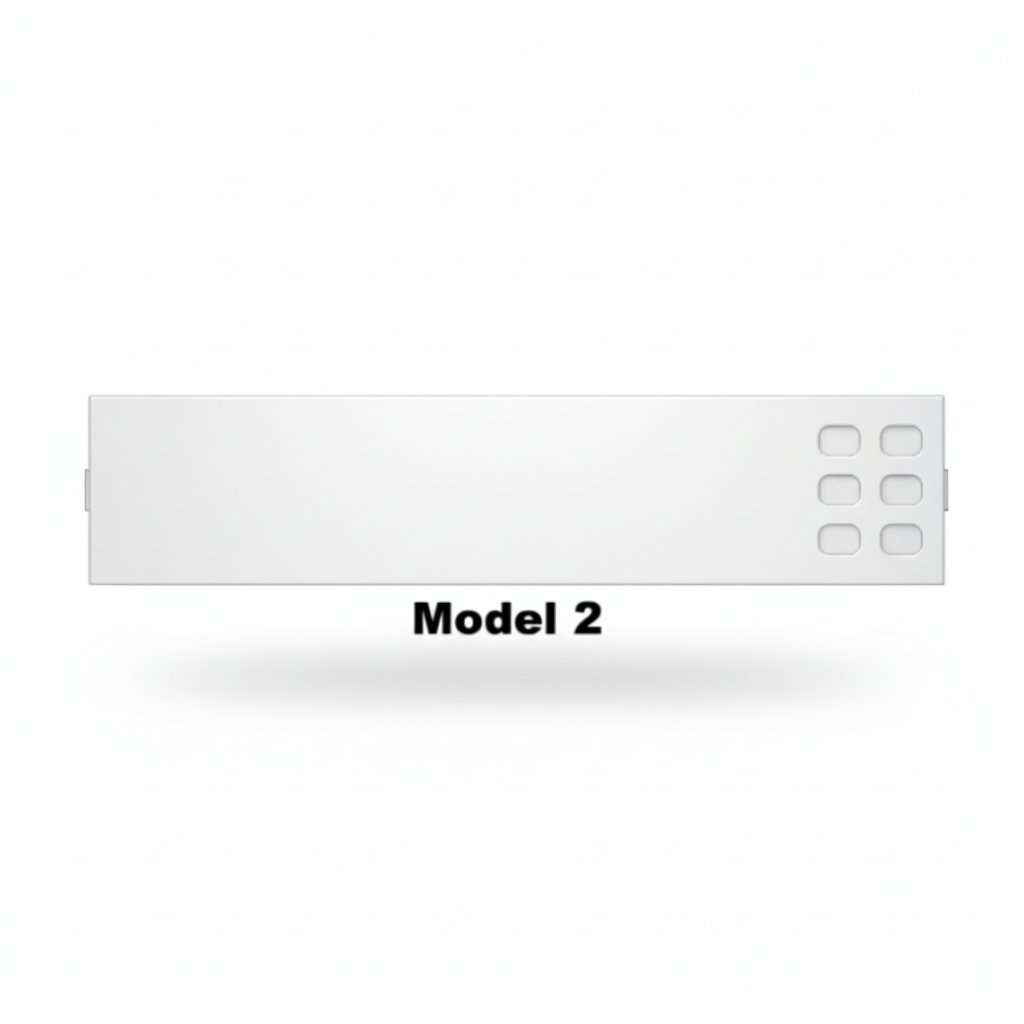

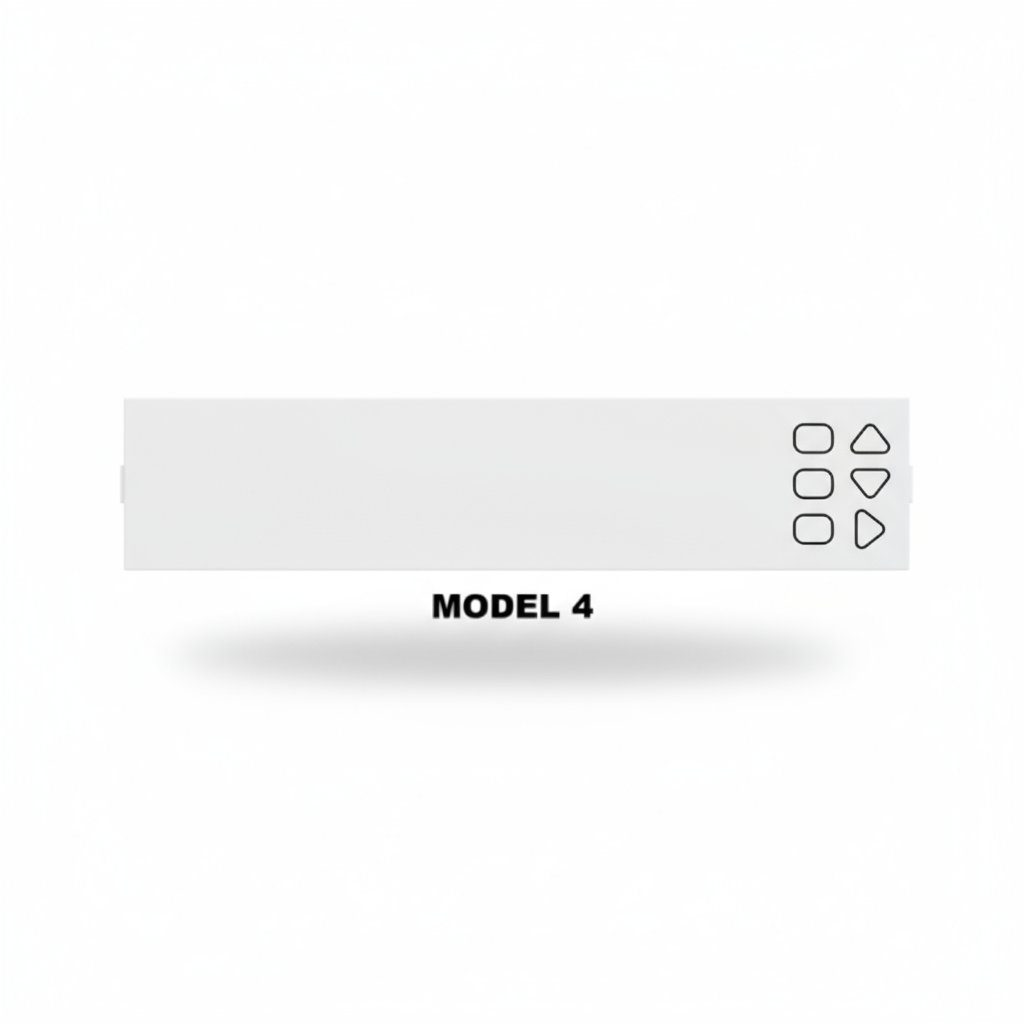

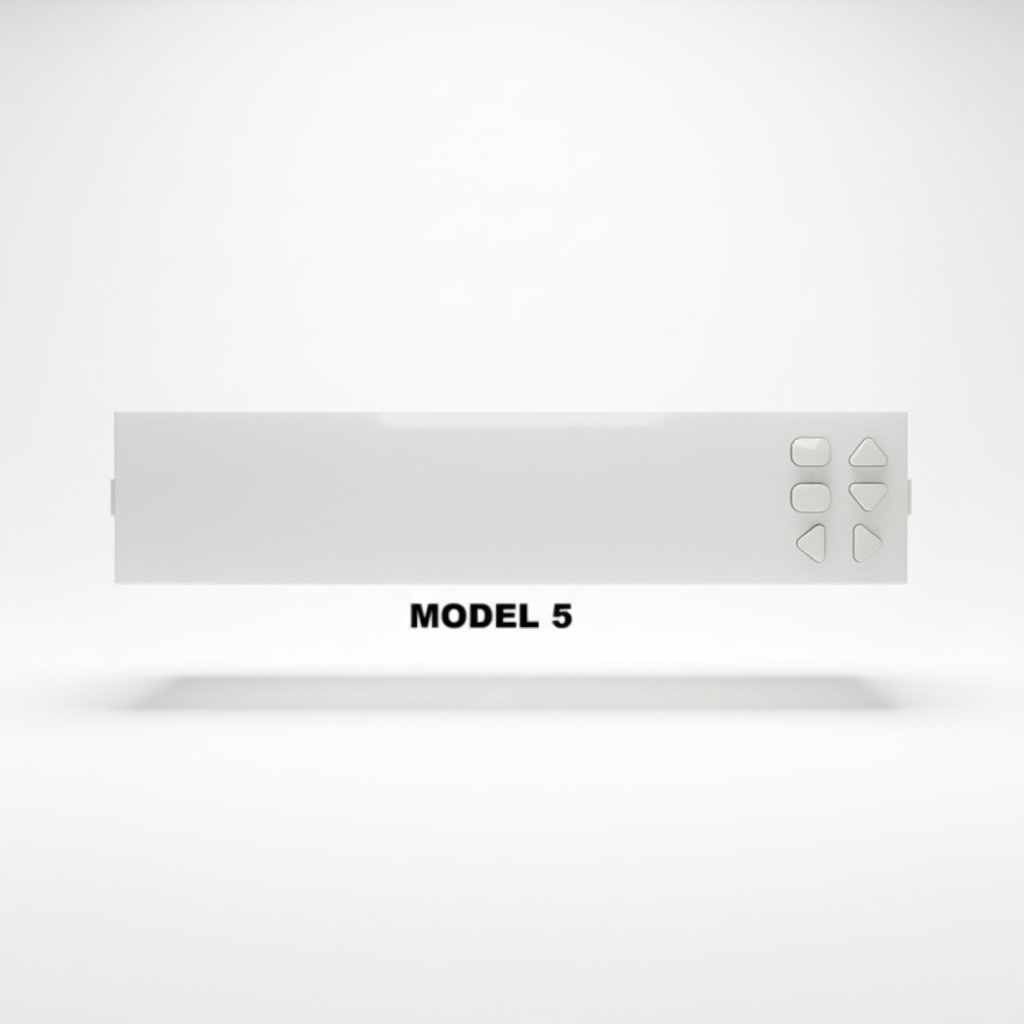

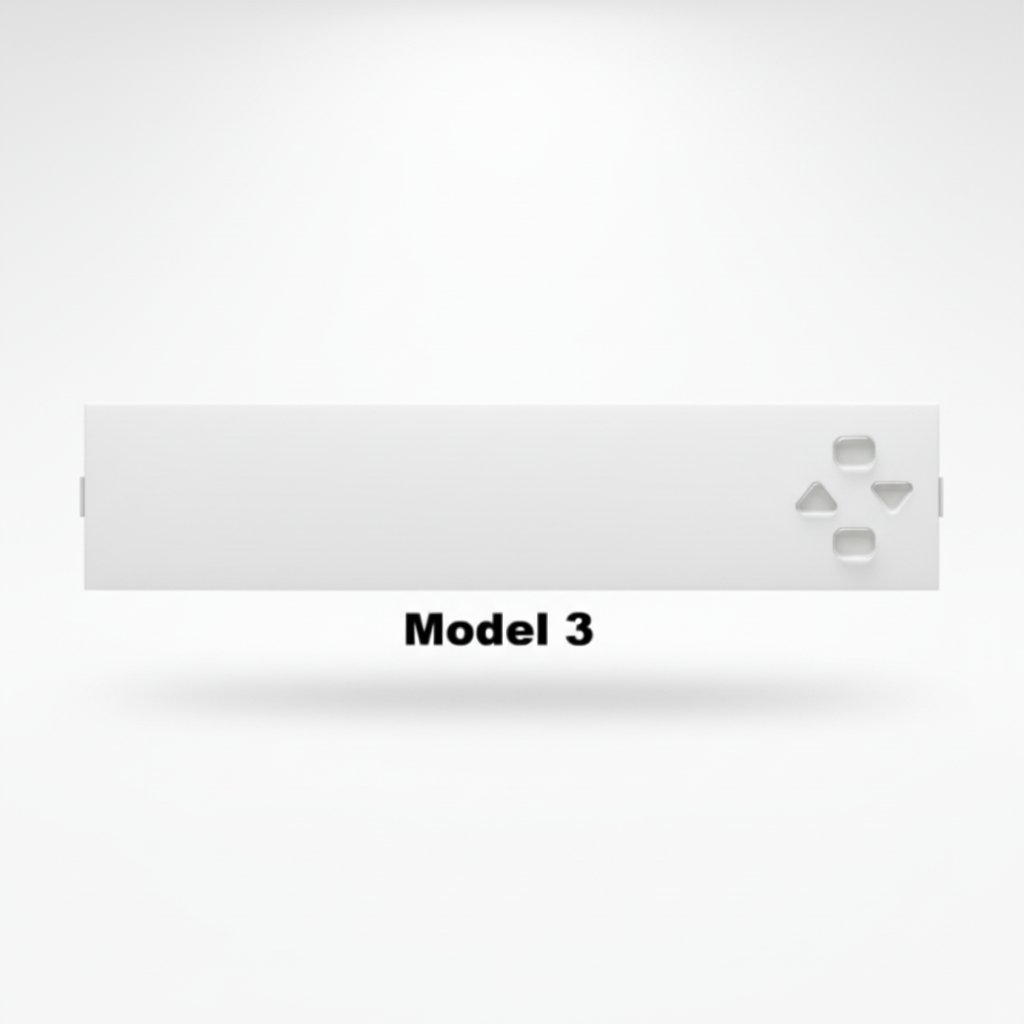

| Panel | Flat Panel, Model 1, Model 2, Model 3, Model 4, Model 5 |

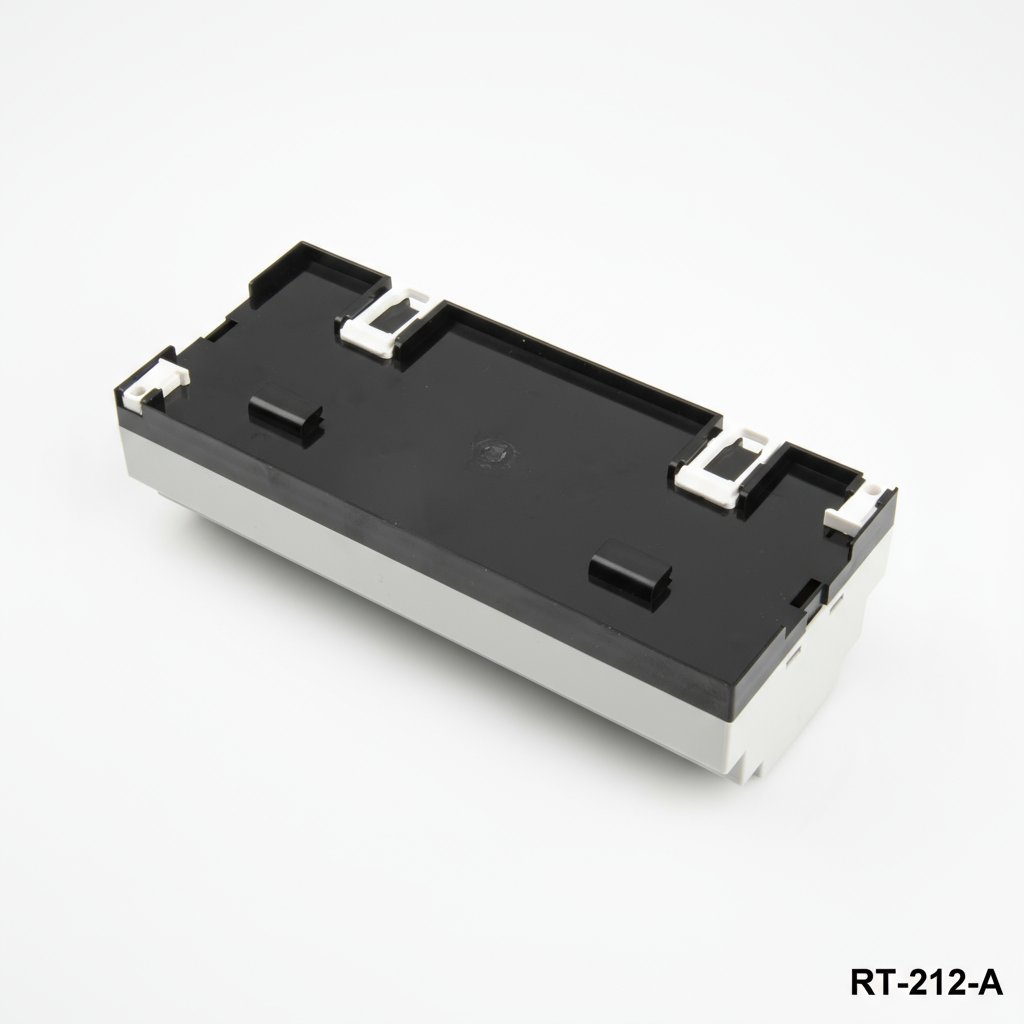

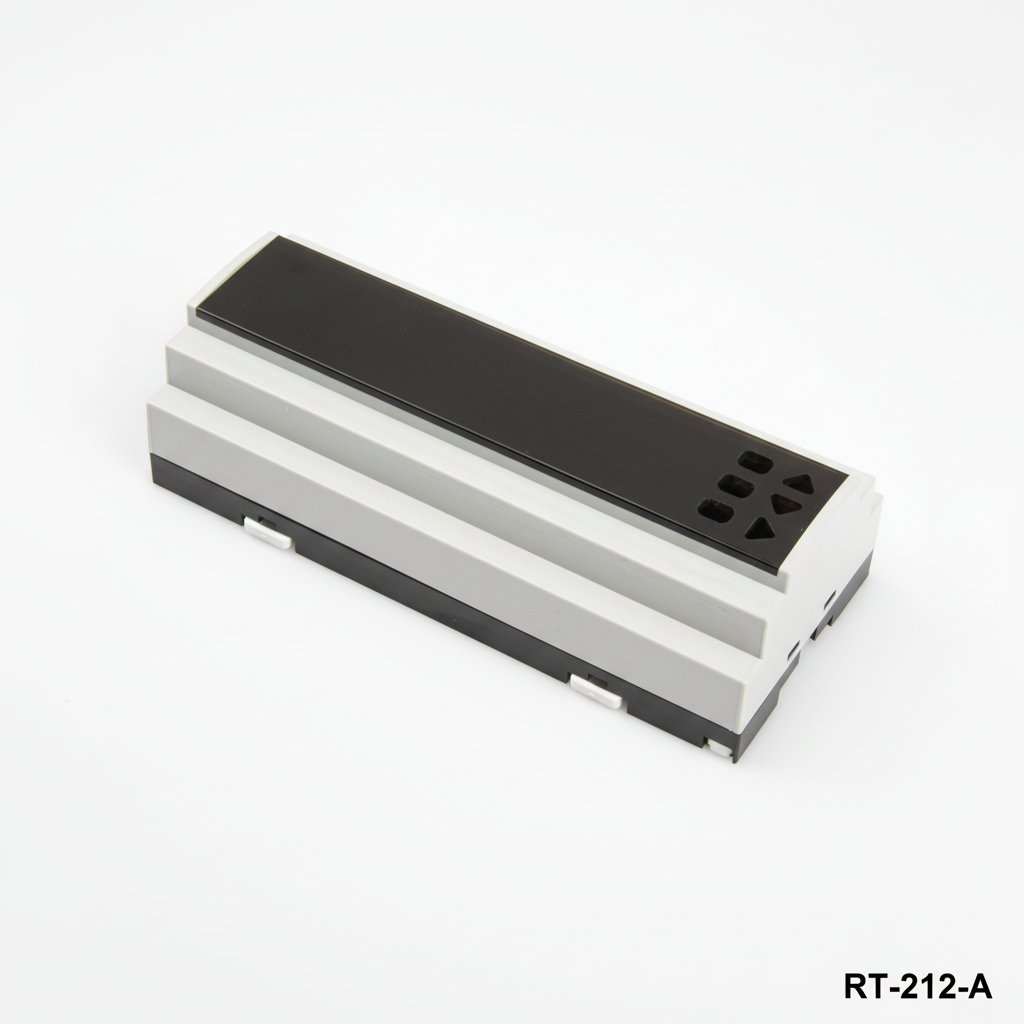

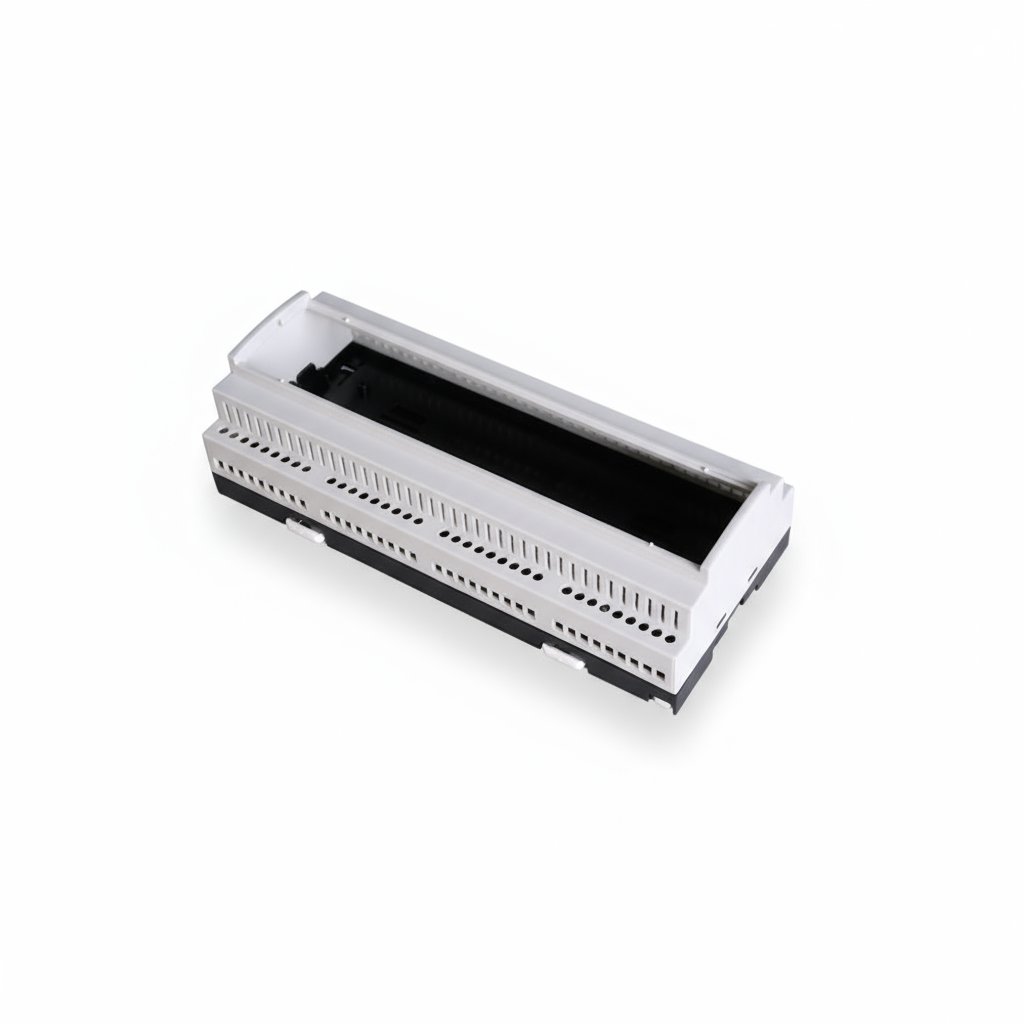

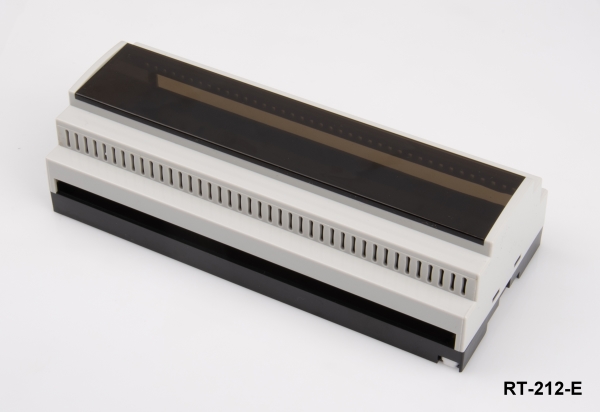

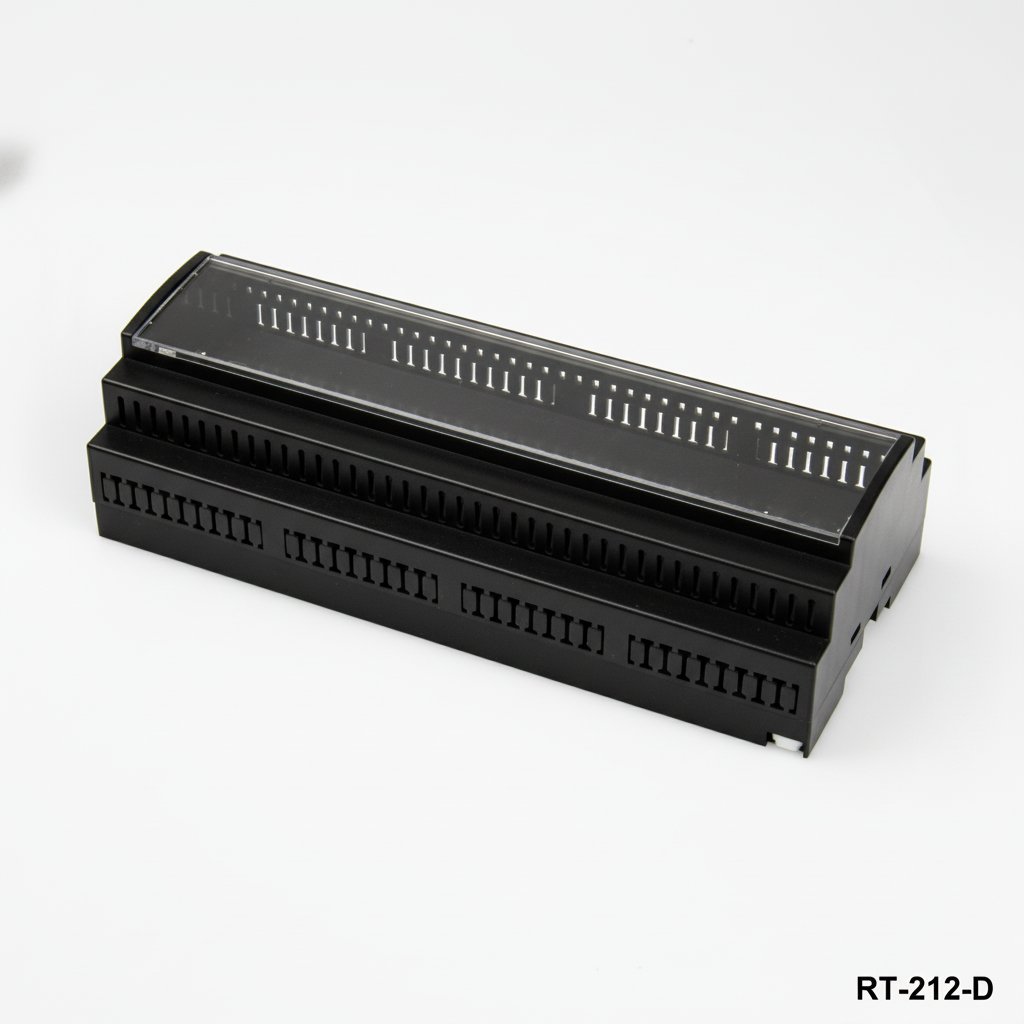

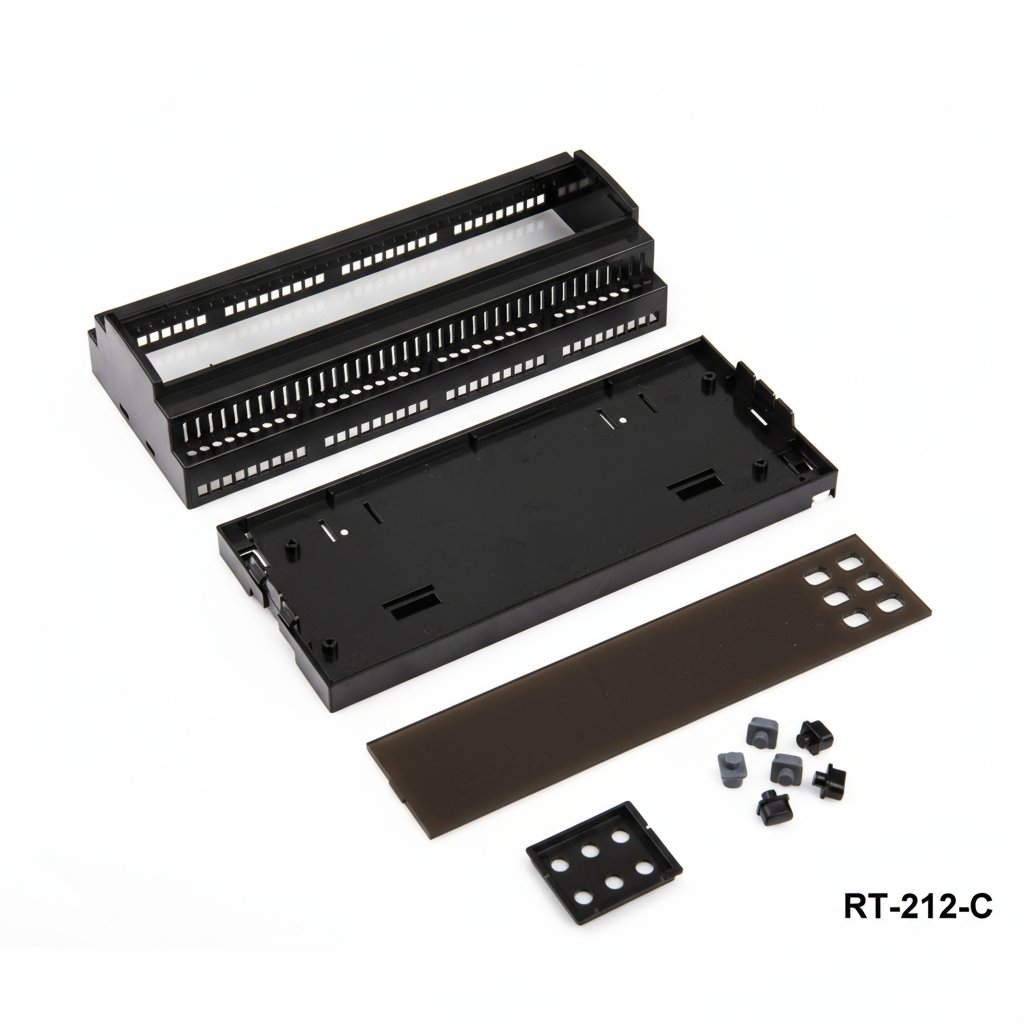

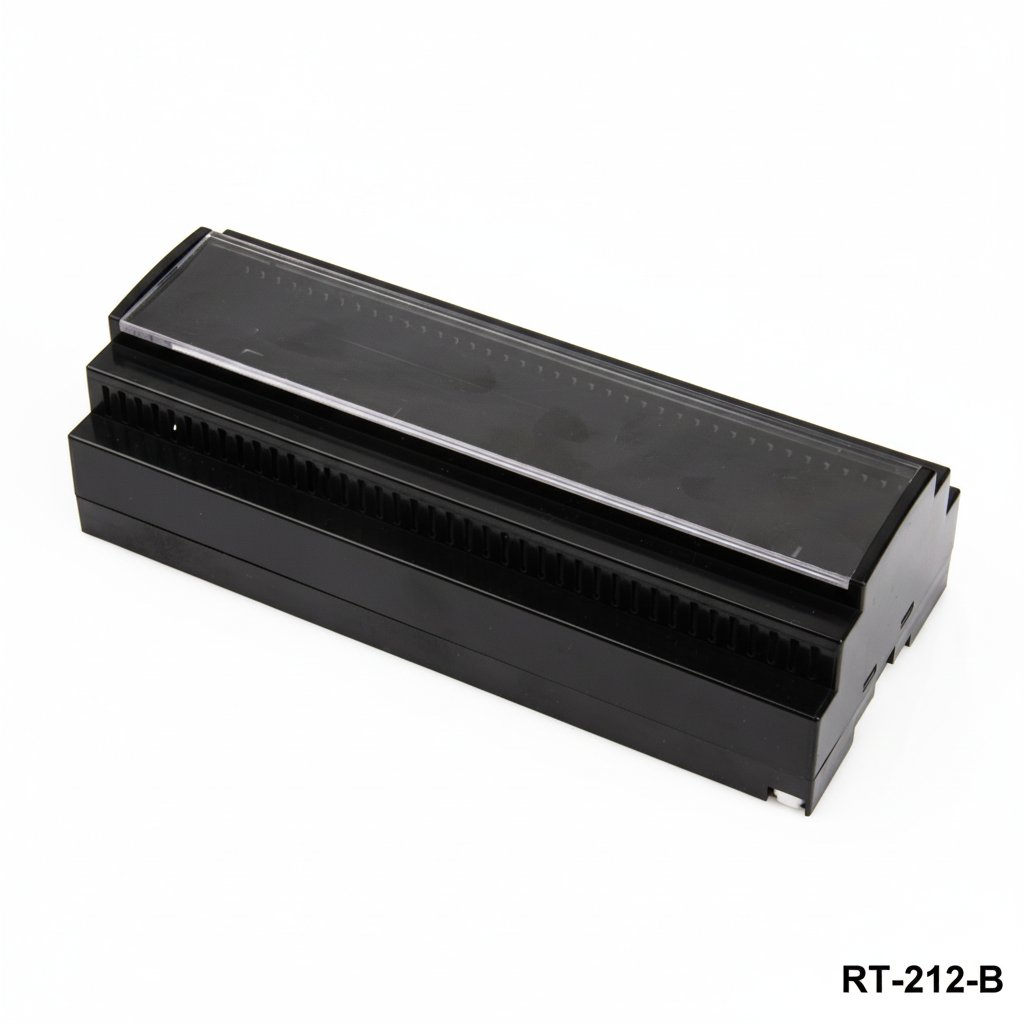

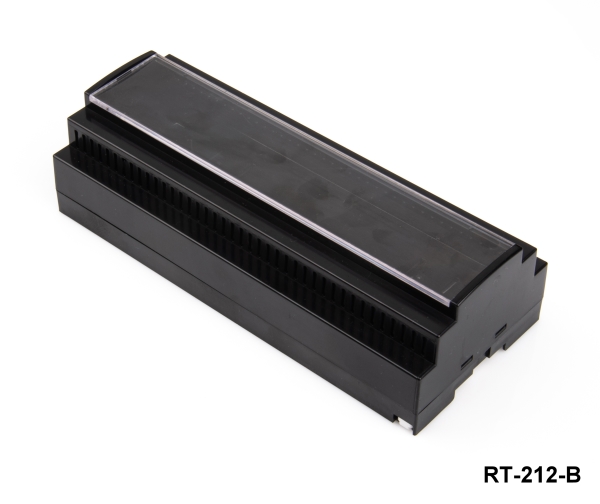

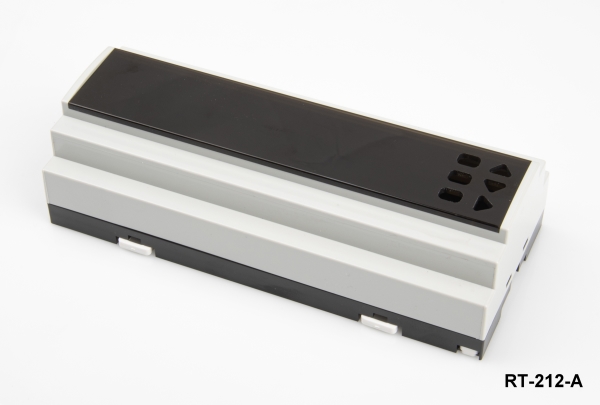

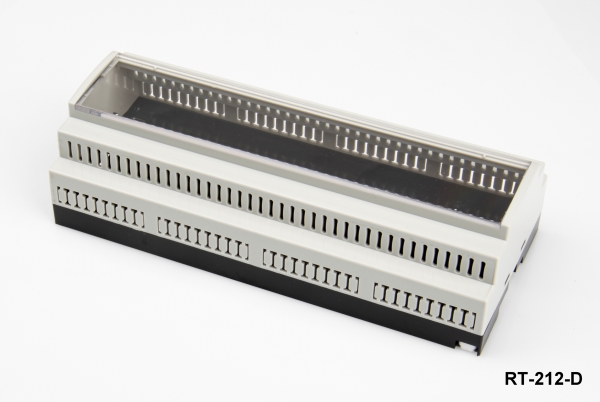

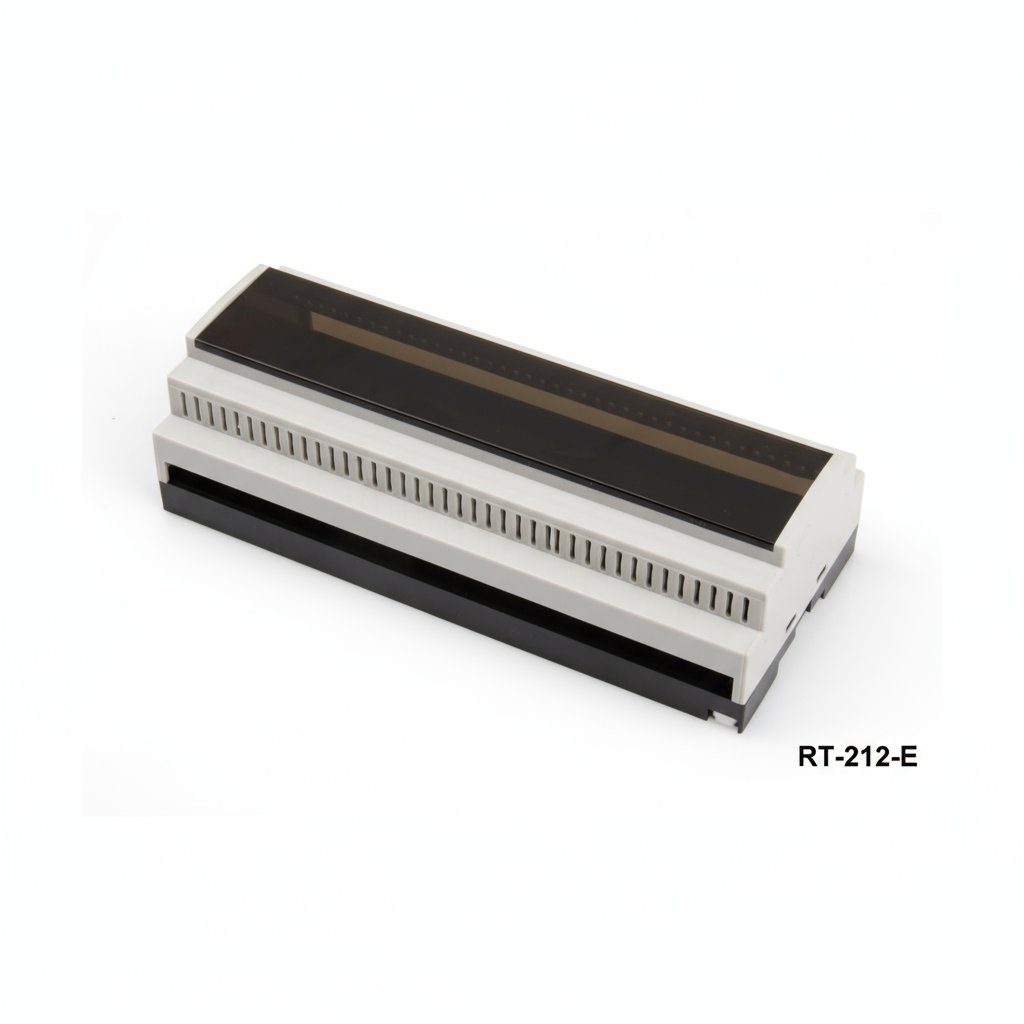

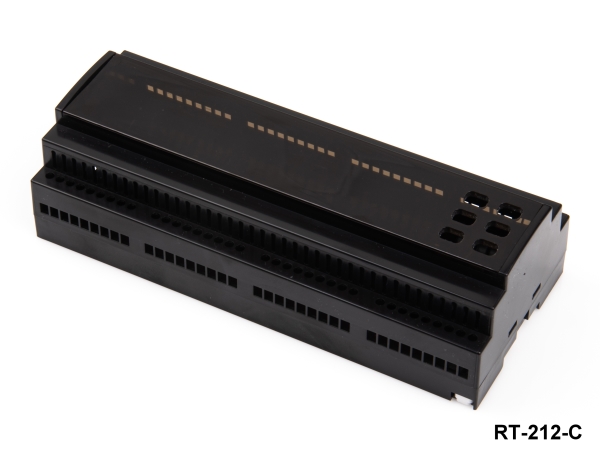

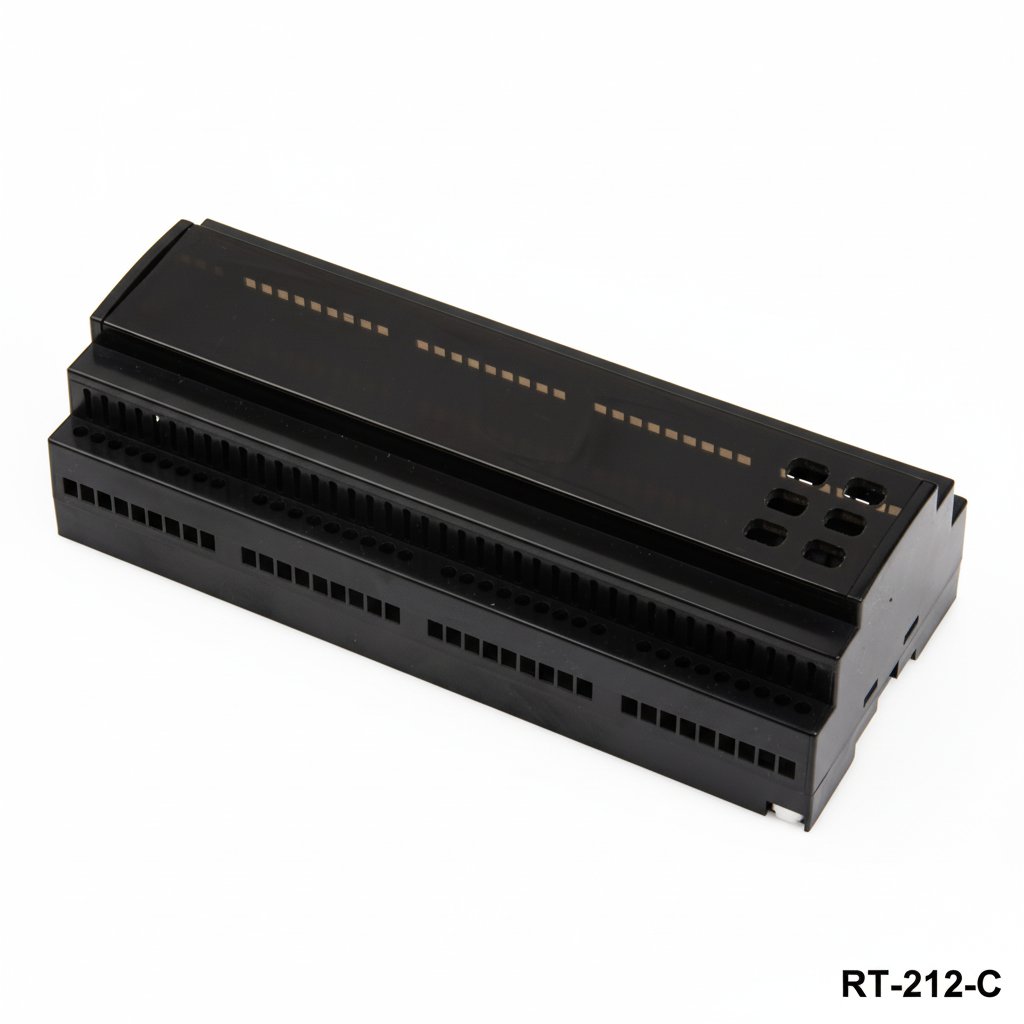

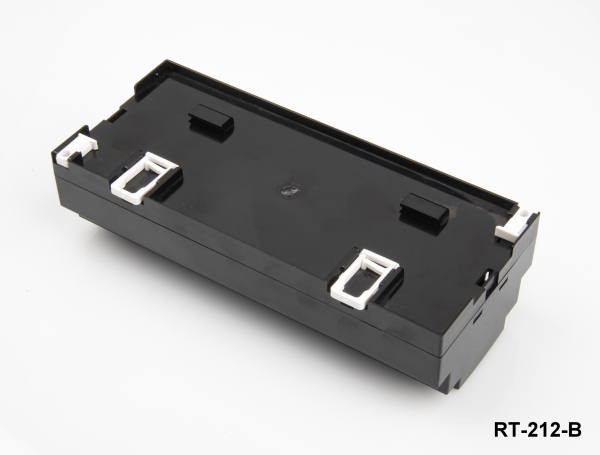

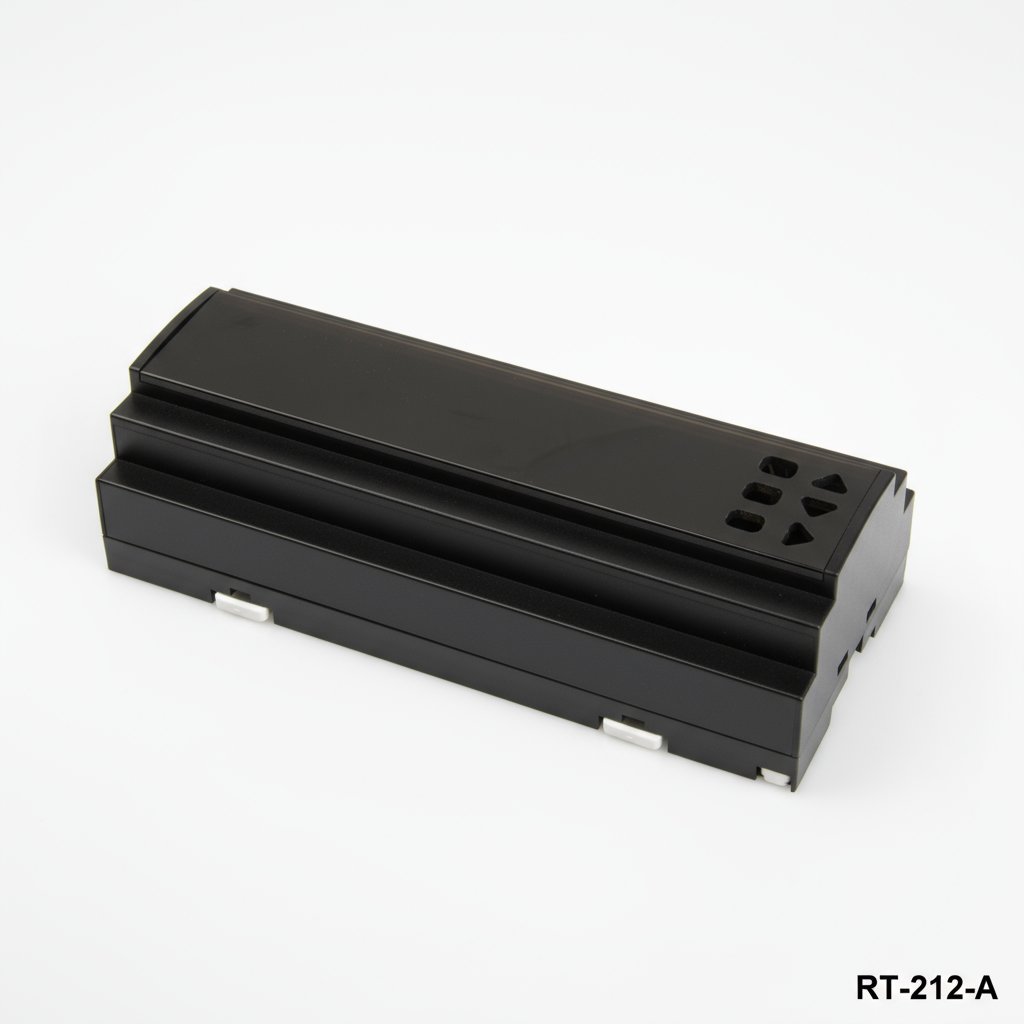

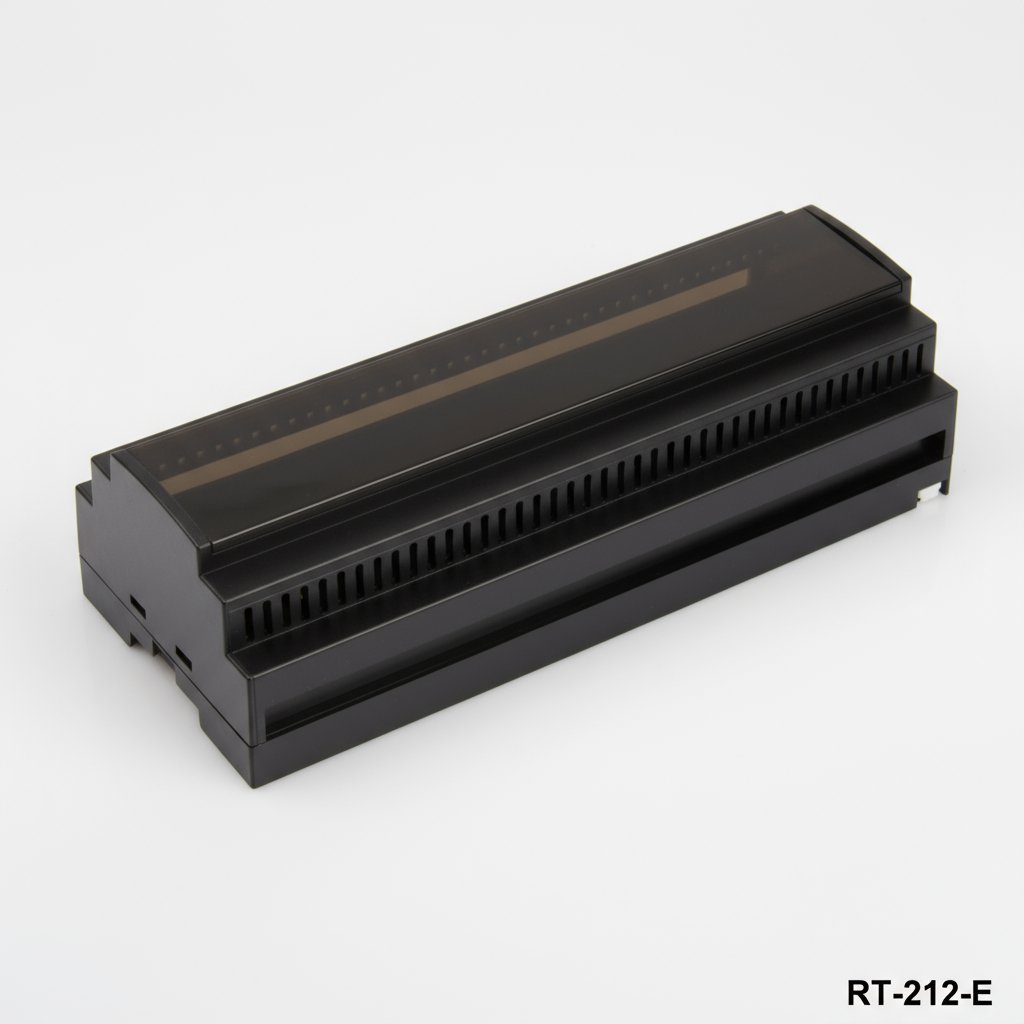

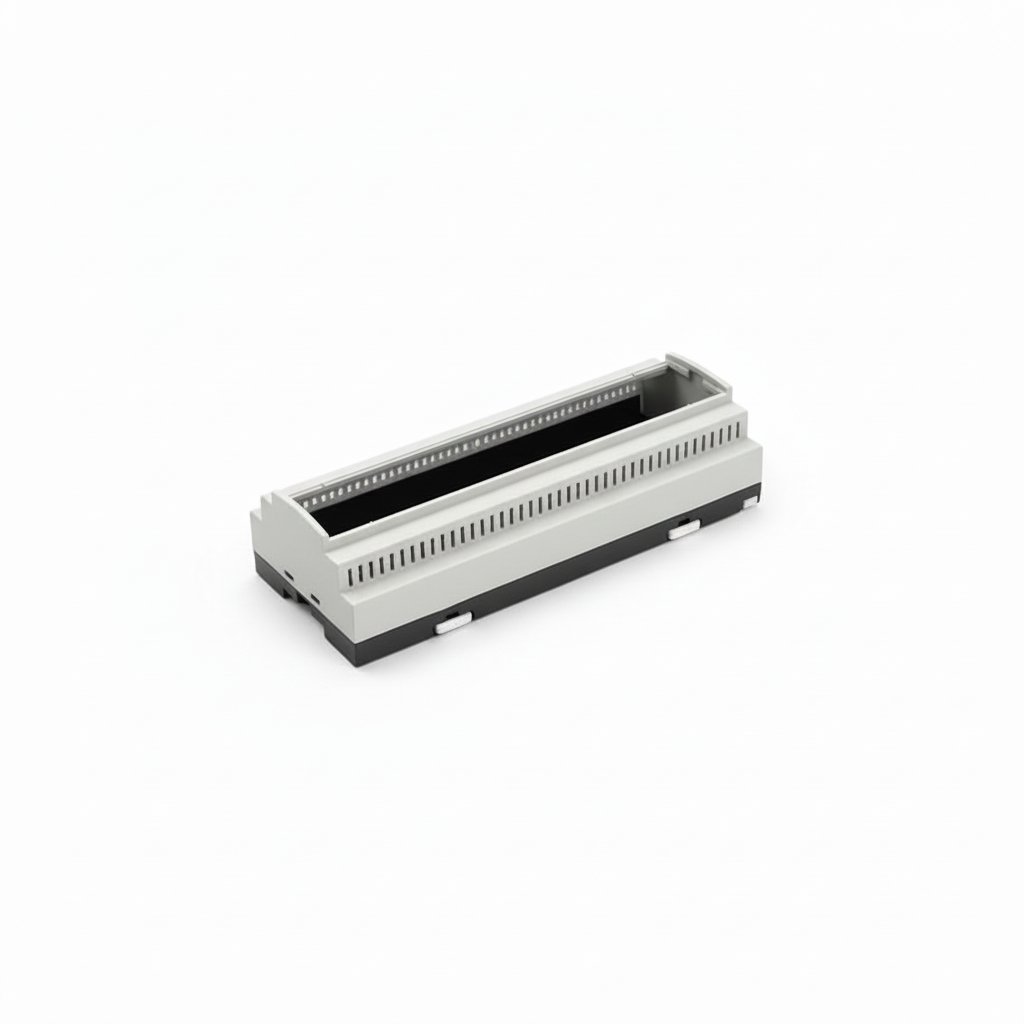

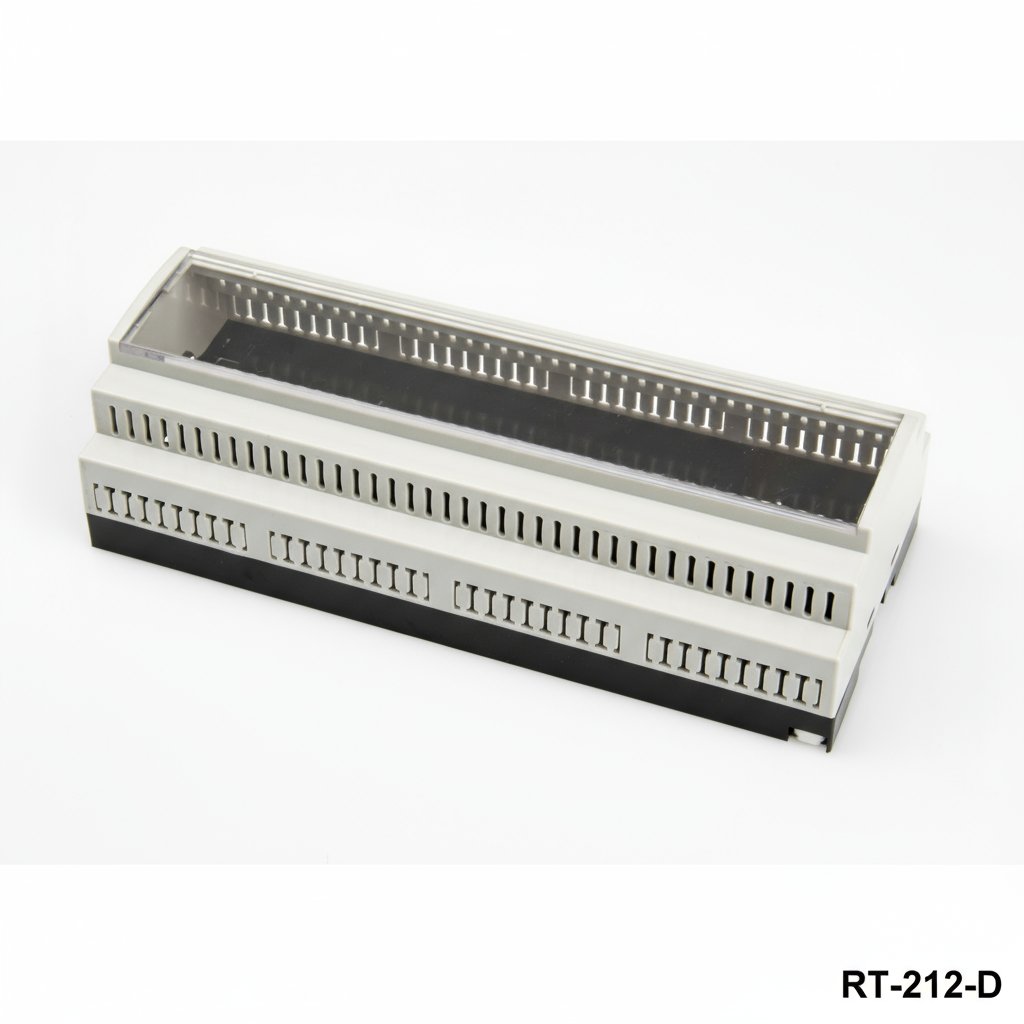

| Type | A-Closed, B-with Ventilation, C-For Screw Terminal, E-Open, D-For Socket Terminal |
| Material | PC/ABS/V0 |
| A (mm) | 212 |
| B (mm) | 90 |
| C (mm) | 59 |
| Operating Temperature | -30° / +70° |
| Units per box | 10 |
