RT-209-24 DIN Rail Enclosure
Designed to protect electrical and electronic devices in a variety of applications including time relays, automation, IOT, testing and measuring, smart home, and KNX.
Barcode :

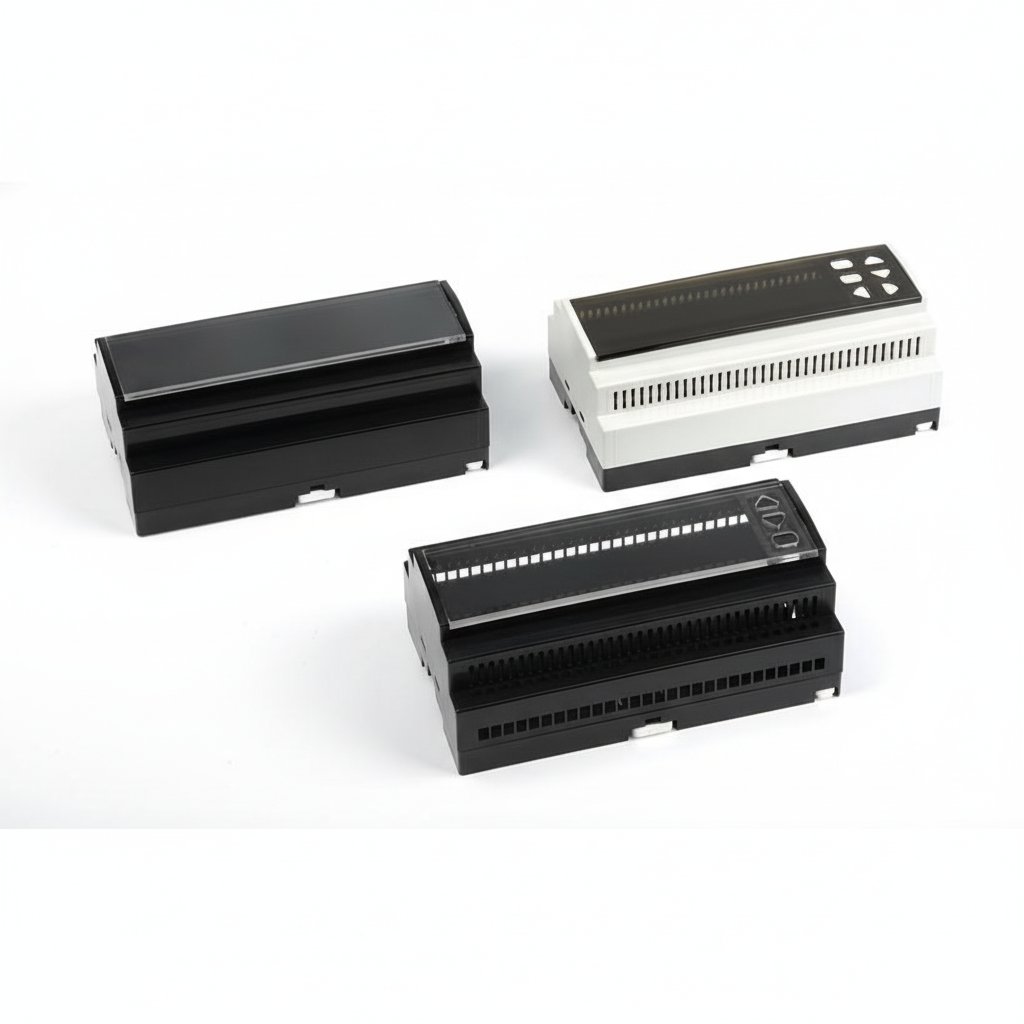

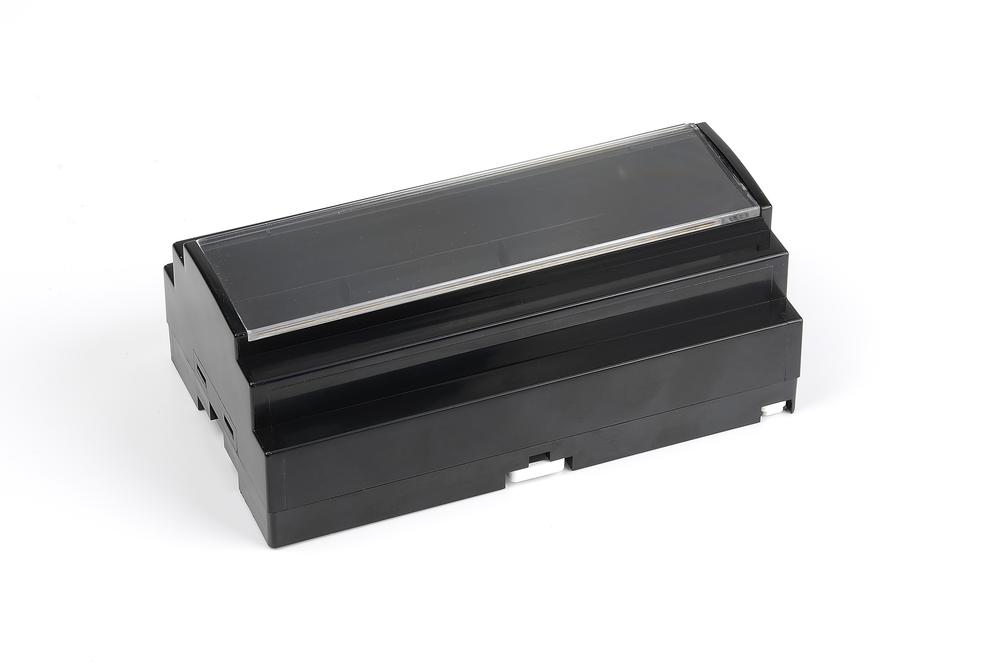

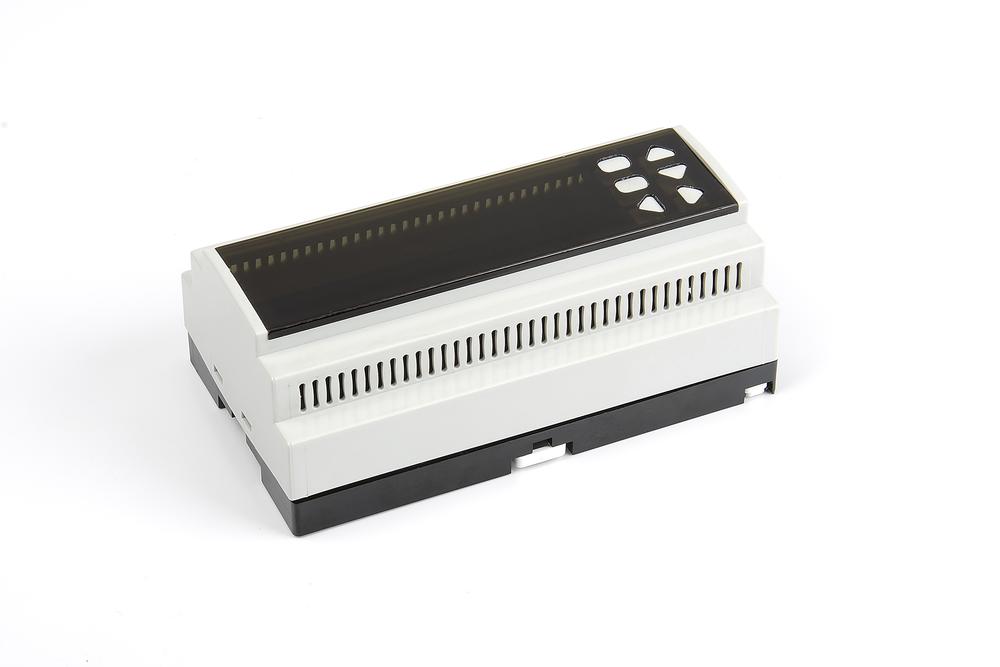

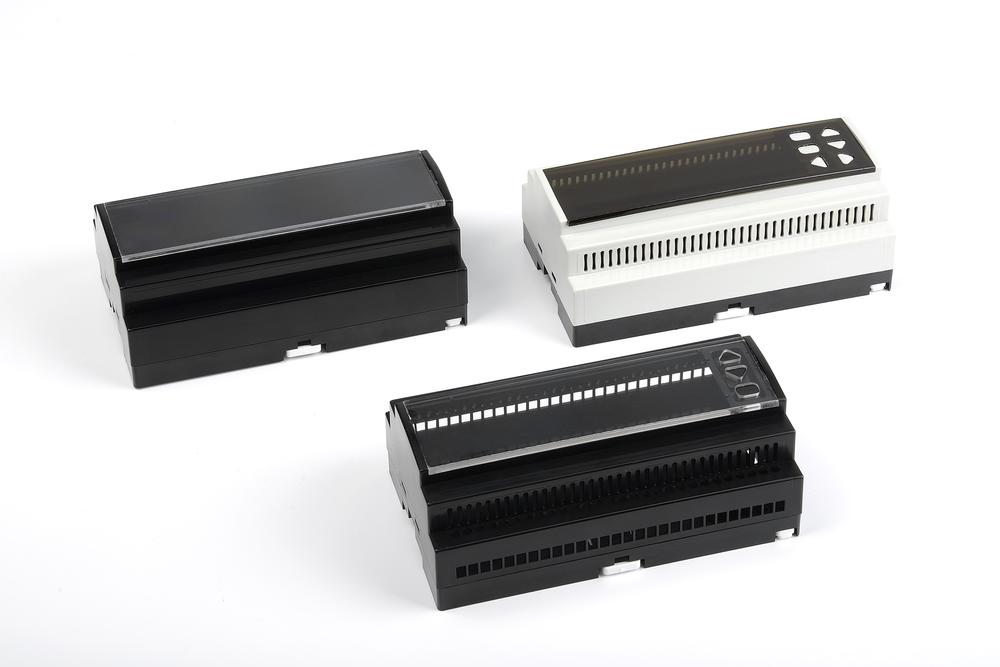

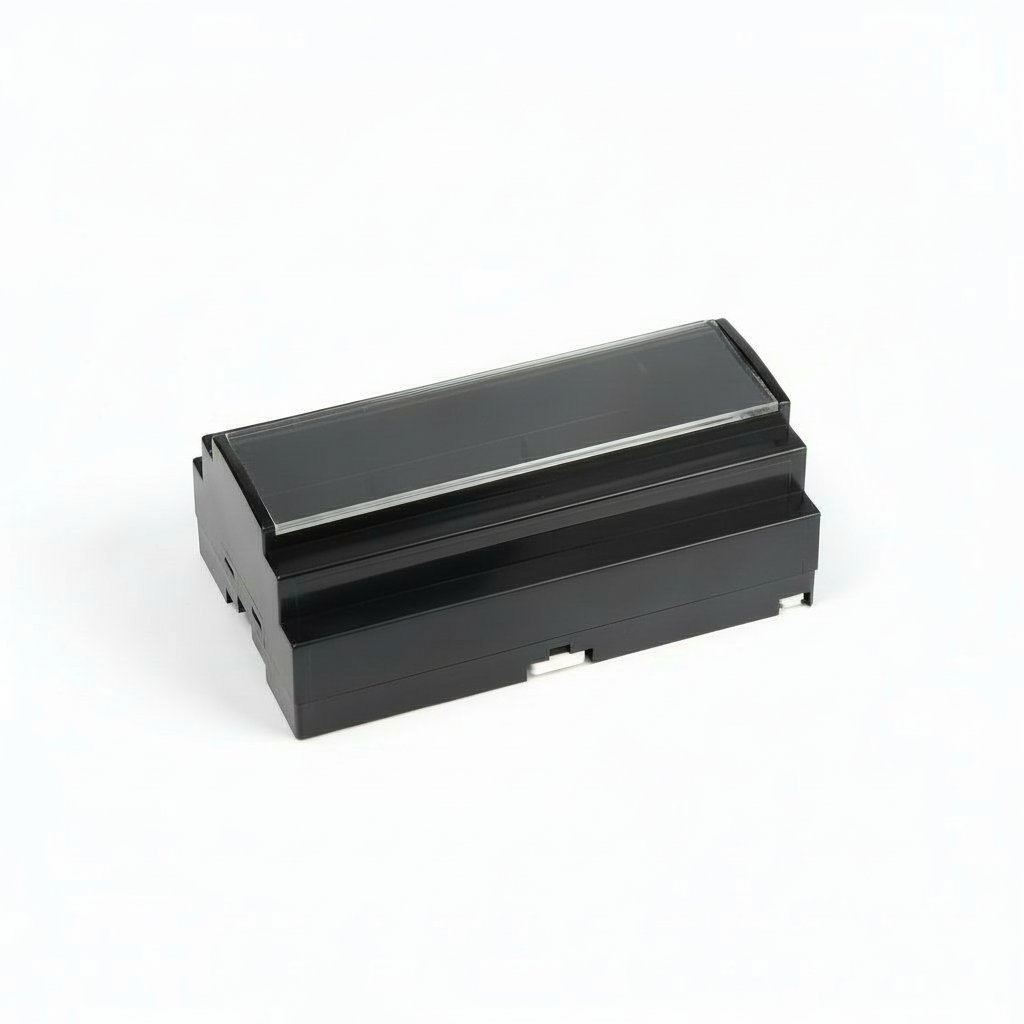

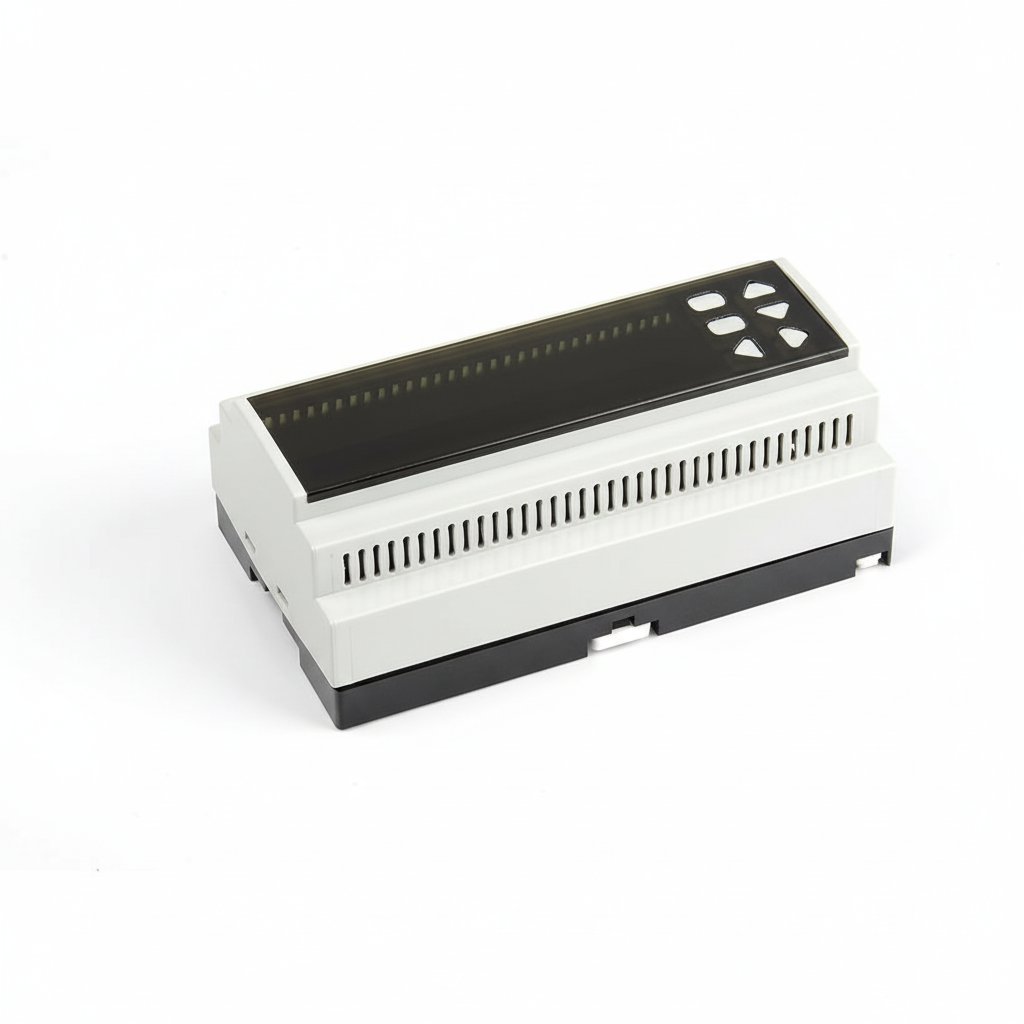

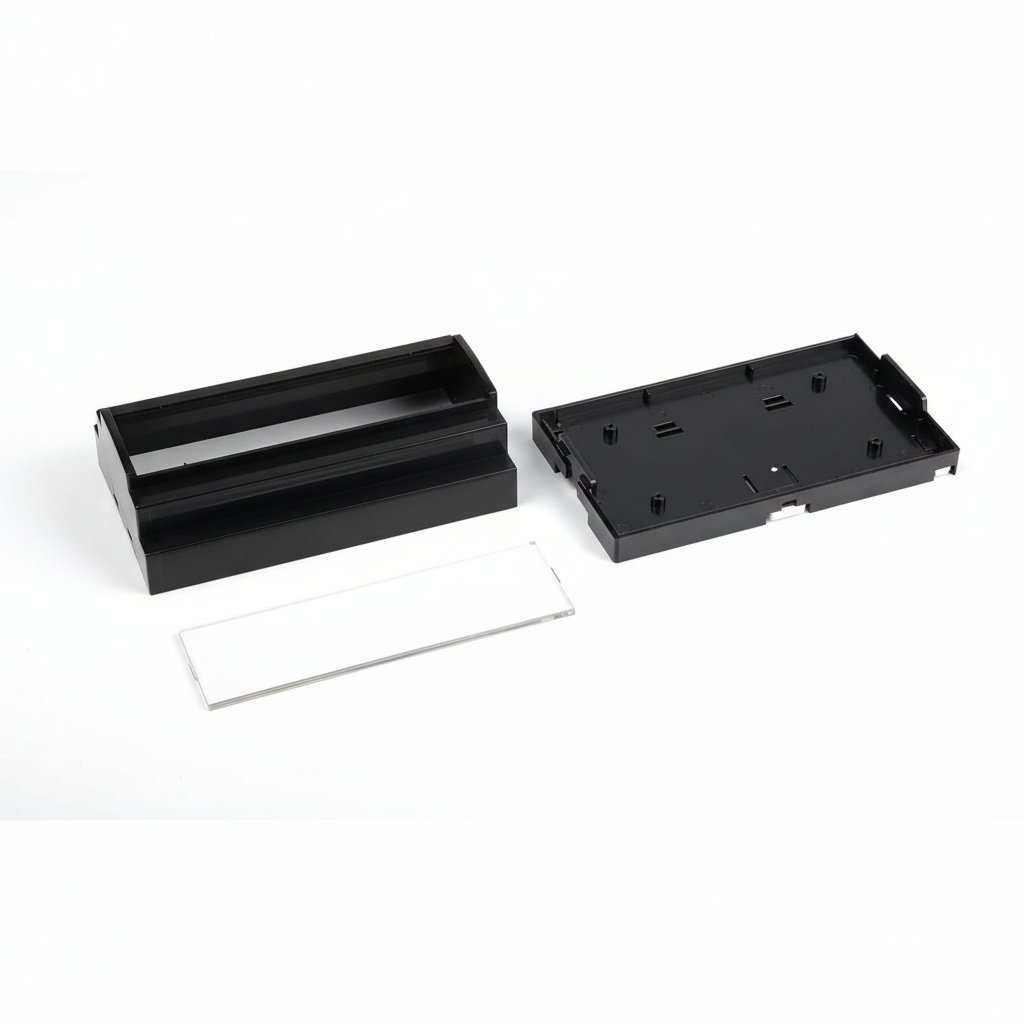

8698651435177The RT-209 Din Rail Enclosure is designed to protect electric and electronic devices. Made of high-quality UL94-V0 material, this enclosure provides durability and resistance to fire. With dimensions of 157.4mm x 91mm x 58.4mm, it is compatible with nine modules and offers 5 different body options for the terminal outputs. The enclosure is available in light gray or black color, and it can also be customized with transparent or smokey panel color options and panel design.
This versatile enclosure is ideal for use in a variety of applications, including time relays, automation, IOT, testing and measuring, smart homes, and KNX.
Specifications
| Color | Light Gray, Black |
| Panel Color | Transparent Panel, Smoke Panel |

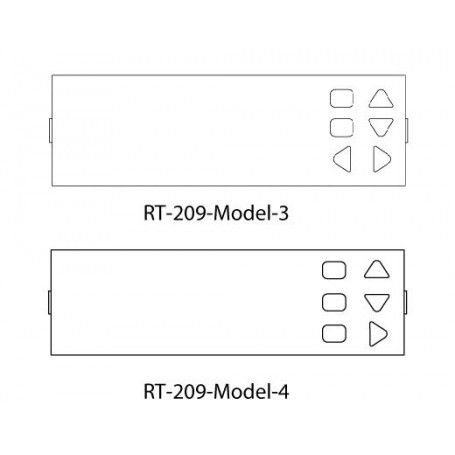

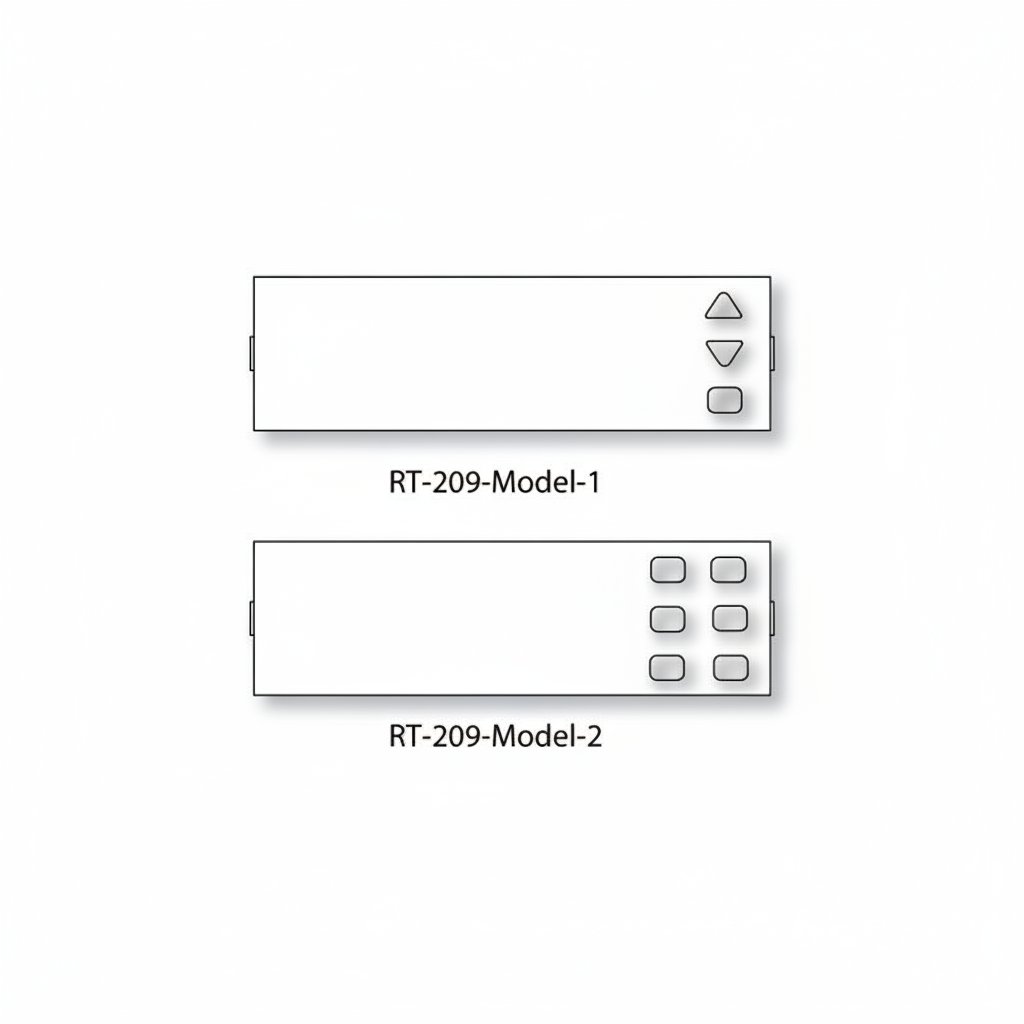

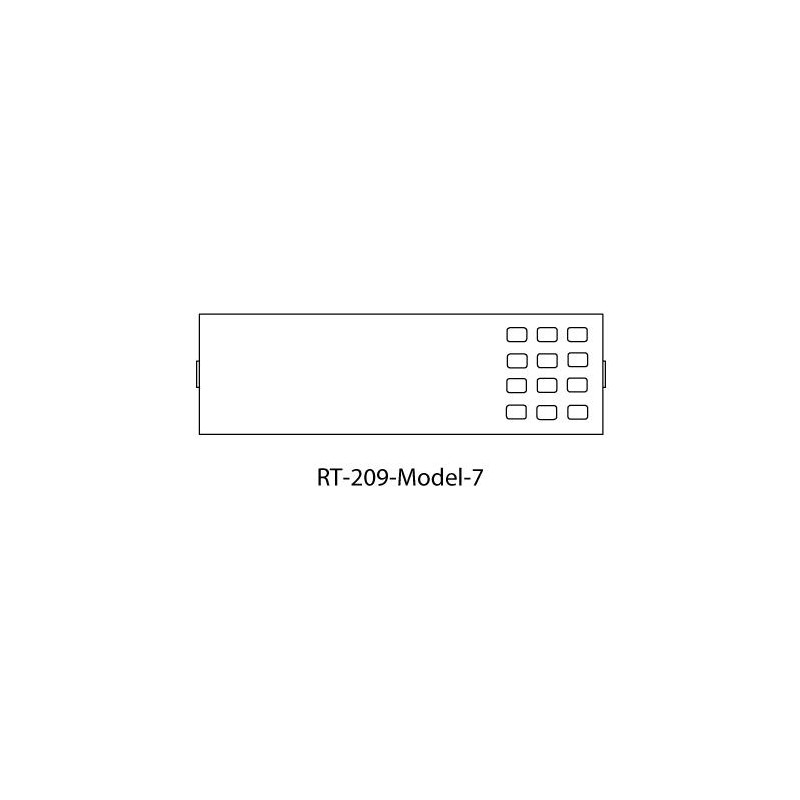

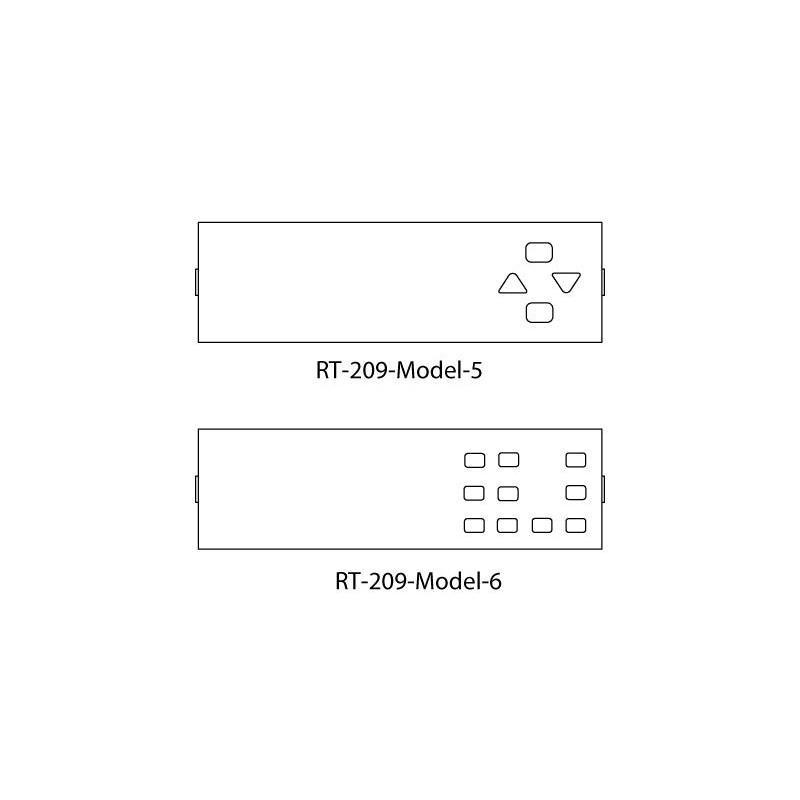

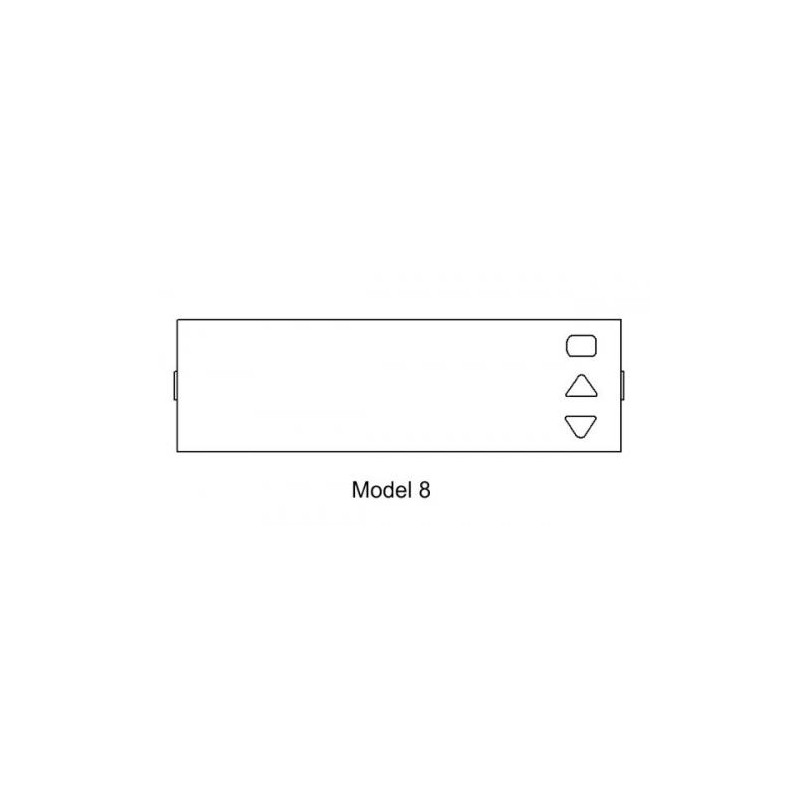

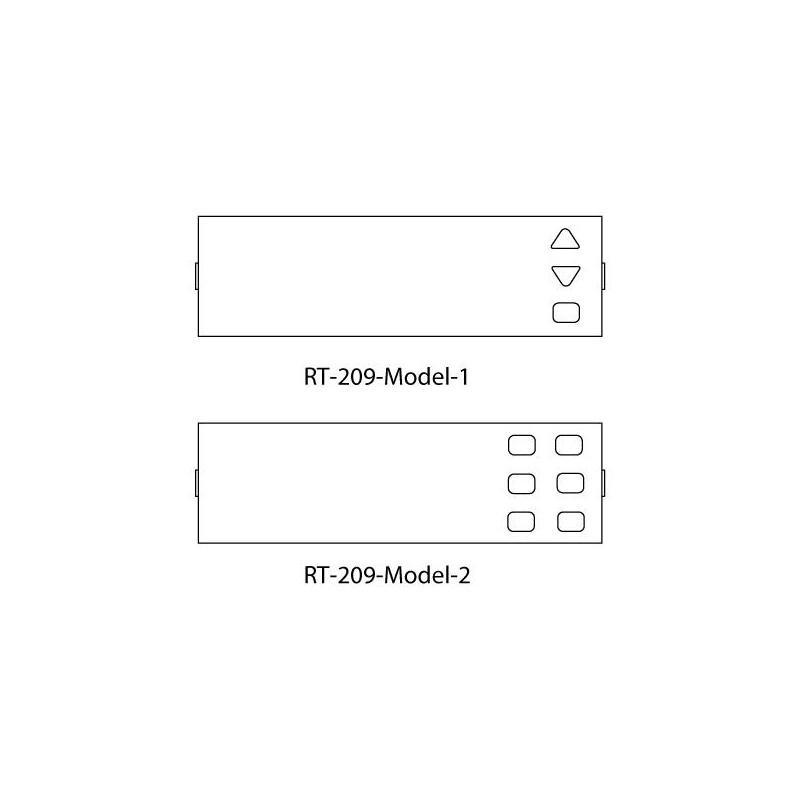

| Panel | Flat Panel, Model 1, Model 2, Model 3, Model 4, Model 5, Model 6, Model 7, Model 8 |

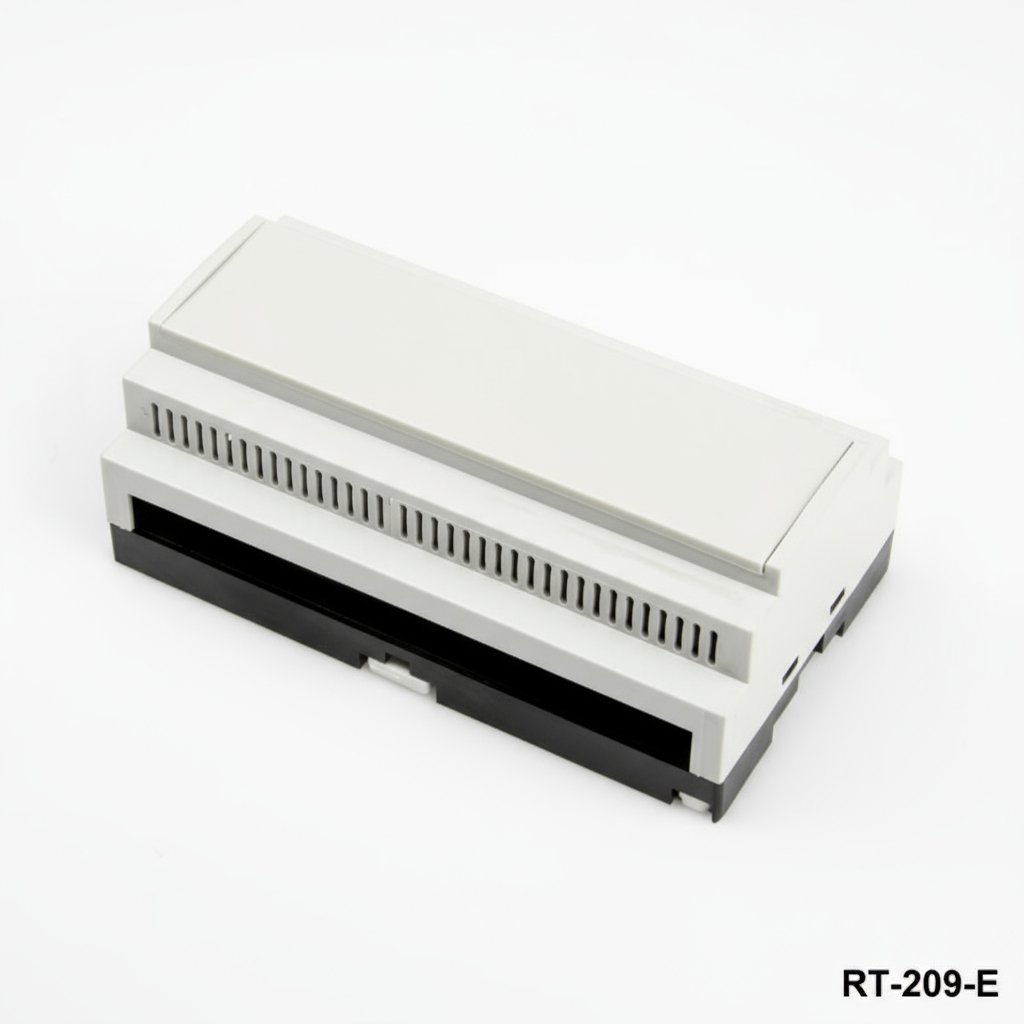

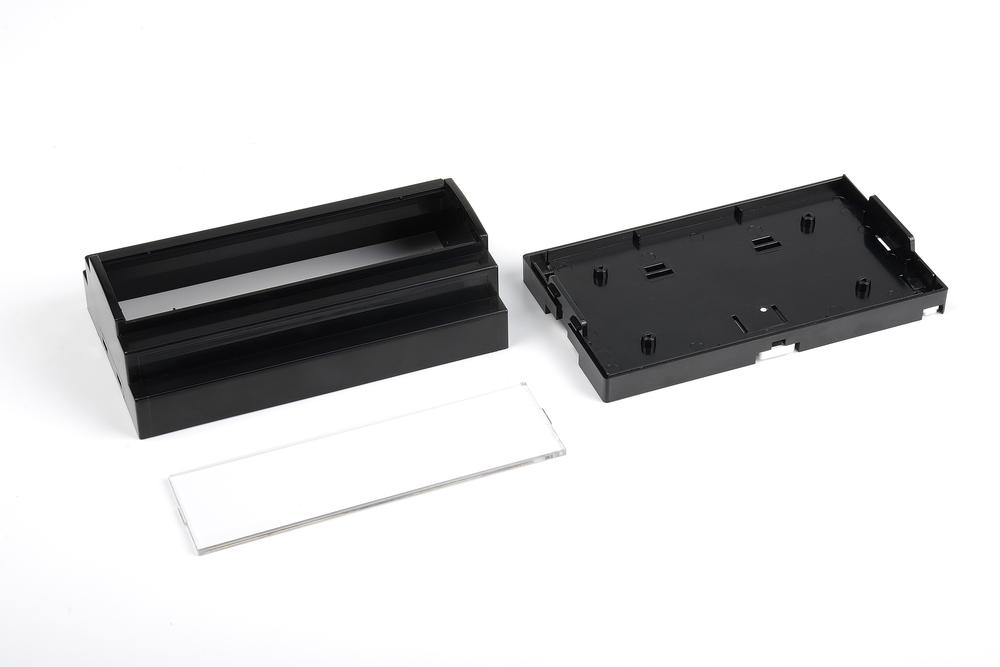

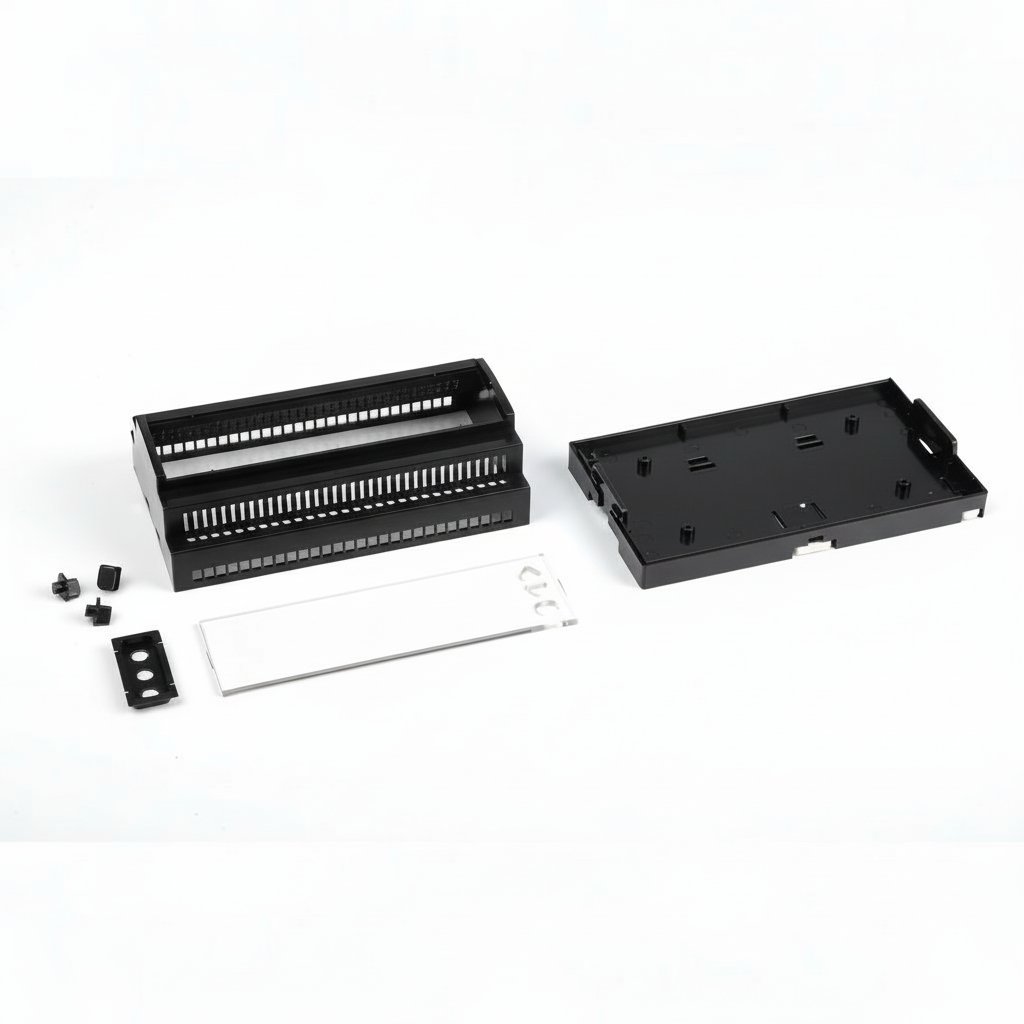

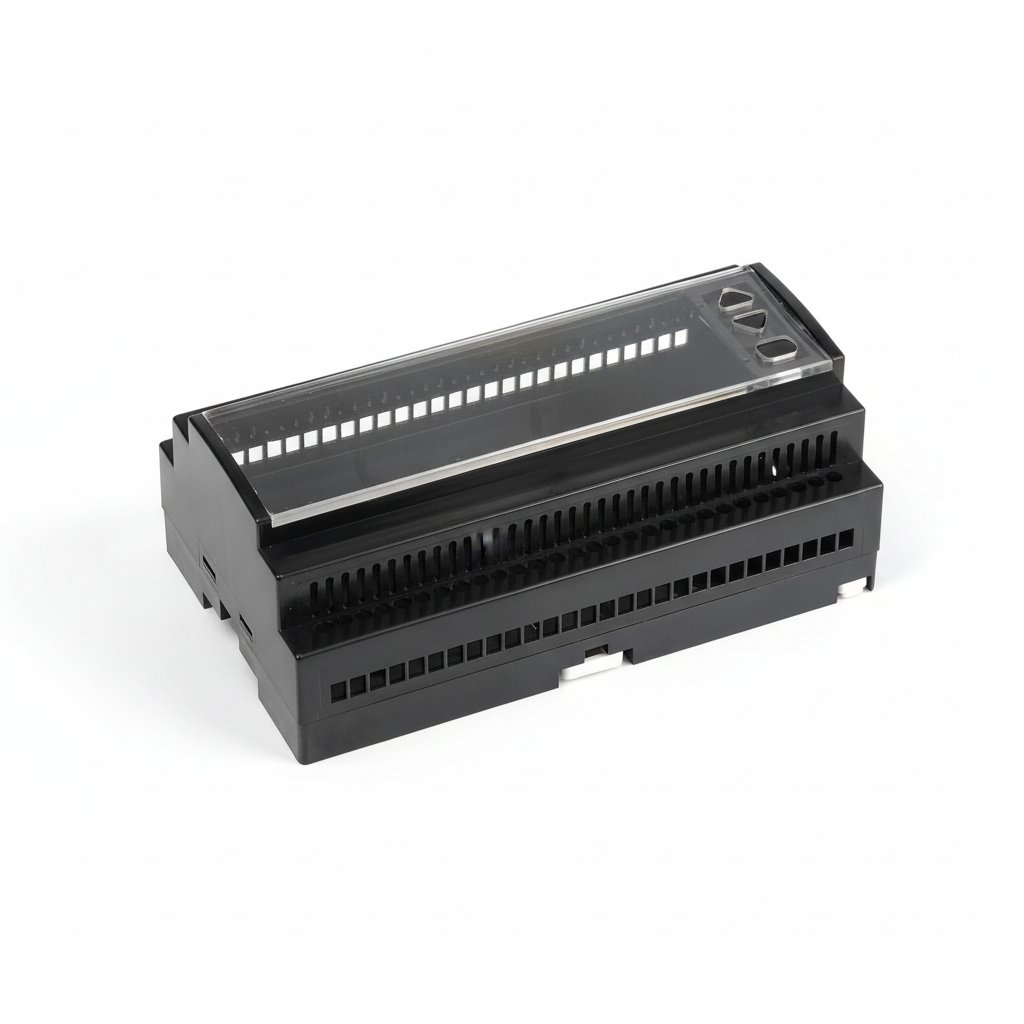

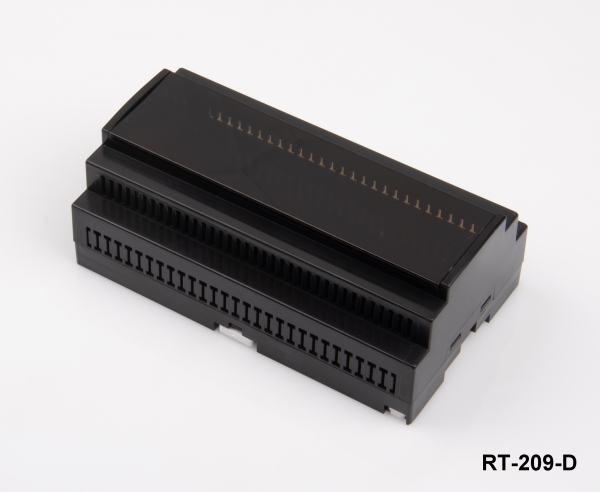

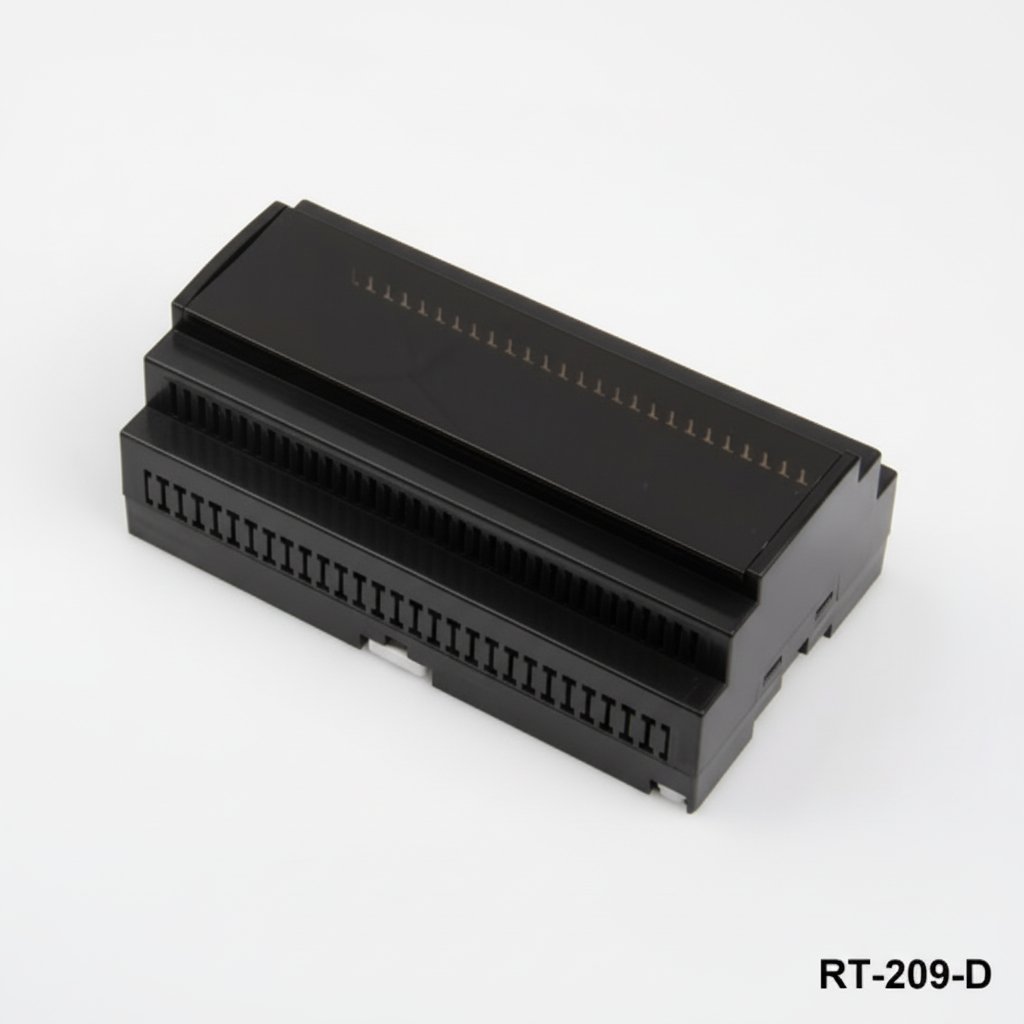

| Type | A-Closed, B-with Ventilation, C-For Screw Terminal, E-Open, D-For Socket Terminal |
| Material | PC/ABS/V0 |
| A (mm) | 157.4 |
| B (mm) | 91 |
| C (mm) | 58.4 |
| Operating Temperature | -30° / +70° |
| Units per box | 10 |
