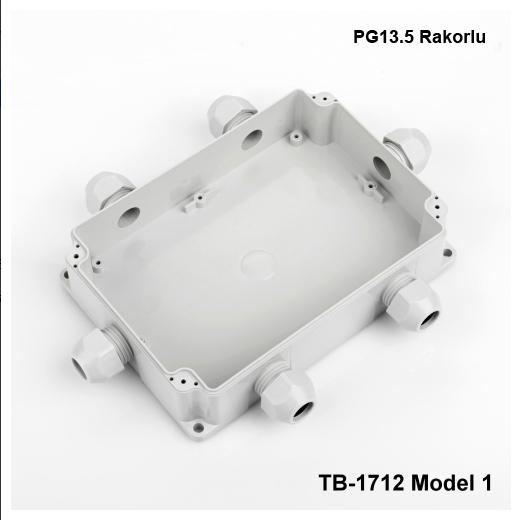

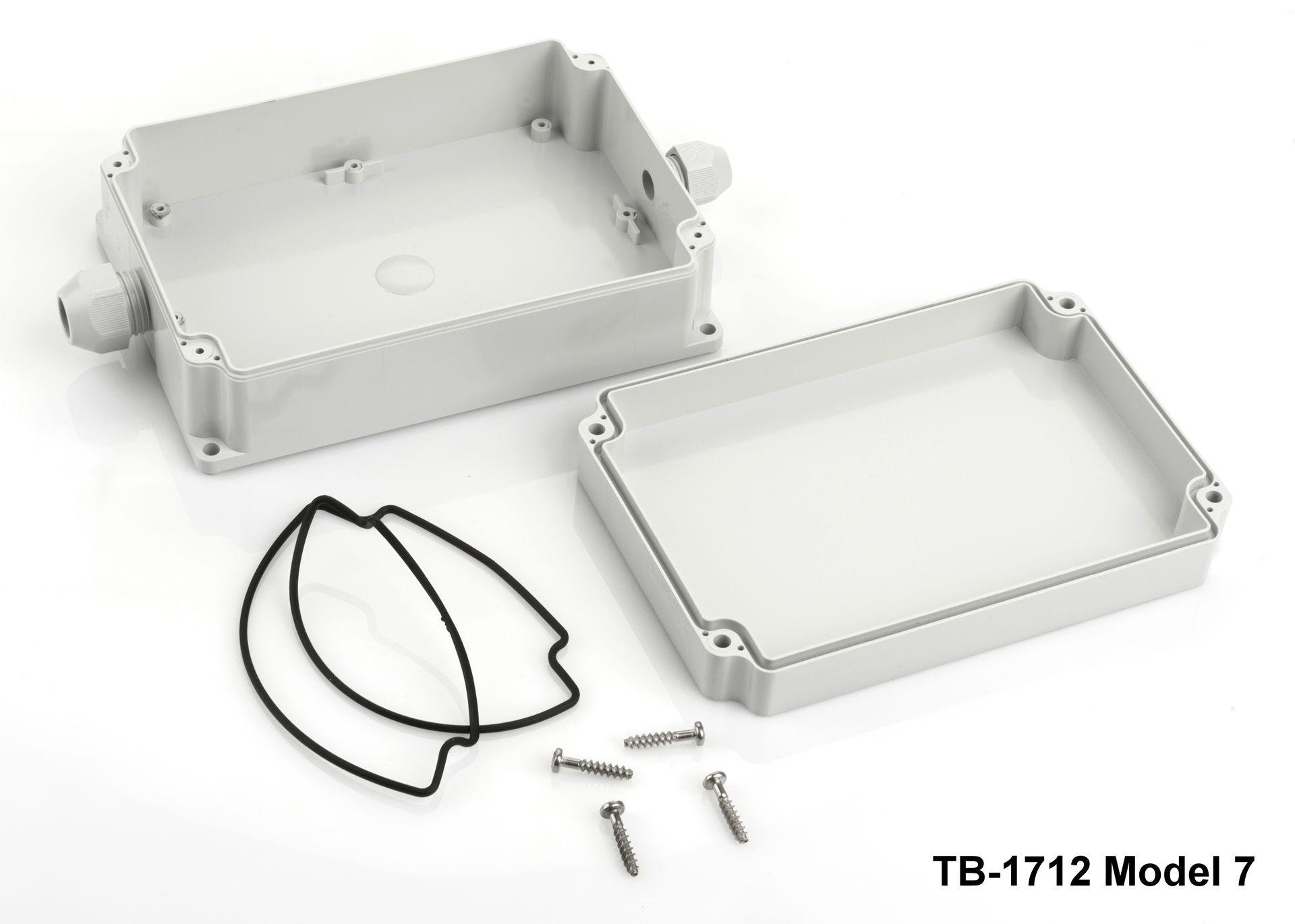

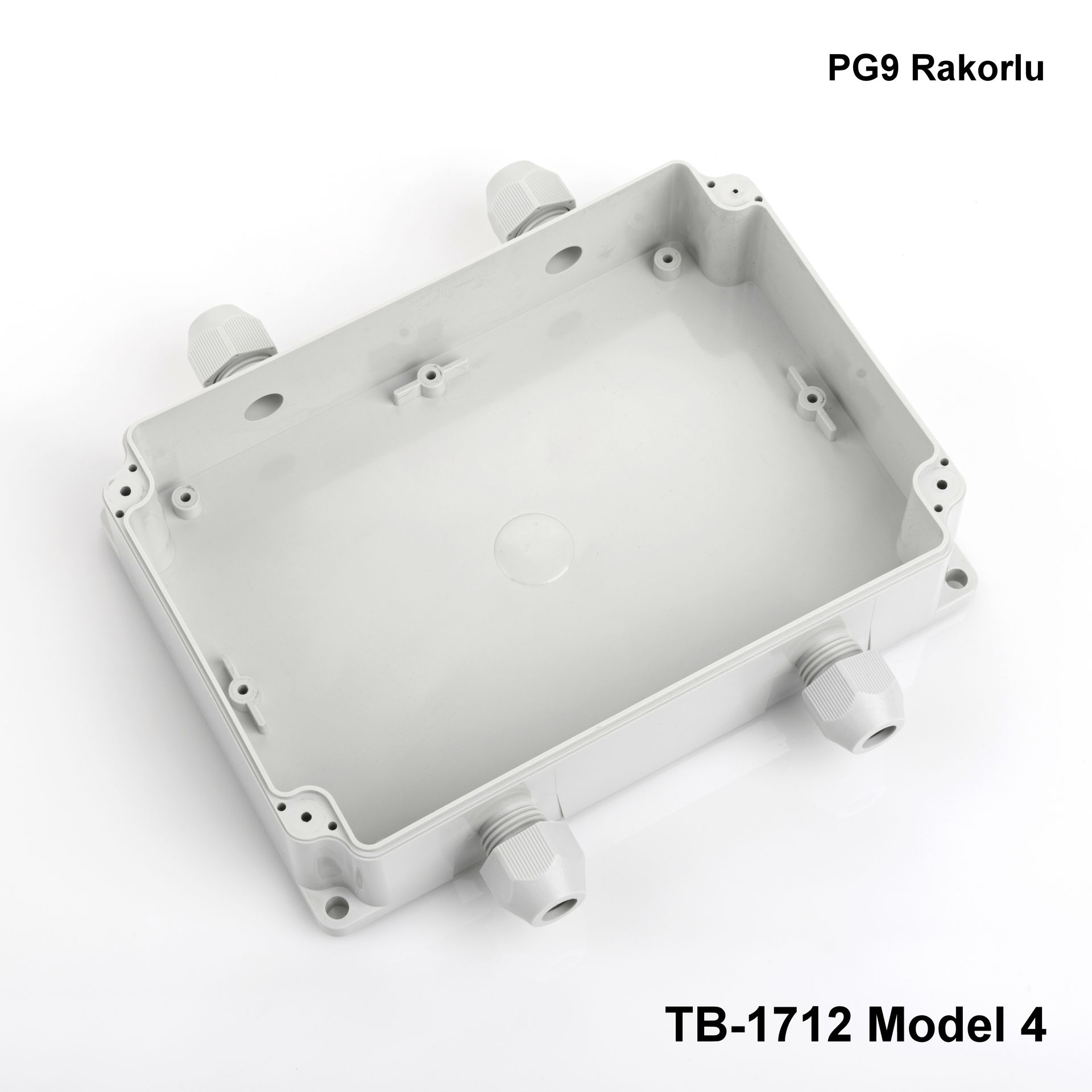

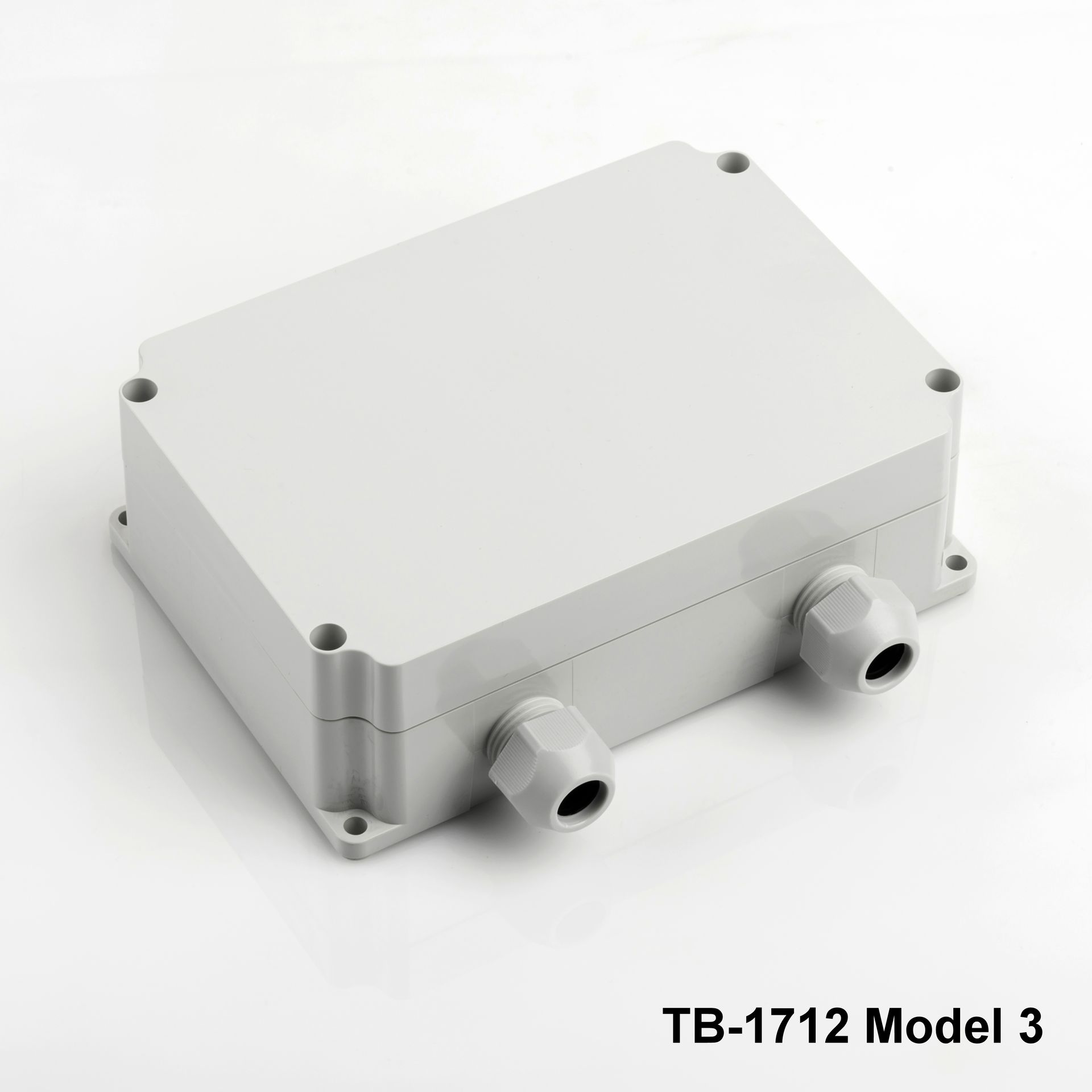

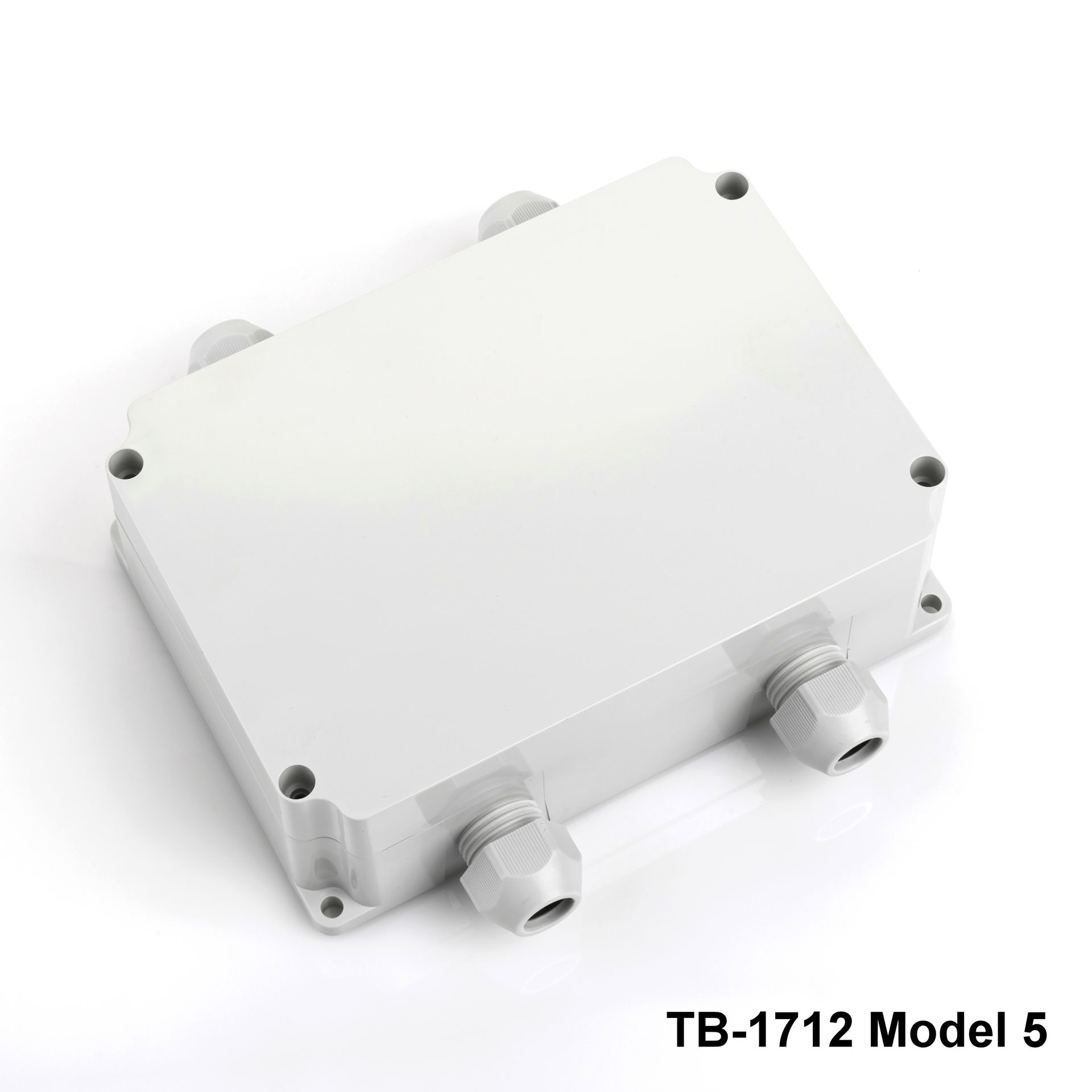

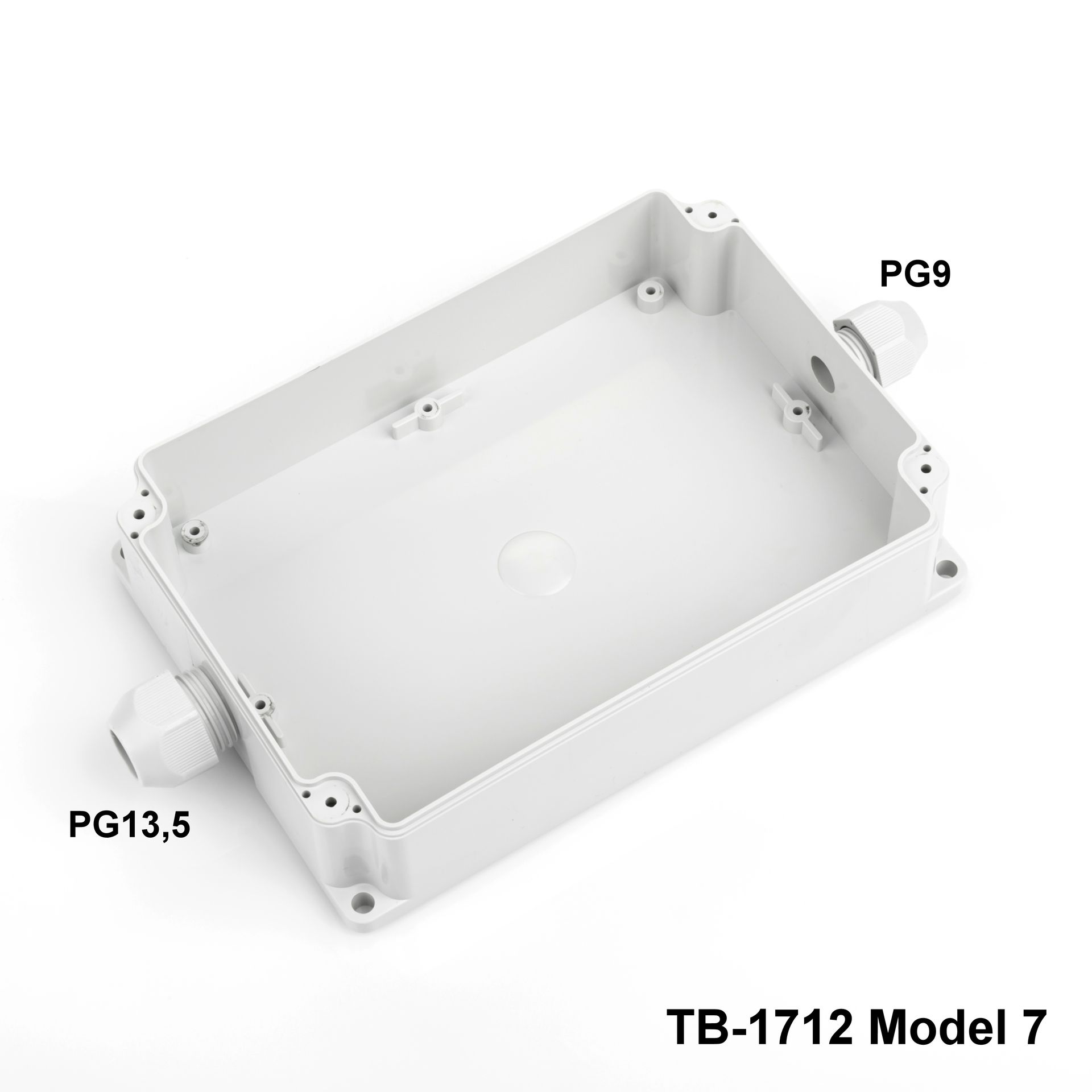

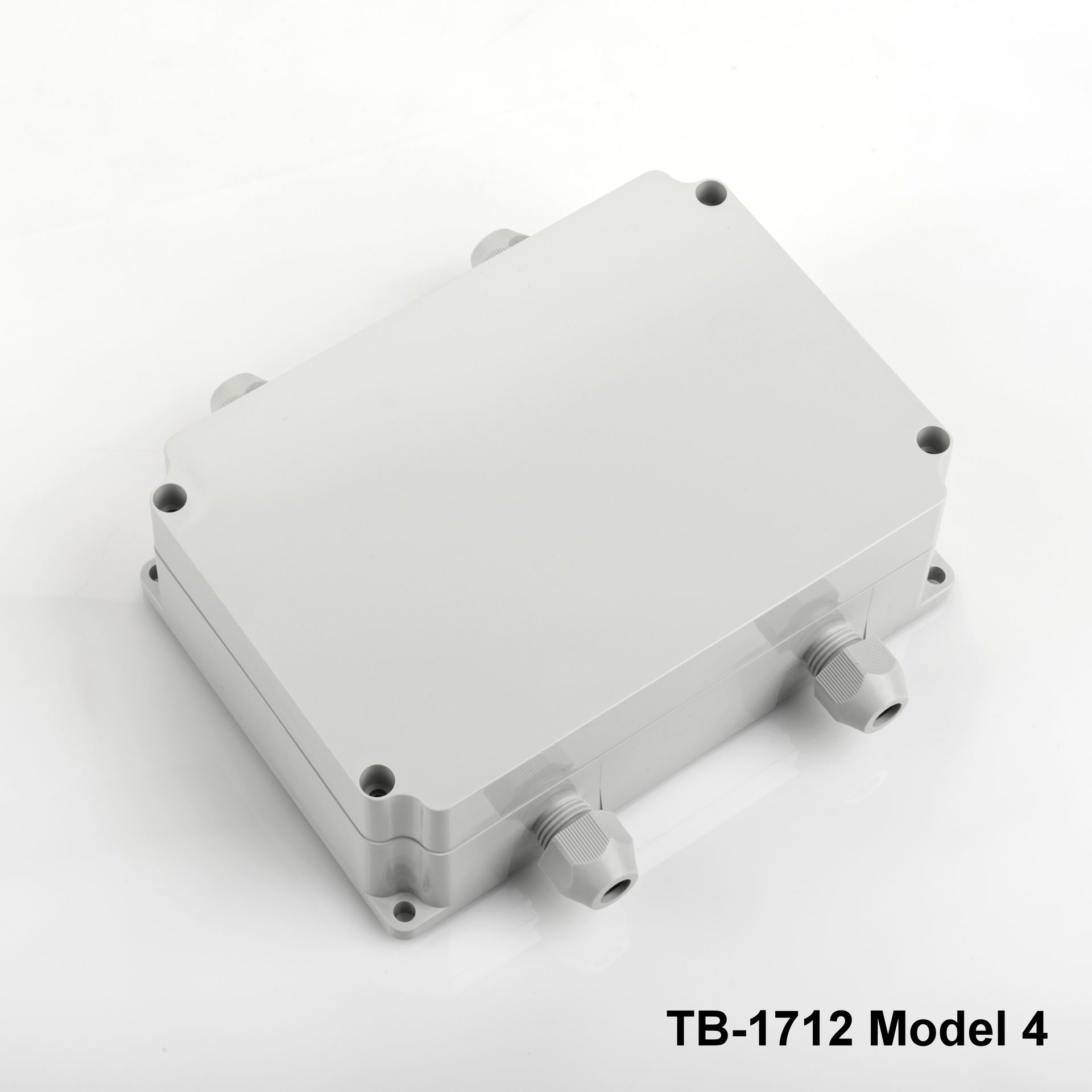

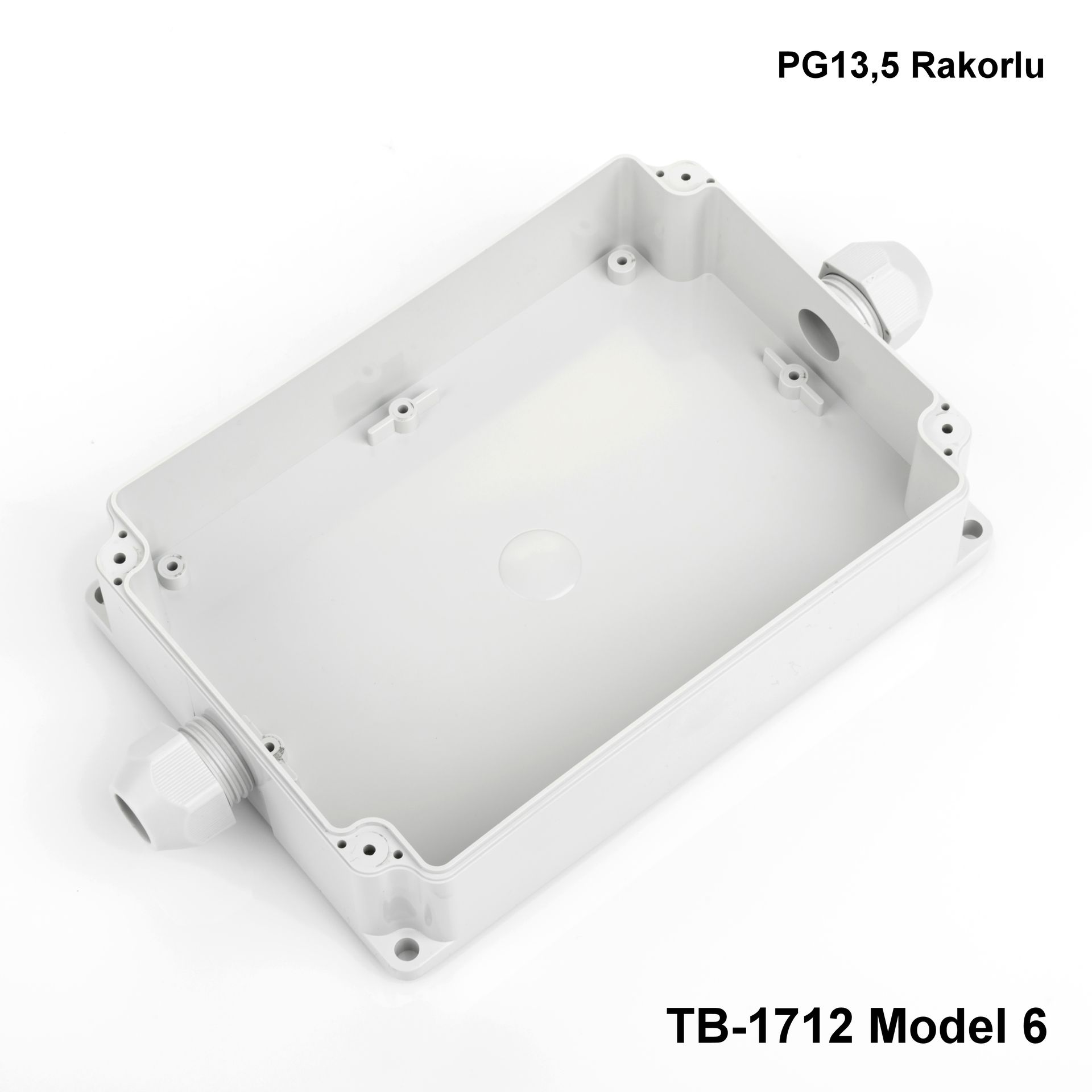

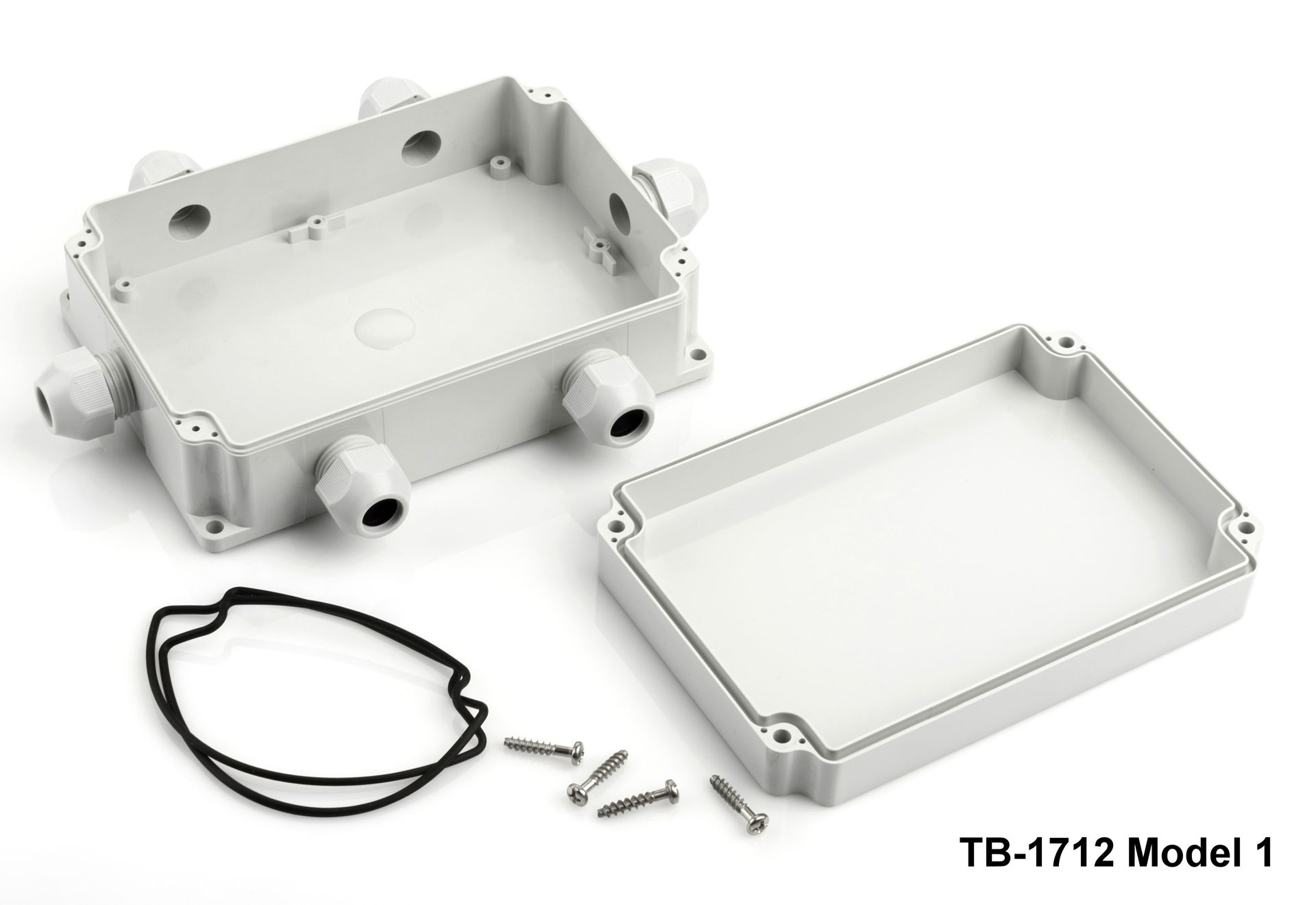

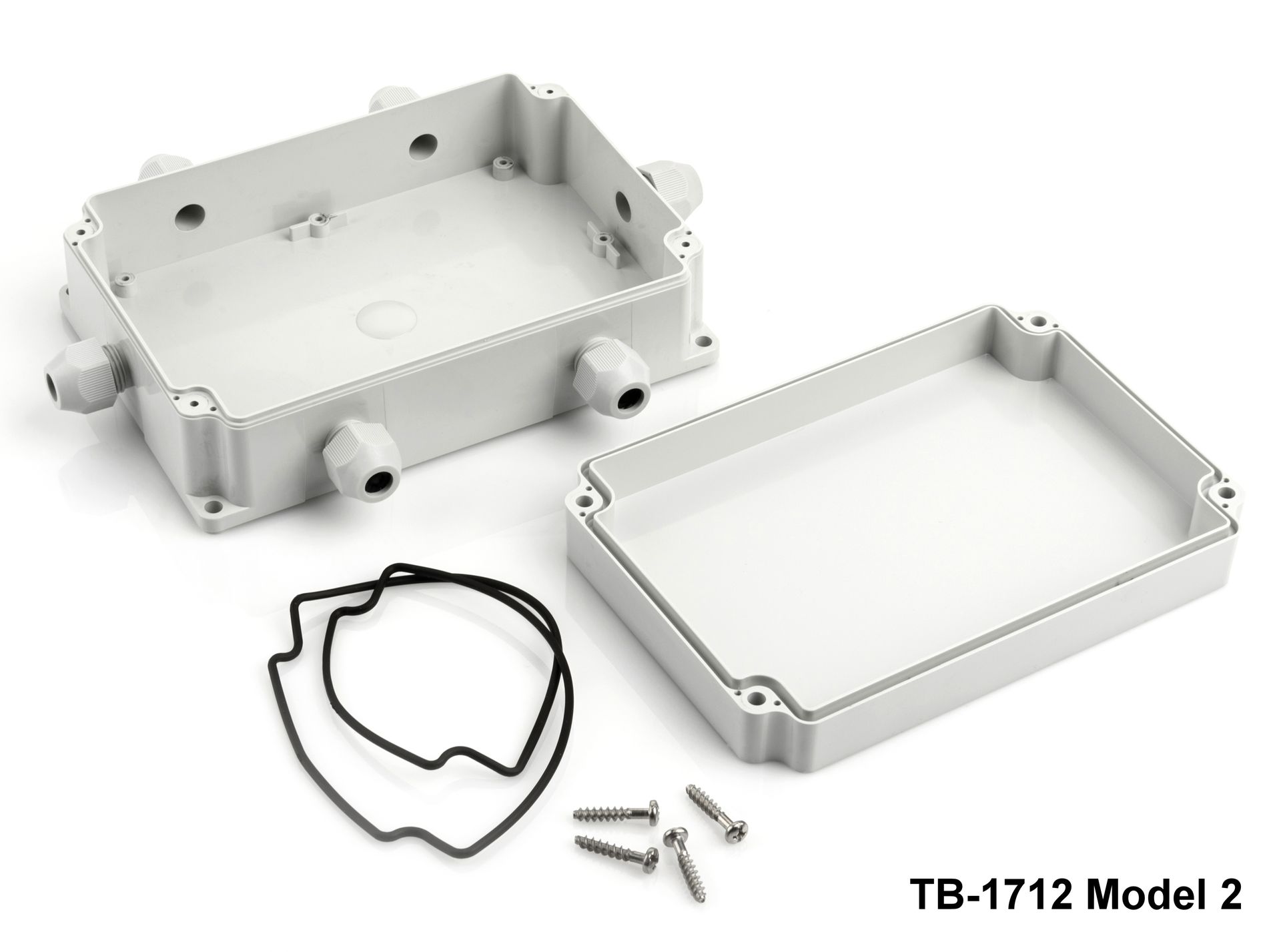

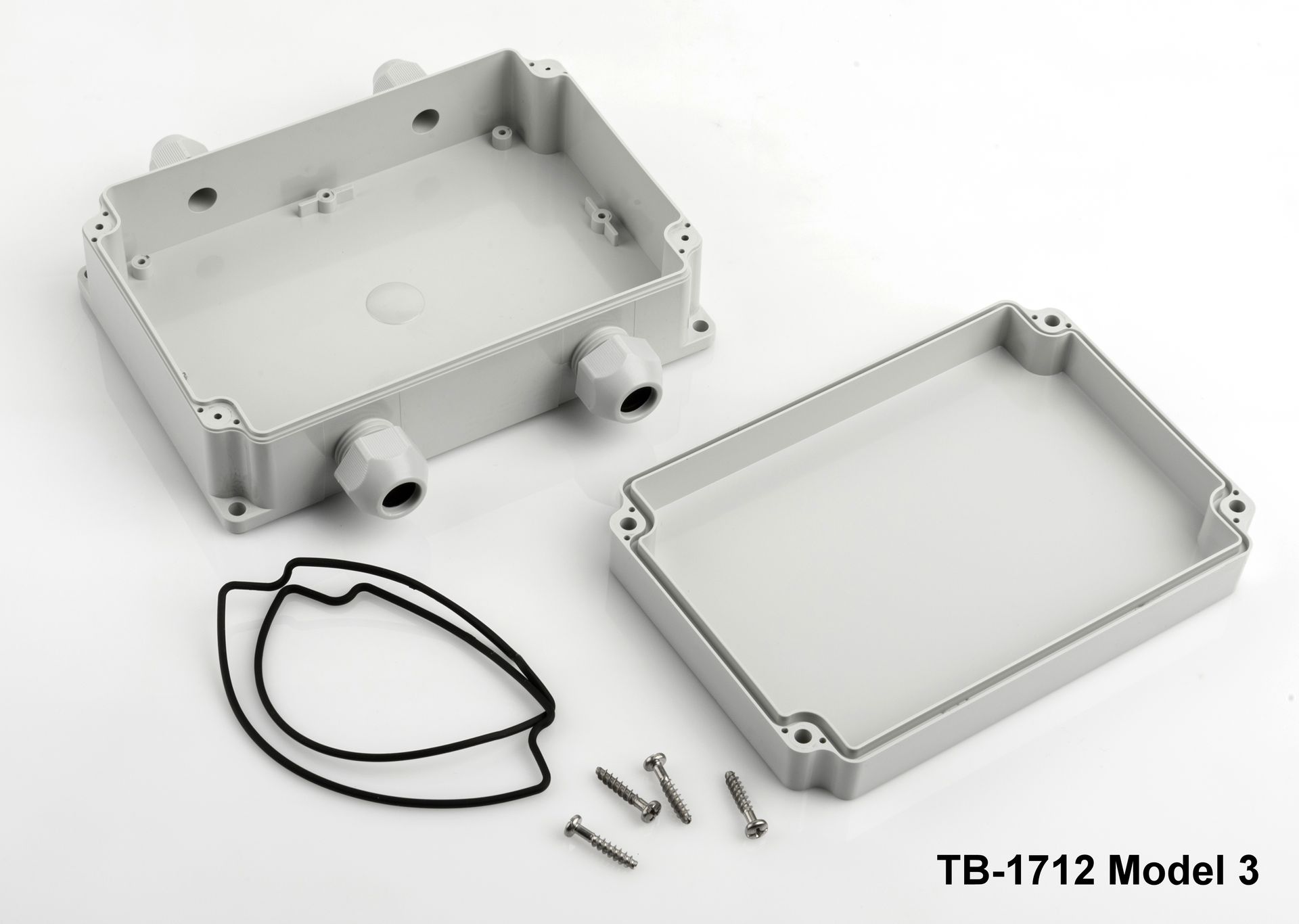

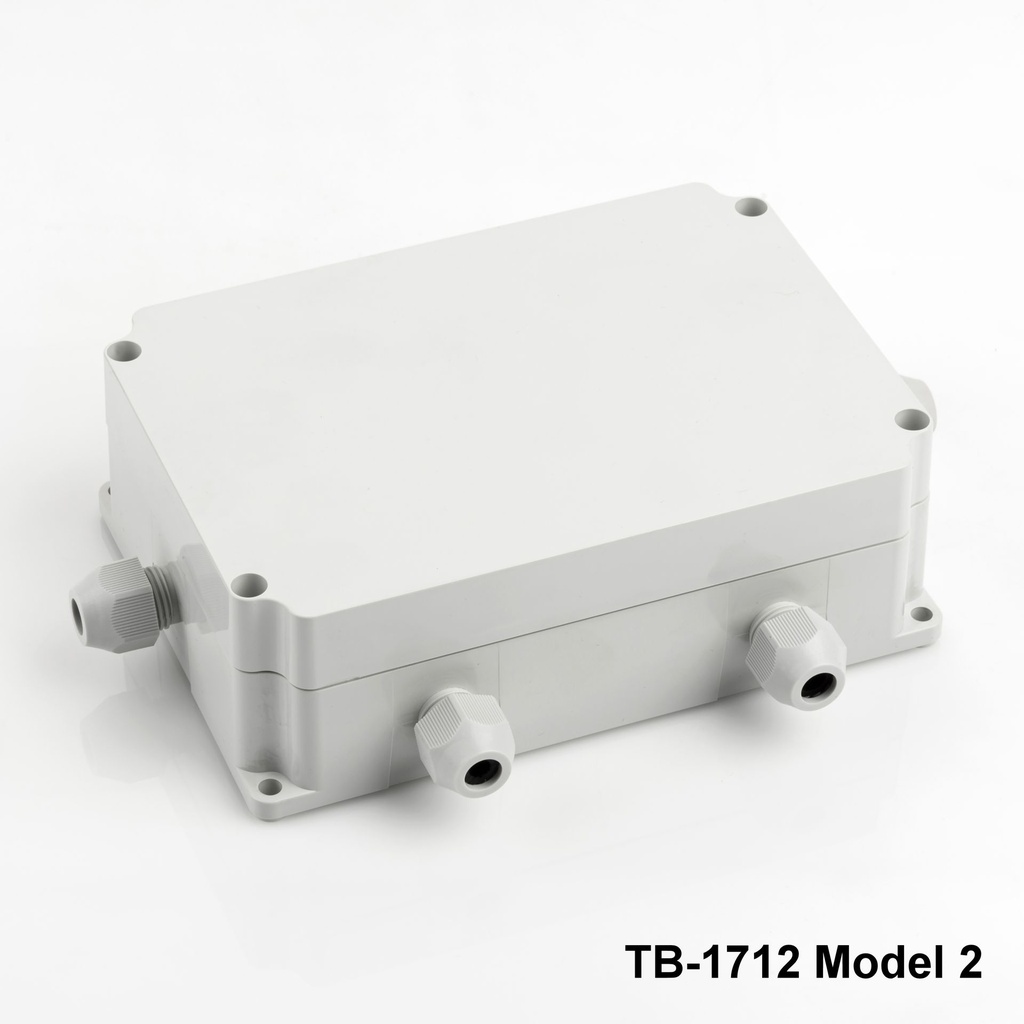

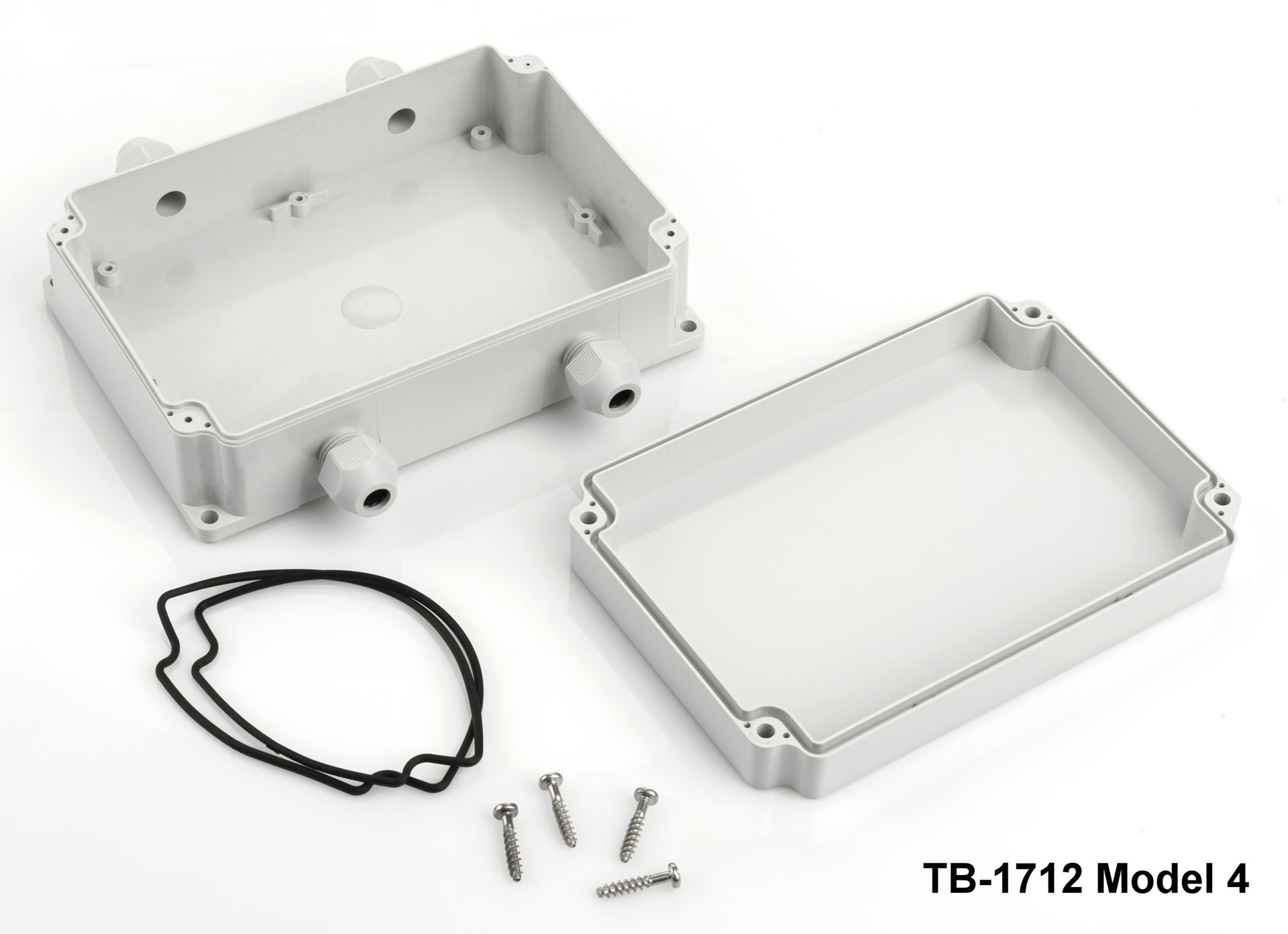

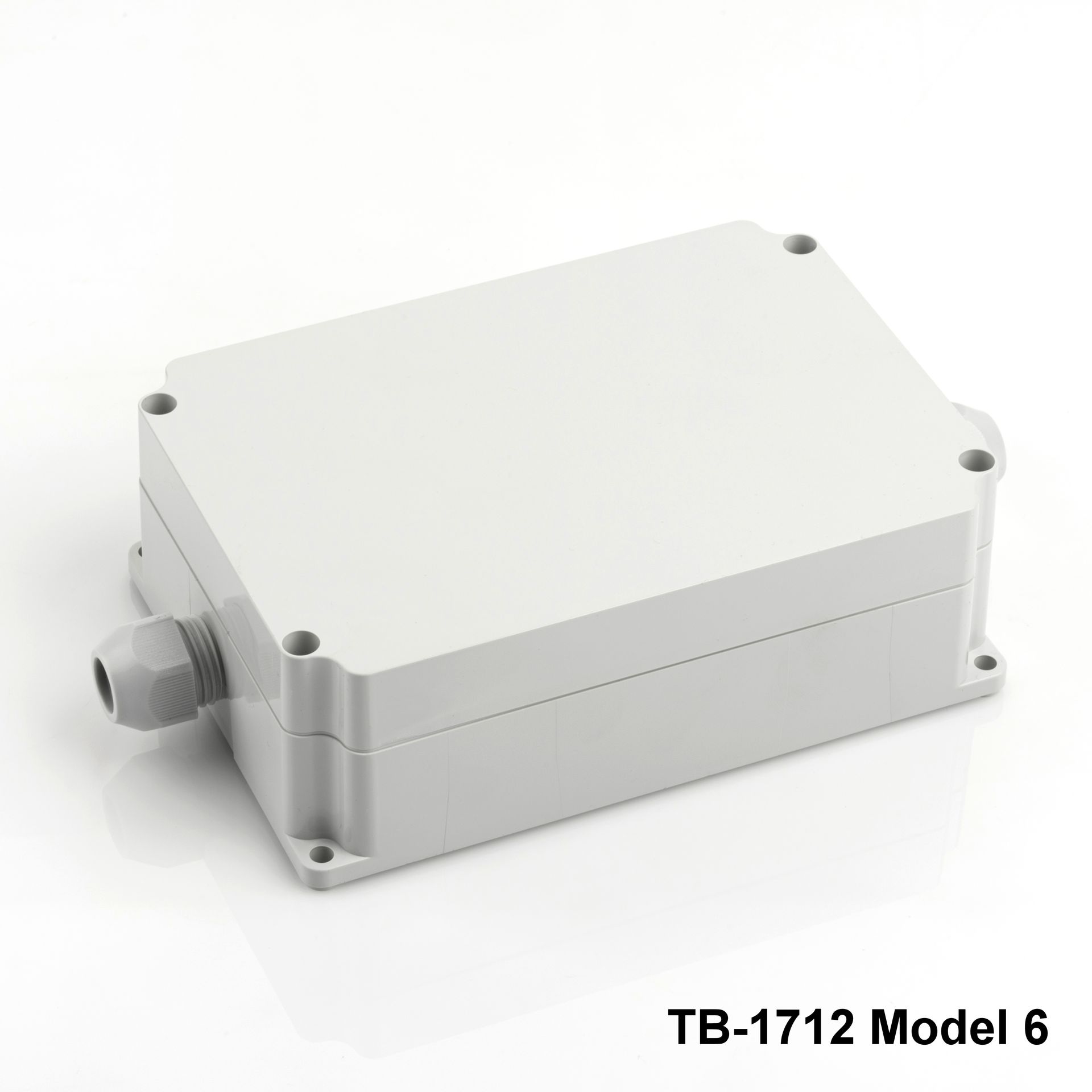

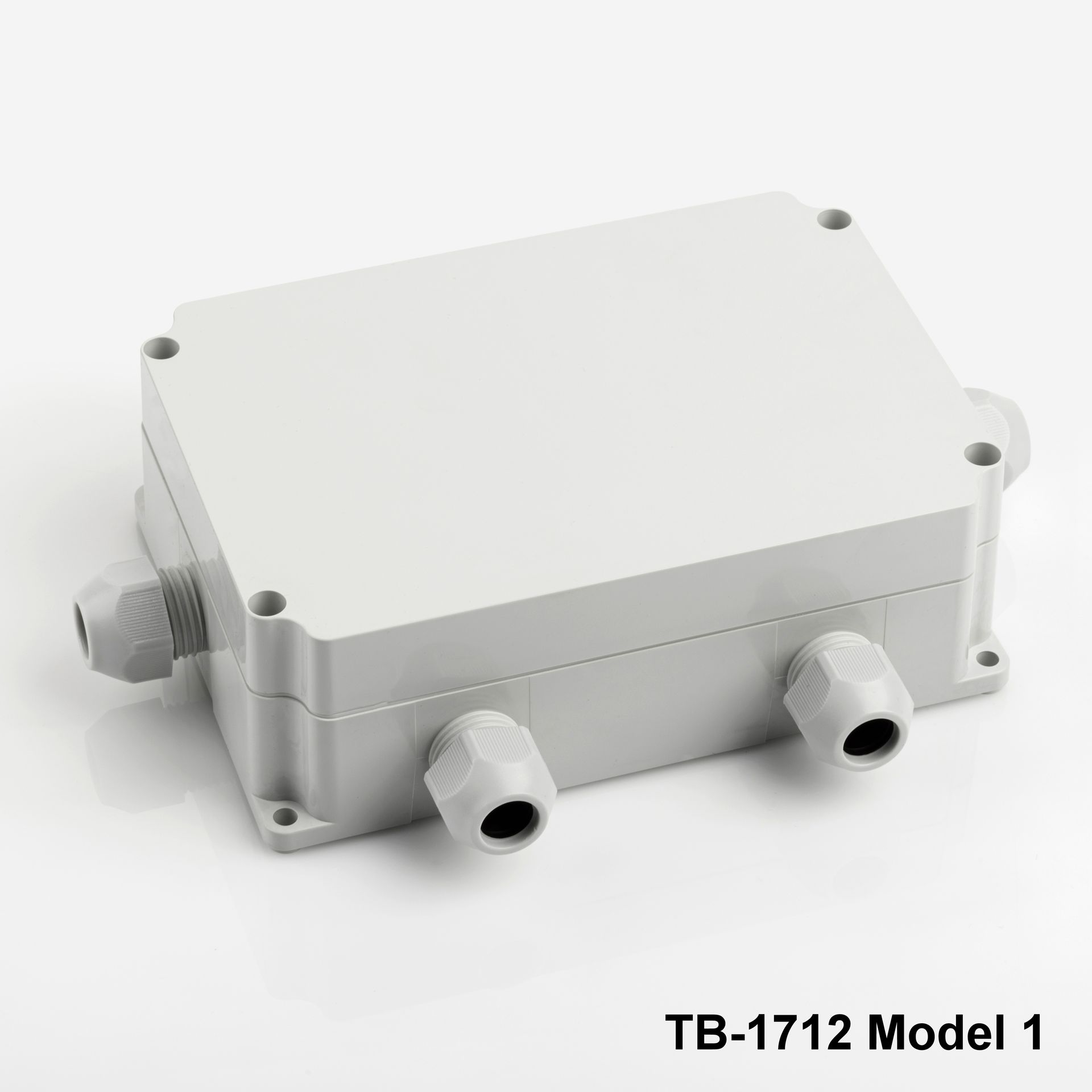

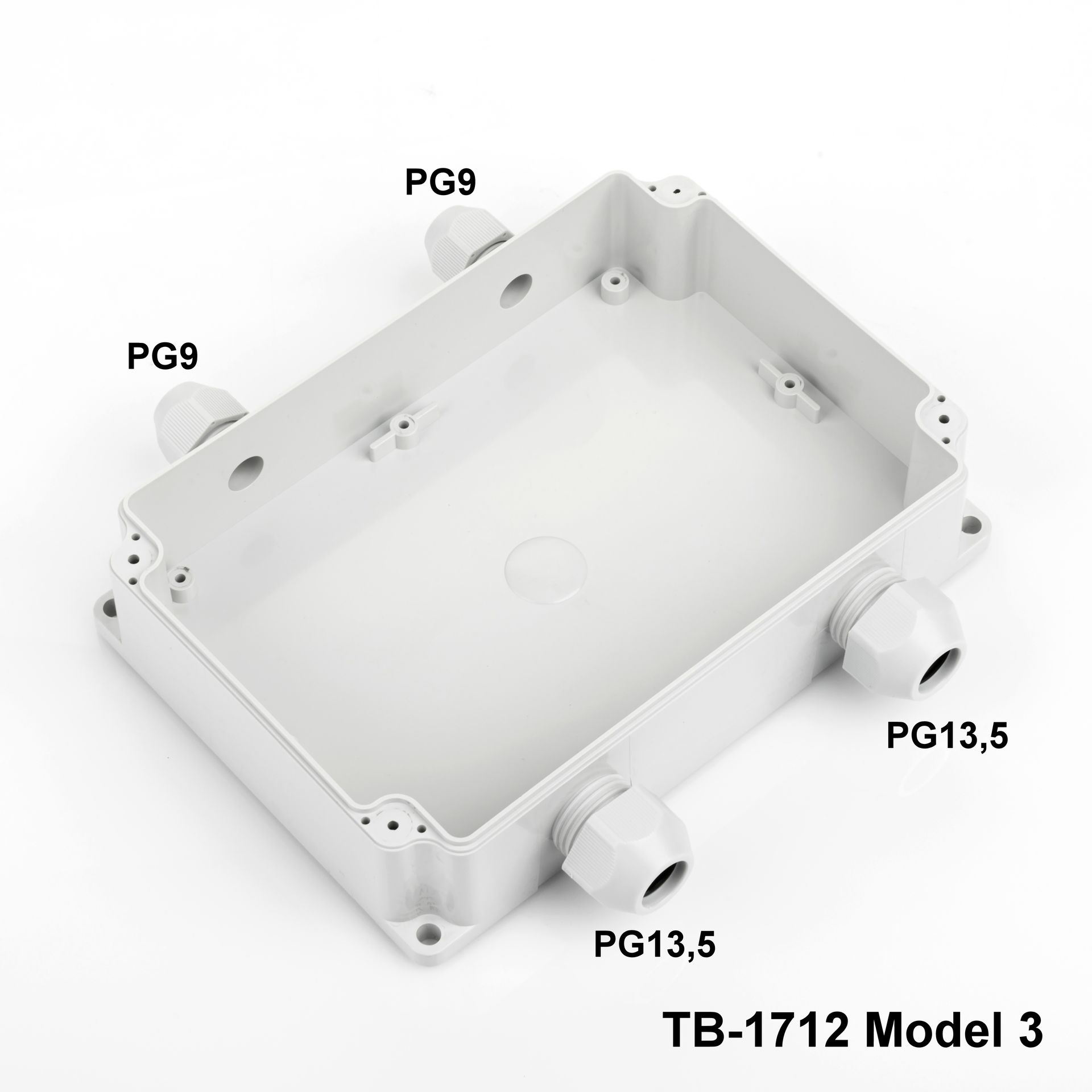

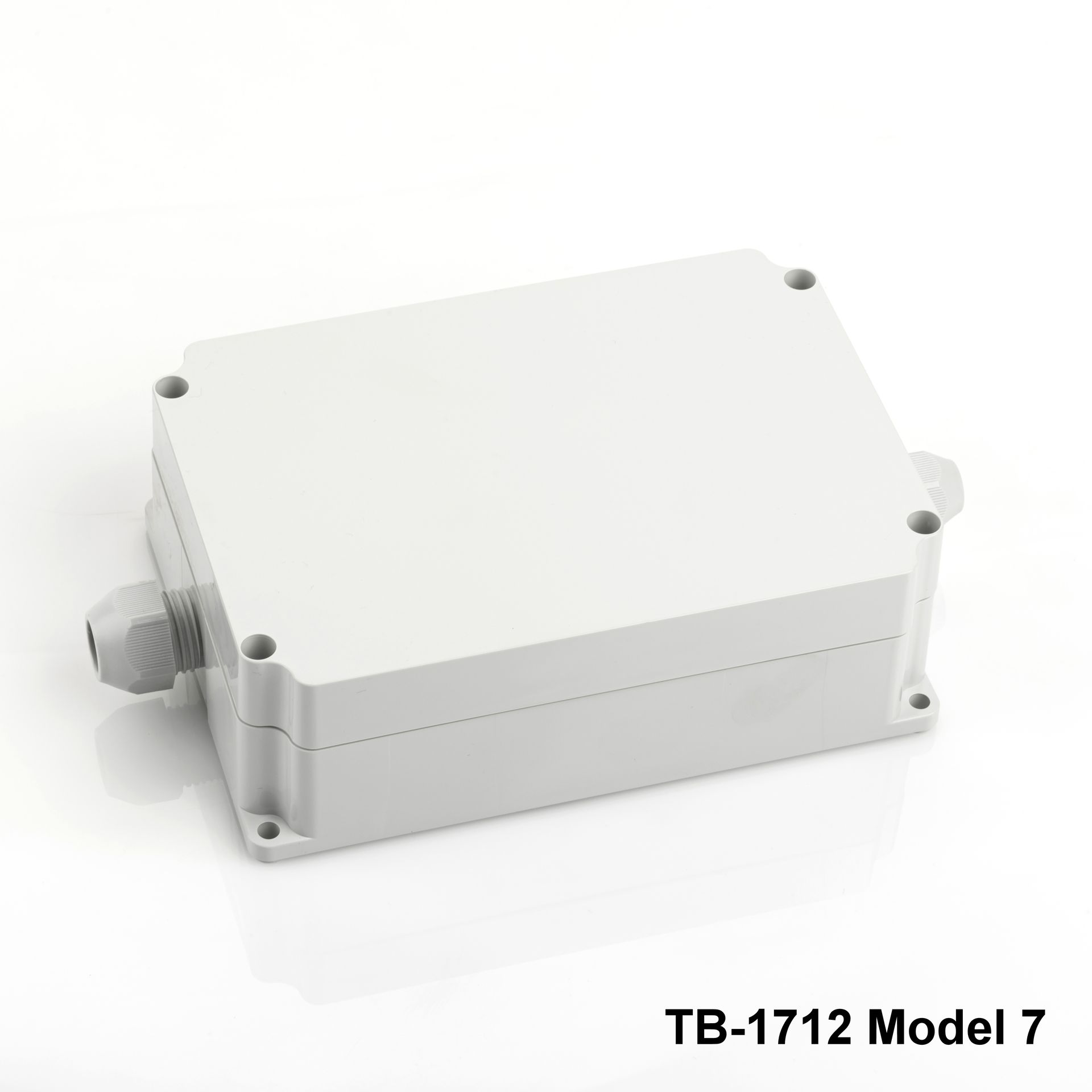

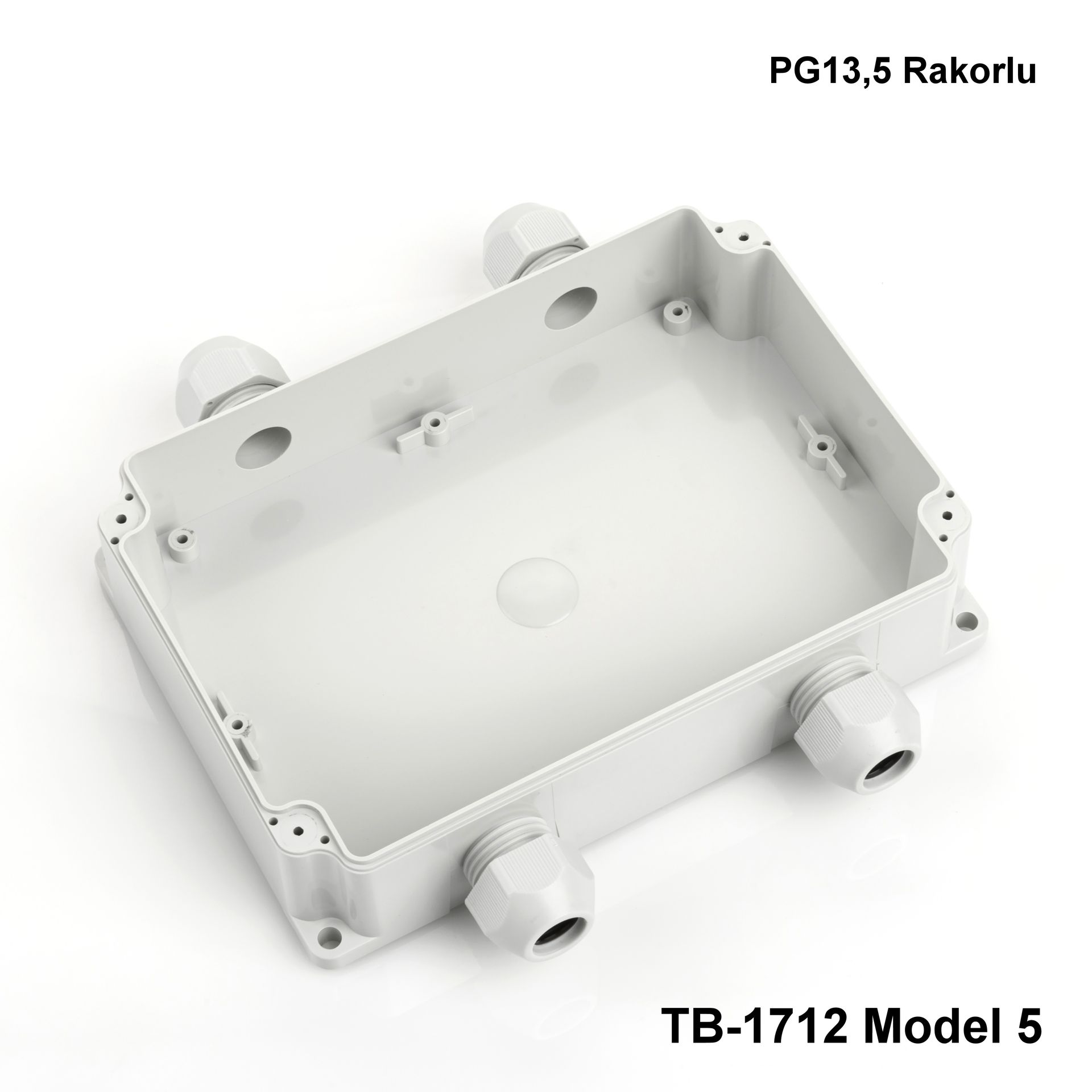

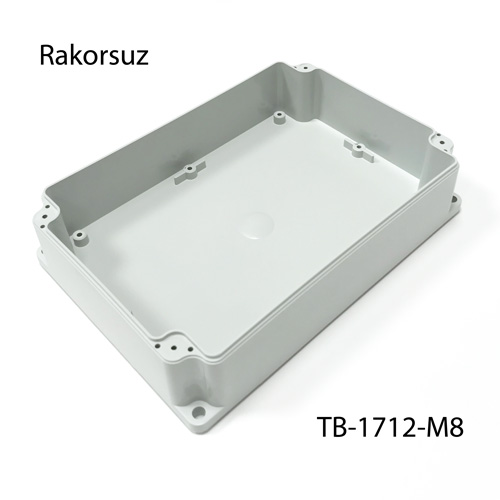

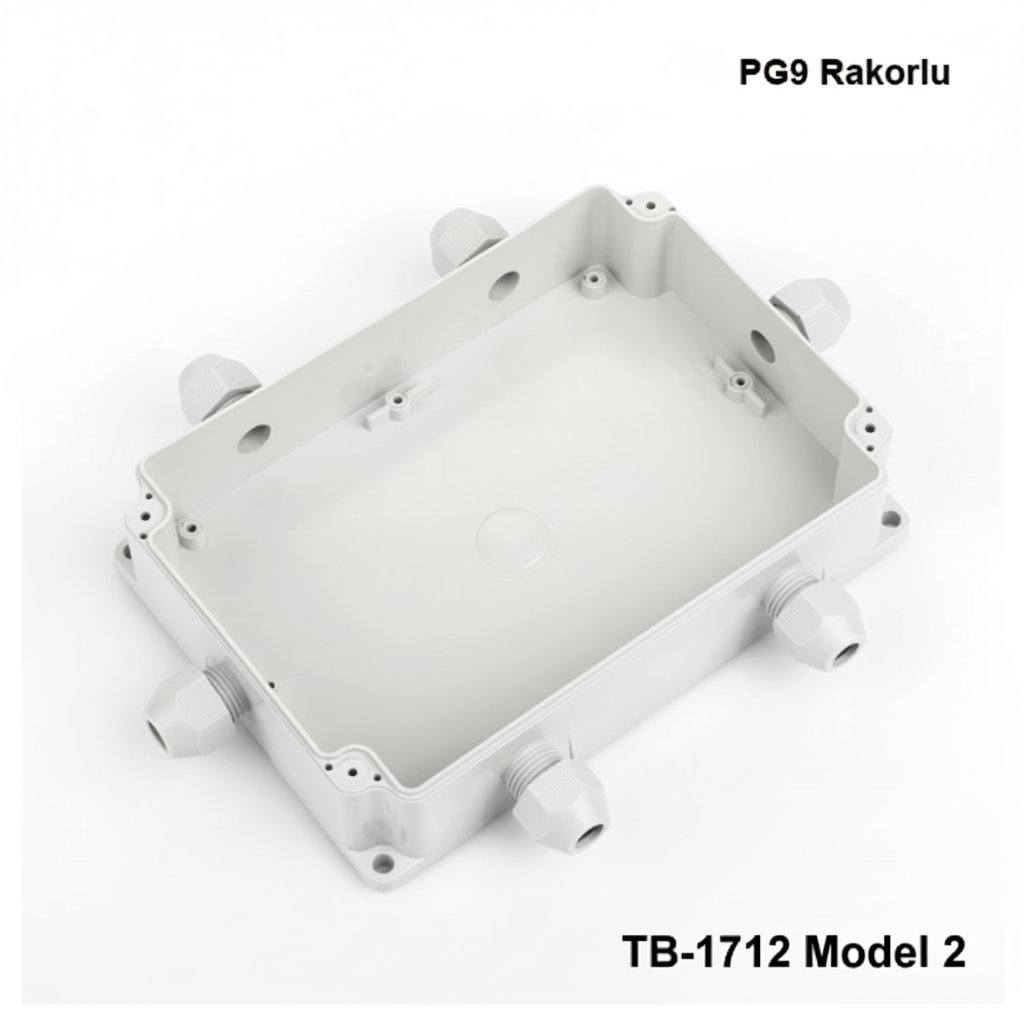

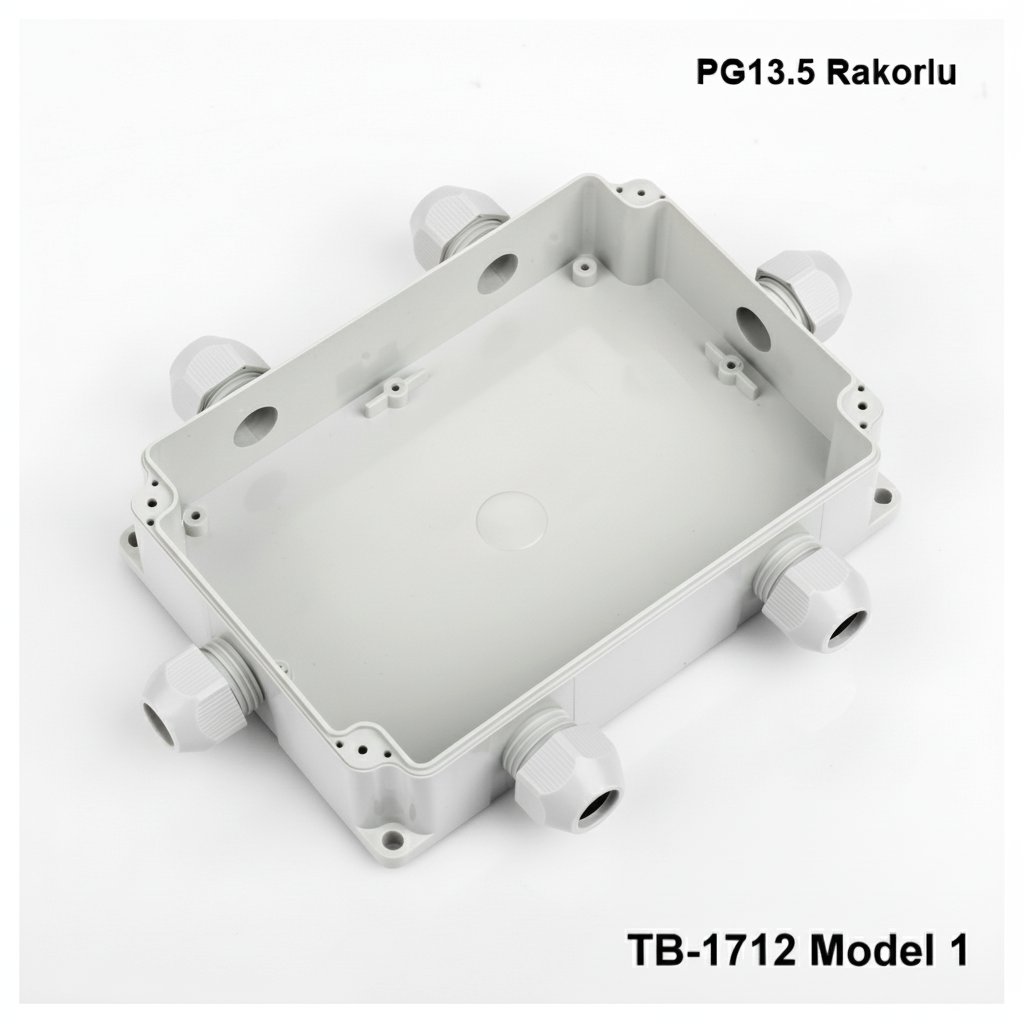

TB-1712 IP-67 Enclosure with Moulded-on Cable Gland

[TB-1712-M1-0-G-V0] 169 x 118.5 x 55 mm http://www.altinkaya.com/web/image/product.template/1897/image_1920?unique=ee383b5

A high-quality enclosure suitable for a wide range of applications, including junction boxes, embedded systems, transmitters, barometers, gas and humidity sensors, temperature control, and measurement devices.

Not Available For Sale

  • Color
  • Type
  • UL94

This combination does not exist.

You can view product prices by logging in.

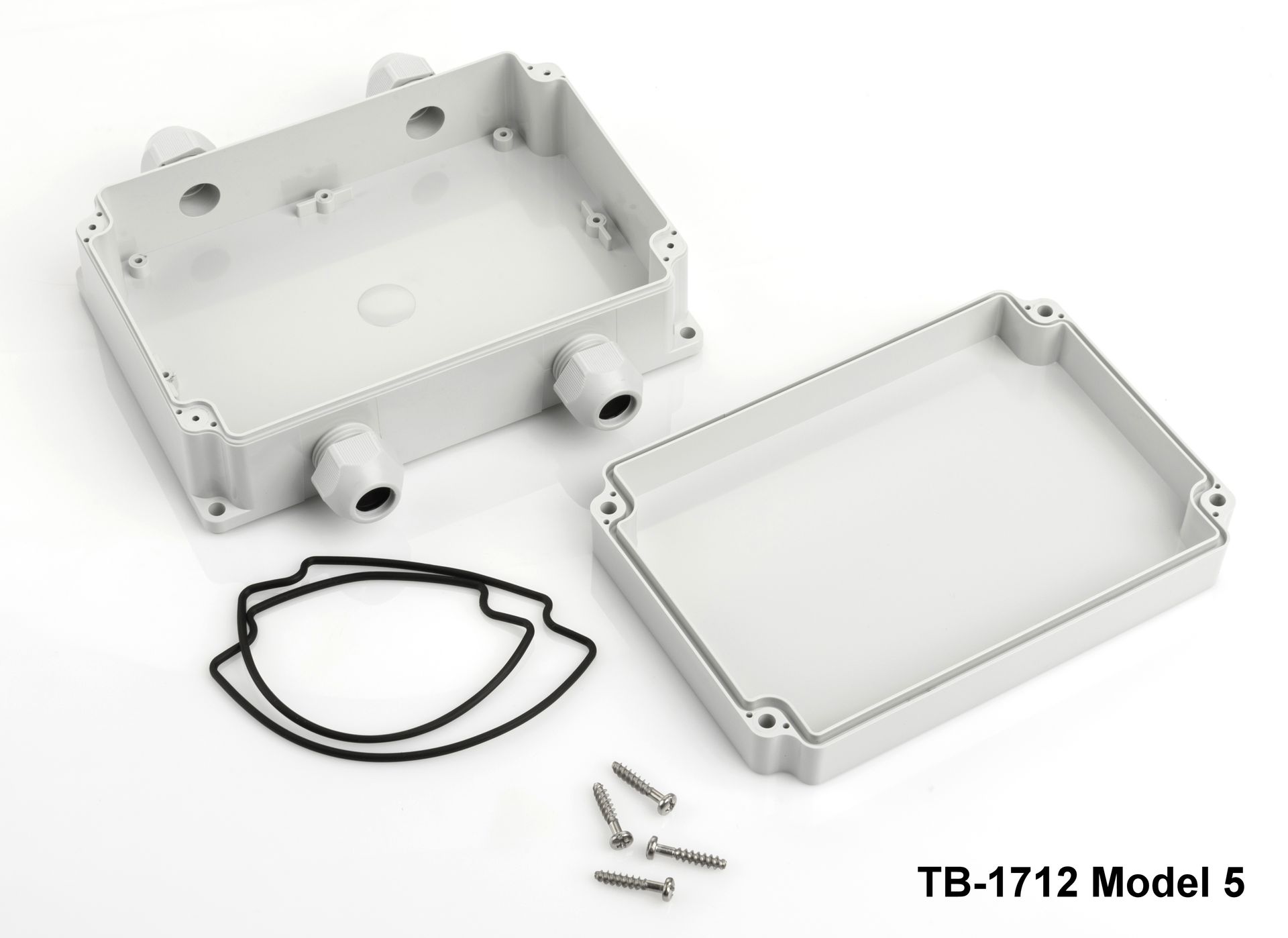

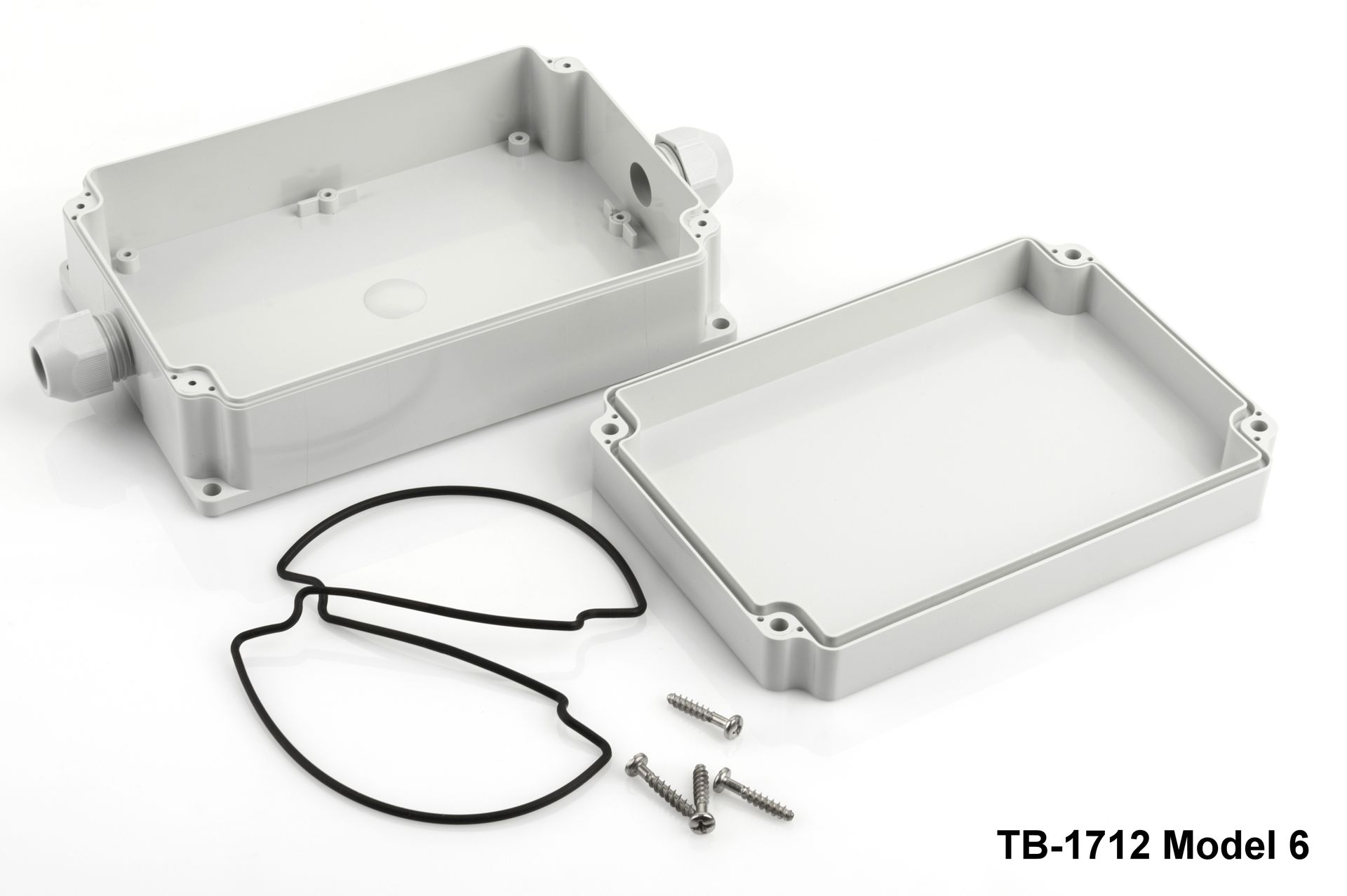

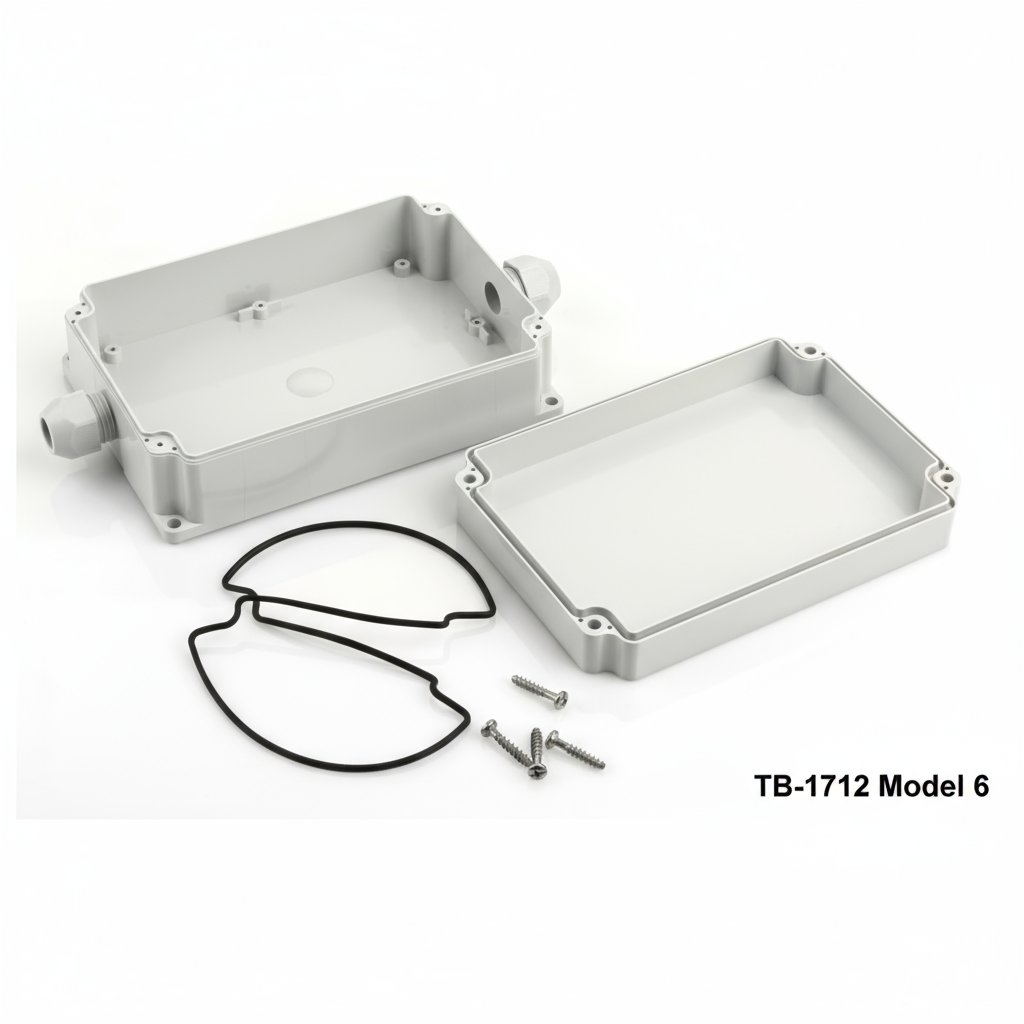

TB-1712 is an IP67 enclosure with cable glands, can be mountable on the wall thanks to its mounting ears. The product is manufactured by ABS V0 material, for the non-flammability degree. Continuous seal is included for providing IP67. Cable glands are molded on and supports IP67 feature.


Specifications

Color Light Gray
Type Model 1, Model 2, Model 3, Model 4, Model 5, Model 6, Model 7, Model 8
UL94 V0
A (mm) 169
B (mm) 118.5
C (mm) 55
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 5
3D
TB-1712-M5_3D.zip

PDF
TB-1712.pdf

DXF
TB-1712_dxf.zip

IP Certificate
TB-1712_IP.pdf
