SF-5075 IP67 Flanged Heavy Duty Enclosure

Price:

$ 2.33
Chat with us
  1. Products
  2. IP67 Flanged Heavy Duty Enclosures
  3. SF-5075 IP67 Flanged Heavy Duty Enclosure
SF-202 IP67 Flanged Heavy Duty Enclosures
SF-202 IP67 Flanged Heavy Duty Enclosures
$ 3.46
$ 3.46

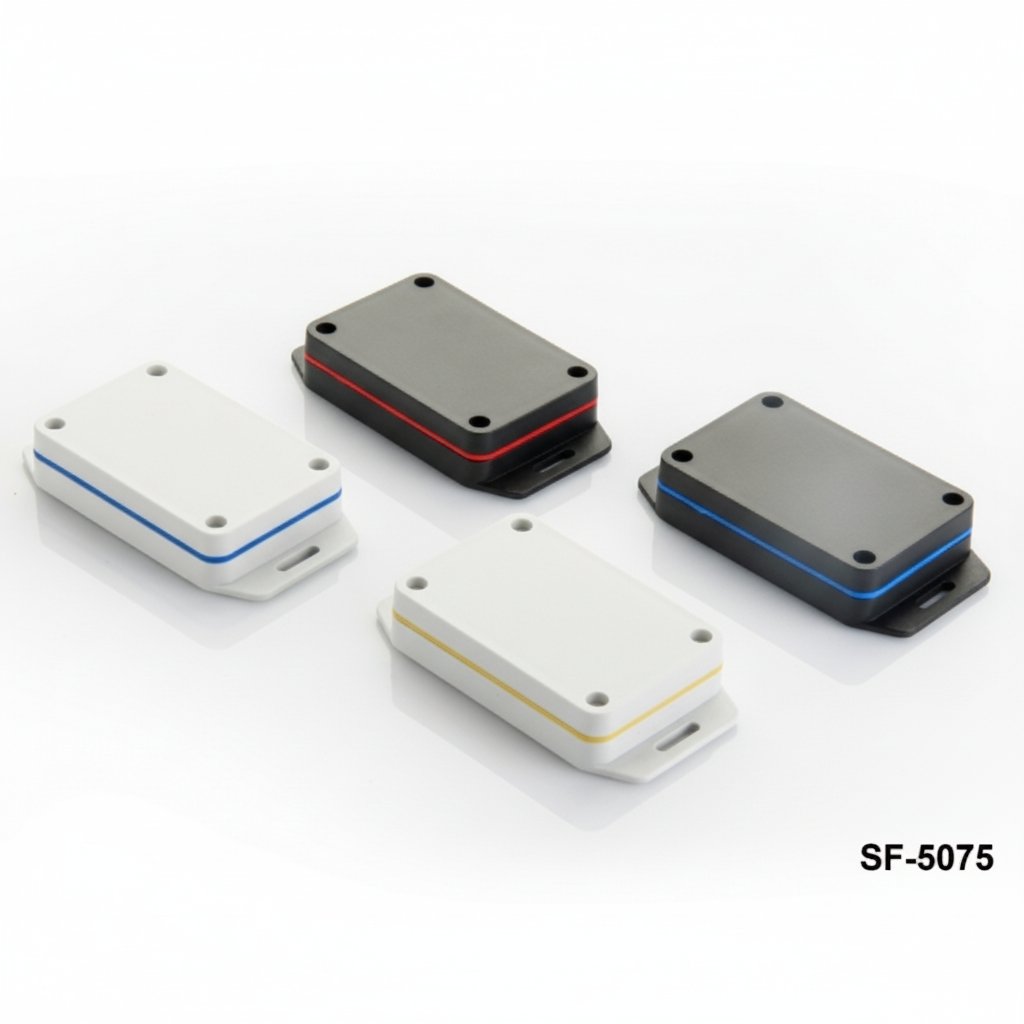

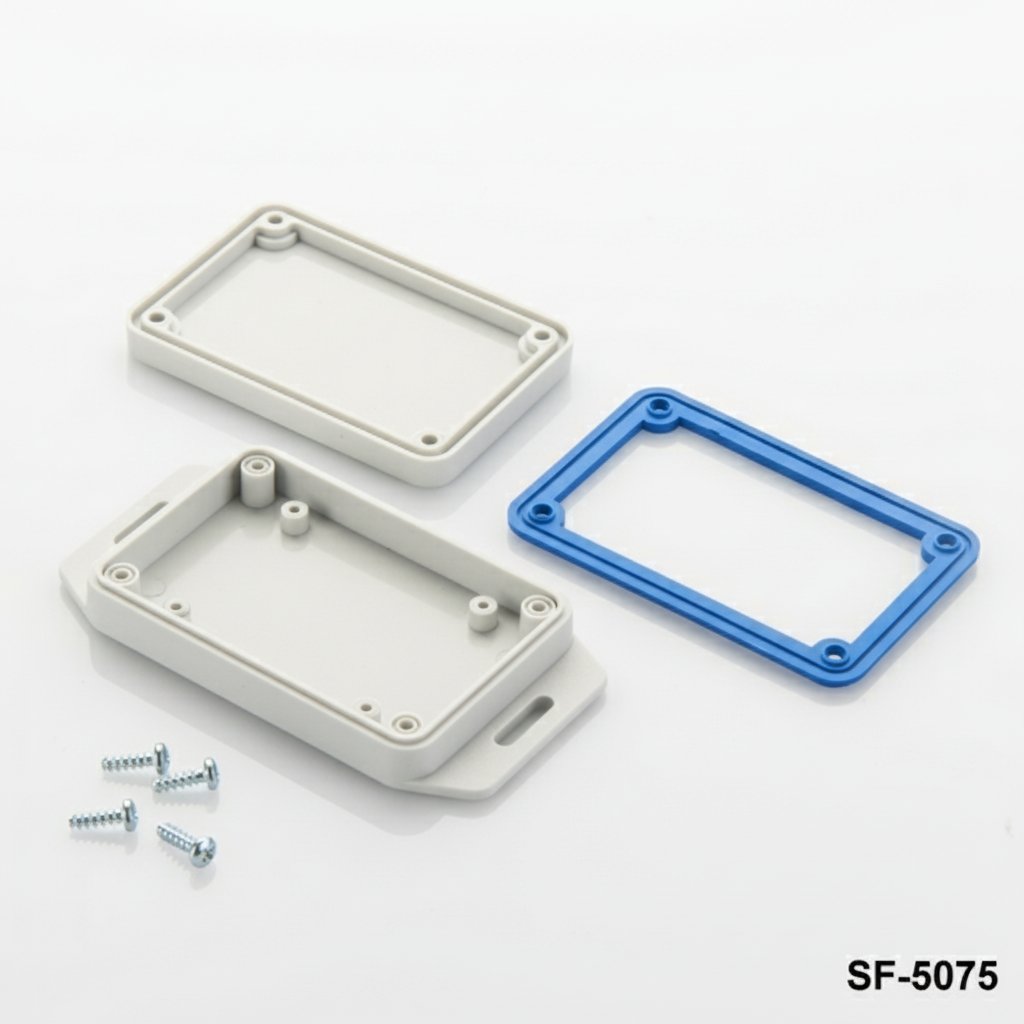

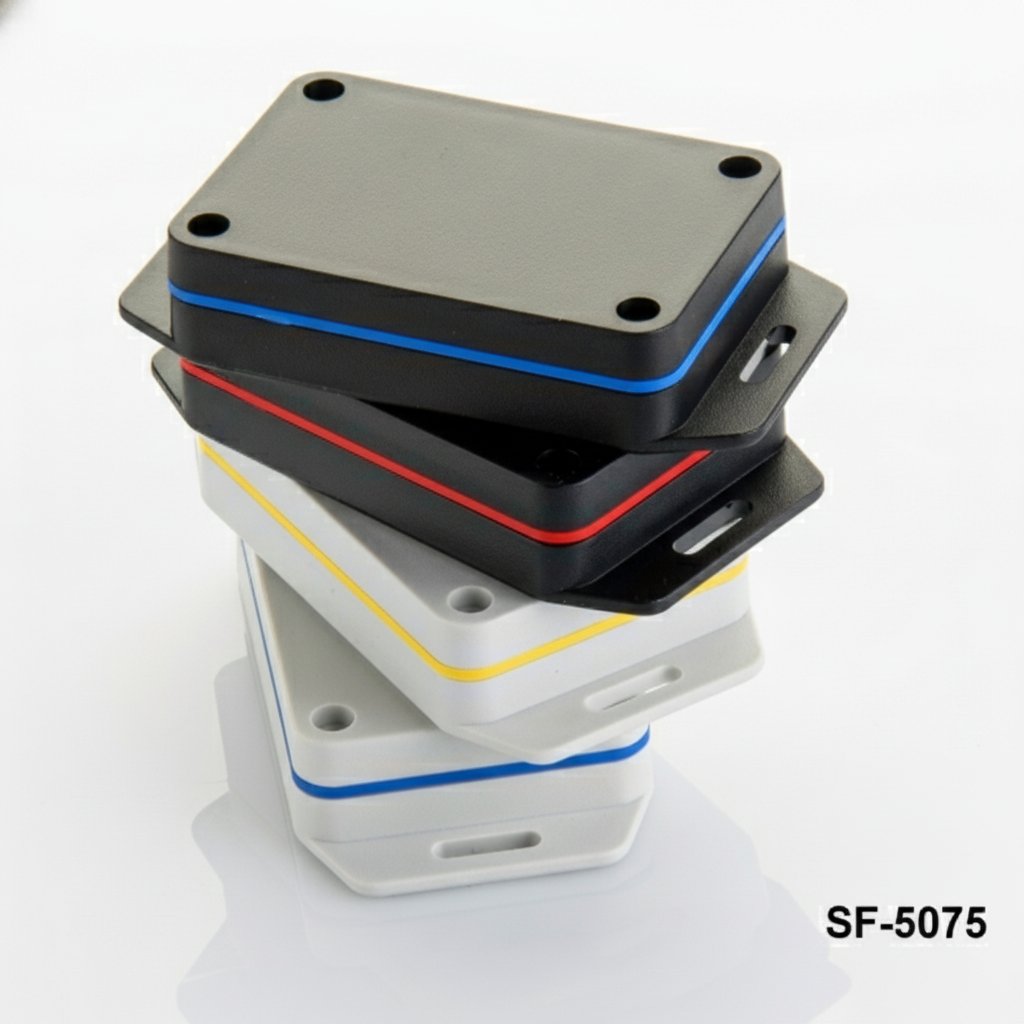

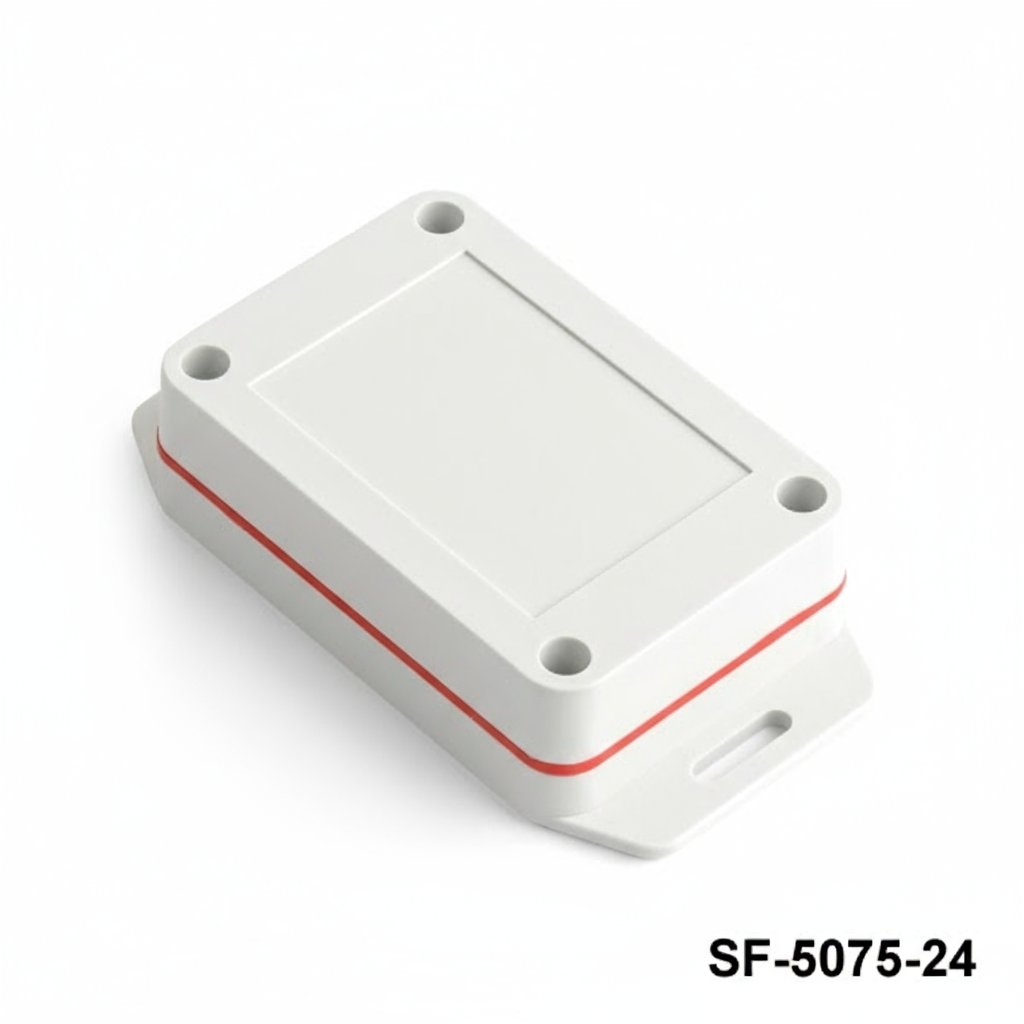

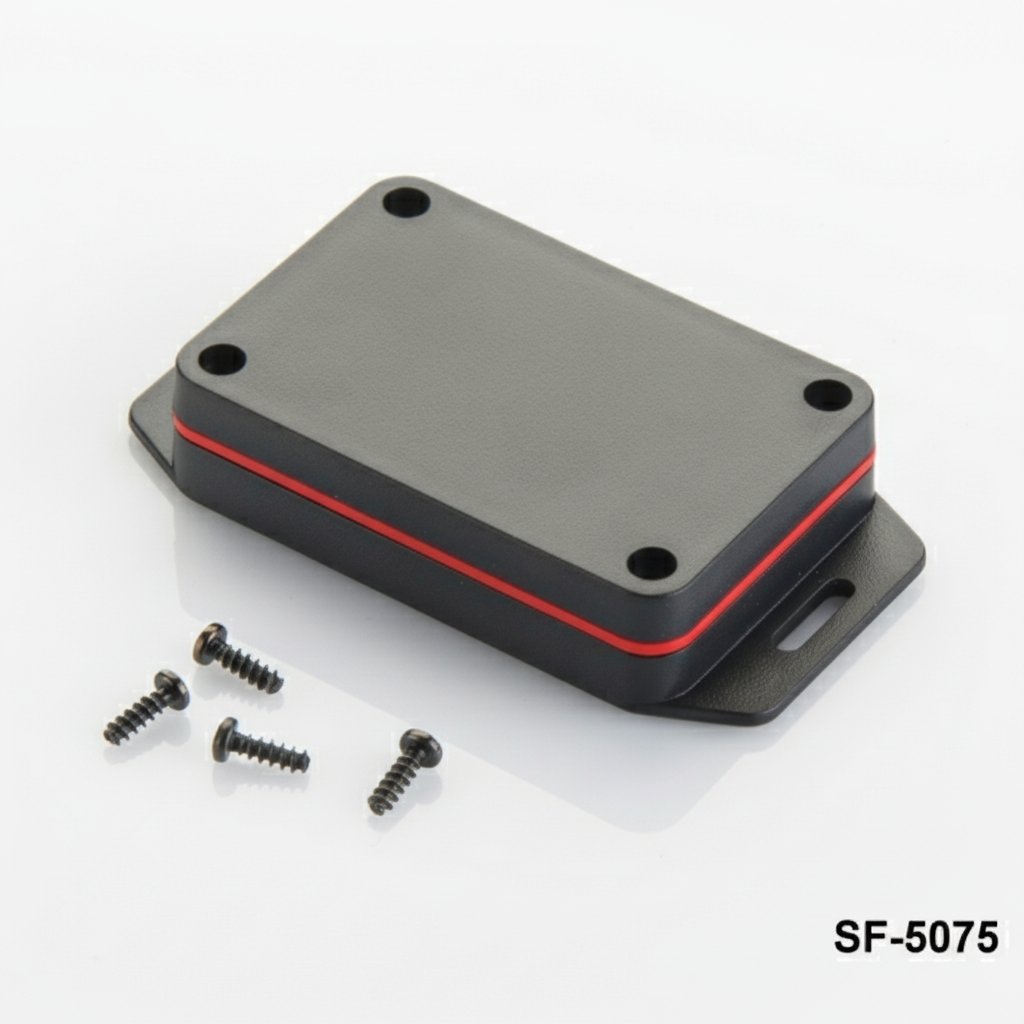

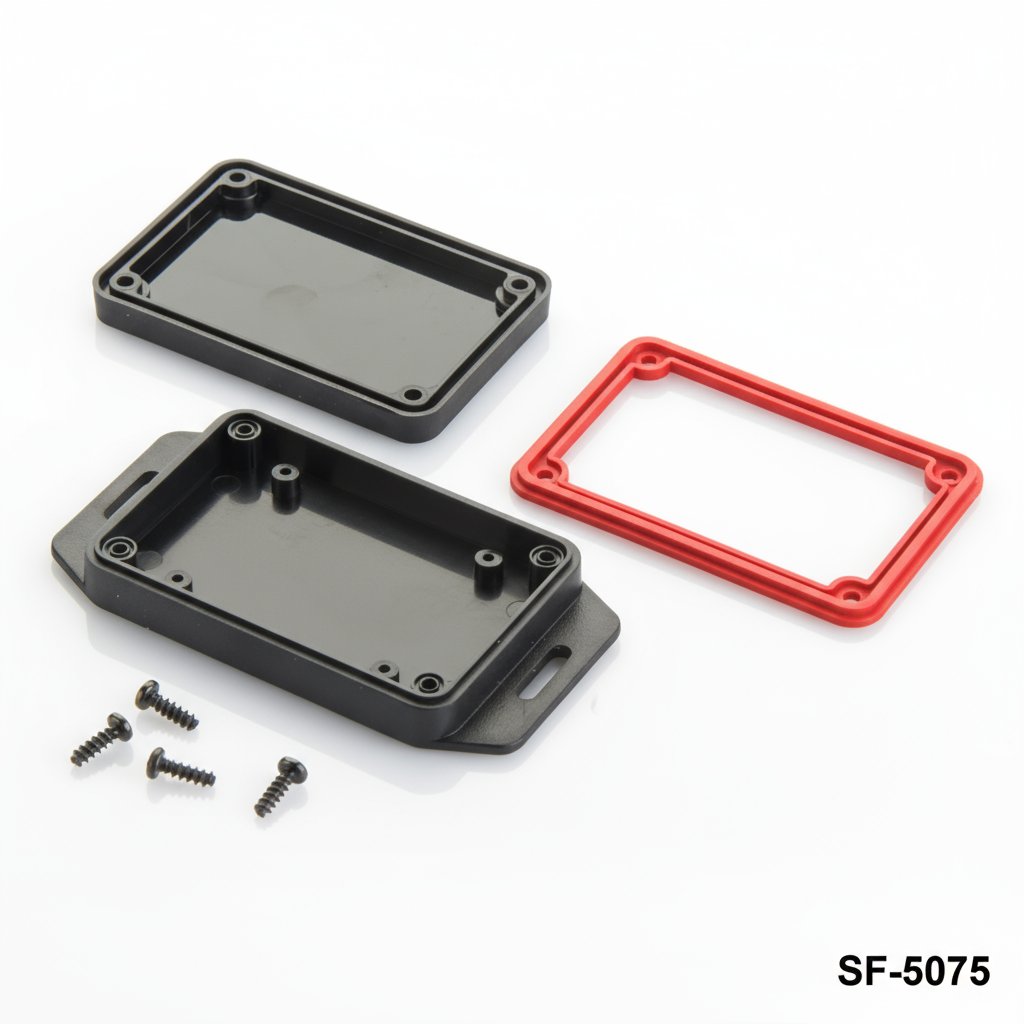

SF-5075 IP67 Flanged Heavy Duty Enclosure

[SF-5075-19-K-G-0] 50 x 75 x 19 mm (1.97 x 2.95 x 0.75 in)
https://www.altinkaya.com/web/image/product.template/2248/image_1920?unique=7b09f2f

$ 2.33 2.3346 USD $ 2.33 No VAT

₺ 1.00 No VAT

Not Available For Sale

  • Color
  • Custom Production
  • Material
  • Type
  • Seal

This combination does not exist.

When this product is added to the cart, accessories will also be added. If you wish, you can remove the parts you do not want from the cart.

Contact Us
Barcode :
8698651440980


Specifications

Color Light Gray, Black
Material ABS
Type Thickness 19mm, Thickness 24 mm
Seal Yellow, Blue, Red
E1 50
E2 69
E3 42,5
E4 85
B1 (mm) 75
B2 (mm) 44
B3 (mm) 33,5
D1 (mm) 19, 24
D2 (mm) 9
D3 (mm) 10
D4 (mm) 7
Material ABS
UL94 HB
A (mm) 50
B (mm) 75
C (mm) 19, 24
Operating Temperature -30° / +70°
IP Rate IP67
