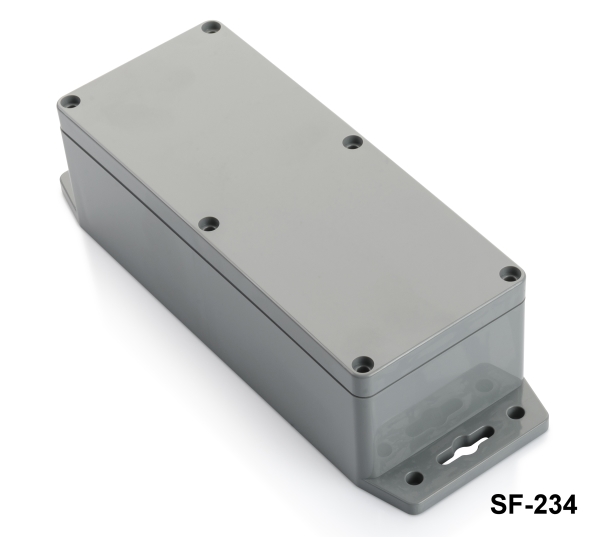

SF-234 IP-67 Sealed Box w/Mounting Foot
[SF-234-0-0-D-0]
236.8 x 81.7 x 59.85 mm
(9.32 x 3.22 x 2.36 in)
SF-232, IP67 sertifikasına sahip montaj ayaklı contalı bir kutudur. Su geçirmez ve toz geçirmez özellikleri ile dış mekan uygulamalarına uygundur
Barcode :
8698651313345Specifications
| Color | Dark Gray |
| Top Cover | Transparent Cover, Flat Cover |
| E1 | 237 |
| E2 | 188 |
| E3 | 160 |
| E4 | 215 |
| B1 (mm) | 82 |
| B2 (mm) | 73 |
| B3 (mm) | 45 |
| B4 (mm) | 50 |
| D1 (mm) | 60 |
| D2 (mm) | 46 |
| D3 (mm) | 50 |
| D4 (mm) | 10 |
| Material | ABS, PC |
| UL94 | HB |
| A (mm) | 236,8 |
| B (mm) | 81,7 |
| C (mm) | 59,85 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP67 |
| Units per box | 5 |
