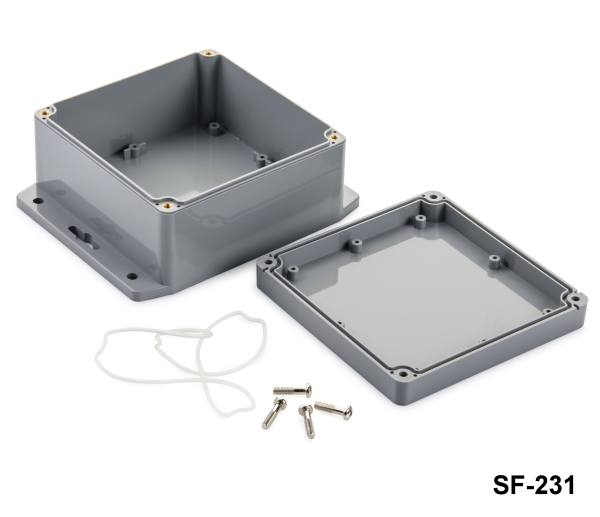

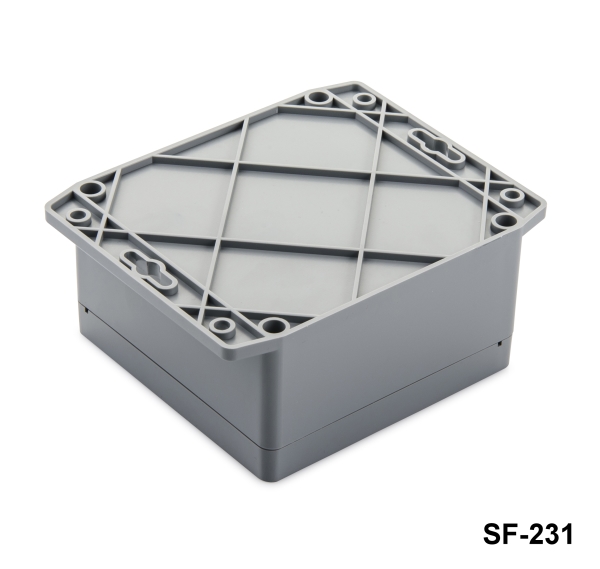

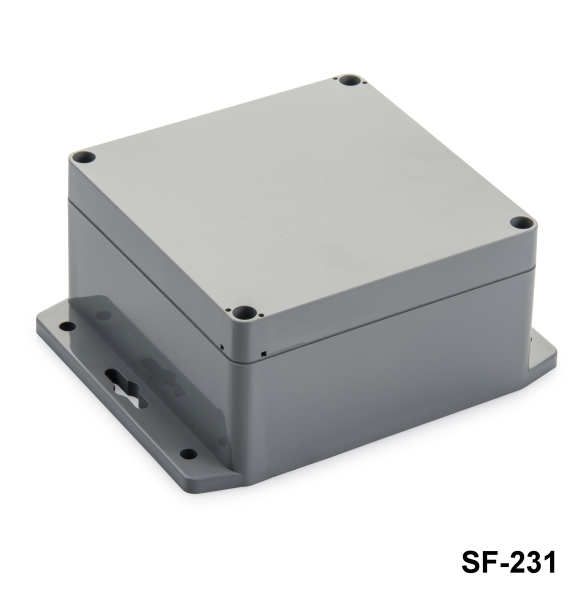

SF-231 IP-67 Plastic Heavy Duty Enclosure

[SF-231-0-0-D-0] 150 x 120 x 65 mm (5.91 x 4.72 x 2.56 in)
https://www.altinkaya.com/web/image/product.template/1871/image_1920?unique=b2fe267

Flanges facilitate mounting on surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production with ASA material resistant to sun exposure is also possible.

$ 8.93 8.9288 USD $ 8.93 No VAT

₺ 1.00 No VAT

Not Available For Sale

    This combination does not exist.

    Contact Us
    Barcode :
    8698651438024


    SF-231 is a flanged heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

    Specifications

    E1 150
    E2 113
    E3 98
    E4 135
    B1 (mm) 120
    B2 (mm) 113
    B3 (mm) 83,5
    B4 (mm) 85
    D1 (mm) 65
    D2 (mm) 50
    D3 (mm) 50
    D4 (mm) 15
    Color Dark Gray
    Material ABS
    UL94 HB
    A (mm) 150
    B (mm) 120
    C (mm) 65
    Operating Temperature -30° / +70°
    IP Rate IP67
    Units per box 10
