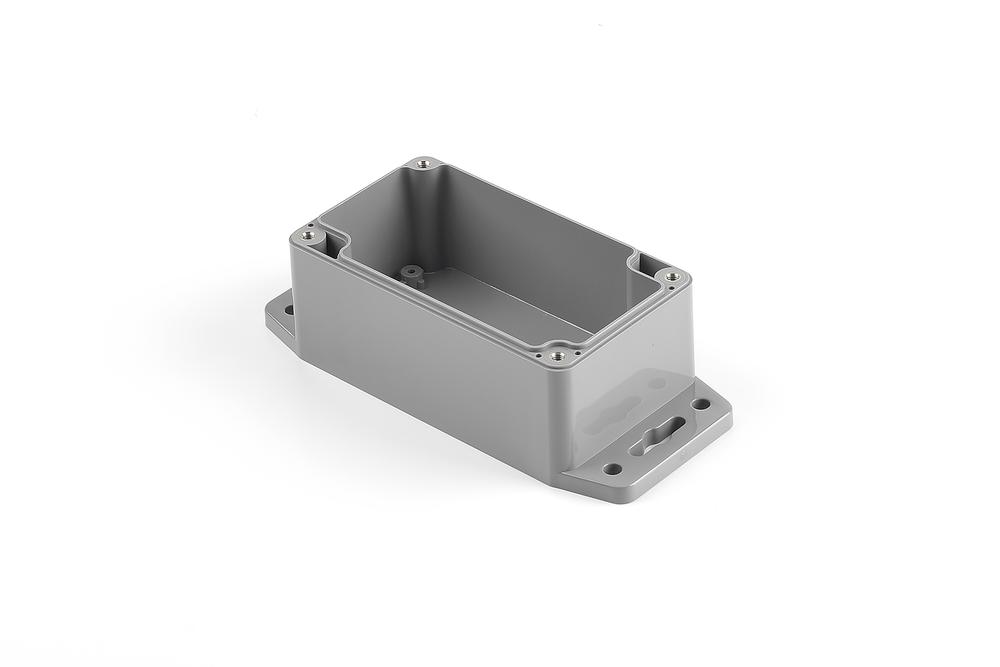

SF-212 IP-67 Flanged Heavy Duty Enclosures

[SF-212-0-0-D-0] 154 x 65 x 59 mm http://www.altinkaya.com/web/image/product.template/1392/image_1920?unique=62f4099

Flanges ease mounting on the surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production is also possible with ASA material resistant to sun exposure.

Not Available For Sale

  • Color
  • Custom Production
  • Material
  • Sticker Pool
  • Top Cover

This combination does not exist.

You can view product prices by logging in.

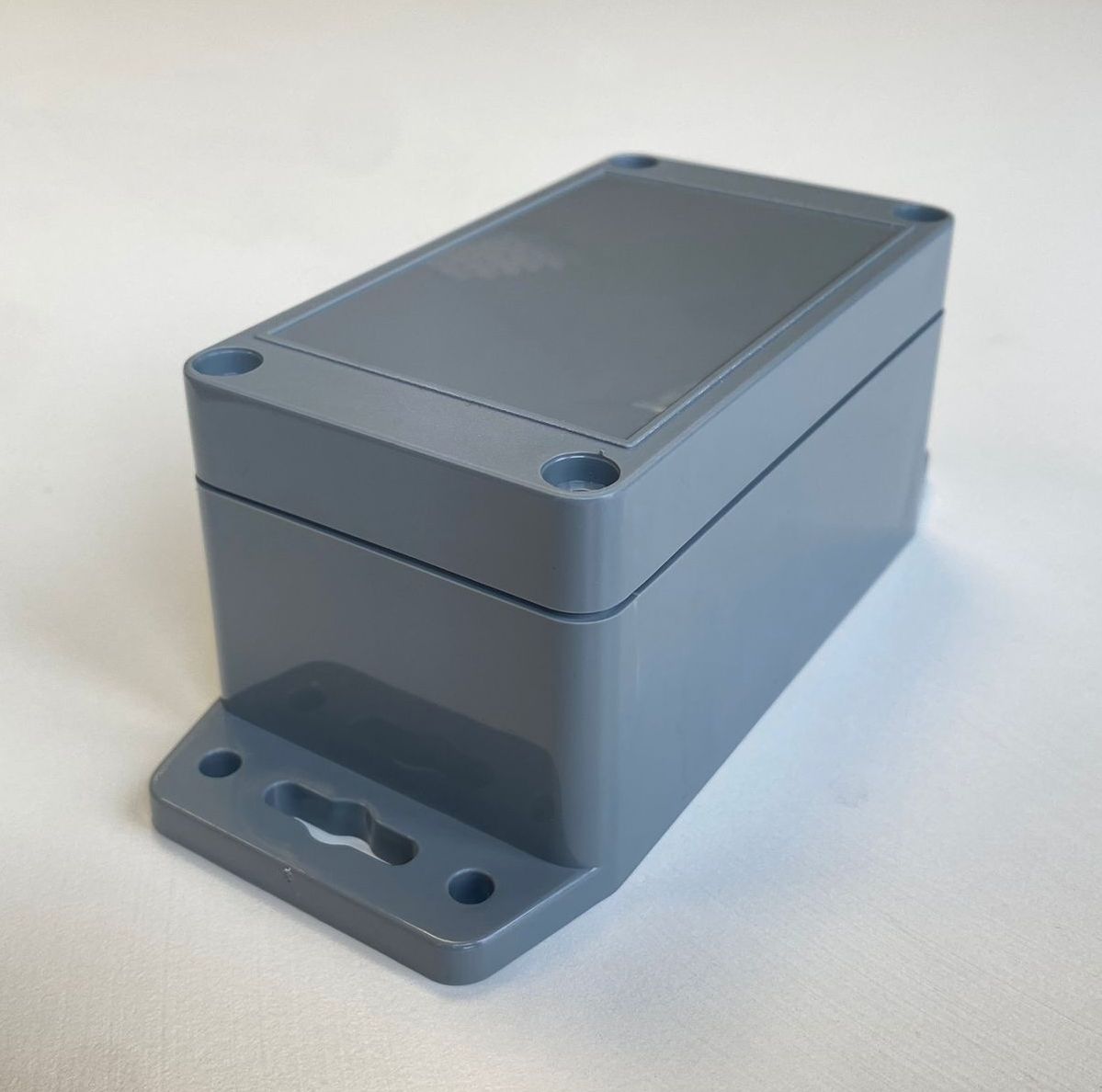

SF-212 is a flanged heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray
Material ABS
Sticker Pool no Sticker Pool, w Sticker Pool
Top Cover Transparent Cover, Flat Cover
UL94 HB
A (mm) 154
B (mm) 65
C (mm) 59
Operating Temperature -30° / +70°
Units per box 20
PDF
SF-212_drawing.pdf

3D
SF-212_3D.zip

DXF
SF-212_drawing.zip

IP Certificate
SF-212_IP.pdf
