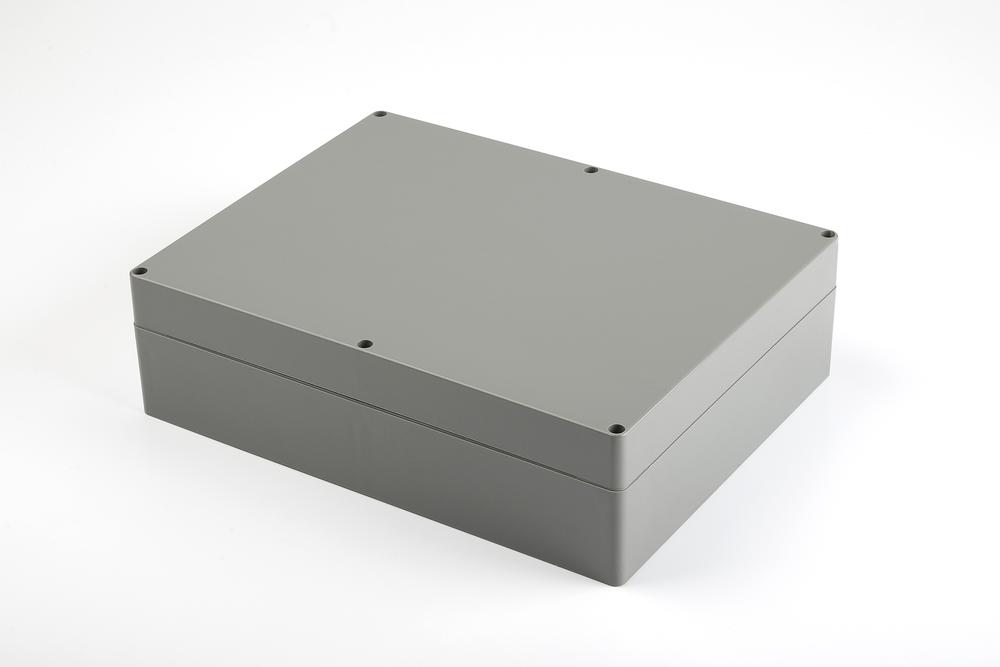

SE-268 IP-67 Plastic Heavy Duty Enclosure

[SE-268-0-0-D-0] 300 x 230 x 86 mm (11.81 x 9.06 x 3.39 in)
https://www.altinkaya.com/web/image/product.template/1006/image_1920?unique=0432807

It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection.

Login or Register to see price

Not Available For Sale

  • Color
  • Material
  • Top Cover

This combination does not exist.

Contact Us
Barcode :
8698651112405


SE-268 is a heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray
Material ABS
Top Cover Flat Cover
E1 300
E2 292
E3 255
E4 288
B1 (mm) 230
B2 (mm) 222
B3 (mm) 198,5
B4 (mm) 200
D1 (mm) 86
D2 (mm) 72,5
D3 (mm) 56
D4 (mm) 30
UL94 HB
A (mm) 300
B (mm) 230
C (mm) 86
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 5
