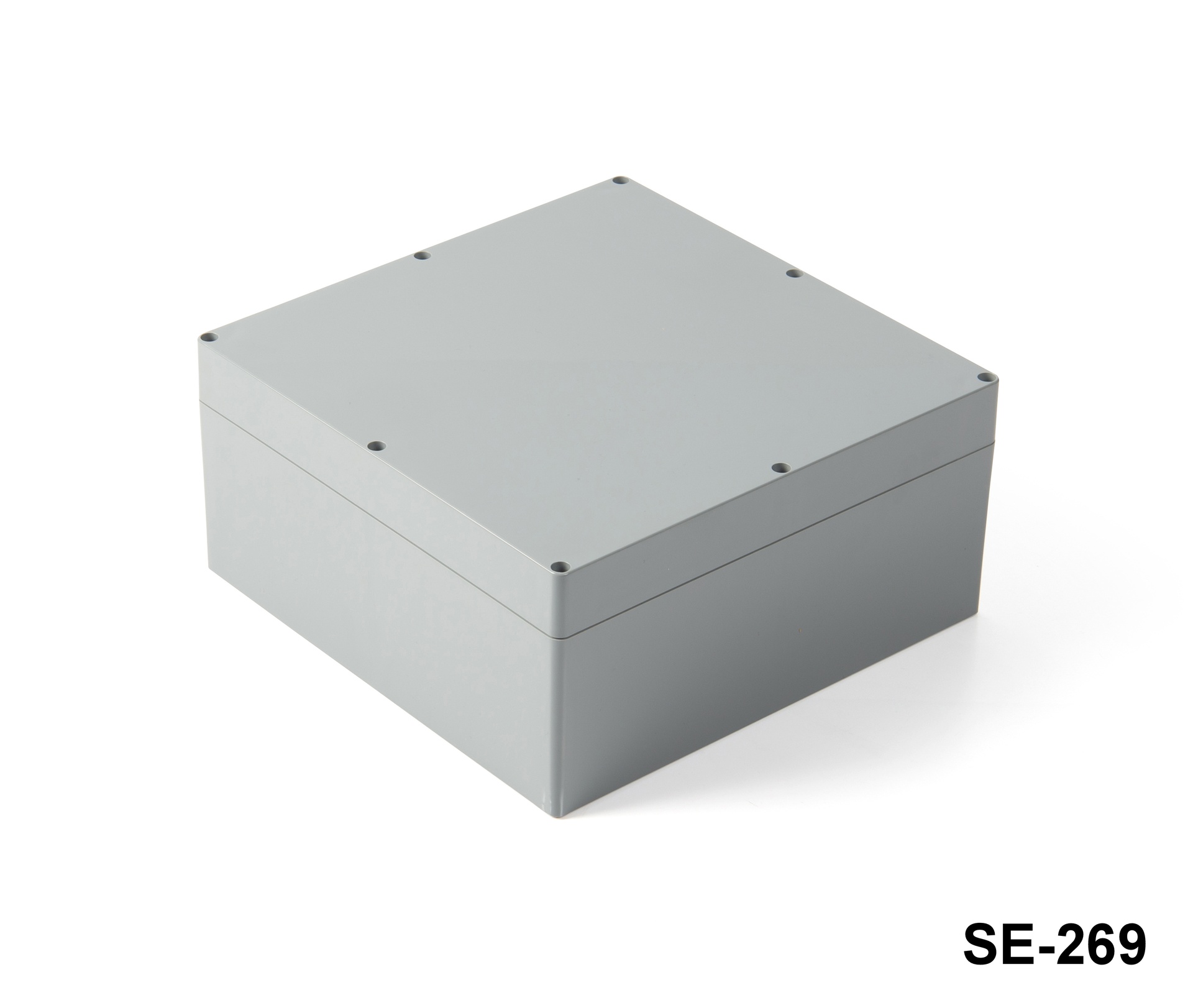

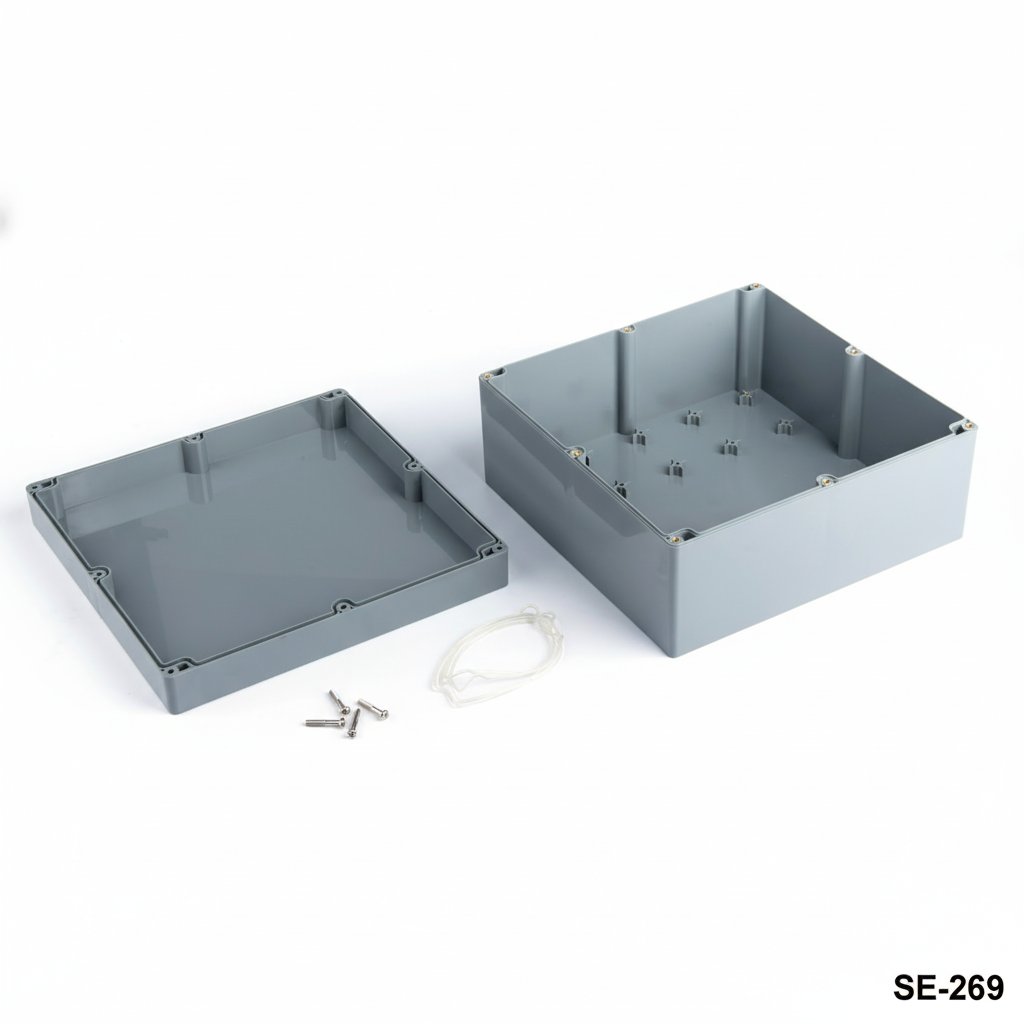

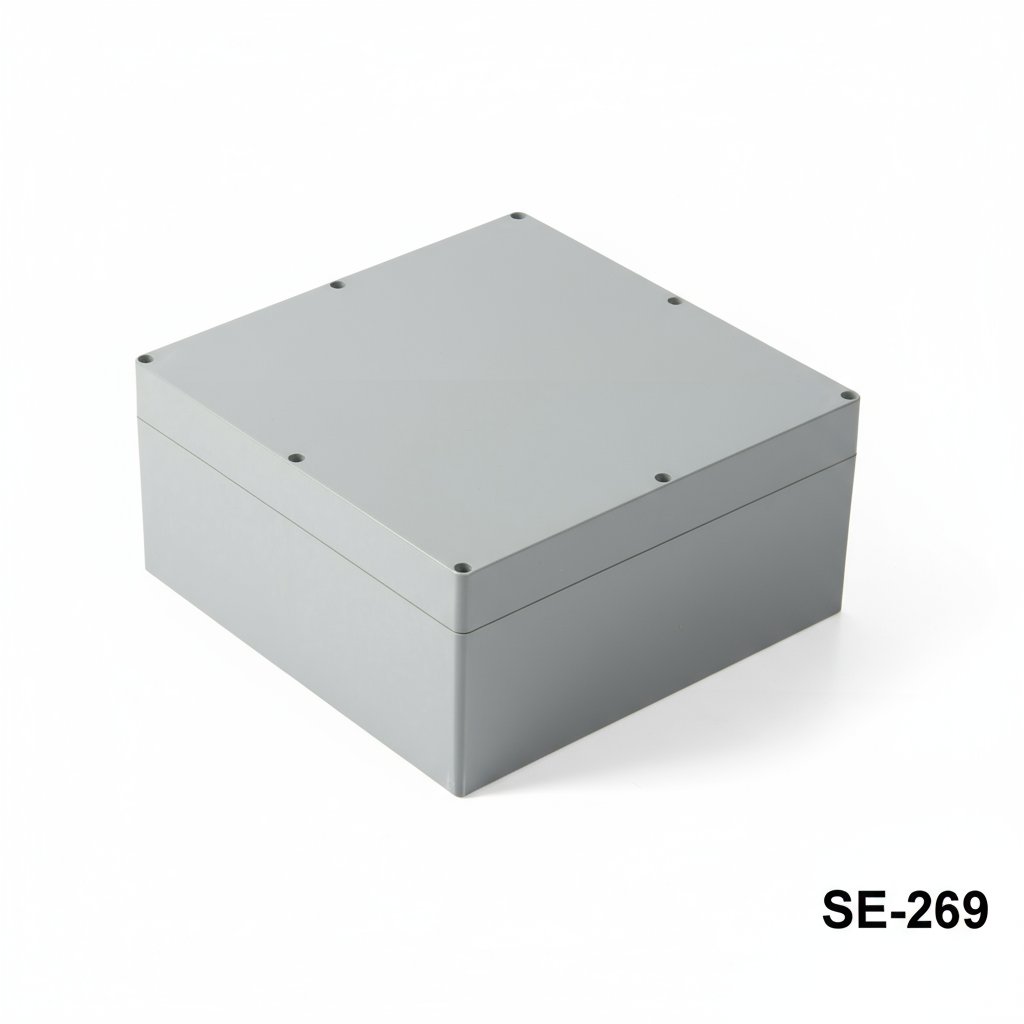

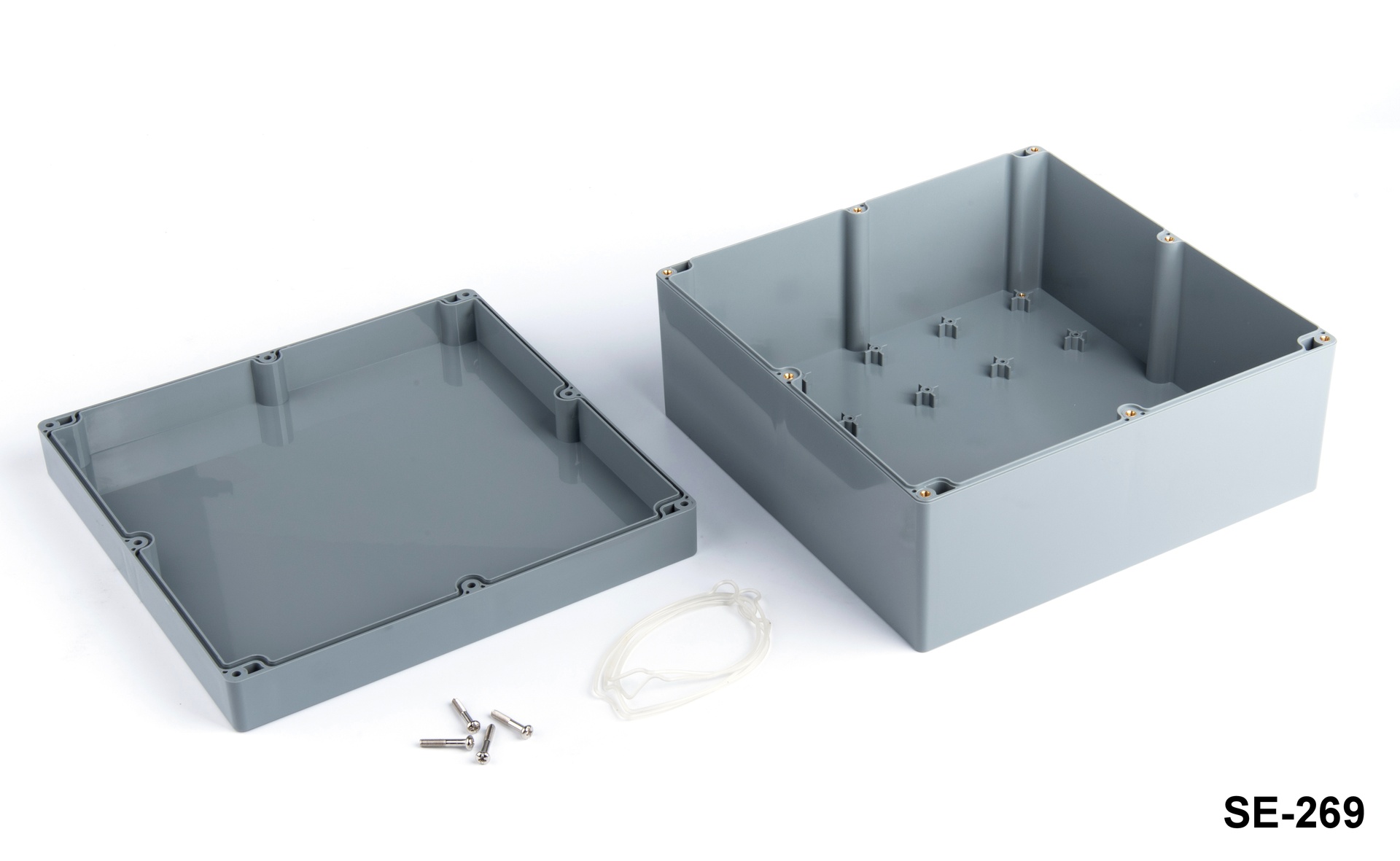

SE-269 IP-67 Plastic Heavy Duty Enclosure

[SE-269-0-0-D-0] 250 x 250 x 120 mm http://www.altinkaya.com/web/image/product.template/1007/image_1920?unique=0252fbd

It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection.

Not Available For Sale

  • Color
  • Material
  • Top Cover

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü


Barcode: 8698651372991

SE-269 is a heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray
Material ABS
Top Cover Flat Cover
UL94 HB
A (mm) 250
B (mm) 250
C (mm) 120
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 4
DXF
SE-269_drawing.zip

IP Certificate
SE-269_IP.pdf

PDF
SE-269_drawing.pdf

3D
SE-269_3D.rar
