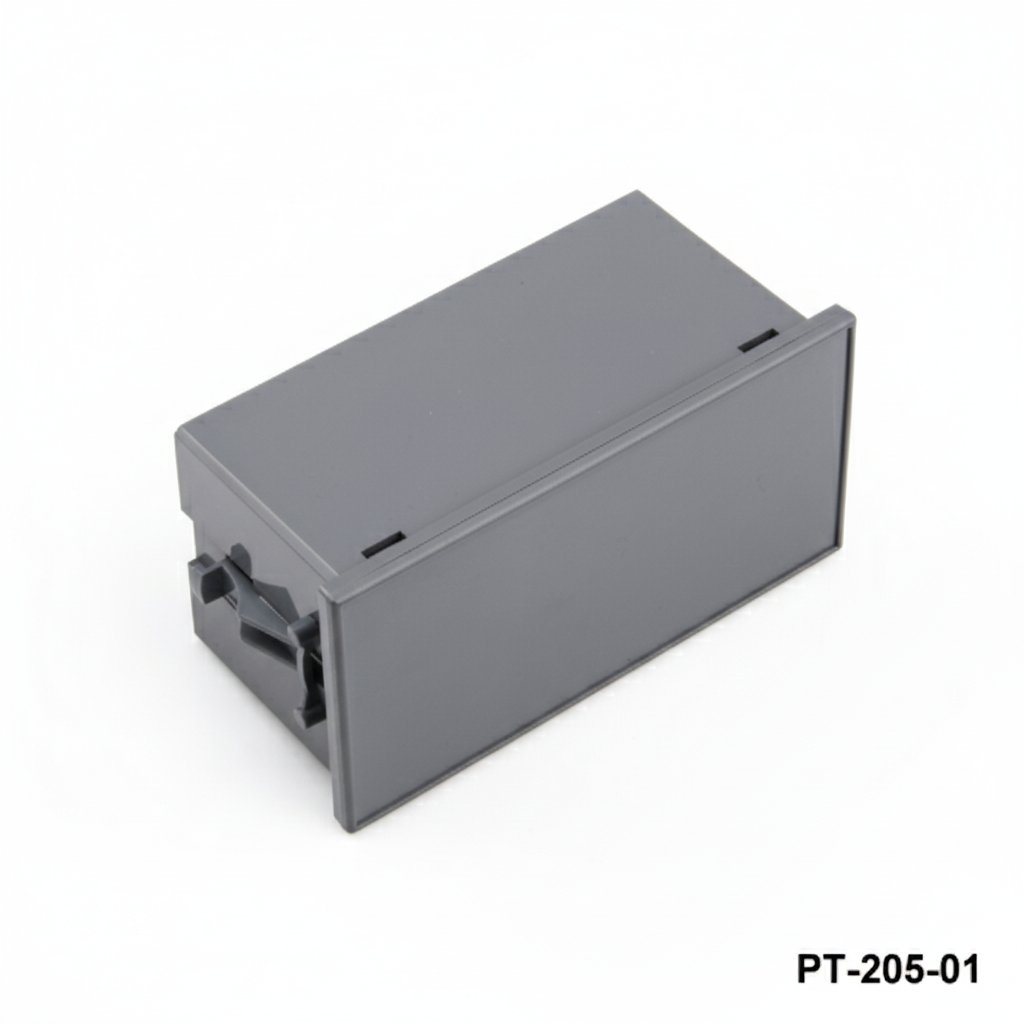

PT-205-01 Panel Mounting Enclosure

[PT-205-01-2-S-0] 72 x 144 x 68 mm http://www.altinkaya.com/web/image/product.template/1687/image_1920?unique=358da58

An ideal solution for analog and digital control panels used for time, temperature, and counters.

Not Available For Sale

  • Color
  • Back Cover

This combination does not exist.

You can view product prices by logging in.

PT-205-01 DIN Panel Enclosure

The PT-205-01 DIN Panel Enclosure is made from high-quality ABS plastic in a light gray or black color and measures 72 mm x 144 mm x 68 mm. It comes with a body, frame, panel and side clamps for easy mounting. Contact our International Sales team for more information on customization and quantity details.

This enclosure is an ideal solution for analog and digital control panels used for time, temperature, and counters. Its ABS plastic construction and compact design make it a versatile and reliable option for a wide range of applications.

Specifications

Color Light Gray, Black, Dark Gray
Back Cover Fully Closed, w Terminal Slot 3,81mm, w Terminal Slot 5,08mm
Material ABS
UL94 HB
A (mm) 72
B (mm) 144
C (mm) 68
Operating Temperature -30° / +70°
IP Rate IP40, IP54
Units per box 20
PDF
PT-205-01-drawing.pdf

DXF
PT-205-01-drawing.zip
