EC-3040 Aluminium Internal Door Set
EC-3040 Aluminium Internal Door Set
Login or Register to see price
EC-2828 IP67 Hinged Plastic Enclosure
EC-2828 IP67 Hinged Plastic Enclosure
Login or Register to see price

EC-3040 IP67 Hinged Plastic Enclosure

[EC-3040-16-0-G-A] 300 x 400 x 159 - 200 mm (11.81 x 15.75 x 6.26 in)
https://www.altinkaya.com/web/image/product.template/1231/image_1920?unique=1a77569

Certified IP67, suitable for outdoor applications. Galvanized mounting plate is optional.

Login or Register to see price

Not Available For Sale


  • Color
  • Material
  • Mounting Plate
  • Top Cover
  • Type
  • UL94

This combination does not exist.


Barcode :
8698651356755

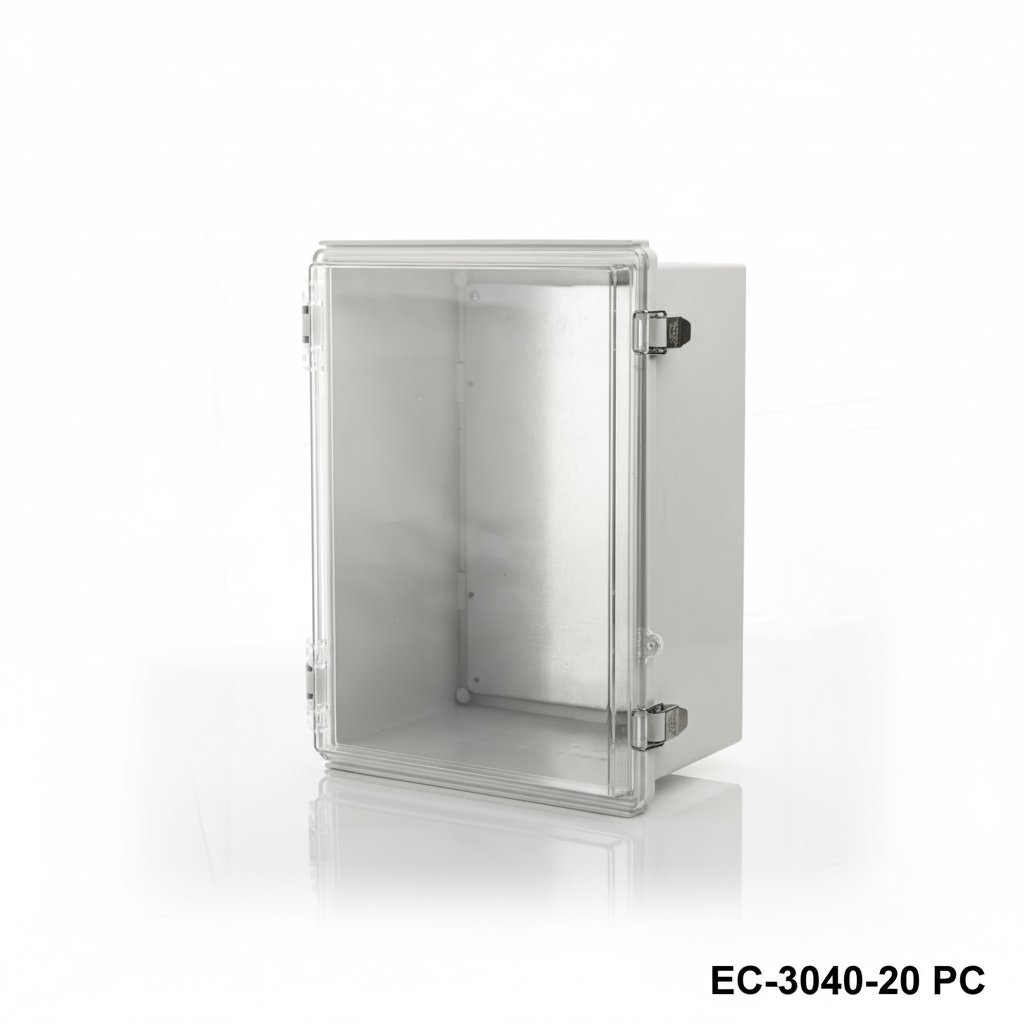

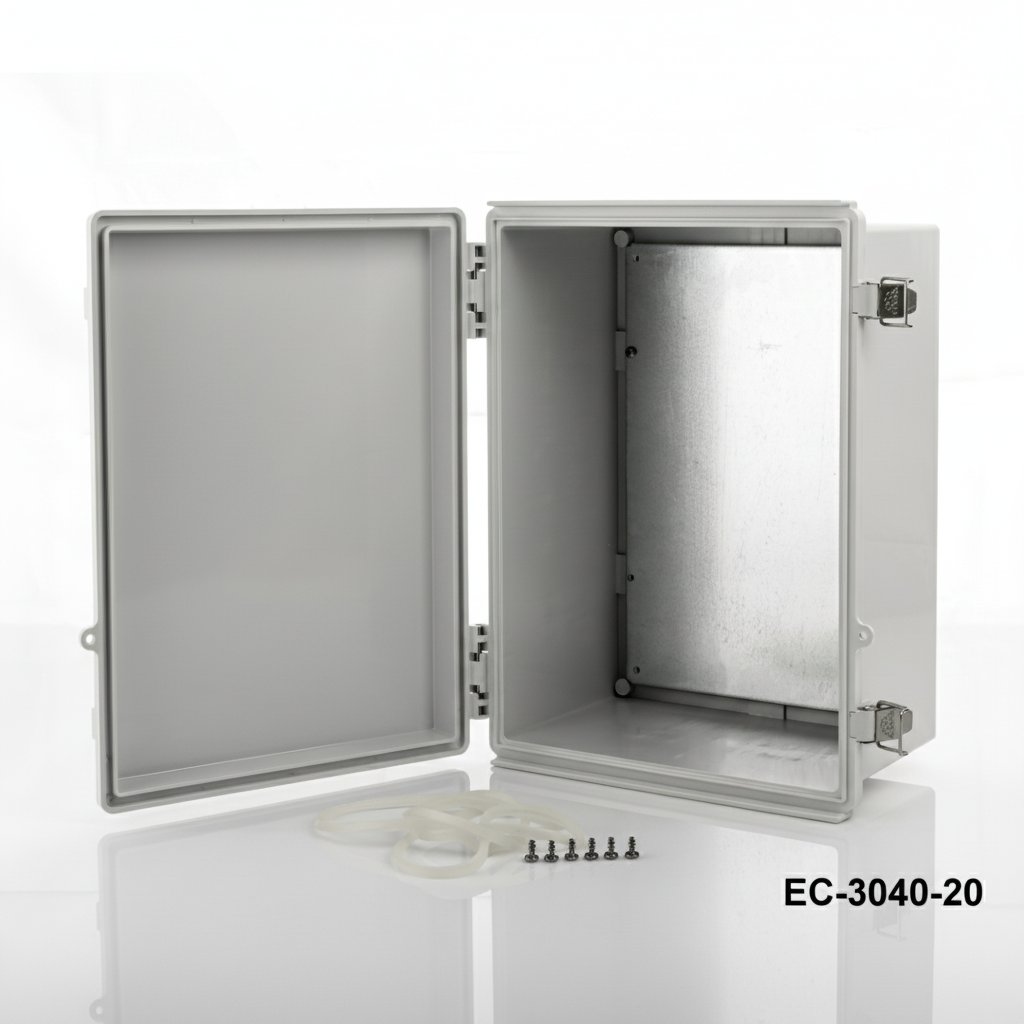

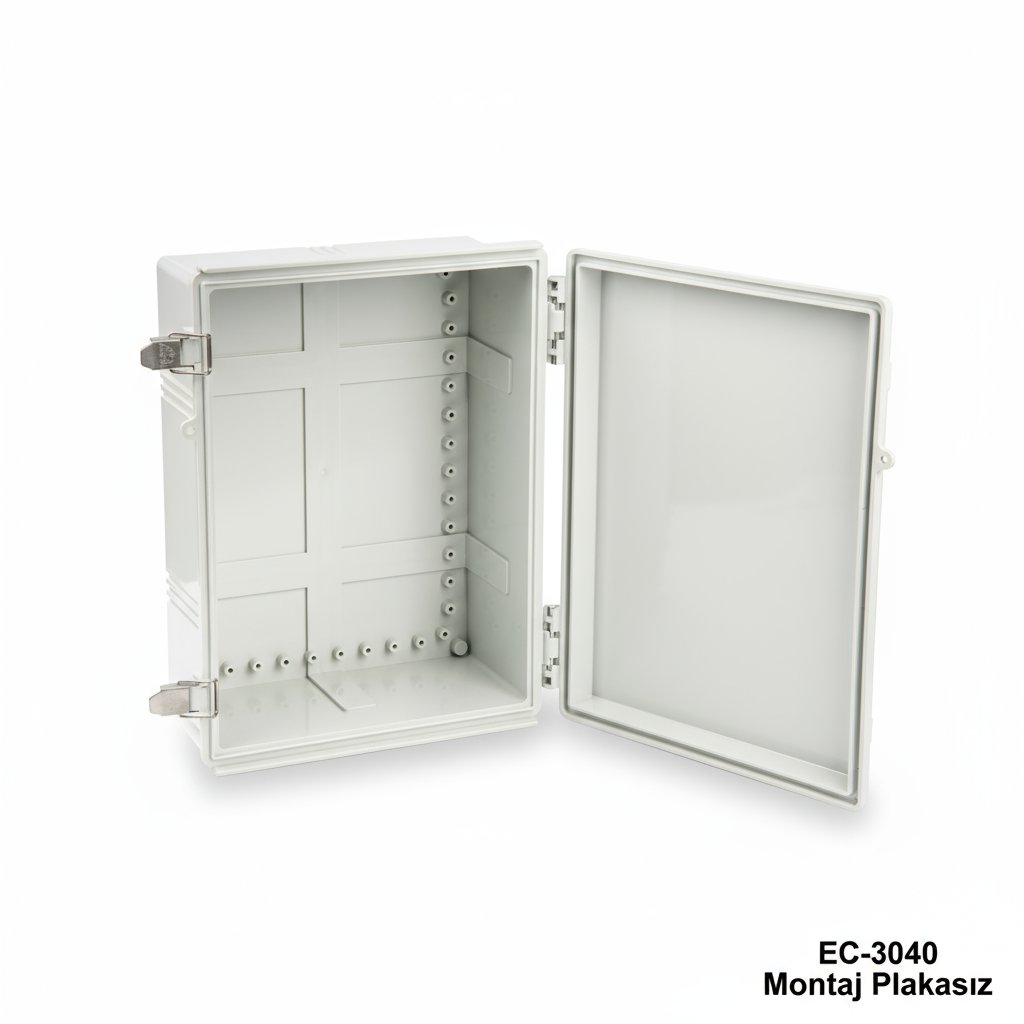

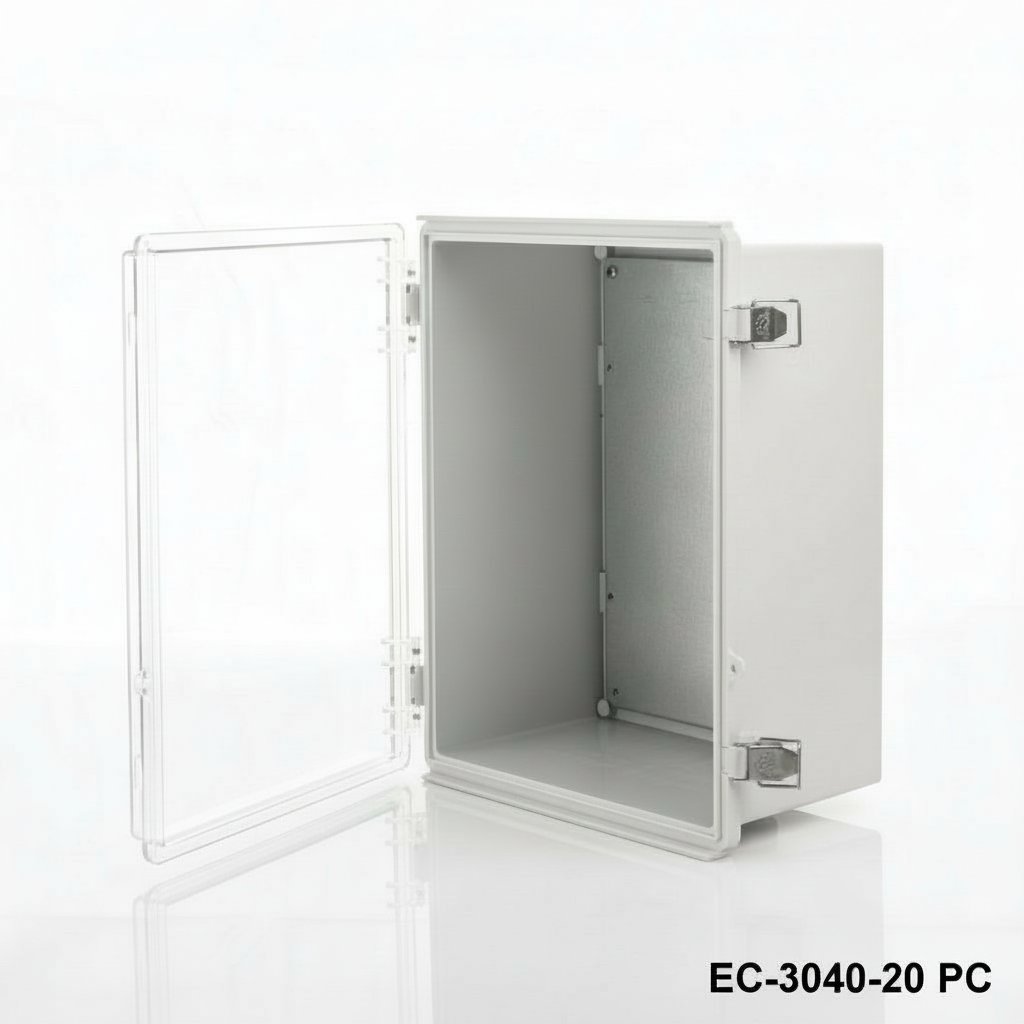

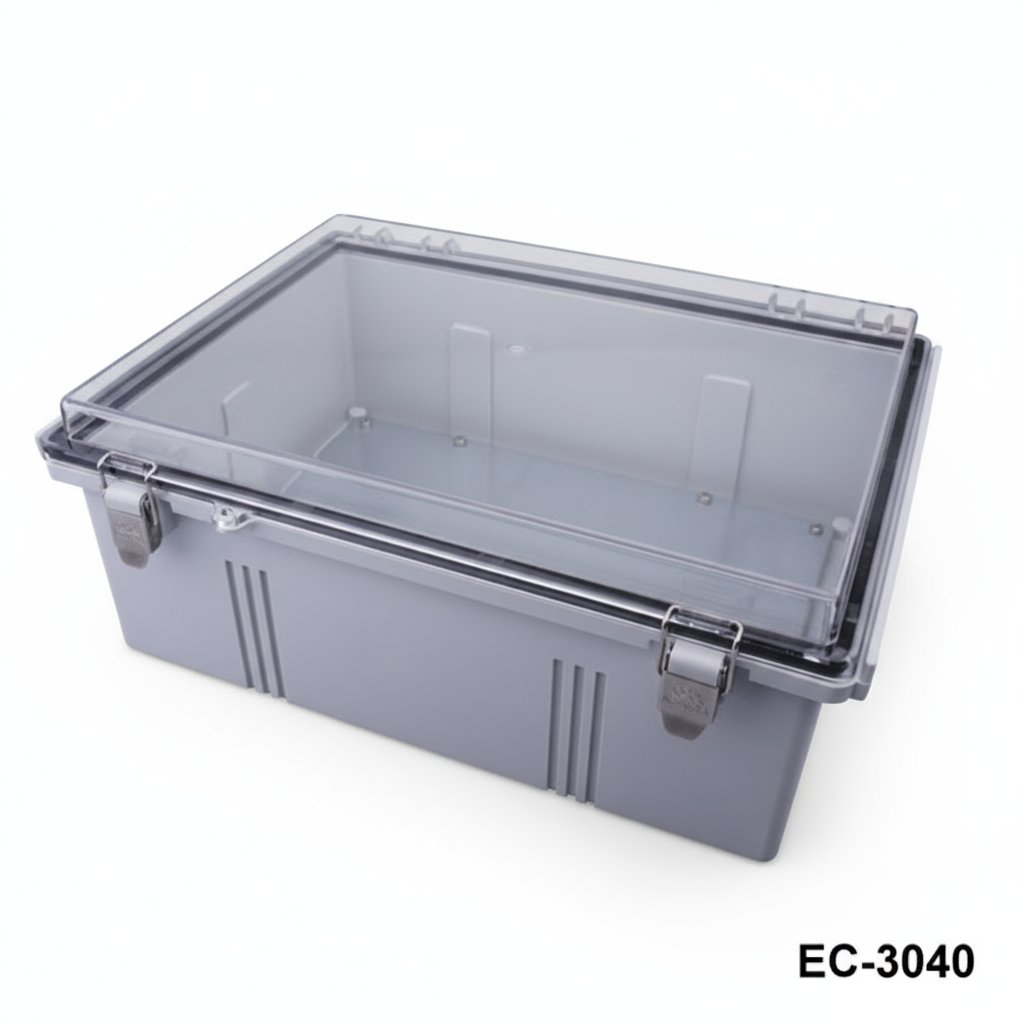

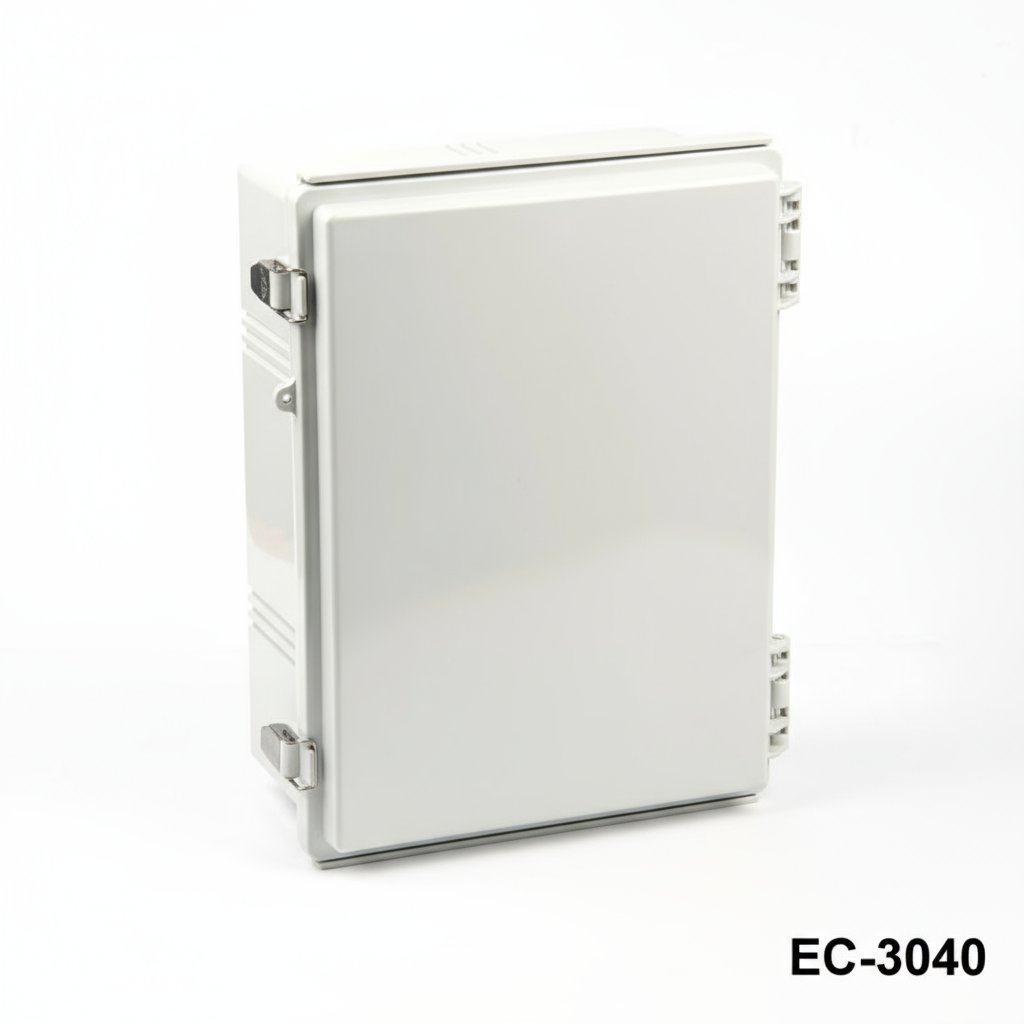

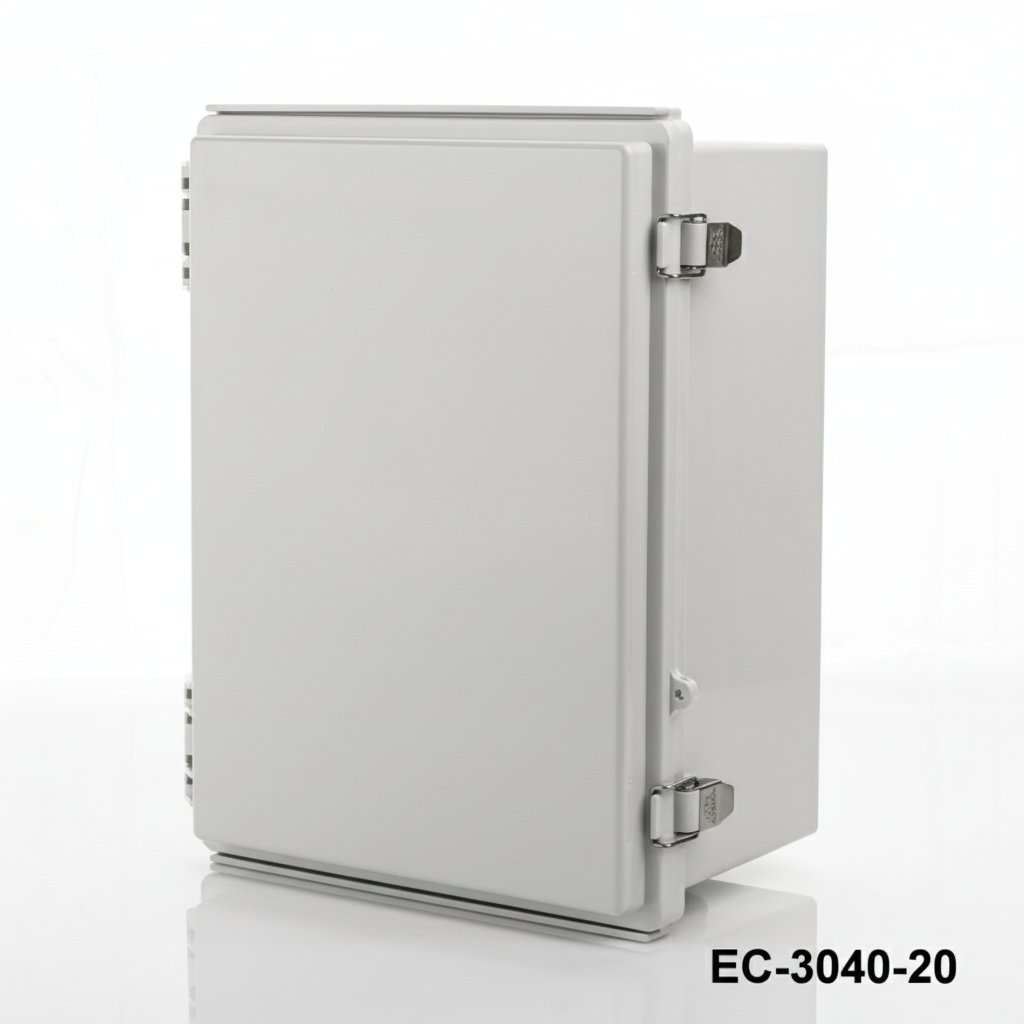

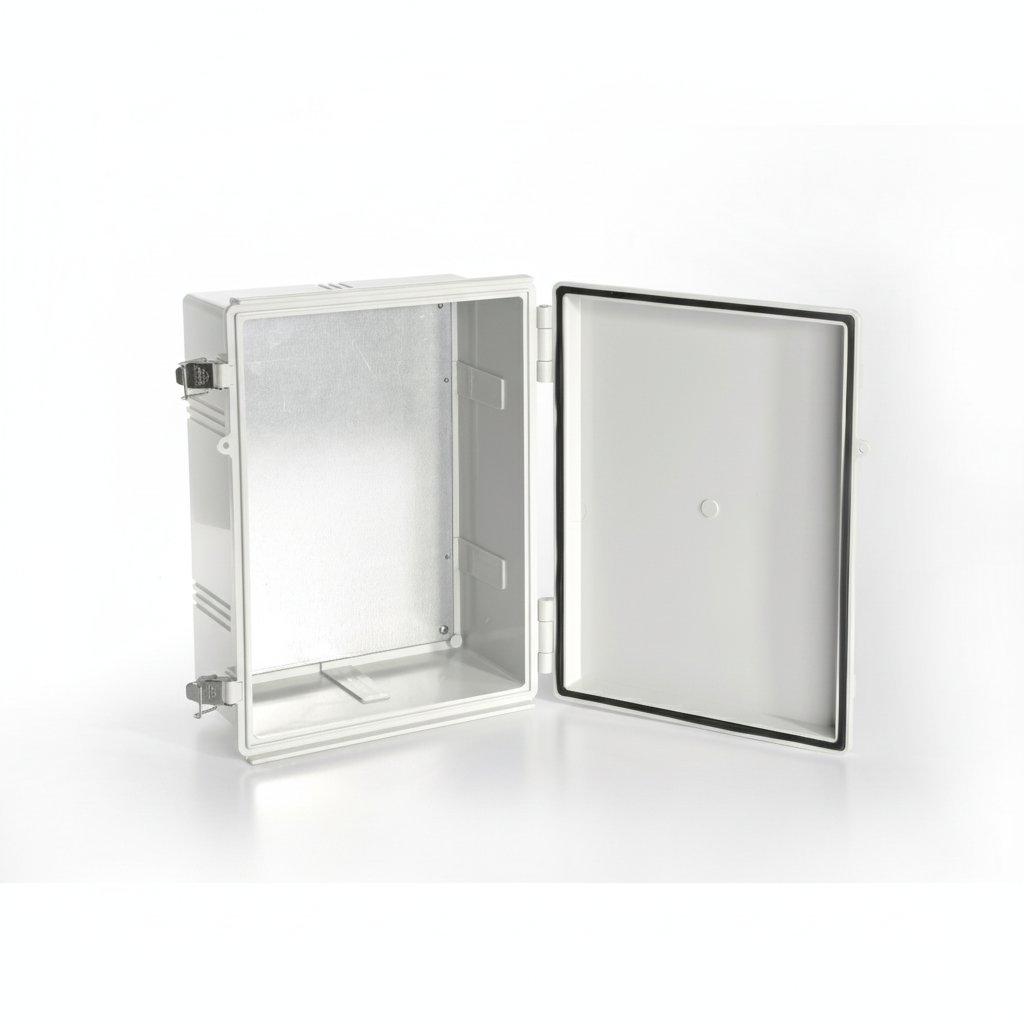

EC-3040 is a hinged plastic enclosure with IP67 certificate. Available with 2 different sizes as 300 x 400 x 159 and 300 x 400 x 200. These cabinets can be used outdoor for several electrical applications. TPE gasket ensures resistancy against water and dust. Stock material for this product is shockproof ABS. ASA is another recommended option for heavy duty applications. Another optional offer is a clear lid with PC (Polycarbonate) material. 1 mm galvanized steel mounting plate provides easy mounting of your components inside the enclosure. The cases are well protected with the stainless steel latches. Other optional related accessories are aluminum and plastic wall mounting kits, pole mounting kit, inner door set. CNC machining and UV printing customizations are available as for all Altinkaya products.

Specifications

Color Light Gray
Material ABS
Mounting Plate with Mounting Plate, without Mounting Plate
Top Cover Transparent Cover, Flat Cover
Type Thickness 160mm, Thickness 200mm
UL94 HB
E1 300
E2 264
E3 250
E4 220
B1 (mm) 400
B2 (mm) 350
B3 (mm) 320
D1 (mm) 159, 200
D2 (mm) 142, 183
D3 (mm) 129, 170
D4 (mm) 30
P1 (mm) 242
P2 (mm) 343
Material PC
A (mm) 300
B (mm) 400
C (mm) 159 - 200
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 1
