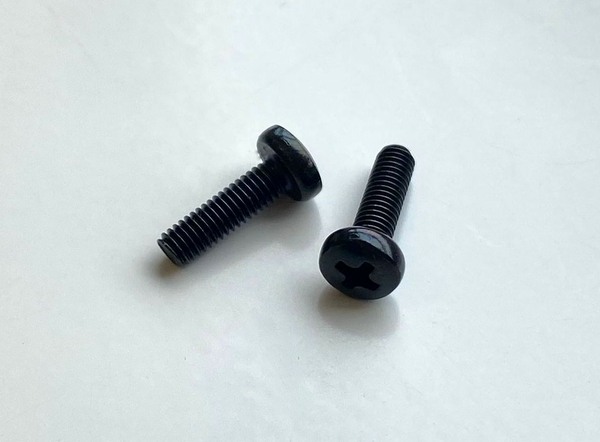

![[VD-330-10-0-S-0] VD-330 M3 YSB Metric Screw ( Black , 10 mm)](/web/image/base_multi_image.image/26211/image_128/%5BVD-330-10-0-S-0%5D%20%20VD-330%20M3%20YSB%20Metric%20Screw%20%28%20Black%20%2C%2010%20mm%29%20?unique=0dd019d)
![[VD-330-10-0-S-0] VD-330 M3 YSB Metric Screw ( Black , 10 mm)](/web/image/base_multi_image.image/26211/image_1024/%5BVD-330-10-0-S-0%5D%20%20VD-330%20M3%20YSB%20Metric%20Screw%20%28%20Black%20%2C%2010%20mm%29%20?unique=0dd019d)
Specifications
| Color | Metallic, Black |
| Length | 10 - 50 mm |
| Thread Pitch | 0,5 mm |
| Fully Threaded | Fully Threaded |
| Head Diameter | 6 mm |
| Head Height | 2.4 mm |
| Phillips | PH Philips |
| Drive Style | PH-1 |
| Thread Type | Metric |
| Thread Spacing | Coarse |
| Thread Fit | Class 6h |
| Head Type | Yuvarlak |
| System of Measurement | Metric |
| RoHS | RoHS (2015/863/EU) Compliant |
| REACH | REACH Compliant |
| Country of Origin | Türkiye |
| Hardness | Min.450 Hv0.3 |
| Karşılanan Standart | DIN 7985 |
| Rounded Head Style | Pan |
| Rounded Head Profile | Standard |
| Thread Size | M3 |
| Material | 20 Mn-B4 |
