SE-546 IP-67 Alu Die-Cast Enclosure

[SE-546-0-0-A-0] 162 x 162 x 55 mm (6.38 x 6.38 x 2.17 in)
https://www.altinkaya.com/web/image/product.template/1836/image_1920?unique=3659961

A rugged and customizable solution for protecting your device including 2 seals; one for EMI and for waterproofness and well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

Login or Register to see price

Not Available For Sale


  • EMI Gasket

This combination does not exist.


Barcode :
8698651334036
Share :
Customization options available
Quality guaranteed
Worldwide delivery

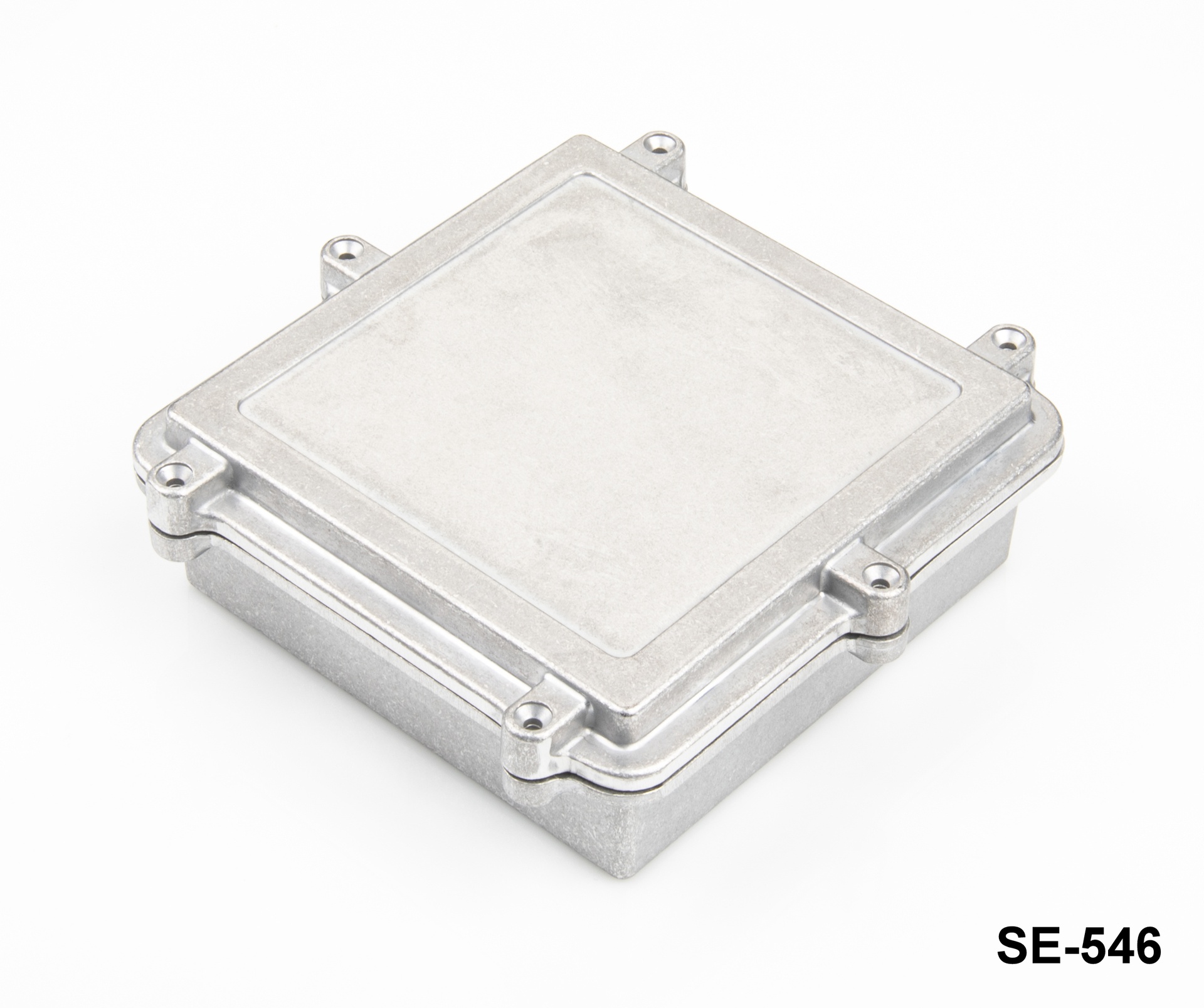

SE-546 IP67 Aluminum Enclosure

The SE-546 IP67 Aluminum Enclosure is a high-quality, diecast aluminum housing designed for use in a variety of electronic and electrical applications. With dimensions of 162 mm x 162 mm x 55 mm, this enclosure is well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

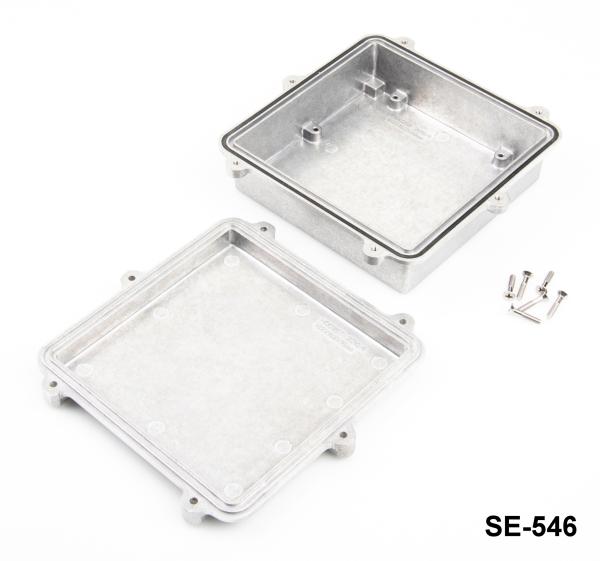

The natural aluminum finish of this enclosure can be powder-coated into any color based on the quantity. For information on quantity details and customization options, please contact our International Sales team. The SE-546 features double channels for seals, with one providing waterproofness and the other being an EMI seal. Note that the EMI seal must be ordered separately.

Choose the SE-546 IP67 Aluminum Enclosure for a rugged and reliable housing solution in a variety of electronic and electrical applications.

Material Aluminium
A (mm) 162
B (mm) 162
C (mm) 55
Seal Conta Var
IP Rate IP67
IP Certificate
ALTINKAYA_SE-546_IP67.pdf
Download
3D
SE-546-3D.zip
Download
PDF
SE-546-drawing.pdf
Download
DXF
SE-546-drawing.zip
Download
