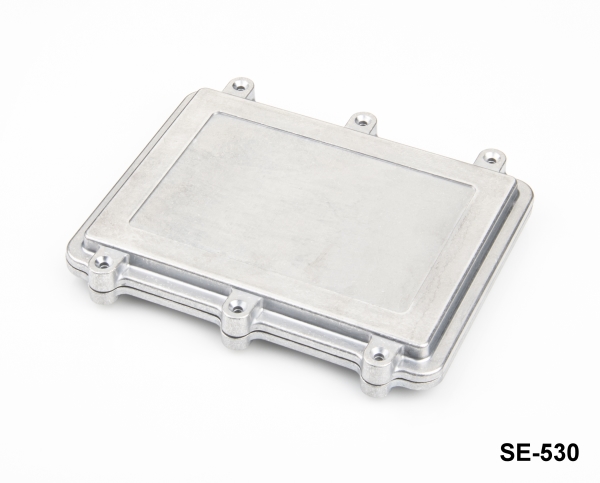

SE-530 IP-67 Alu Die-Cast Enclosure

[SE-530-0-0-A-0] 200 x 150 x 28 mm http://www.altinkaya.com/web/image/product.template/2337/image_1920?unique=3bdf2fe

A rugged and customizable solution for protecting your device including 2 seals; one for EMI and for waterproofness and well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

Not Available For Sale

  • EMI Gasket

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

SE-530 IP67 Aluminum Enclosure

The SE-530 IP67 Aluminum Enclosure is a high-quality, diecast aluminum housing designed for use in a variety of electronic and electrical applications. With dimensions of 200 mm x 150 mm x 28 mm, this enclosure is well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

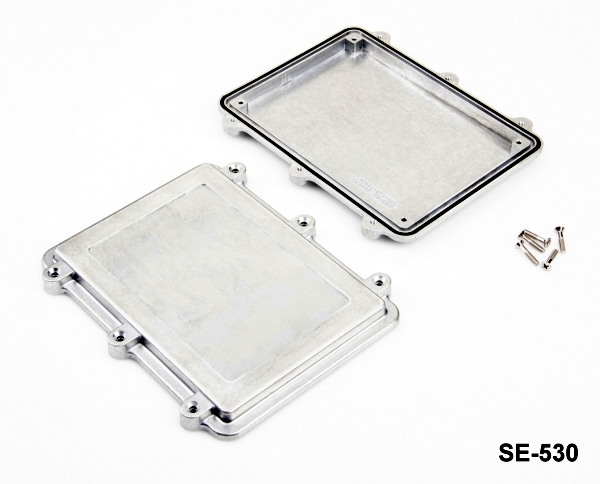

The natural aluminum finish of this enclosure can be powder-coated into any color based on the quantity. For information on quantity details and customization options, please contact our International Sales team. The SE-530 features double channels for seals, with one providing waterproofness and the other being an EMI seal. Note that the EMI seal must be ordered separately.

Choose the SE-530 IP67 Aluminum Enclosure for a rugged and reliable housing solution in a variety of electronic and electrical applications.

Specifications

EMI Gasket with EMI Gasket, without EMI Gasket
Material Aluminium
A (mm) 200
B (mm) 150
C (mm) 28
Seal Conta Var
IP Rate IP67
DXF
SE-530-drawing.zip

IP Certificate
ALTINKAYA_SE-530_IP67.pdf

PDF
SE-530-drawing.pdf

3D
SE-530-3D.zip
