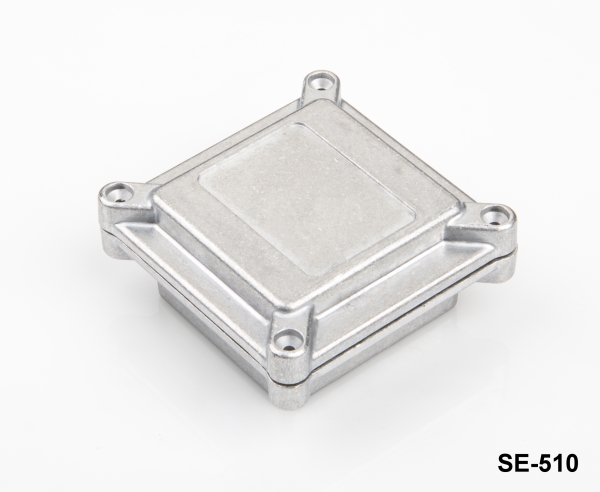

SE-510 IP-67 Alu Die-Cast Enclosure

[SE-510-0-0-A-0] 96 x 96 x 45 mm http://www.altinkaya.com/web/image/product.template/1822/image_1920?unique=d41bc1b

A rugged and customizable solution for protecting your device including 2 seals; one for EMI and for waterproofness and well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

Not Available For Sale

  • EMI Gasket

This combination does not exist.

You can view product prices by logging in.

SE-510 IP67 Aluminum Enclosure

The SE-510 IP67 Aluminum Enclosure is a high-quality, diecast aluminum housing designed for use in a variety of electronic and electrical applications. With dimensions of 96 mm x 96 mm x 45 mm, this enclosure is well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

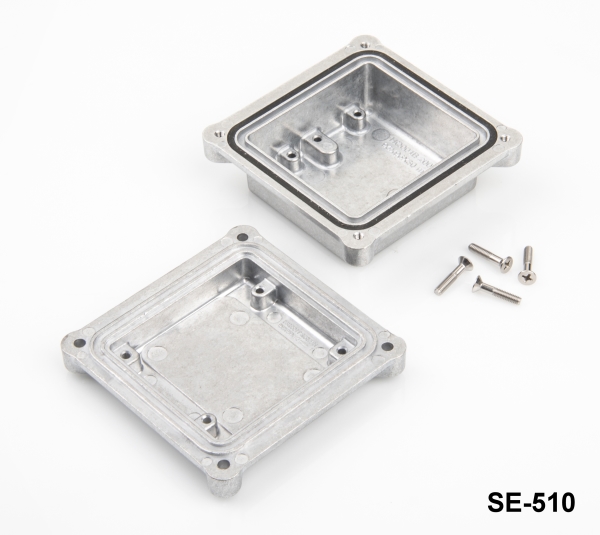

The natural aluminum finish of this enclosure can be powder-coated into any color based on the quantity. For information on quantity details and customization options, please contact our International Sales team. The SE-510 features double channels for seals, with one providing waterproofness and the other being an EMI seal. Note that the EMI seal must be ordered separately.

Choose the SE-510 IP67 Aluminum Enclosure for a rugged and reliable housing solution in a variety of electronic and electrical applications.

Specifications

EMI Gasket with EMI Gasket, without EMI Gasket
Material Aluminium
A (mm) 96
B (mm) 96
C (mm) 45
Seal Conta Var
IP Rate IP67
DXF
SE-510-drawing.zip

3D
SE-510-3D.zip

PDF
SE-510-drawing.pdf

IP Certificate
ALTINKAYA_SE-510_IP67.pdf
