SE-258 IP-67 Plastic Heavy Duty Enclosure

[SE-258-0-0-D-0] 222 x 146 x 75 mm (8.74 x 5.75 x 2.95 in)
https://www.altinkaya.com/web/image/product.template/999/image_1920?unique=e8c869e

It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection.

$ 10.46 10.462 USD $ 10.46 No VAT

₺ 1.00 No VAT

Not Available For Sale

  • Color
  • Top Cover

This combination does not exist.

Contact Us
Barcode :
8698651112351

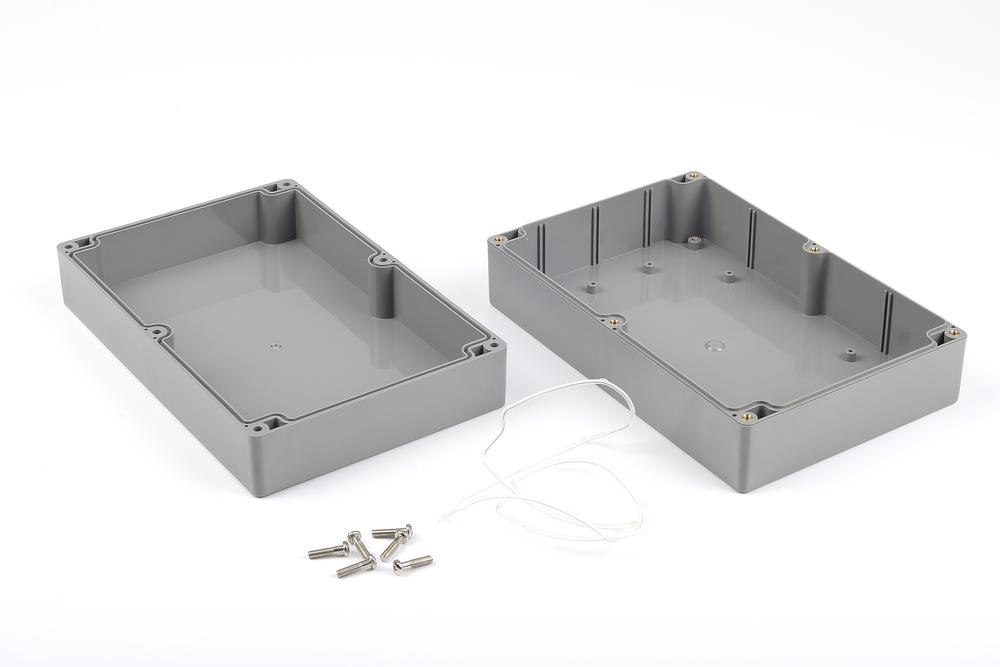

SE-258 is a heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray

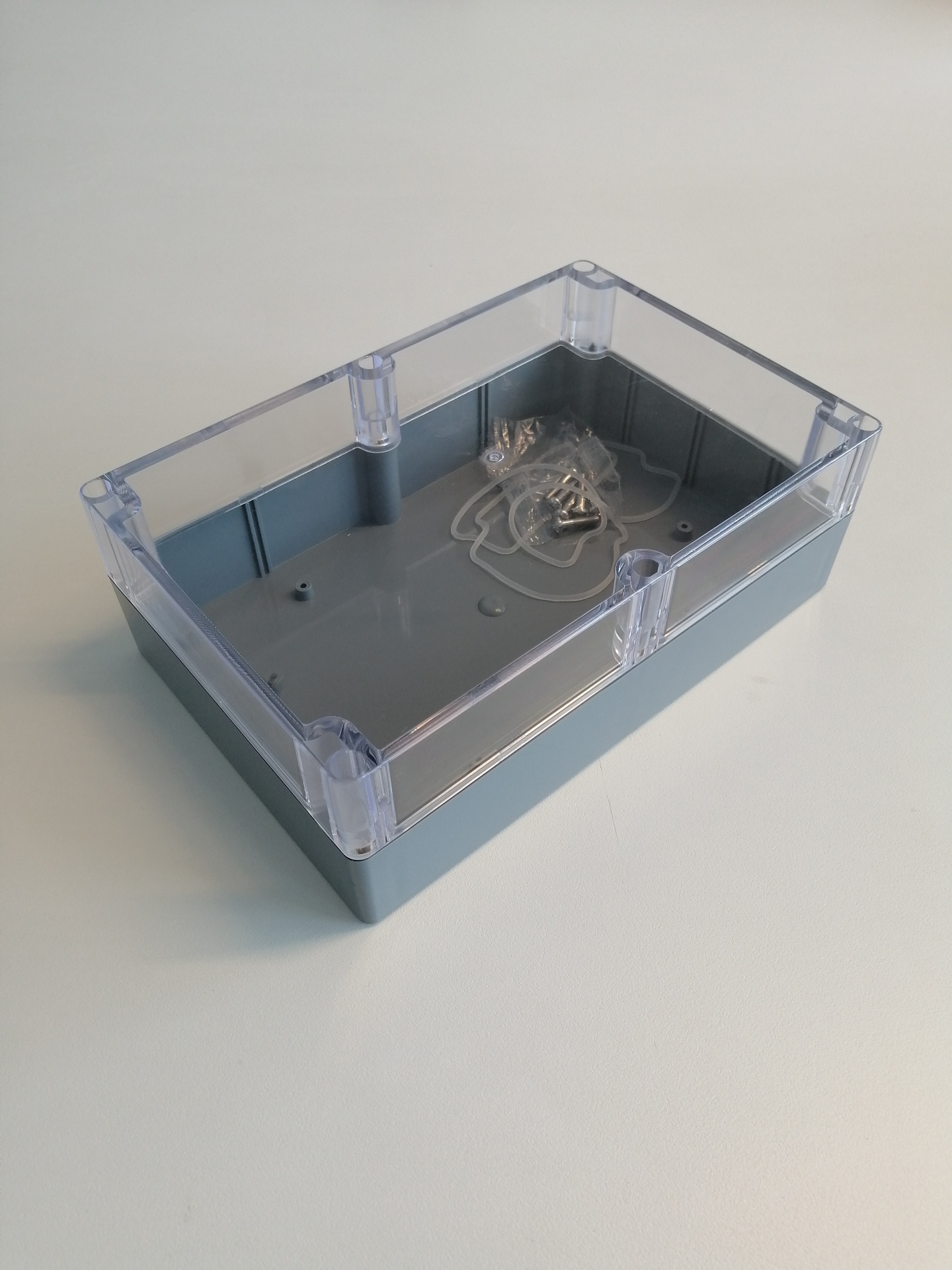

Top Cover Transparent Cover, Flat Cover
E1 222
E2 215
E3 182,4
E4 210
B1 (mm) 75
B2 (mm) 64
B3 (mm) 40
B4 (mm) 35
D1 (mm) 146
D2 (mm) 139
D3 (mm) 116,2
D4 (mm) 116
Material ABS
UL94 HB
A (mm) 222
B (mm) 146
C (mm) 75
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 10
