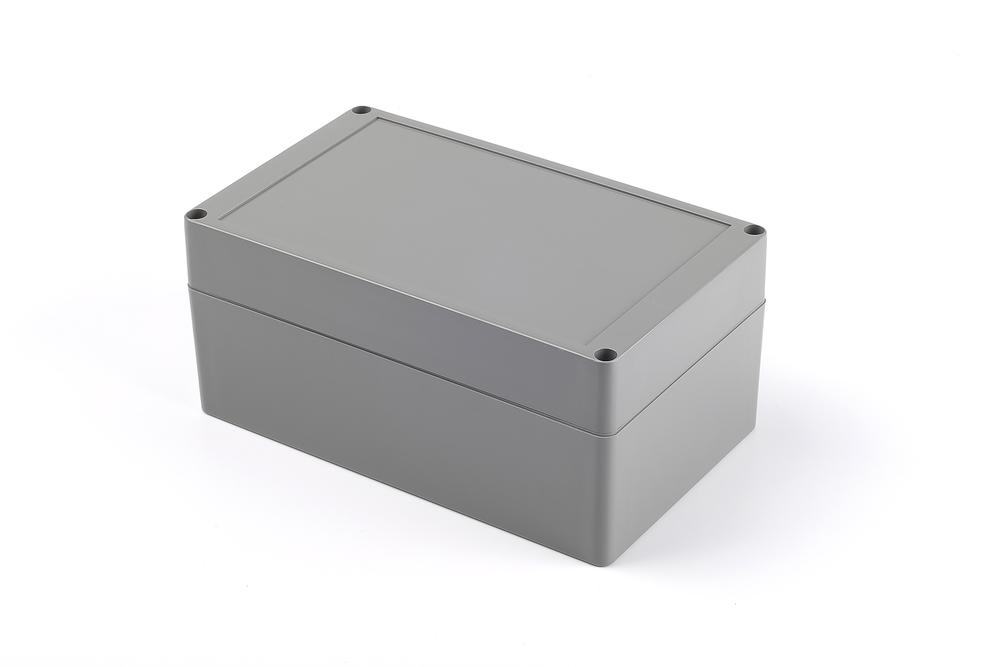

SE-242 IP-67 Plastic Heavy Duty Enclosure

[SE-242-0-0-D-0] 200 x 120 x 90 mm http://www.altinkaya.com/web/image/product.template/990/image_1920?unique=af408f7

It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection.

Not Available For Sale

  • Color

This combination does not exist.

You can view product prices by logging in.

Barcode: 8698651112276

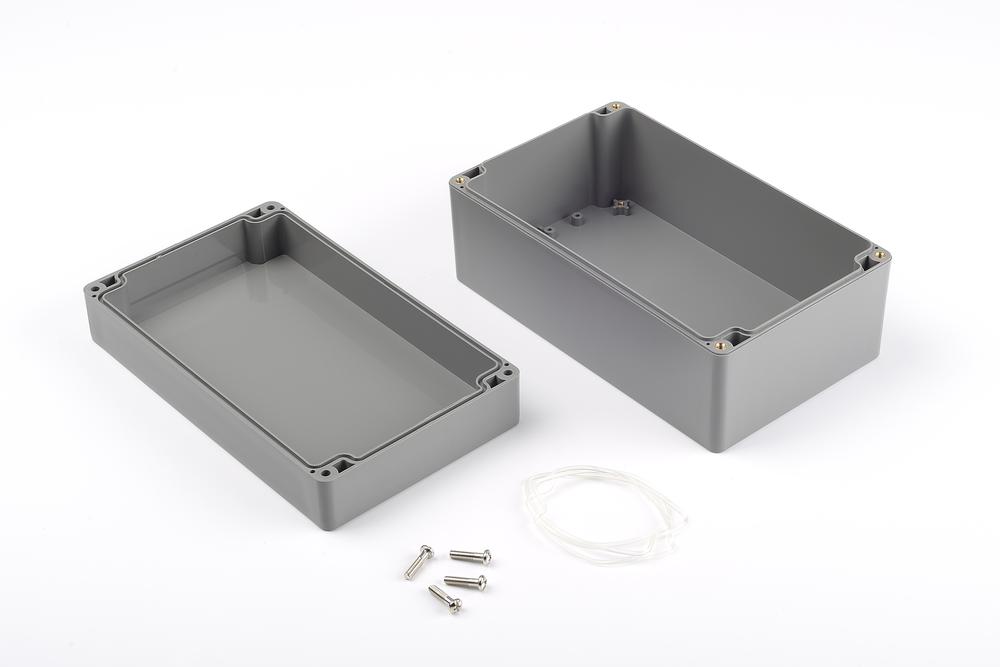

SE-242 is a heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray
Material ABS
UL94 HB
A (mm) 200
B (mm) 120
C (mm) 90
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 5
DXF
SE-242_drawing.DXF

PDF
SE-242_drawing.PDF

3D
SE-242_3D.zip

IP Certificate
altinkaya-se_ip67_report_lvd2015321.pdf
