SE-056 IP-67 Plastic Heavy Duty Enclosure

[SE-056-0-0-D-0] 175 x 90 x 100 mm http://www.altinkaya.com/web/image/product.template/963/image_1920?unique=a4fed3a

Having IP67 certificate, waterproof and dustproof features allow usage in outdoor applications.

Not Available For Sale

  • Color
  • Material
  • Top Cover

This combination does not exist.

You can view product prices by logging in.

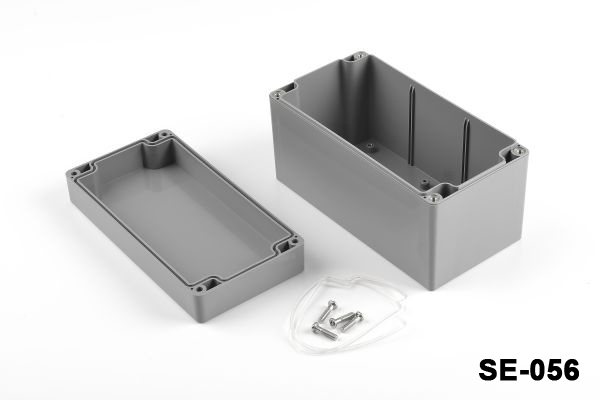

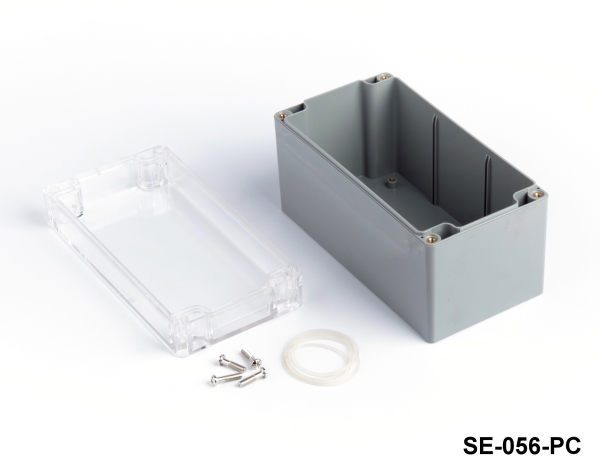

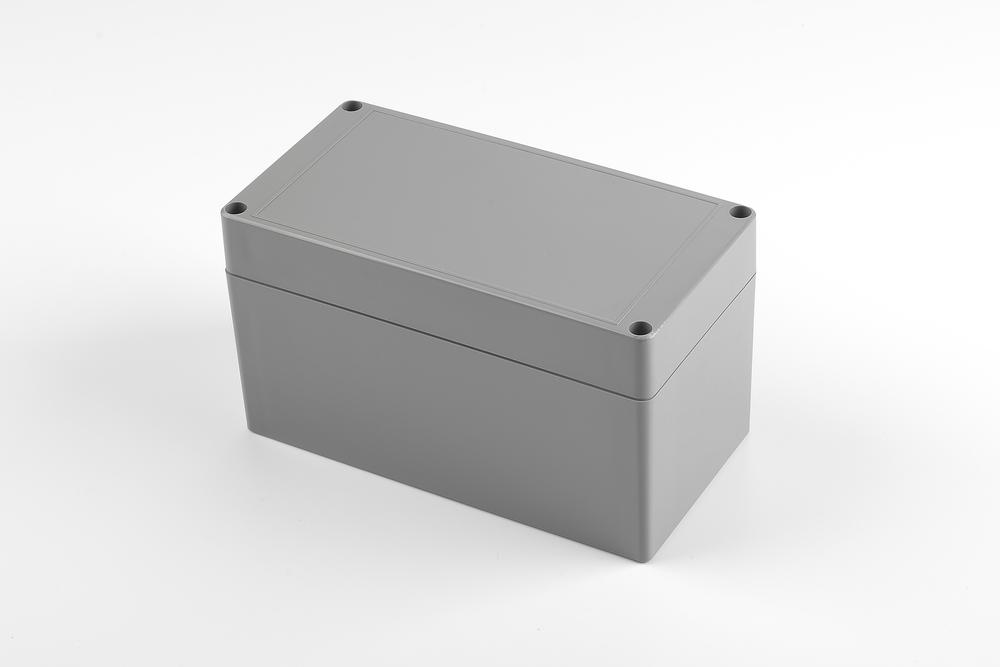

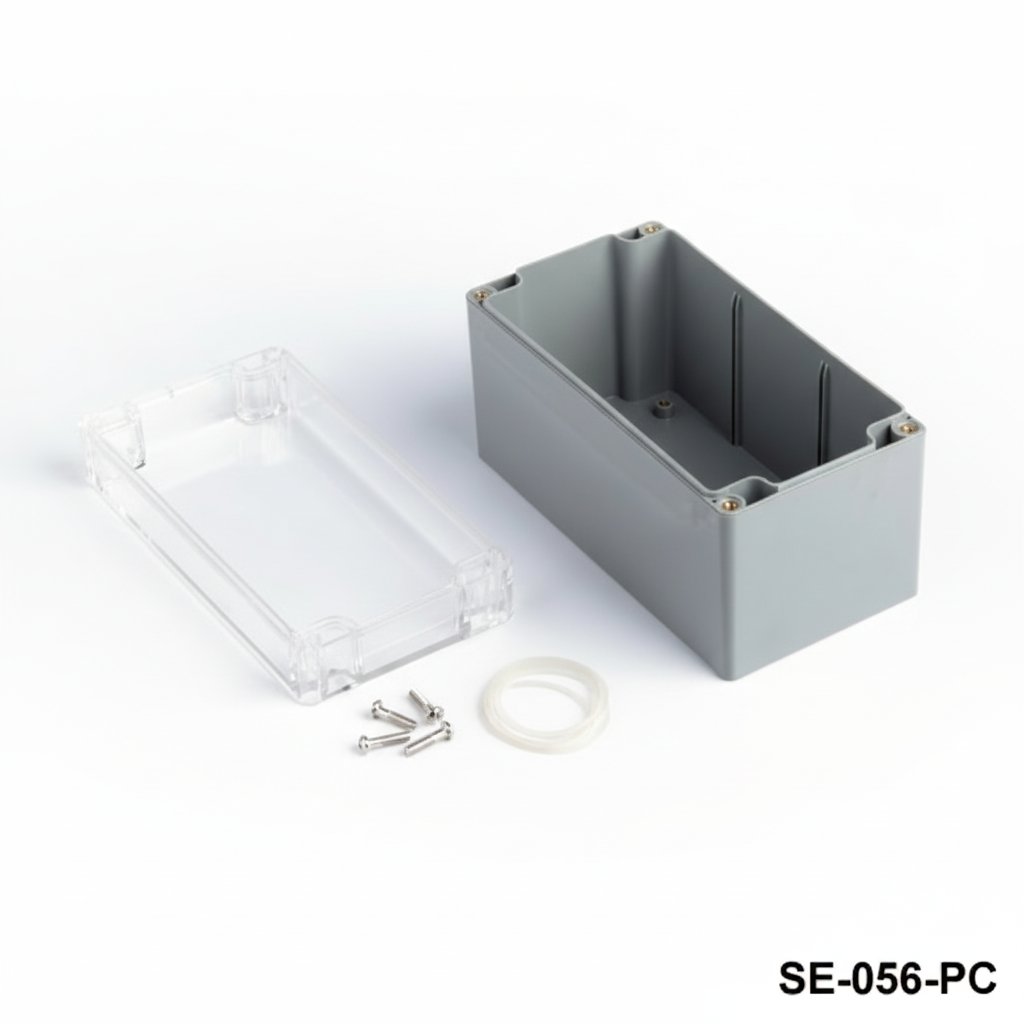

SE-056 is a heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray
Material ABS
Top Cover Transparent Cover, Flat Cover
UL94 HB
A (mm) 175
B (mm) 90
C (mm) 100
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 10
IP Certificate
SE-056-IP Test

3D
SE-056_3D.zip

DXF
SE-056_drawing.zip

PDF
SE_drawing.PDF
