RT-207-24 Rail Enclosure

[RT-207-A-24-0-F-D-0] 126 x 91 x 57 mm http://www.altinkaya.com/web/image/product.template/944/image_1920?unique=ec1dc3f

Designed to protect electrical and electronic devices in a variety of applications including time relays, automation, IOT, testing and measuring, smart home, and KNX.

Not Available For Sale

  • Color
  • Panel Color
  • Panel
  • Type

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

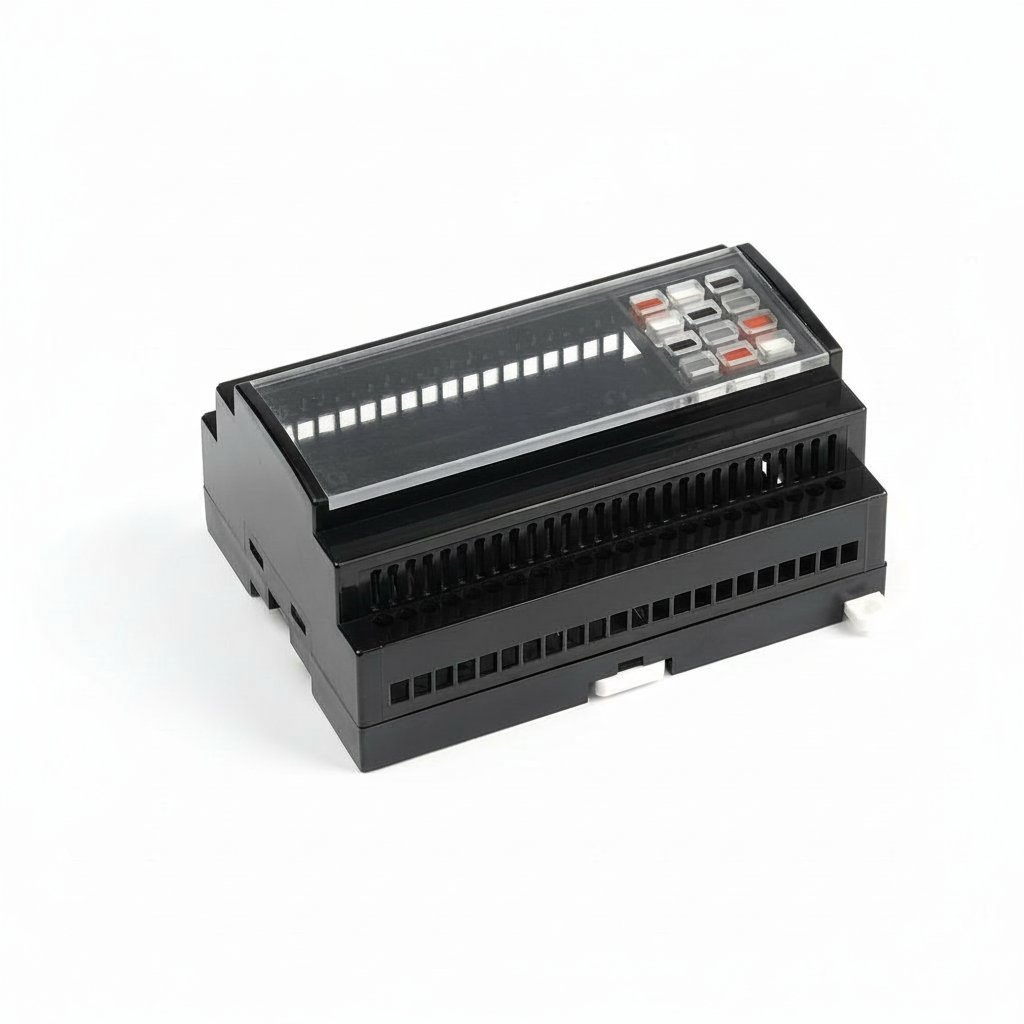

RT-207 Din Rail Enclosure

The RT-207 Din Rail Enclosure is an ideal solution for a wide range of applications, including time relays, automation, IOT, testing and measuring, smart home, and KNX systems. This compact and durable enclosure is designed to provide maximum protection for your devices and components.

The RT-207 is available in light gray or black color, and is made from high-quality UL94-V0 material, ensuring it is flame-resistant and provides optimal protection from fire and heat. Its dimensions of 126 mm x 91 mm x 57 mm make it a perfect fit for seven modules, ensuring that your devices and components are securely housed in one convenient location.

Whether you're working on a complex automation project or building a smart home system, the RT-207 Din Rail Enclosure provides you with the reliable protection you need to get the job done. With its strong construction and sleek design, it is sure to become a valuable asset in your toolkit.

Specifications

Color Light Gray, Black, Dark Gray
Panel Color Transparent Panel, Smoke Panel
Panel Flat Panel, Model 1, Model 2, Model 3, Model 4, Model 5, Model 6, Model 7

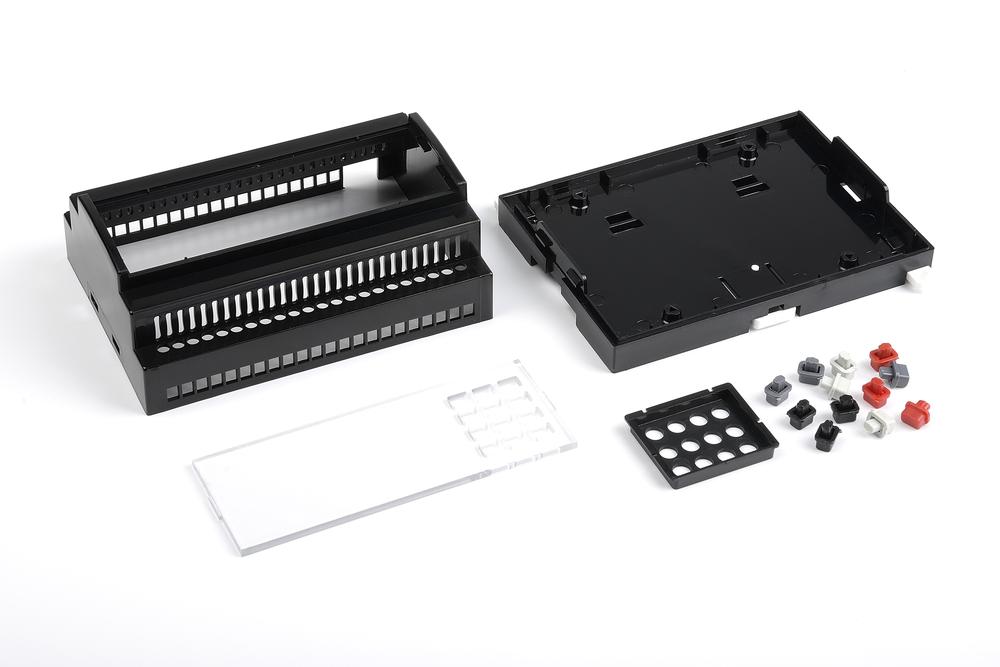

Type A-Closed, B-with Ventilation, C-For Screw Terminal, E-Open, D-For Socket Terminal
Material PC/ABS/V0
A (mm) 126
B (mm) 91
C (mm) 57
Operating Temperature -40° / +120°
Units per box 10
DXF
RT-207-drawing.zip

3D
RT-207-A-3D.zip

3D
RT-207-E-3D.zip

3D
RT-207-B-3D.zip

PDF
RT-207-drawing.pdf

3D
RT-207-C-3D.zip

3D
RT-207-D-3D.zip
