PT-280 Din Panel Enclosure

[PT-280-01-0-G-GA] 144 x 144 x 140 mm http://www.altinkaya.com/web/image/product.template/2171/image_1920?unique=a6263fd

An ideal solution for analog and digital control panels for time, temperature and counters.

Not Available For Sale

  • Color
  • Panel Color
  • Back Cover

This combination does not exist.

You can view product prices by logging in.

PT-280 DIN Panel Enclosure

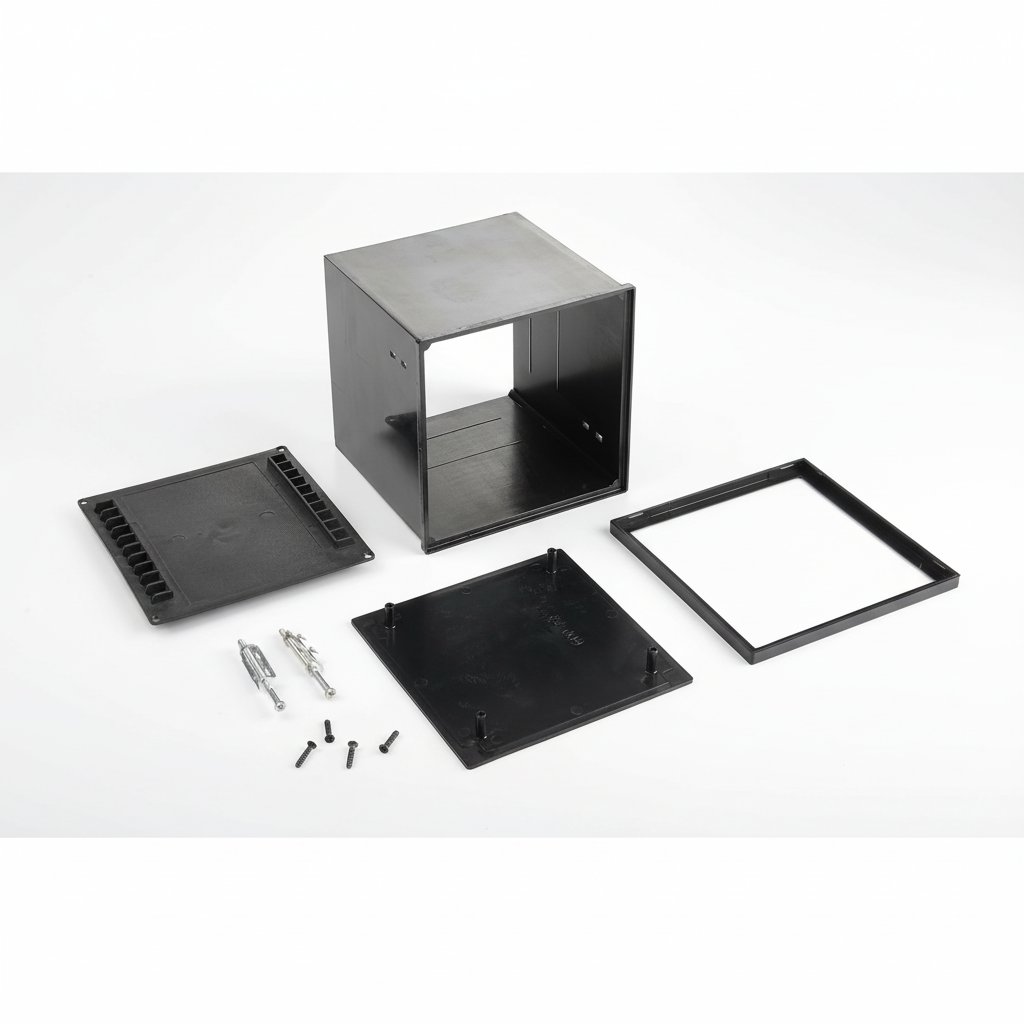

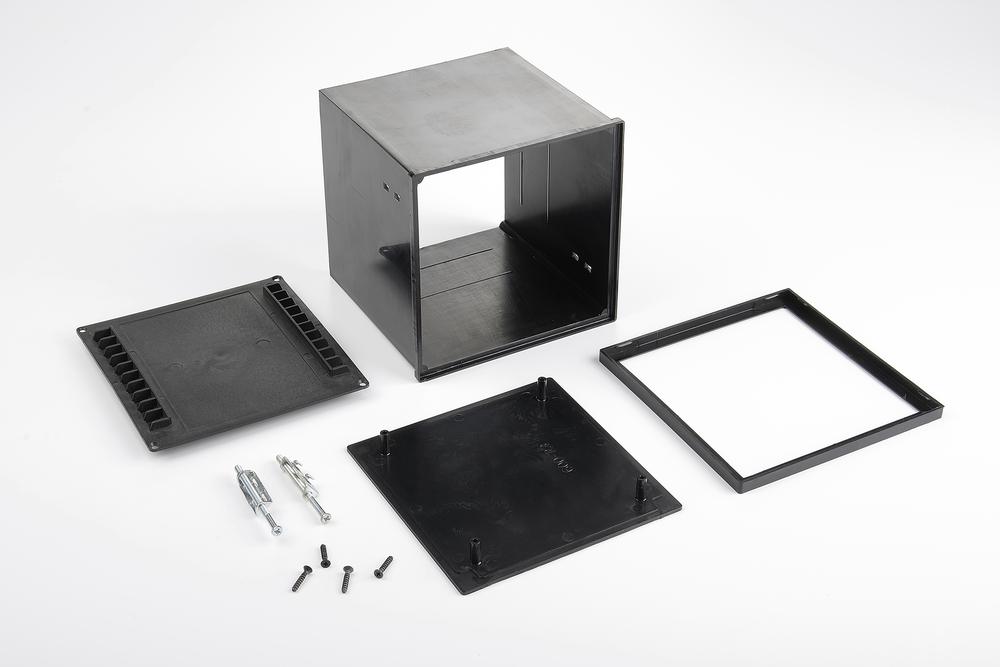

The PT-280 DIN Panel Enclosure is made from high-quality ABS plastic in a light gray or black color and measures 144 mm x 144 mm x 140 mm. It comes with a body, frame and side clamps for easy mounting. Contact our International Sales team for more information on customization and quantity details.

This enclosure is an ideal solution for analog and digital control panels used for time, temperature, and counters. Its ABS plastic construction and compact design make it a versatile and reliable option for a wide range of applications.

Specifications

Color Light Gray, Black
Panel Color Light Gray Board Lug, Black with Board Lug
Back Cover Flat Back Cover, Back Cover w Terminal
Material ABS
UL94 HB
A (mm) 144
B (mm) 144
C (mm) 140
Operating Temperature -30° / +70°
IP Rate IP54
Units per box 20
PDF
PT-280-drawing.PDF

DXF
PT-280-drawing.dxf
