PT-260 Din Panel Enclosure

[PT-260-01-0-G-G] 96 x 96 x 135 mm http://www.altinkaya.com/web/image/product.template/2172/image_1920?unique=7aa7a78

An ideal solution for analog and digital control panels used for time, temperature, and counters.

Not Available For Sale

  • Color
  • Panel Color
  • Back Cover

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

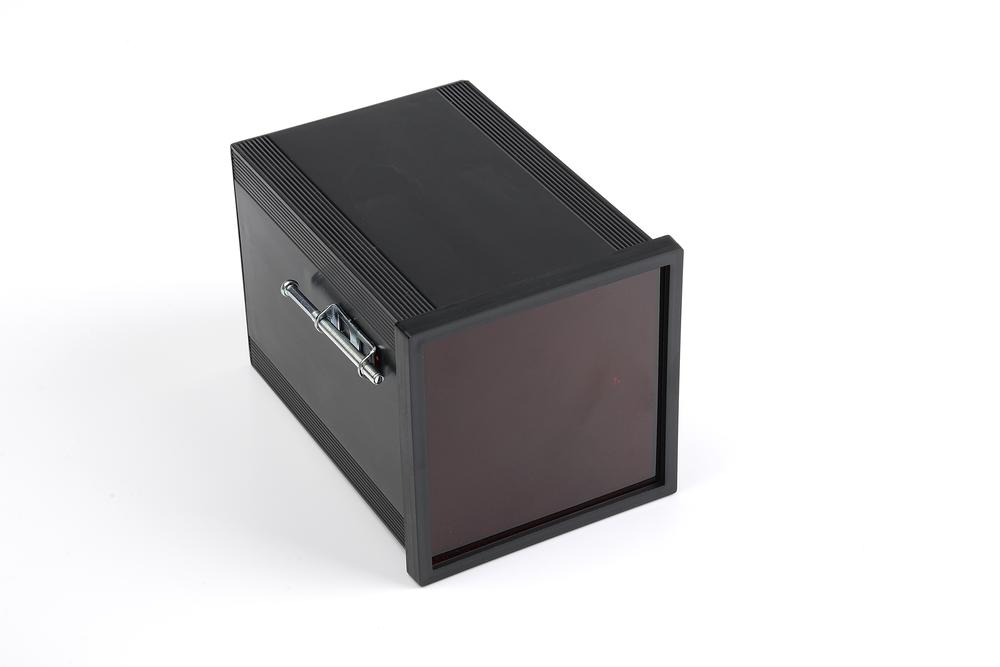

PT-260 DIN Panel Enclosure

The PT-260 DIN Panel Enclosure is made from high-quality ABS plastic in a light gray or black color and measures 96 mm x 96 mm x 135 mm. It comes with a body, frame, panel and side clamps for easy mounting. Contact our International Sales team for more information on customization and quantity details.

This enclosure is an ideal solution for analog and digital control panels used for time, temperature, and counters. Its ABS plastic construction and compact design make it a versatile and reliable option for a wide range of applications.

Specifications

Color Light Gray, Black
Panel Color Light Gray Board Lug, Light Gray Panel, Black Panel, Black with Board Lug, Transparent Panel, Red Panel
Back Cover 12 terminal back cover, 24 terminal back cover, 5 terminal back cover, 7 terminal back cover, Back Cover with Bosses, Back Cover w Screw, DIN Rail Mount Back Cover, Flat Back Cover, Back Cover w Terminal
Material ABS, SAN
UL94 HB
A (mm) 96
B (mm) 96
C (mm) 135
Operating Temperature -30° / +70°
IP Rate IP40, IP54
Units per box 20
3D
PT-260_3D_STEP.zip

DXF
PT-260-drawing.dxf

PDF
PT-260-drawing.pdf
