PT-220-24 Din Panel Enclosure

[PT-220-24-0-D-F-A] 96 x 96 x 76 mm http://www.altinkaya.com/web/image/product.template/2124/image_1920?unique=15b2c58

An ideal solution for analog and digital control panels used for time, temperature, and counters.

Not Available For Sale

  • Color
  • Panel Color
  • Back Cover
  • Panel

This combination does not exist.

You can view product prices by logging in.

PT-220-24 DIN Panel Enclosure

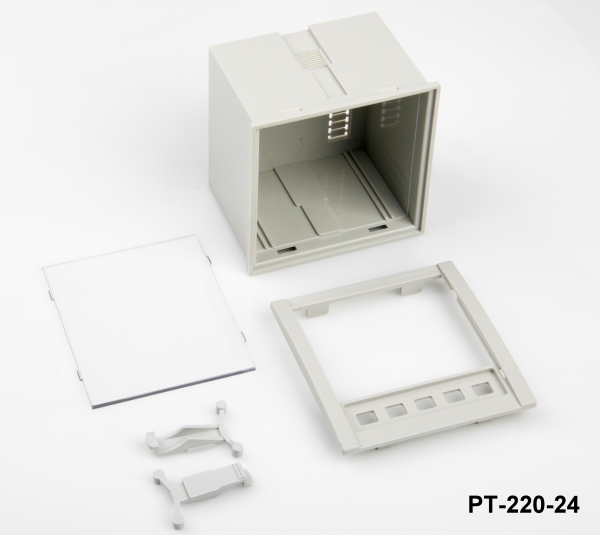

The PT-220-24 DIN Panel Enclosure is made from high-quality ABS plastic in a light gray or black color and measures 96 mm x 96 mm x 76 mm. It comes with a body, frame, panel and side clamps for easy mounting. Contact our International Sales team for more information on customization and quantity details.

This enclosure is an ideal solution for analog and digital control panels used for time, temperature, and counters. Its ABS plastic construction and compact design make it a versatile and reliable option for a wide range of applications.

Specifications

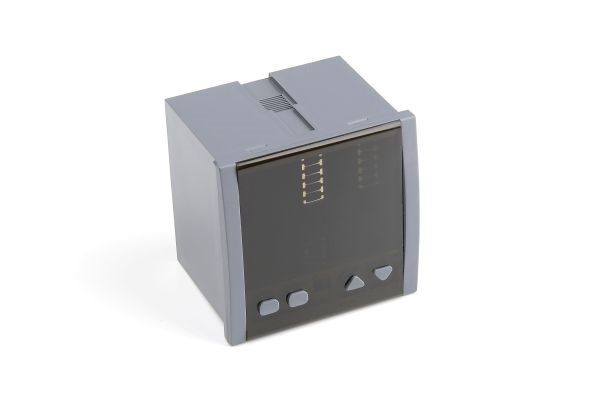

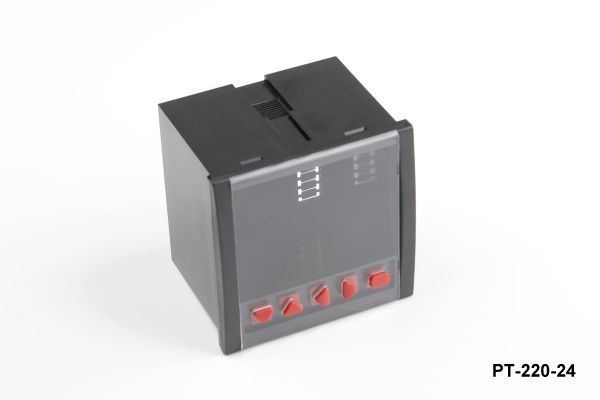

Color Light Gray, Black, Dark Gray
Panel Color Transparent Panel, Smoke Panel
Back Cover Fully Closed, w Terminal Slot
Panel Model 14, Flat Panel, Model 1, Model 10, Model 11, Model 12, Model 13, Model 2, Model 3, Model 4, Model 5, Model 6, Model 7, Model 8, Model 9
Material ABS, SAN
UL94 HB
A (mm) 96
B (mm) 96
C (mm) 76
Operating Temperature -30° / +70°
IP Rate IP40, IP54
Units per box 20
PDF
PT-220_24.pdf

DXF
PT-220-24_dxf.zip
