PT-190-24 Din Panel Enclosure

[PT-190-24-0-D-F] 72 x 72 x 85 mm (2.83 x 2.83 x 3.35 in)
https://www.altinkaya.com/web/image/product.template/2241/image_1920?unique=377672b

An ideal solution for analog and digital control panels used for time, temperature, and counters.

$ 3.11 3.1060000000000003 USD $ 3.11 No VAT

₺ 1.00 No VAT

Not Available For Sale

  • Color
  • Panel Color
  • Panel

This combination does not exist.

When this product is added to the cart, accessories will also be added. If you wish, you can remove the parts you do not want from the cart.

Contact Us
Barcode :
8698651368215

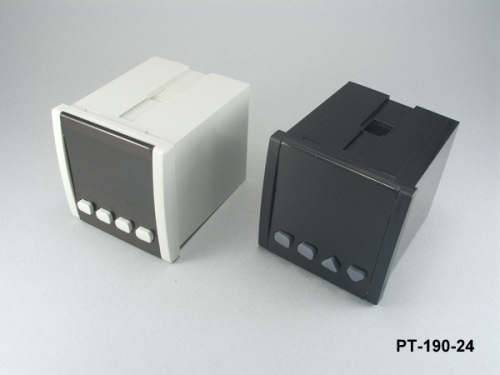

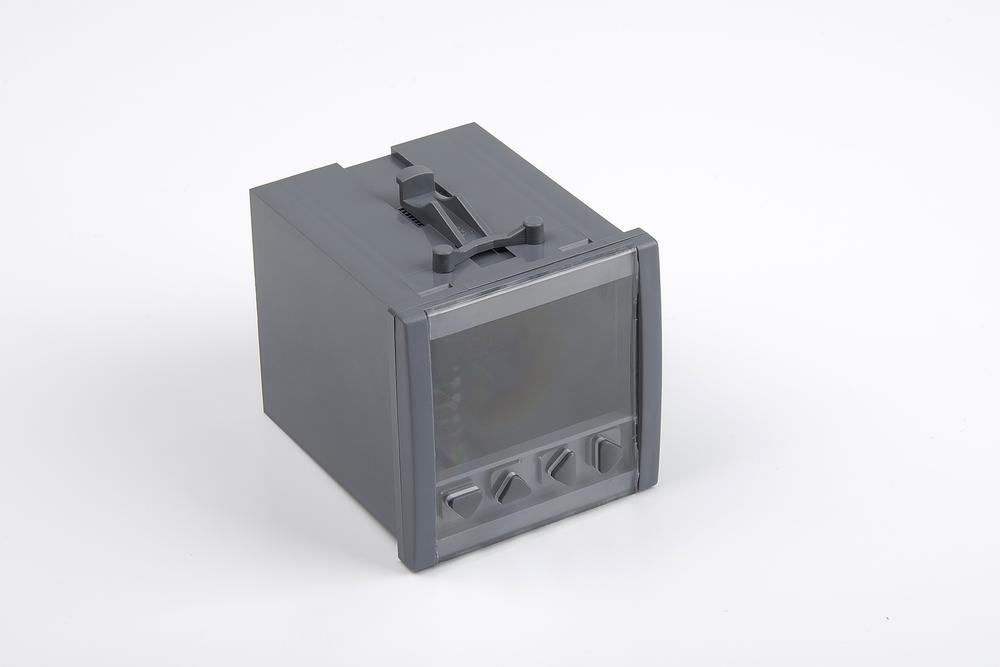

PT-190-24 DIN Panel Enclosure

The PT-190-24 DIN Panel Enclosure is made from high-quality ABS plastic in a light gray or black color and measures 72 mm x 72 mm x 85 mm. It comes with a body, frame, panel and side clamps for easy mounting. Contact our International Sales team for more information on customization and quantity details.

This enclosure is an ideal solution for analog and digital control panels used for time, temperature, and counters. Its ABS plastic construction and compact design make it a versatile and reliable option for a wide range of applications.

Specifications

Color Light Gray, Black, Dark Gray
Panel Color Transparent Panel, Smoke Panel
Panel Flat Panel, Model 1, Model 10, Model 2, Model 3, Model 4, Model 5, Model 6, Model 7, Model 8, Model 9
Material ABS, SAN
UL94 HB
A (mm) 72
B (mm) 72
C (mm) 85
Operating Temperature -30° / +70°
IP Rate IP40
Units per box 10
