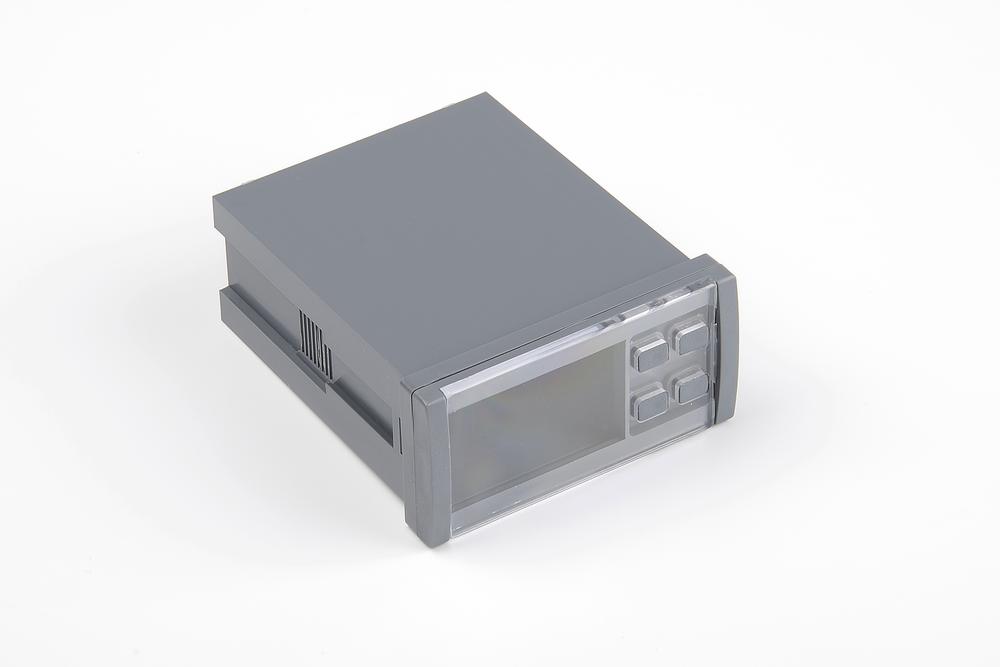

PT-125-24 Din Panel Enclosure

[PT-125-24-0-D-F-0] 72 x 85 x 36 mm http://www.altinkaya.com/web/image/product.template/2115/image_1920?unique=24aa468

Suitable for a range of applications, including testing and control, measurement, temperature and humidity control, alarm systems, farming control systems.

Not Available For Sale

  • Color
  • Panel Color
  • Panel
  • UL94

This combination does not exist.

You can view product prices by logging in.

PT-125-24 DIN Panel Enclosure

The PT-125-24 DIN Panel Enclosure is a high-quality enclosure suitable for a range of applications, including testing and control, measurement, temperature and humidity control, alarm systems, farming control systems, various control systems, counters, and smart relays. Made from durable ABS-UL94-V0 material, this enclosure provides reliable protection for your electrical components. With a compact size of 72 mm x 85 mm x 36 mm, it's perfect for use in space-constrained environments.

The PT-125-24 comes in a sleek black color, adding a professional look to your projects. Whether you're working on a small-scale project or a larger installation, the PT-125-24 provides the functionality and flexibility you need to ensure a safe and effective system.

Specifications

Color Light Gray, Black, Dark Gray
Panel Color Transparent Panel, Smoke Panel
Panel Flat Panel, Model 1, Model 2, Model 3, Model 4, Model 5
UL94 HB
Material ABS, SAN
UL94 HB
A (mm) 72
B (mm) 85
C (mm) 36
Operating Temperature -30° / +70°
IP Rate IP40
Units per box 20
PDF
PT-125-drawing.PDF

3D
PT-125-24_3D.zip

DXF
PT-125-drawing.zip
