HH-062 Handheld Enclosure

[HH-062-0-0-S-0] 75 x 110 x 36 mm http://www.altinkaya.com/web/image/product.template/1321/image_1920?unique=bda6d66

The perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, remote control and HVAC.

Not Available For Sale

  • Color
  • Custom Production
  • Mount Ear

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

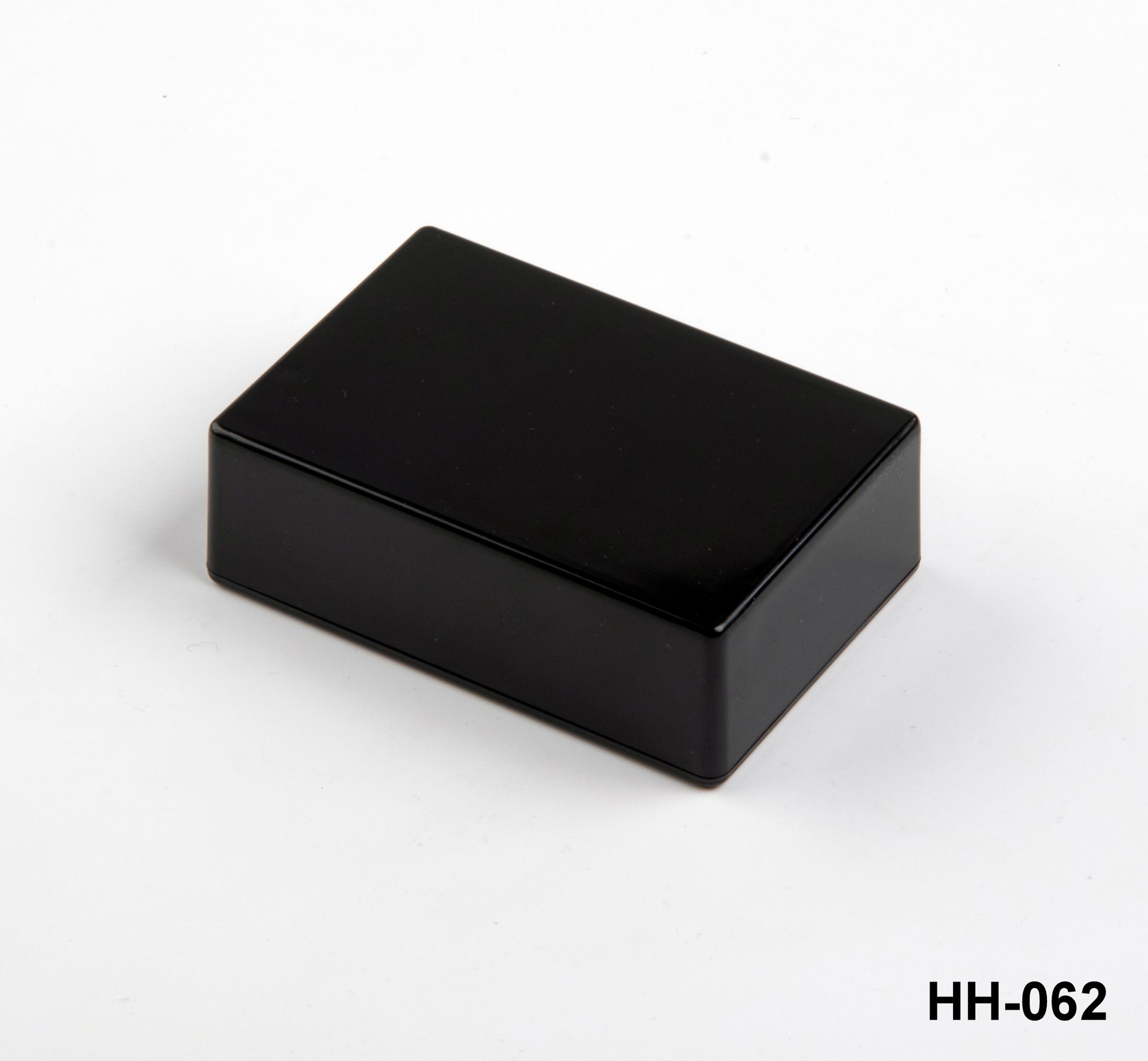

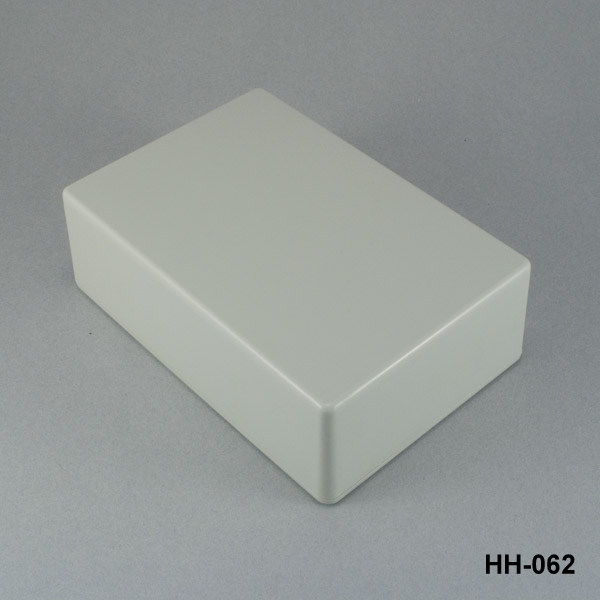

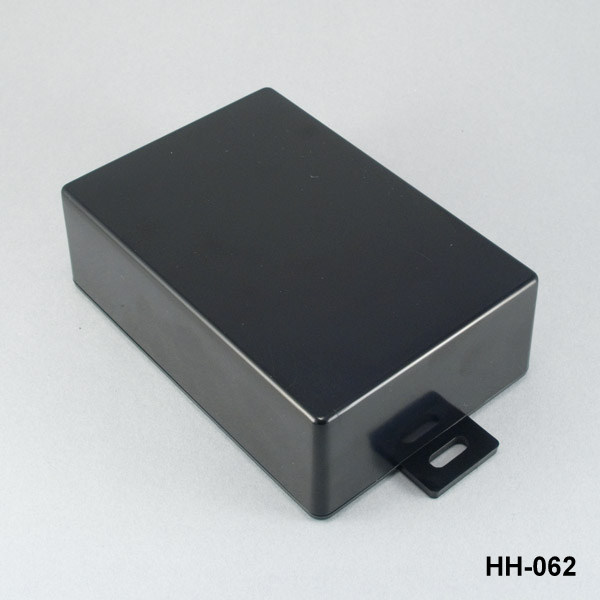

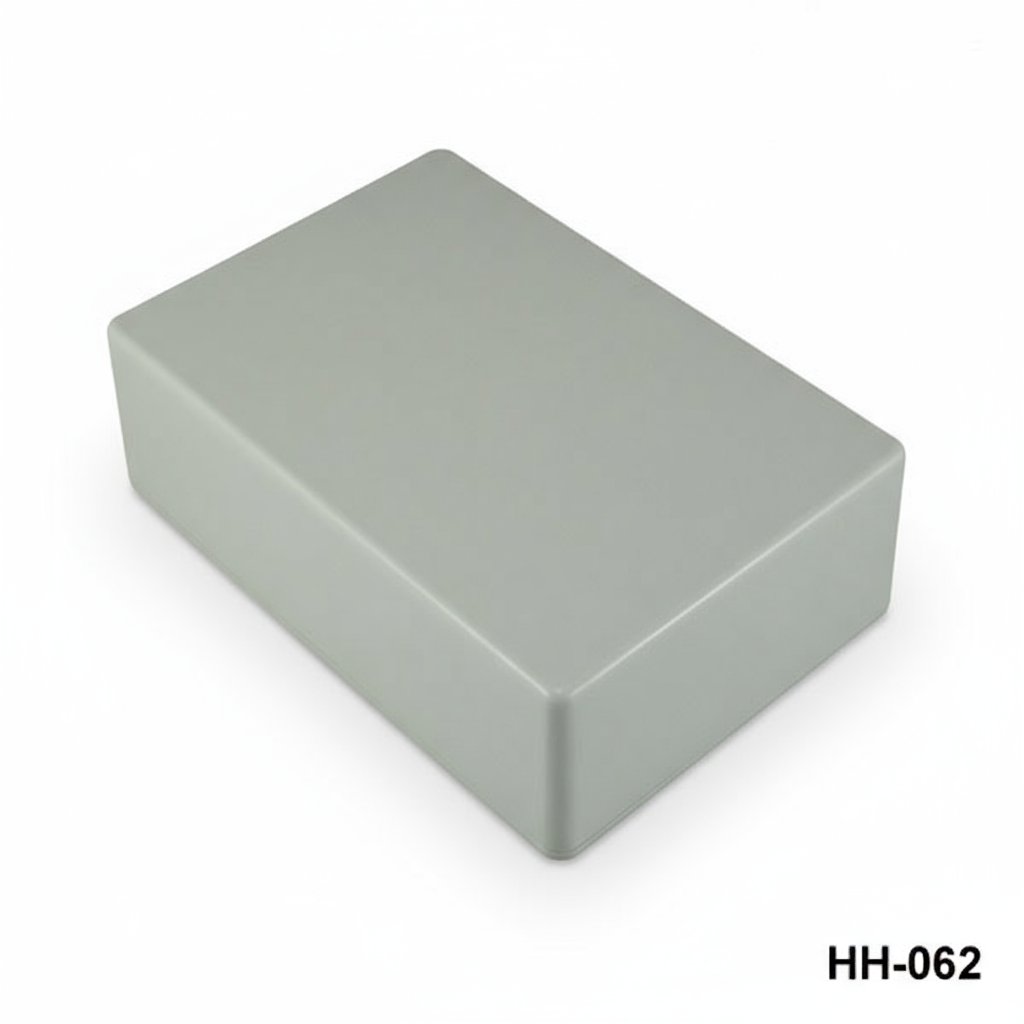

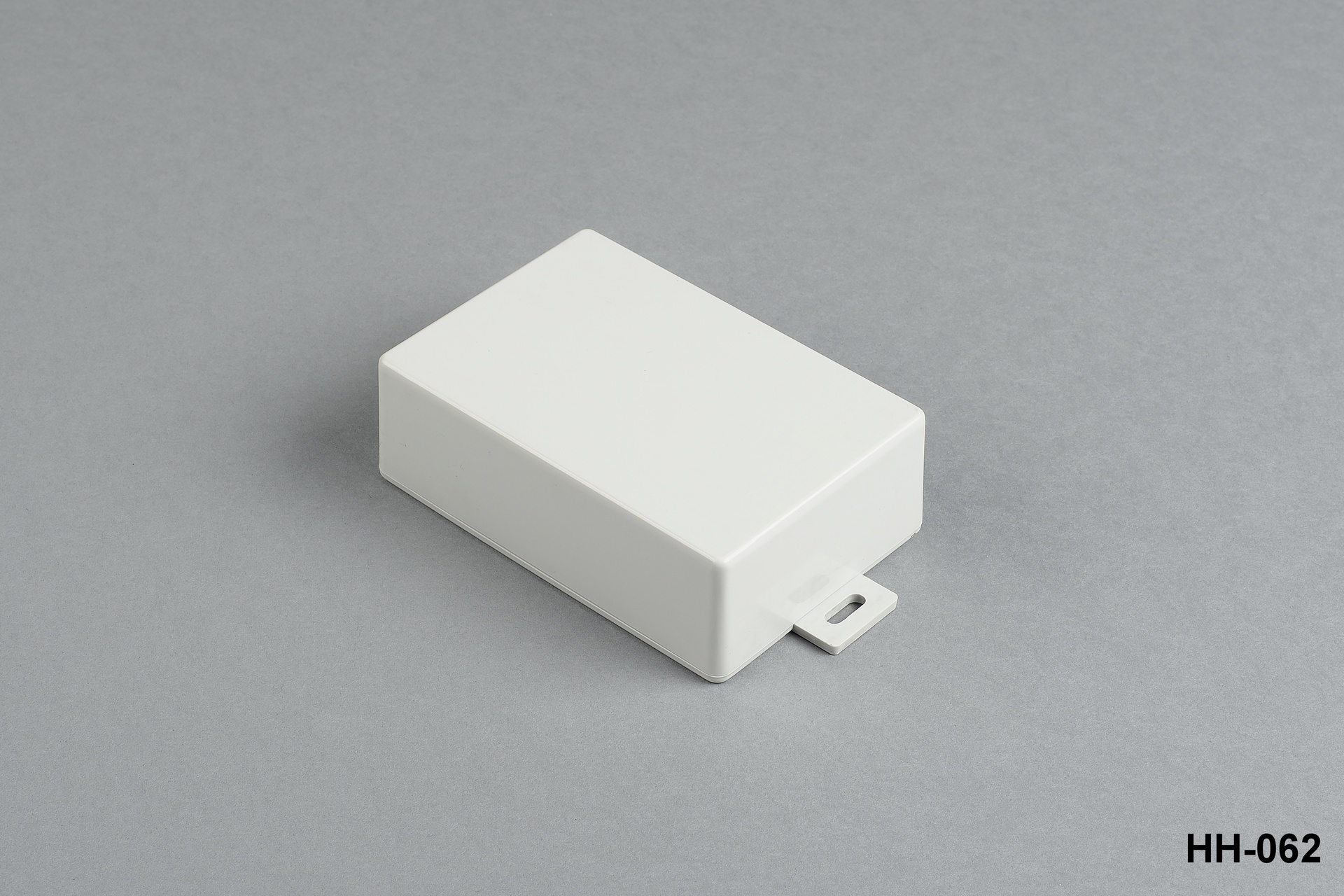

HH-062 Handheld Enclosure

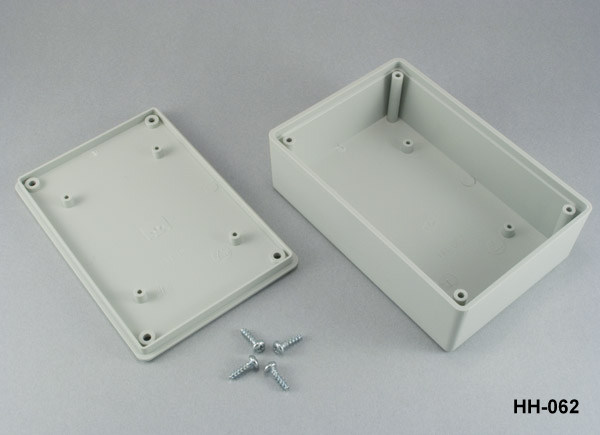

The HH-062 handheld enclosure is the perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, and HVAC. This versatile enclosure is made from high-quality ABS UL-HB material and comes in light gray or black standard color options to fit your design needs. With base cover parts and screws included, the HH-062 is easy to assemble and customize to your specific requirements.

The compact size and ergonomic design of the HH-062 make it comfortable and easy to hold, allowing for convenient use in various settings. Whether you're working on a small-scale project or a larger installation, the HH-062 provides the durability and flexibility you need to ensure a safe and effective electrical system. So why wait? Order your HH-062 handheld enclosure today and take your project to the next level!

Specifications

Color Light Gray, Black
Mount Ear No Mounting Ear, w Mounting Ear
Material ABS
UL94 HB
A (mm) 75
B (mm) 110
C (mm) 36
Operating Temperature -30° / +70°
IP Rate IP54
Units per box 20
PDF
HH-062_drawing.PDF

3D
HH-062_3D.zip

DXF
HH-062_drawing.zip
