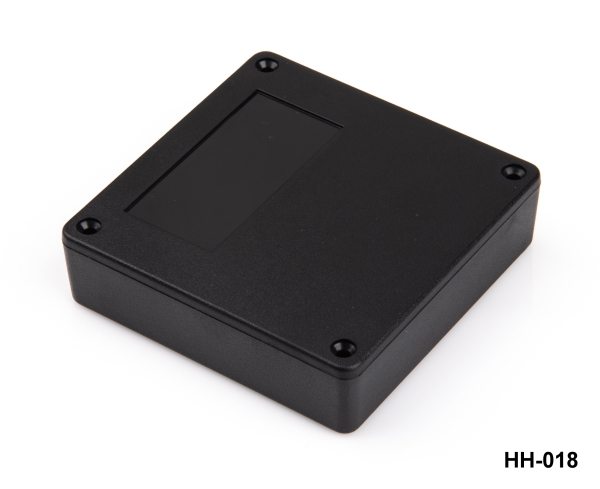

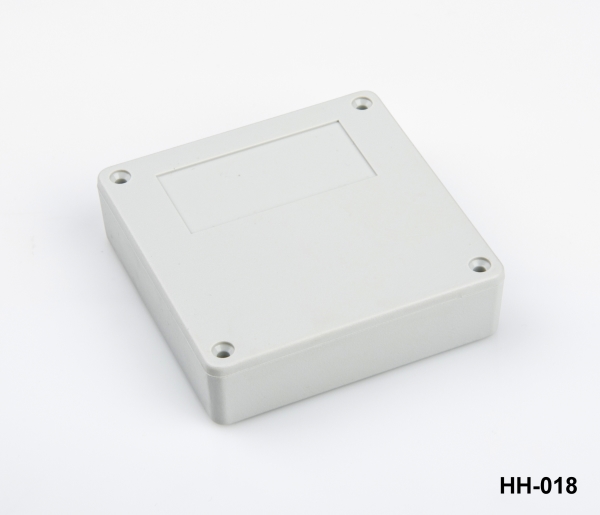

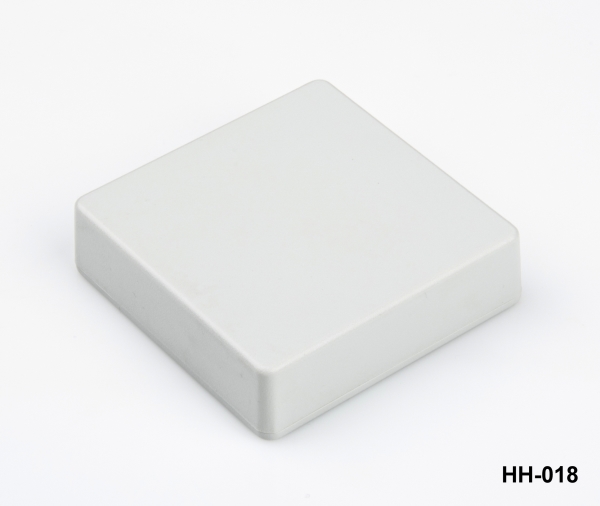

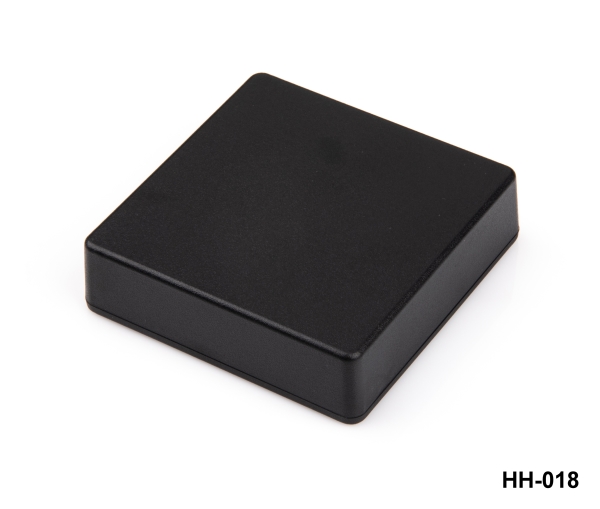

HH-018 Handheld Enclosure

[HH-018-0-0-S-0] 85 x 85 x 23 mm http://www.altinkaya.com/web/image/product.template/1286/image_1920?unique=5573c42

The perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, remote control and HVAC.

Not Available For Sale

  • Color

This combination does not exist.

You can view product prices by logging in.

HH-018 Handheld Enclosure

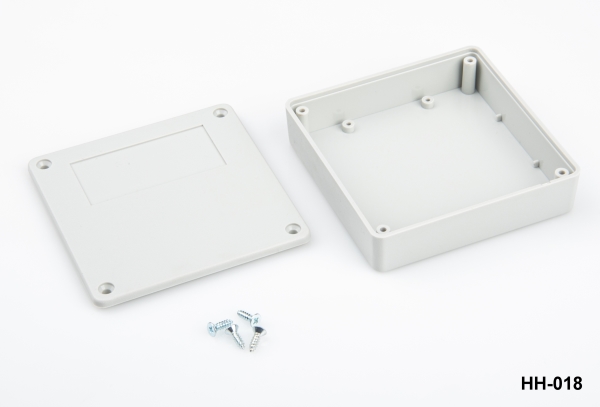

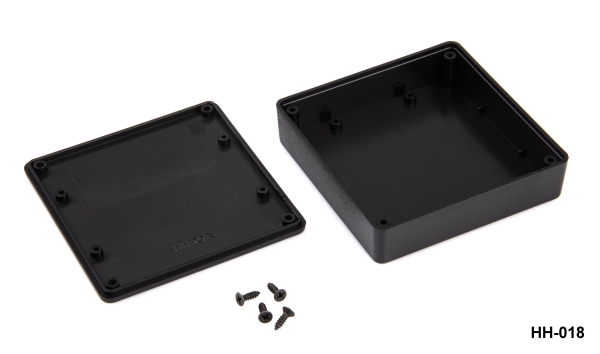

The HH-018 handheld enclosure is the perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, and HVAC. This versatile enclosure is made from high-quality ABS UL-HB material and comes in light gray or black standard color options to fit your design needs. With base cover parts and screws included, the HH-018 is easy to assemble and customize to your specific requirements.

The compact size and ergonomic design of the HH-018 make it comfortable and easy to hold, allowing for convenient use in various settings. Whether you're working on a small-scale project or a larger installation, the HH-018 provides the durability and flexibility you need to ensure a safe and effective electrical system. So why wait? Order your HH-018 handheld enclosure today and take your project to the next level!

Specifications

Color Light Gray, Black
Material ABS
UL94 HB
A (mm) 85
B (mm) 85
C (mm) 23
Operating Temperature -30° / +70°
IP Rate IP54
Units per box 20
PDF
HH-018_drawing.PDF

3D
HH-018_3D.zip

DXF
HH-018_drawing.zip
