EC-2818 IP-67 Plastic Enclosure

[EC-2818-13-0-G-A] 180 x 280 x 70, 130 mm

Certified IP67, suitable for outdoor applications. Galvanized mounting plate is optional.

Not Available For Sale

  • Color
  • Custom Production
  • Material
  • Mounting Plate
  • Top Cover
  • Type

This combination does not exist.

You can view product prices by logging in.

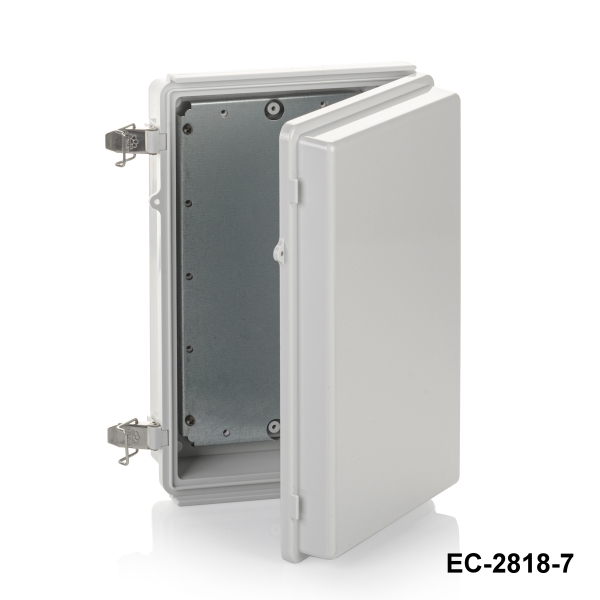

EC-2818 is a hinged plastic enclosure with IP67 certificate. These cabinets can be used outdoor for several electrical applications. TPE gasket ensures resistancy against water and dust. Stock material for this product is shockproof ABS. ASA is another recommended option for heavy duty applications. Another optional offer is a clear lid with PC (Polycarbonate) material. 1 mm galvanized steel mounting plate provides easy mounting of your components inside the enclosure. The cases are well protected with the stainless steel latches. Other optional related accessories are aluminum and plastic wall mounting kits, pole mounting kit, inner door set. CNC machining and UV printing customizations are available as for all Altinkaya products.


Color Light Gray
Material ABS
Mounting Plate with Mounting Plate, without Mounting Plate
Top Cover Transparent Cover, Flat Cover
Type Thickness 130 mm, Thickness 70 mm
Material PC
A (mm) 180
B (mm) 280
C (mm) 70, 130
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 1


IP Certificate
