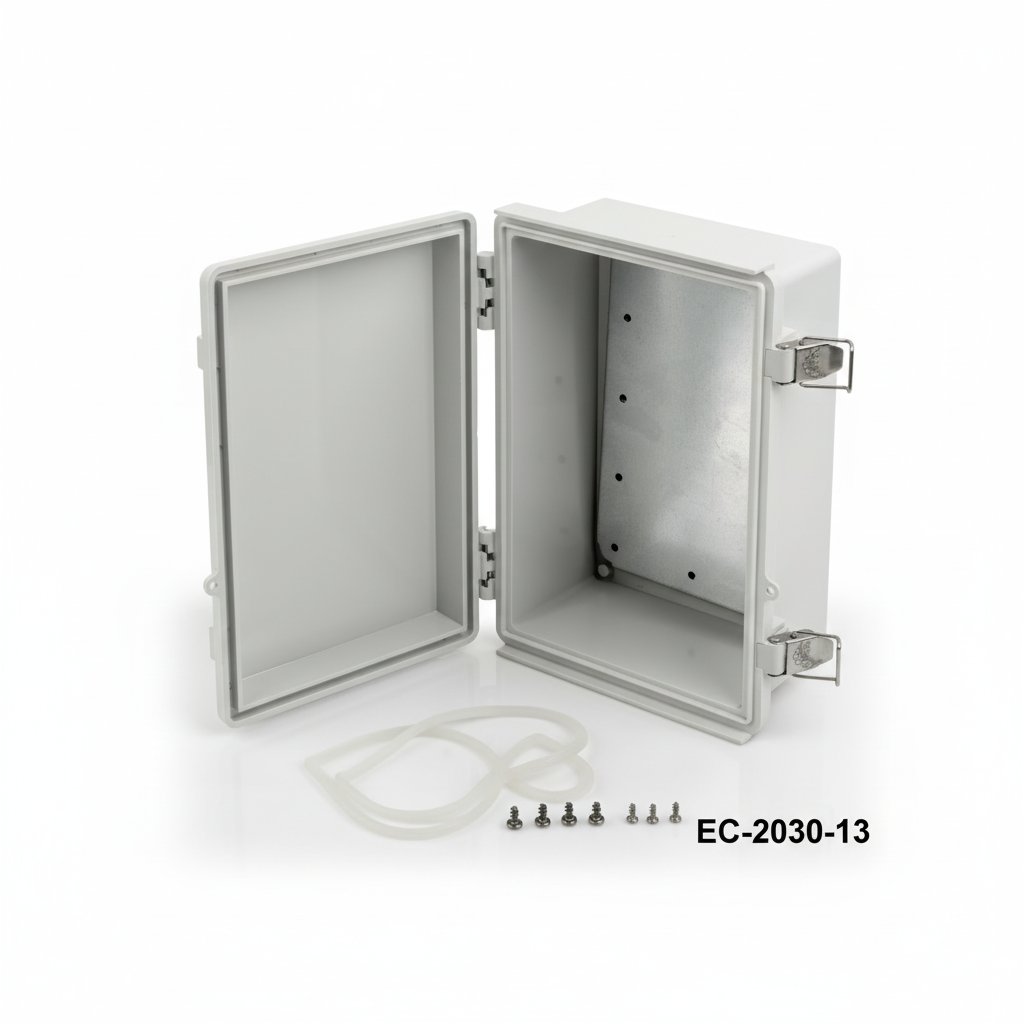

![[EC-2030-13-0-G-0] EC-2030 IP-67 Hinged Plastic Enclosures ( Light Gray, ABS, with Mounting Plate , Flat Cover , Thickness 130mm)](/web/image/base_multi_image.image/26415/image_1024/%5BEC-2030-13-0-G-0%5D%20%20EC-2030%20IP-67%20Hinged%20Plastic%20Enclosures%20%28%20Light%20Gray%2C%20%20ABS%2C%20with%20Mounting%20Plate%20%2C%20Flat%20Cover%20%2C%20Thickness%20130mm%29?unique=e206837)
![[EC-2030-13-0-G-0] EC-2030 IP-67 Hinged Plastic Enclosures ( Light Gray, ABS, with Mounting Plate, Flat Cover , Thickness 130 mm )](/web/image/base_multi_image.image/26416/image_1024/%5BEC-2030-13-0-G-0%5D%20EC-2030%20IP-67%20Hinged%20Plastic%20Enclosures%20%28%20Light%20Gray%2C%20ABS%2C%20with%20Mounting%20Plate%2C%20Flat%20Cover%20%2C%20Thickness%20130%20mm%20%29?unique=89ea429)

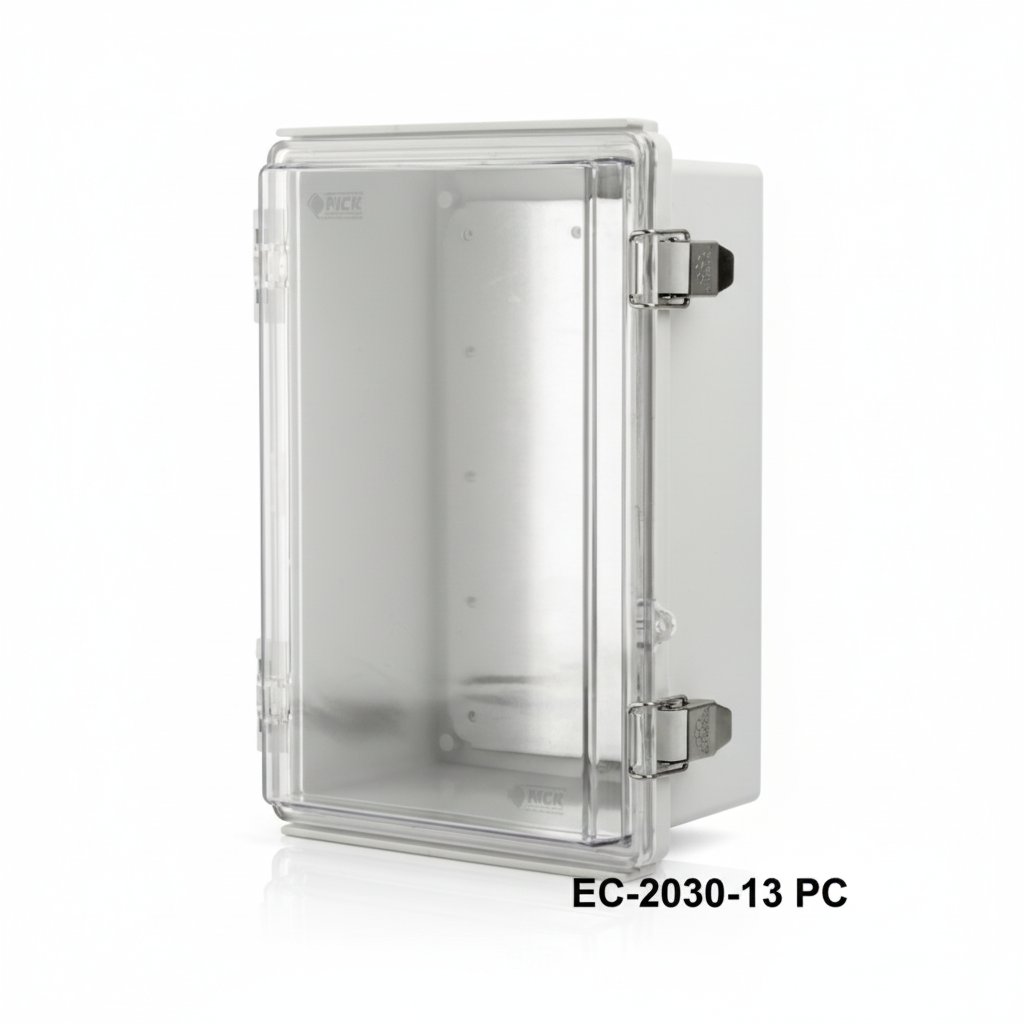

![[EC-2030-13-0-G-C] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, with Mounting Plate, Transparent Cover , Thickness 130 mm)](/web/image/base_multi_image.image/26417/image_1024/%5BEC-2030-13-0-G-C%5D%20EC-2030%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20with%20Mounting%20Plate%2C%20Transparent%20Cover%20%2C%20Thickness%20130%20mm%29?unique=38b243b)
![[EC-2030-13-0-G-C] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, without Mounting Plate, Transparent Cover, Thickness 130 mm](/web/image/base_multi_image.image/26418/image_1024/%5BEC-2030-13-0-G-C%5D%20EC-2030%20%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20without%20Mounting%20Plate%2C%20Transparent%20Cover%2C%20Thickness%20130%20mm%20?unique=2e42144)

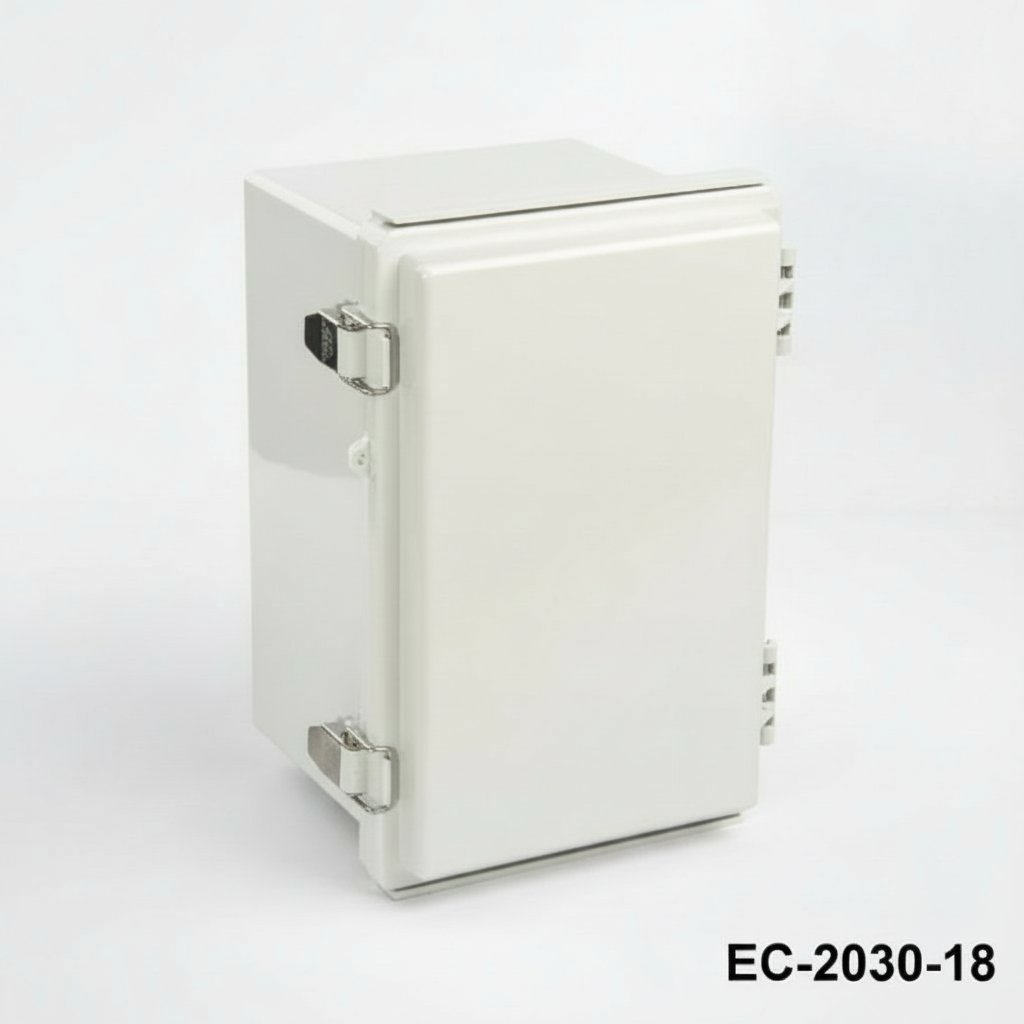

![[EC-2030-18-0-G-0] EC-2030 IP-67 Hinged Plastic Enclosures (Light Gray, ABS , W Mounting Ear , Flat Cover , Thickness 187 mm)](/web/image/base_multi_image.image/26419/image_1024/%5BEC-2030-18-0-G-0%5D%20%20EC-2030%20IP-67%20Hinged%20Plastic%20Enclosures%20%28Light%20Gray%2C%20ABS%20%2C%20W%20Mounting%20Ear%20%2C%20Flat%20Cover%20%2C%20Thickness%20187%20mm%29?unique=7678d59)
![[EC-2030-18-0-G-0] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, with Mounting Plate, Flat Cover , Thickness 187 mm)](/web/image/base_multi_image.image/26420/image_1024/%5BEC-2030-18-0-G-0%5D%20EC-2030%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20with%20Mounting%20Plate%2C%20Flat%20Cover%20%2C%20Thickness%20187%20mm%29?unique=e410ebe)
![[EC-2030-18-0-G-C] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, with Mounting Plate, Transparent Cover , Thickness 187 mm)](/web/image/base_multi_image.image/26421/image_1024/%5BEC-2030-18-0-G-C%5D%20EC-2030%20IP-67%20%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20with%20Mounting%20Plate%2C%20Transparent%20Cover%20%2C%20Thickness%20187%20mm%29?unique=e1bf7bc)
![[EC-2030-18-A-G-C] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, without Mounting Plate, Transparent Cover , Thickness 187 mm)](/web/image/base_multi_image.image/26423/image_1024/%5BEC-2030-18-A-G-C%5D%20EC-2030%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20without%20Mounting%20Plate%2C%20Transparent%20Cover%20%2C%20Thickness%20187%20mm%29?unique=43438f7)

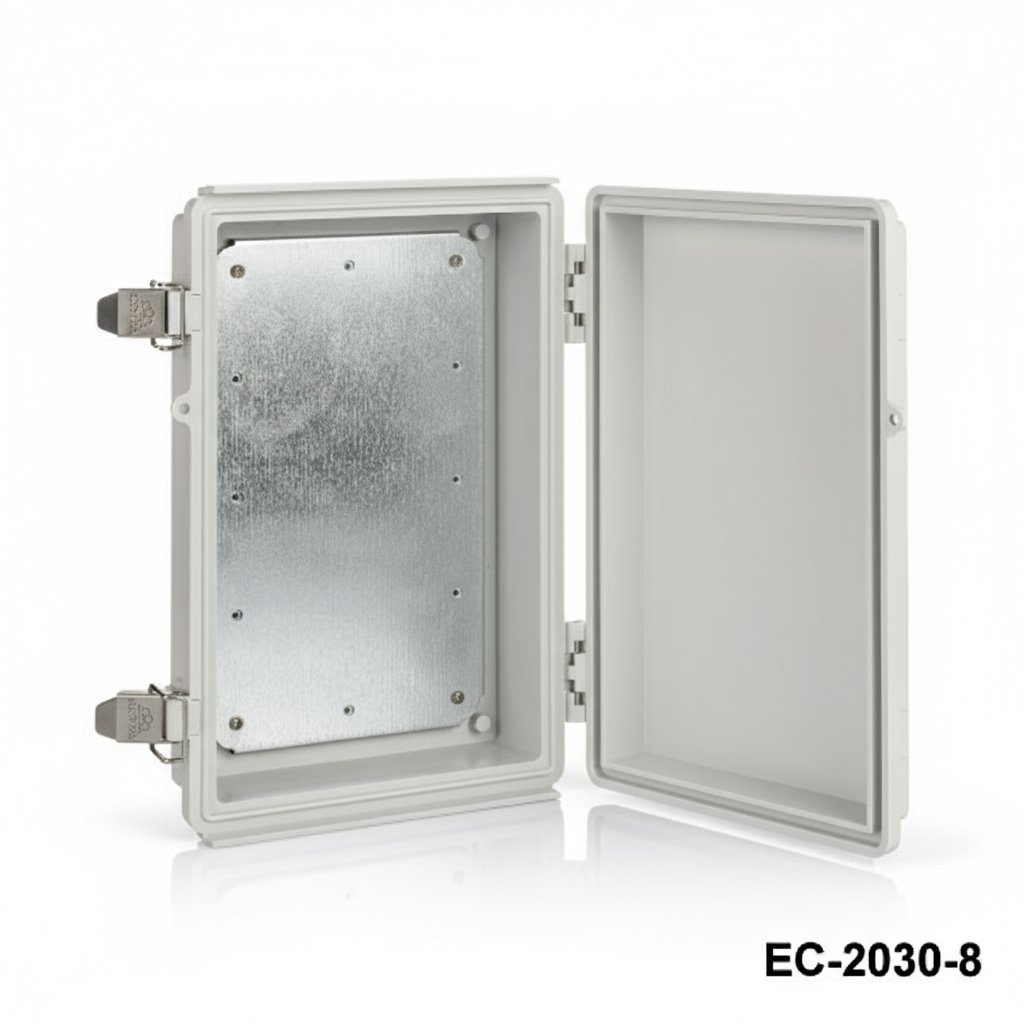

![[EC-2030-8-0-G-0] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, with Mounting Plate, Flat Cover , Thickness 80 mm)](/web/image/base_multi_image.image/26424/image_1024/%5BEC-2030-8-0-G-0%5D%20EC-2030%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20with%20Mounting%20Plate%2C%20Flat%20Cover%20%2C%20Thickness%2080%20mm%29?unique=c979819)

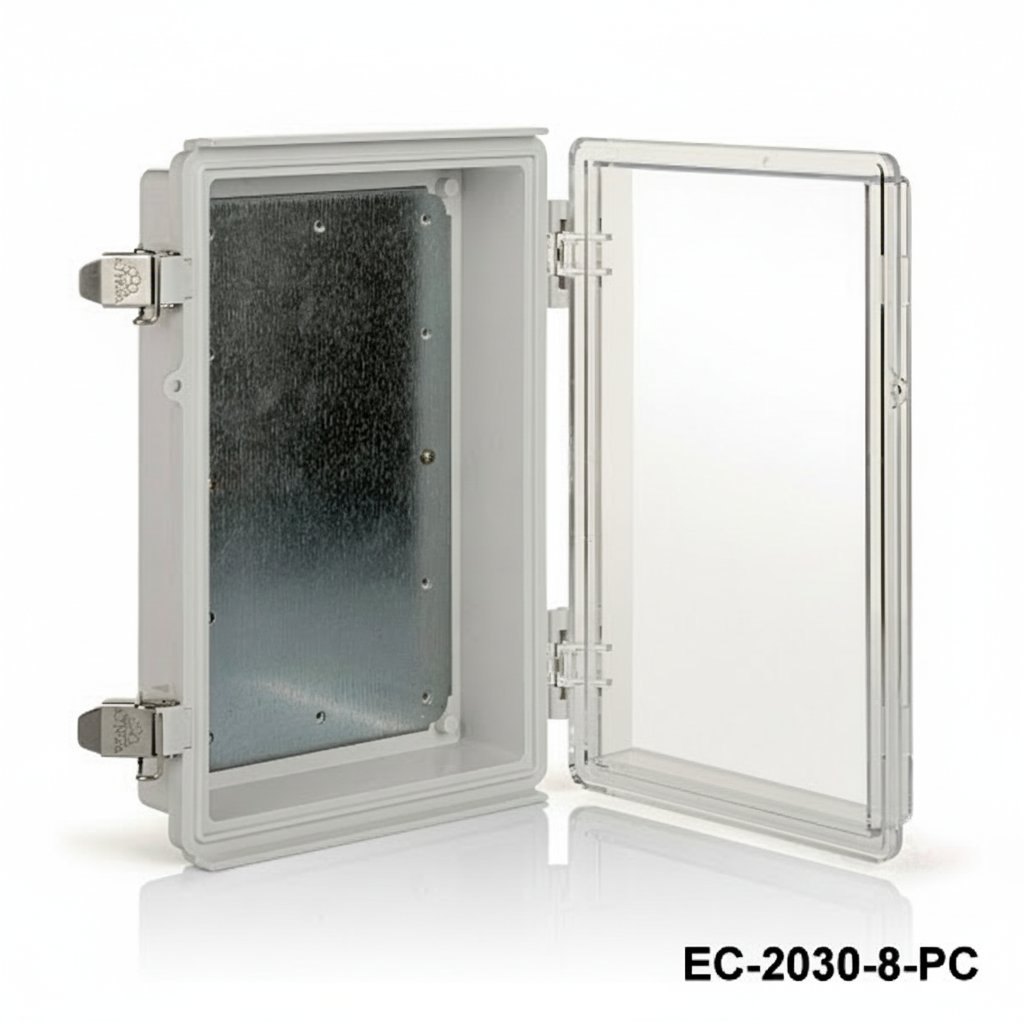

![[EC-2030-8-0-G-C] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, with Mounting Plate, Transparent Cover , Thickness 80 mm)](/web/image/base_multi_image.image/26425/image_1024/%5BEC-2030-8-0-G-C%5D%20EC-2030%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20with%20Mounting%20Plate%2C%20Transparent%20Cover%20%2C%20Thickness%2080%20mm%29?unique=c1d7961)
![[EC-2030-18-A-G-0] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, without Mounting Plate, Flat Cover , Thickness 80 mm)](/web/image/base_multi_image.image/26426/image_1024/%5BEC-2030-18-A-G-0%5D%20EC-2030%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20without%20Mounting%20Plate%2C%20Flat%20Cover%20%2C%20Thickness%2080%20mm%29?unique=6e854ae)

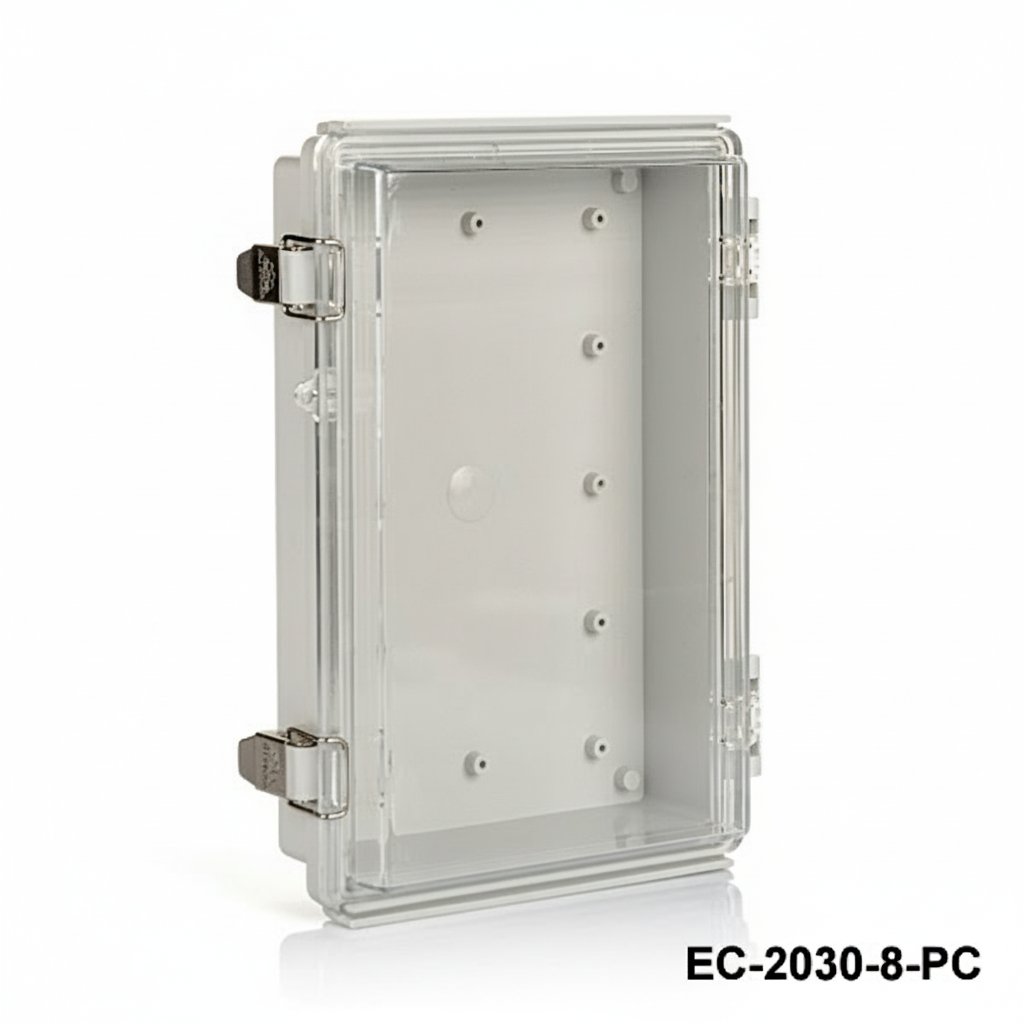

![[EC-2030-8-A-G-C] EC-2030 IP-67 Plastic Enclosure (Light Gray, ABS, without Mounting Plate, Transparent Cover , Thickness 80 mm)](/web/image/base_multi_image.image/26427/image_1024/%5BEC-2030-8-A-G-C%5D%20EC-2030%20IP-67%20Plastic%20Enclosure%20%28Light%20Gray%2C%20ABS%2C%20without%20Mounting%20Plate%2C%20Transparent%20Cover%20%2C%20Thickness%2080%20mm%29?unique=0f65c4e)
EC-2030 IP67 Hinged Plastic Enclosure
Certified IP67, suitable for outdoor applications. Galvanized mounting plate is optional.
Barcode :

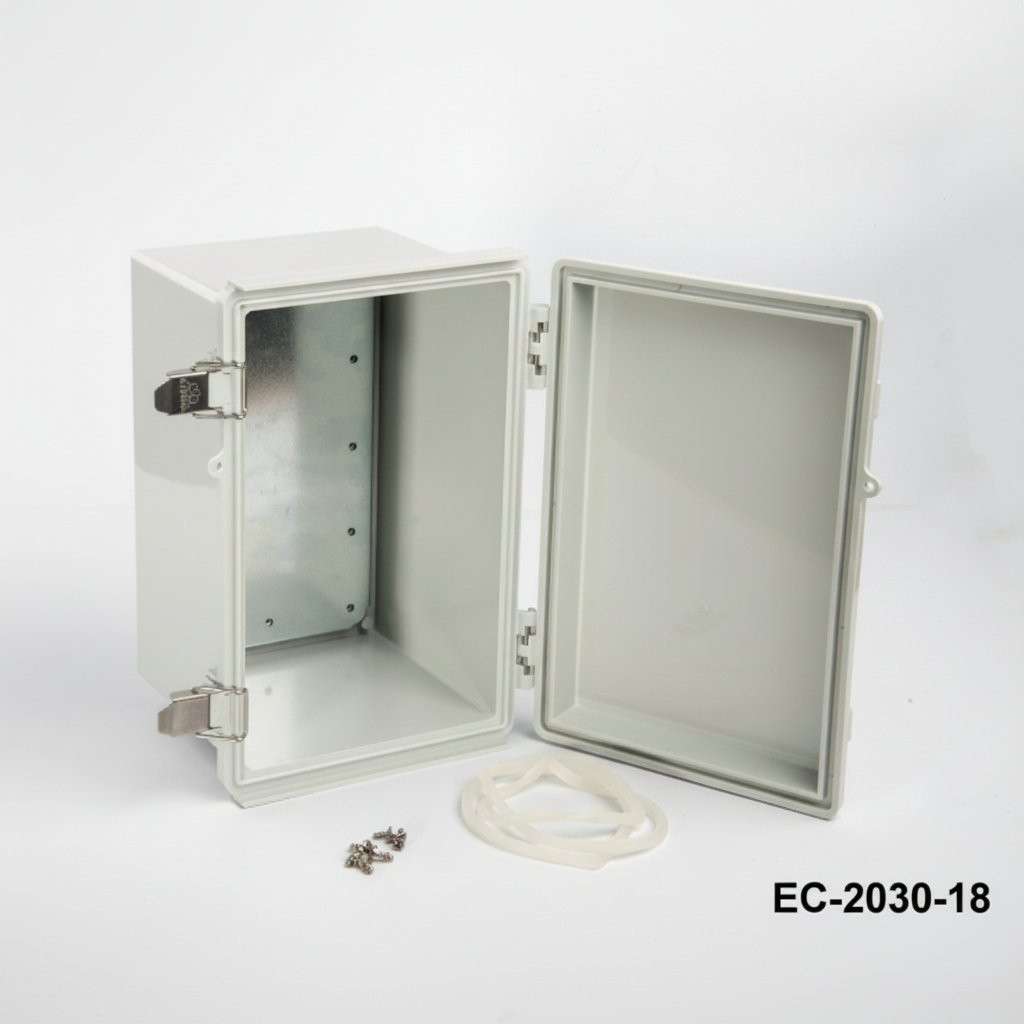

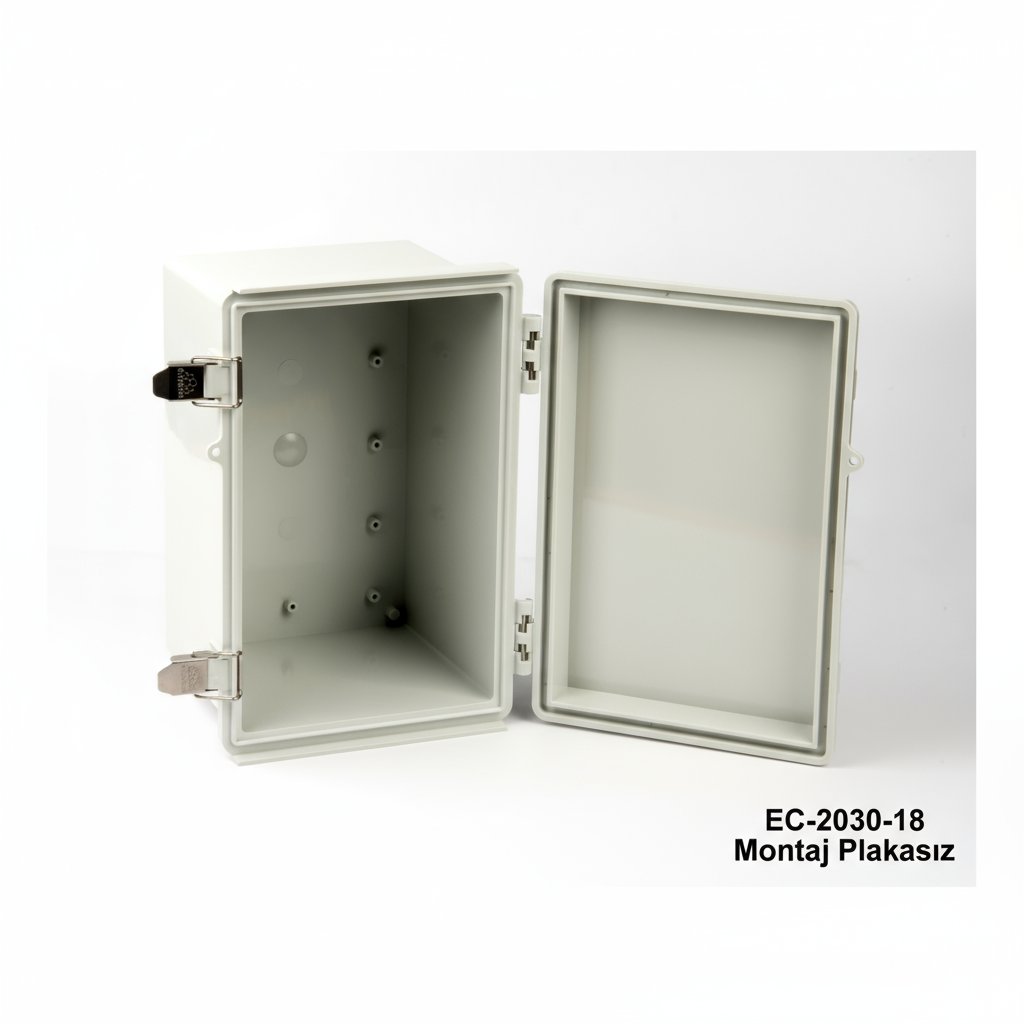

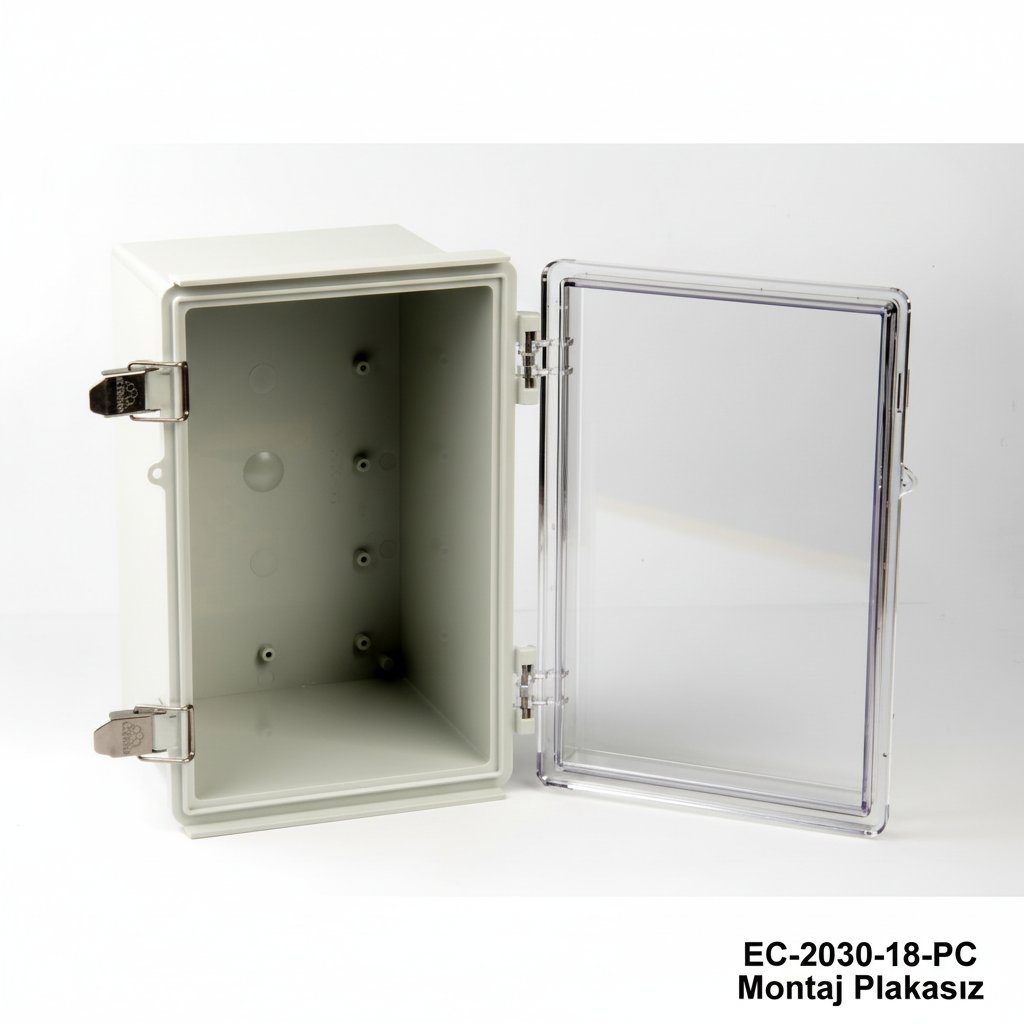

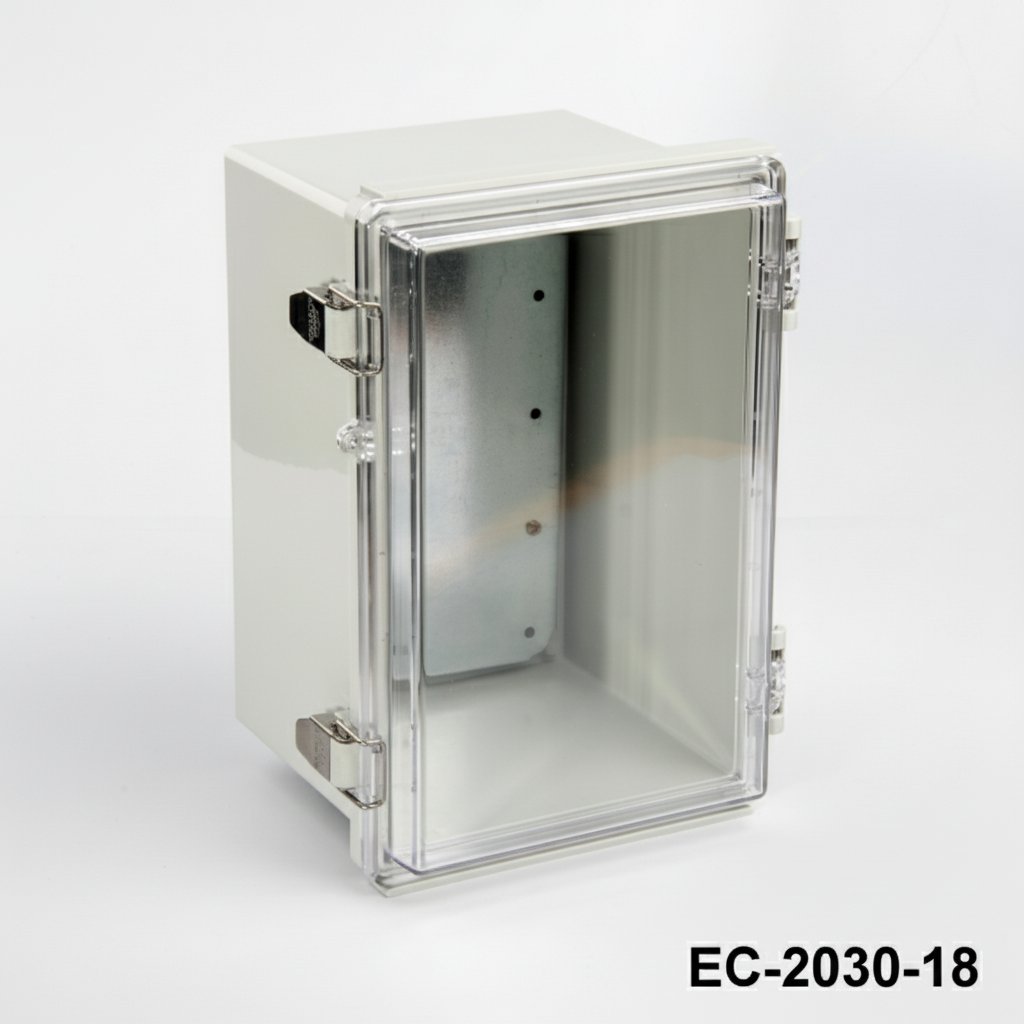

8698651421453EC-2030 is a hinged plastic enclosure with IP67 certificate. Available with 2 different sizes as 200 x 300 x 130 and 200 x 300 x 187. These cabinets can be used outdoor for several electrical applications. TPE gasket ensures resistancy against water and dust. Stock material for this product is shockproof ABS. ASA is another recommended option for heavy duty applications. Another optional offer is a clear lid with PC (Polycarbonate) material. 1 mm galvanized steel mounting plate provides easy mounting of your components inside the enclosure. The cases are well protected with the stainless steel latches. Other optional related accessories are aluminum and plastic wall mounting kits, pole mounting kit, inner door set. CNC machining and UV printing customizations are available as for all Altinkaya products.
Specifications
| Color | Light Gray |
| Material | ABS |
| Mounting Plate | with Mounting Plate, without Mounting Plate |
| Top Cover | Transparent Cover, Flat Cover |
| Type | Thickness 187mm, Thickness 130 mm, Thickness 80mm |
| E1 | 200 |
| E2 | 170 |
| E3 | 150 |
| E4 | 120 |
| B1 (mm) | 300 |
| B2 (mm) | 250 |
| B3 (mm) | 220 |
| D1 (mm) | 80, 130, 187 |
| D2 (mm) | 66, 115,9, 173 |
| D3 (mm) | 50, 99,4, 157 |
| D4 (mm) | 30 |
| P1 (mm) | 150 |
| P2 (mm) | 250 |
| Material | ABS |
| A (mm) | 200 |
| B (mm) | 300 |
| C (mm) | 130, 187 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP67 |
| Units per box | 1 |
