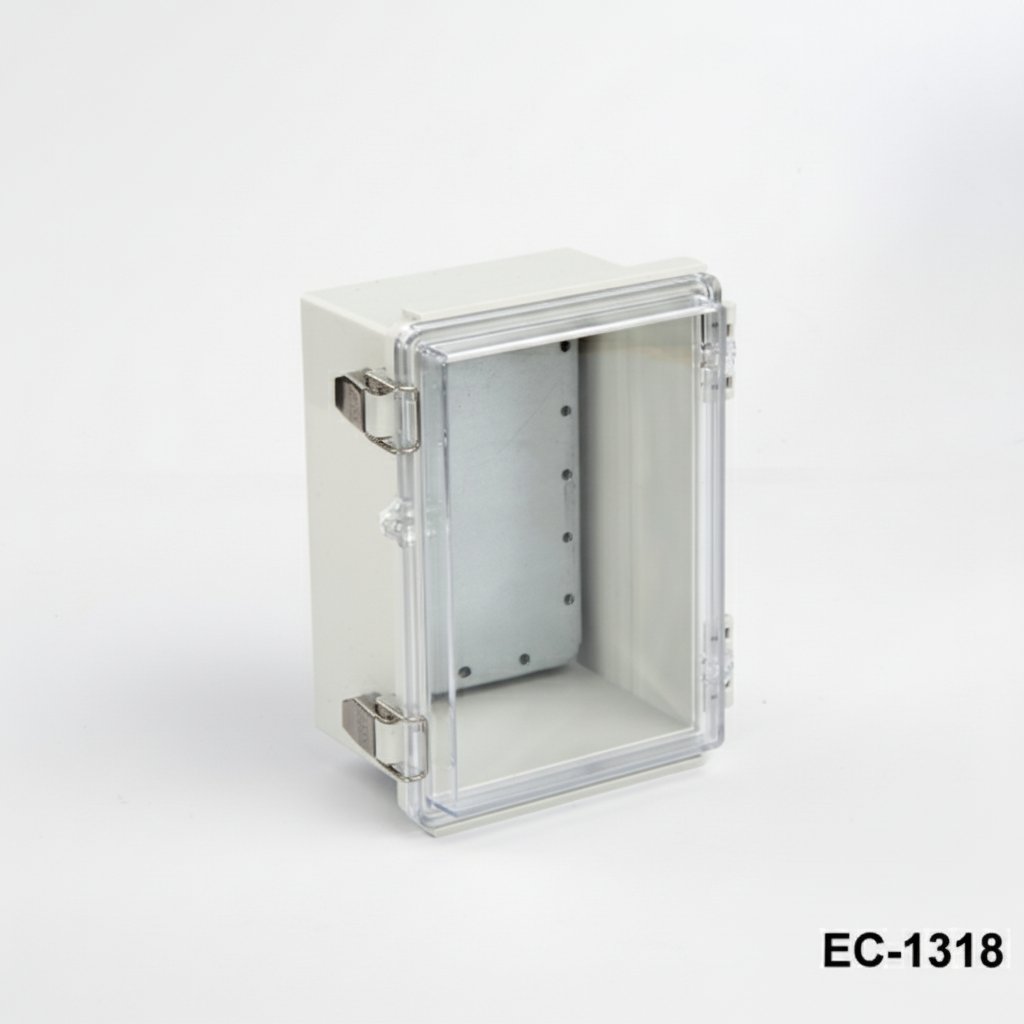

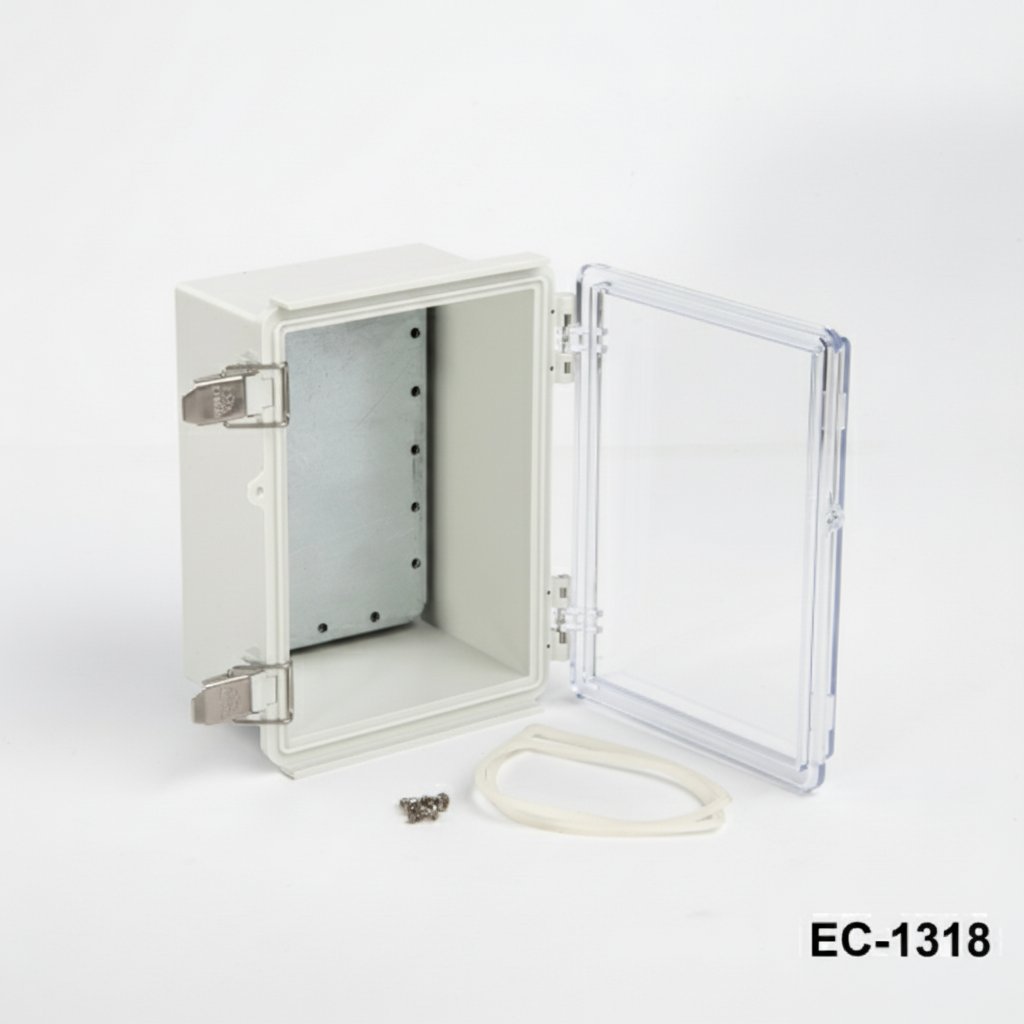

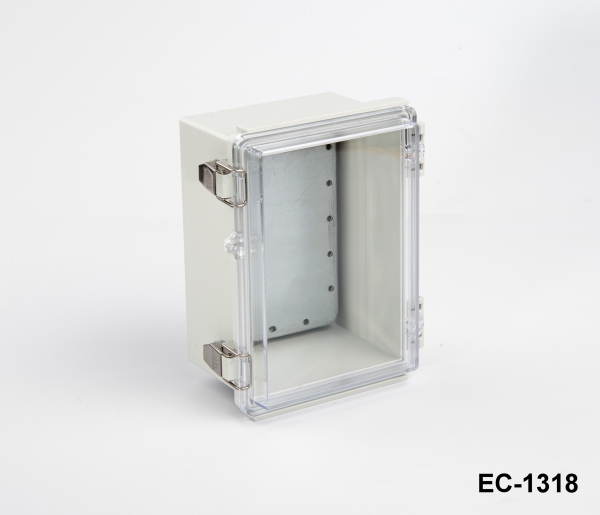

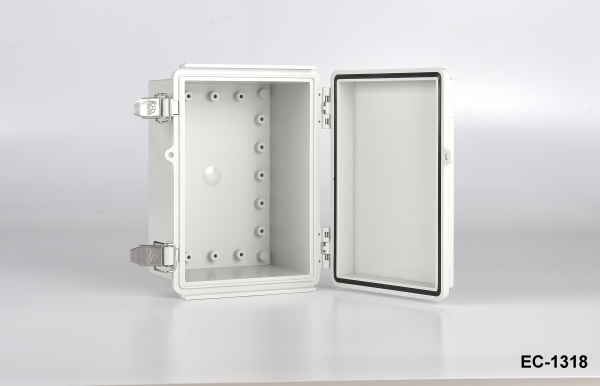

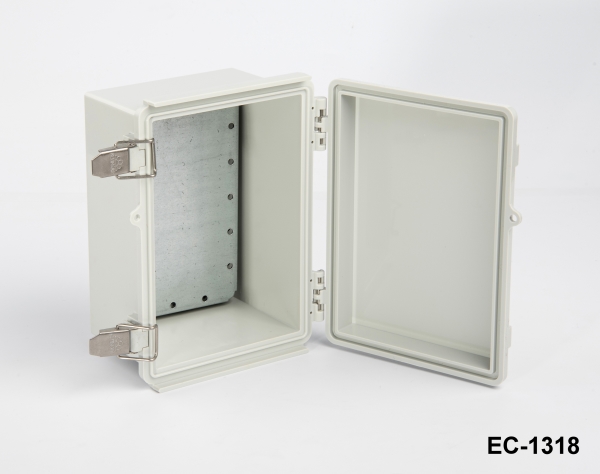

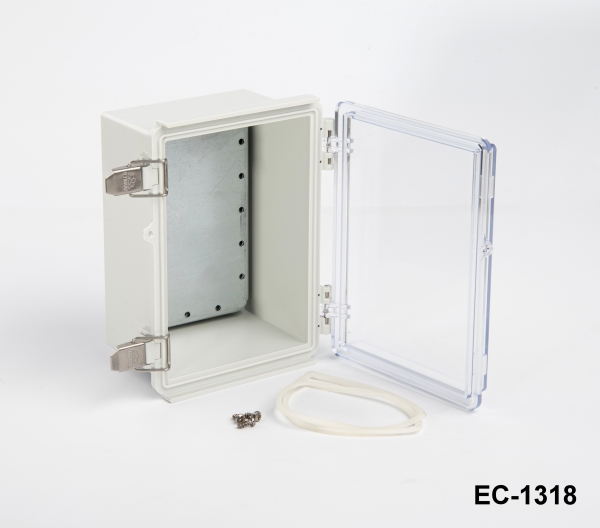

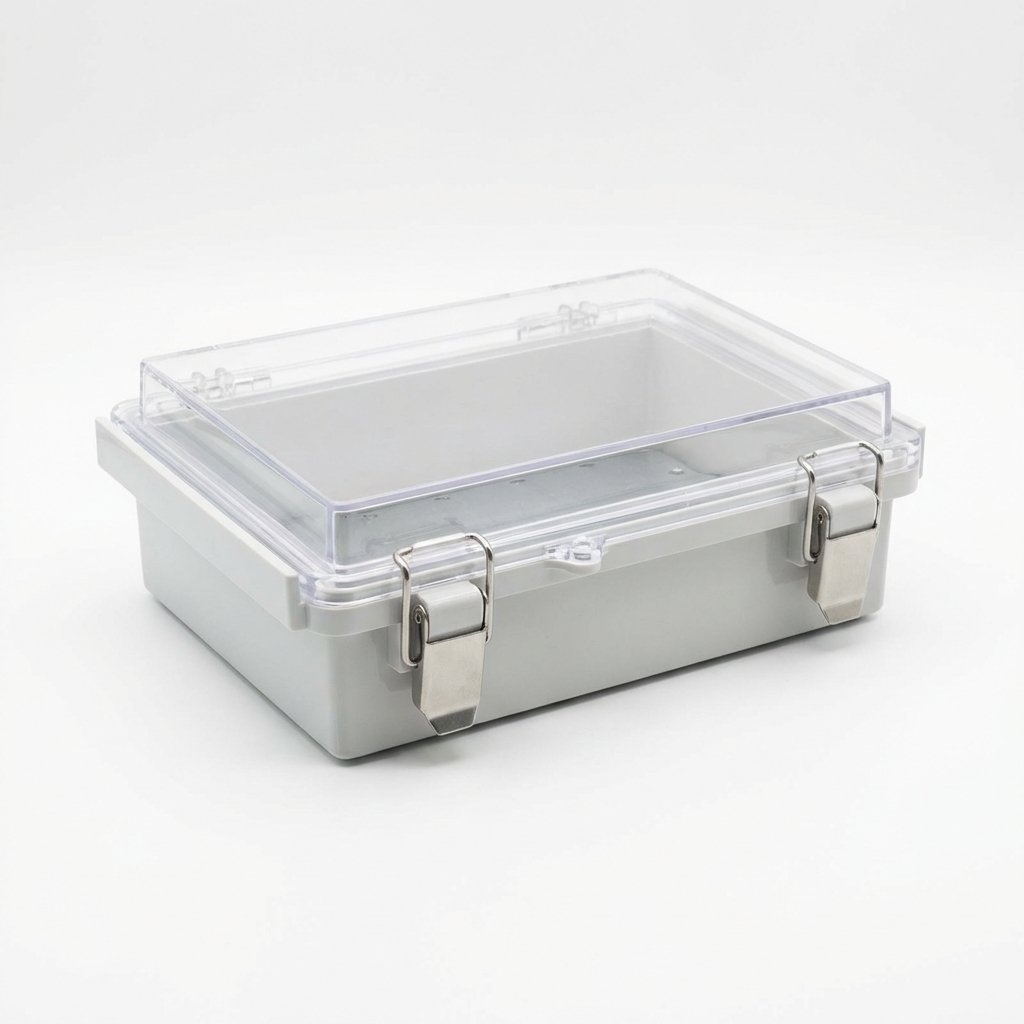

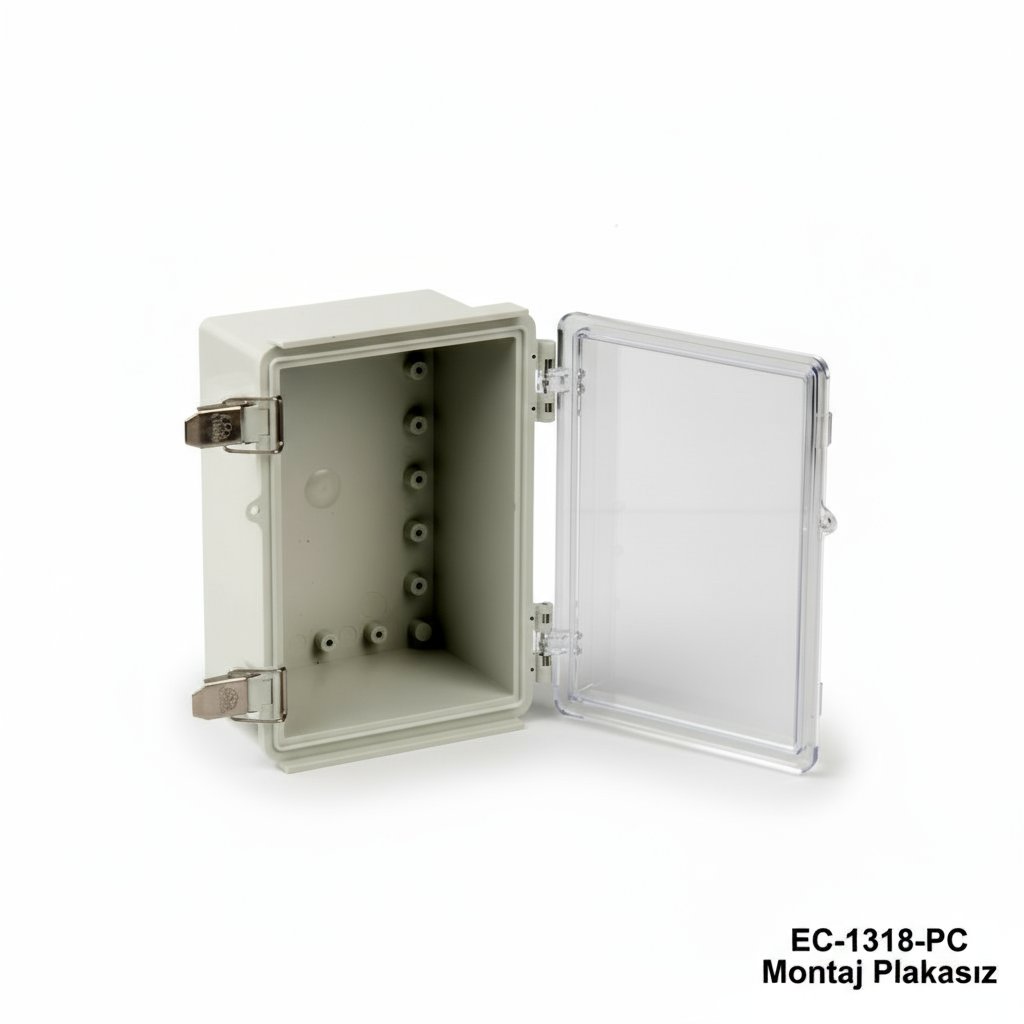

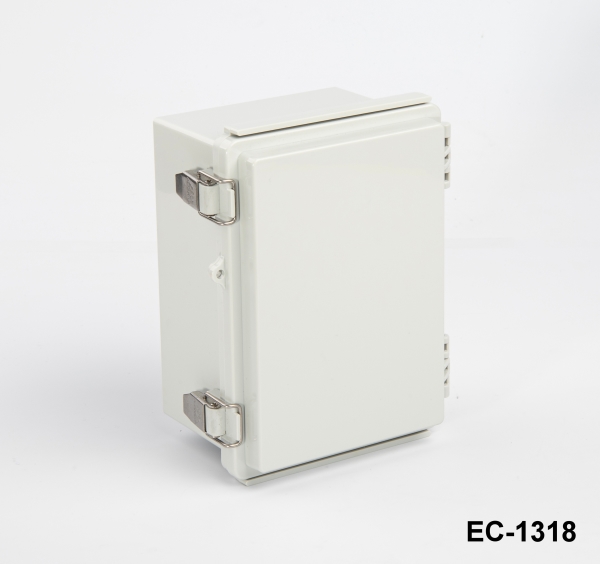

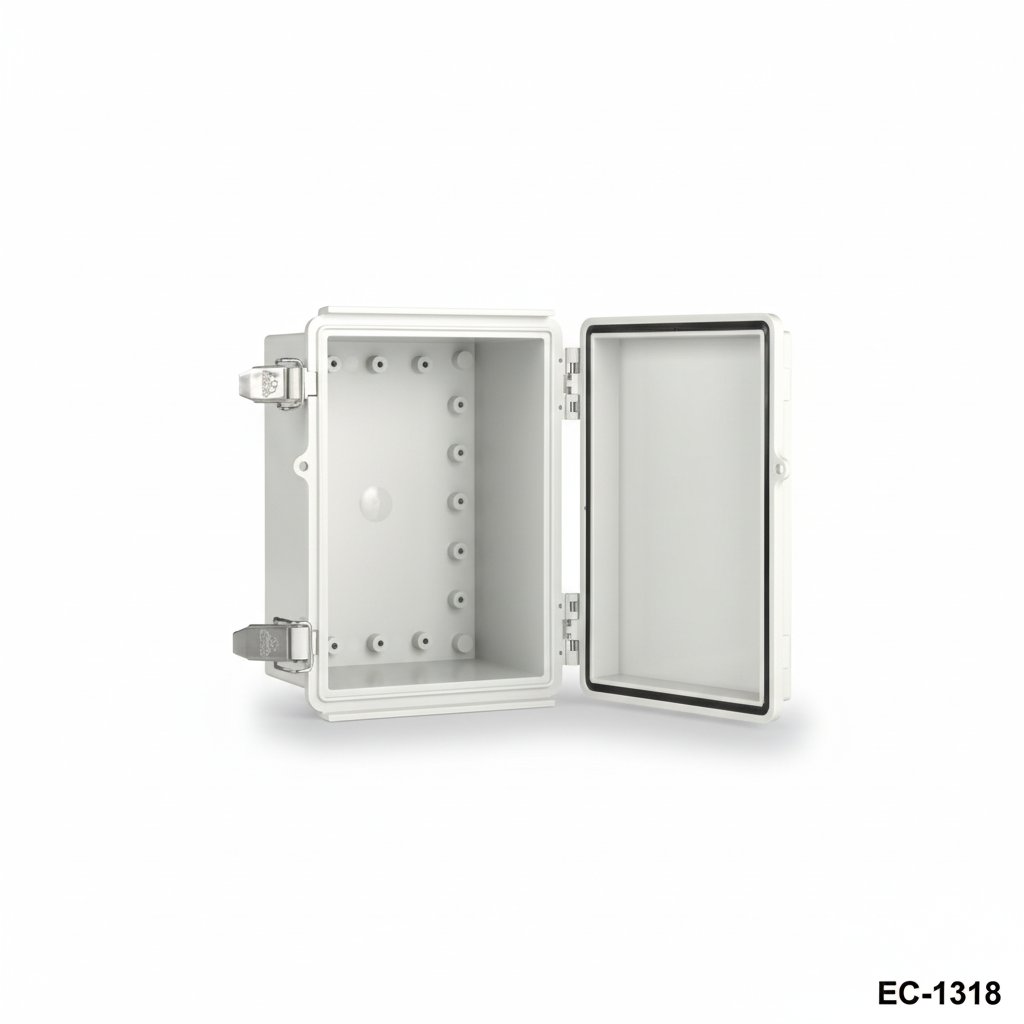

EC-1318 IP67 Hinged Plastic Enclosure
Certified IP67, suitable for outdoor applications. Galvanized mounting plate is optional.
Barcode :

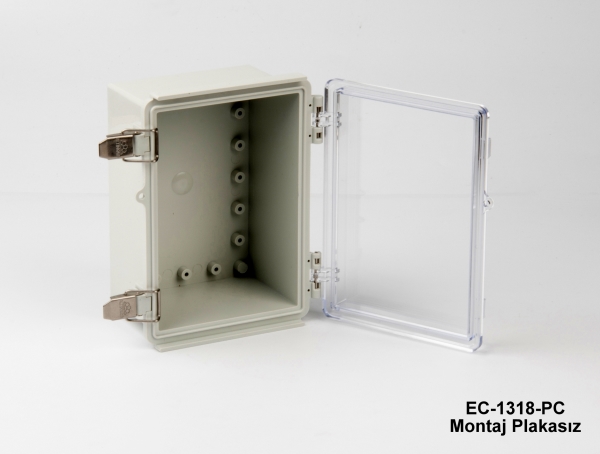

8698651327748EC-1318 is a hinged plastic enclosure with IP67 certificate. These cabinets can be used outdoor for several electrical applications. TPE gasket ensures resistancy against water and dust. Stock material for this product is shockproof ABS. ASA is another recommended option for heavy duty applications. Another optional offer is a clear lid with PC (Polycarbonate) material. 1 mm galvanized steel mounting plate provides easy mounting of your components inside the enclosure. The cases are well protected with the stainless steel latches. Other optional related accessories are aluminum and plastic wall mounting kits, pole mounting kit, inner door set. CNC machining and UV printing customizations are available as for all Altinkaya products.
Specifications
| Color | Light Gray |
| Material | ABS |
| Mounting Plate | with Mounting Plate, without Mounting Plate |
| Top Cover | Transparent Cover, Flat Cover |
| Type | Thickness 100 mm, Kalınlık 60mm |
| E1 | 130 |
| E2 | 112 |
| E3 | 95 |
| E4 | 90 |
| B1 (mm) | 180 |
| B2 (mm) | 145 |
| B3 (mm) | 100 |
| D1 (mm) | 100 |
| D2 (mm) | 87 |
| D3 (mm) | 80 |
| D4 (mm) | 20 |
| P1 (mm) | 102 |
| P2 (mm) | 152 |
| Material | ABS, PC |
| A (mm) | 130 |
| B (mm) | 180 |
| C (mm) | 100 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP67 |
| Units per box | 1 |
