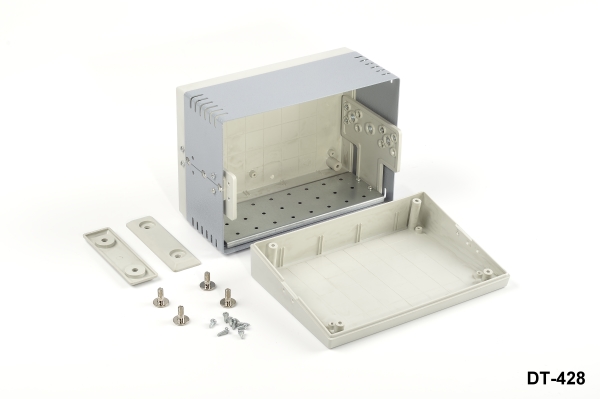

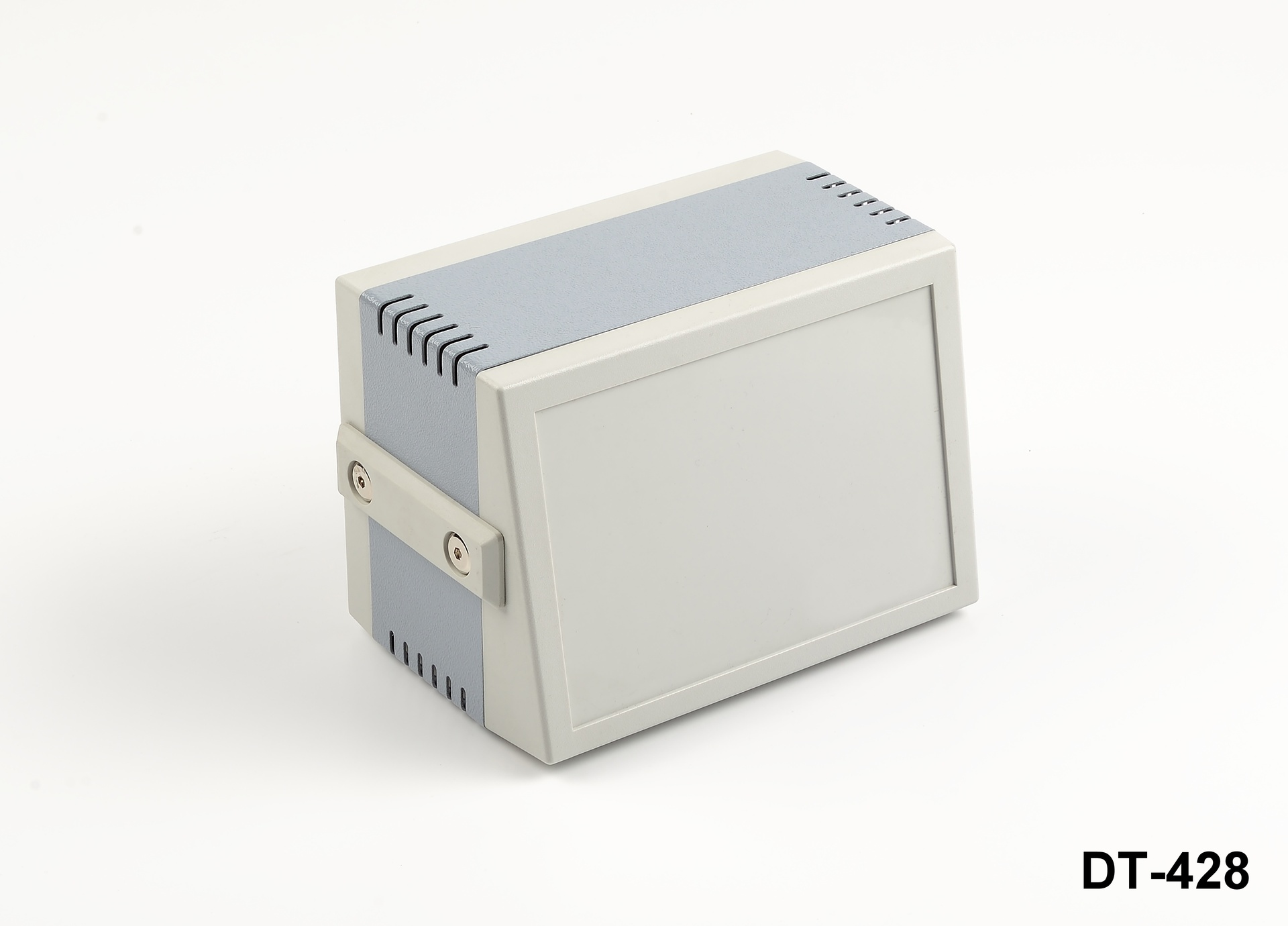

DT-428 Sloped Instrument Enclosure

[DT-428-0-0-G-0] 188 x 124 x 134 mm http://www.altinkaya.com/web/image/product.template/1196/image_1920?unique=8a0d219

The DT-428 Sloped Instrument Enclosure is a durable and impact-resistant solution for instrument and control applications, constructed from a combination of ABS-UL94-HB and sheet metal materials, with a sloped design for easy viewing and access to the electronic components.

Not Available For Sale

  • Ventilation

This combination does not exist.

You can view product prices by logging in.

Barcode: 8698651120202

DT-428 Sloped Instrument Enclosure

The DT-428 Sloped Instrument Enclosure is specifically designed for instrument and control applications where visibility and easy access to the controls are required. Constructed from a combination of ABS-UL94-HB and sheet metal materials, this enclosure is built to withstand the elements and provide long-lasting protection for your electronic components.

Measuring 188mm x 124mm x 134mm, the DT-428 has a compact design that will fit comfortably on any desktop. The light grey color provides a sleek and professional look. The sloped design allows for easy viewing and access to the electronic components inside, while the combination of materials used ensures that it is both impact-resistant and heat-resistant, making it suitable for use in a variety of environments. The sheet metal also provides additional shielding properties for sensitive electronic components.

If you're looking for a rugged and dependable solution for your instrument and control application, the DT-428 Sloped Instrument Enclosure is the perfect choice.

Specifications

Ventilation w Ventilation
Material ABS, Aluminium 1,5 mm
UL94 HB
A (mm) 188
B (mm) 124
C (mm) 134
Operating Temperature -30° / +70°
IP Rate IP40
Units per box 1
DXF
DT-428-drawing.zip

PDF
DT-428-drawing.PDF
