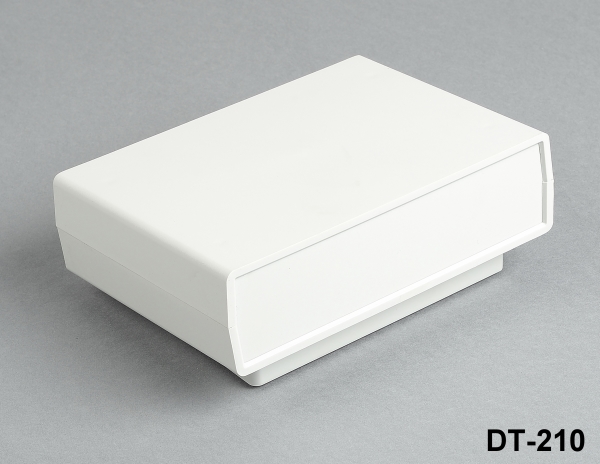

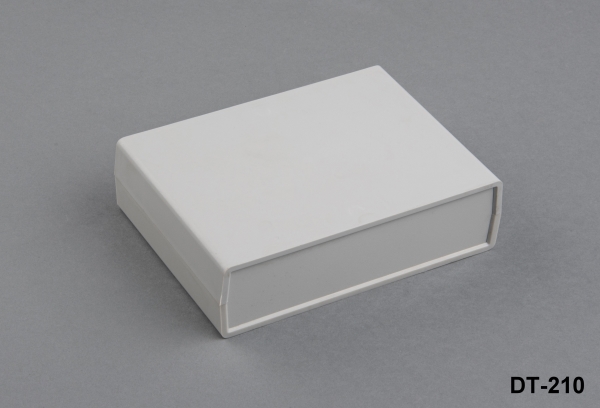

DT-210 Plastic Project Enclosure

[DT-210-0-0-G-0] 165 x 120 x 45 mm http://www.altinkaya.com/web/image/product.template/240/image_1920?unique=3a270bc

DT-210 Plastik Proje Kutusu, masaüstü uygulamaları, otomasyon ve kontrol sistemleri ve tıbbi alanlar için mükemmel çözümdür.

Not Available For Sale

  • Color
  • Panel Color
  • Material
  • Wall Mount

This combination does not exist.

You can view product prices by logging in.

The DT-210 Plastic Project Enclosure is a versatile and durable option for a variety of electronic applications. Made from ABS-UL94-HB material, it is designed to withstand the rigors of desktop use and can also be used in medical devices, audio video control systems, and automation. With dimensions of 165mm x 120mm x 45mm, it is compact and easy to integrate into your project. This enclosure is perfect for protecting and organizing your electronic components, while also providing a professional look.

This enclosure is made of ABS-UL94-HB material, which offers high impact resistance, high resistance to heat and chemicals, and UL94-HB flammability rating. This makes it a suitable option for both indoor and outdoor applications.

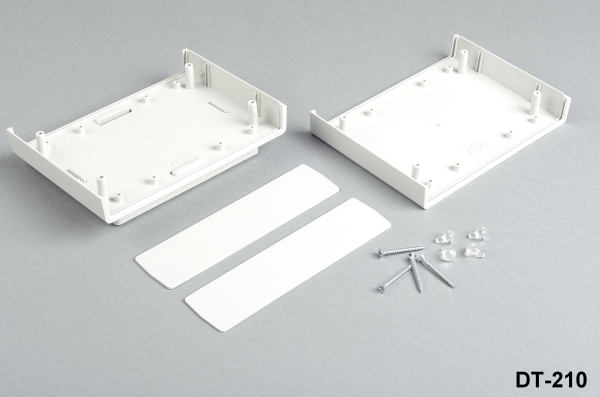

The compact dimensions of 165mm x 120mm x 45mm of the enclosure makes it ideal for desktop use, and it's easy to install and integrate with other components. It provides ample space for your electronic components and makes them easy to access. The enclosure is also designed to be easy to modify, with removable panels for easy access to the interior.

The DT-210 Plastic Project Enclosure is perfect for a wide range of electronic applications, including desktop applications, medical devices, audio video control systems, and automation. It offers protection and organization for your electronic components while also providing a professional look.

Specifications

Color Light Gray
Panel Color Both Sides Light Gray Panels
Material ABS
Wall Mount without Mounting Kit, with Sloped Mounting Kit
Material ABS
UL94 HB
A (mm) 165
B (mm) 120
C (mm) 45
Operating Temperature -30° / +70°
IP Rate IP54
Units per box 10
PDF
DT-210_drawing.PDF

3D
DT-210_3D.zip

DXF
DT-210_drawing.zip
