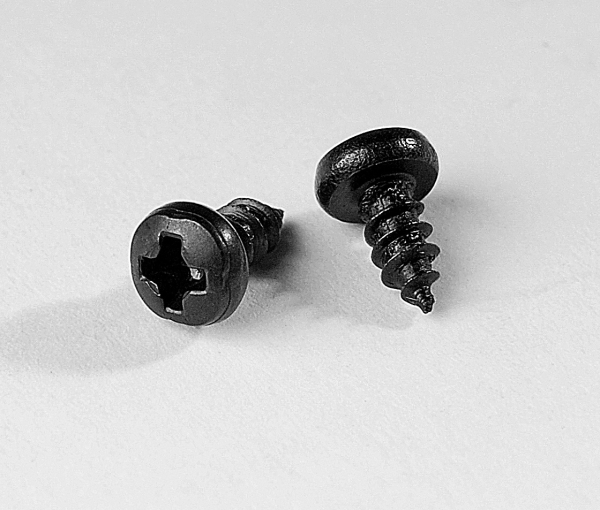

2,2x4,5 mm YSB SC Black Screw

[A-637-0-0-S-0]
https://www.altinkaya.com/web/image/product.template/501/image_1920?unique=03667ed

Login or Register to see price

Not Available For Sale


    This combination does not exist.


    Barcode :
    8698651111026



    Specifications

    Fully Threaded Fully Threaded
    Head Diameter 4.2 mm
    Head Height 1.8 mm
    Drive Style PH Philips
    Drive Style PH-1
    Heat Treatment Carbonitration
    Thread Direction Right Hand
    Head Type Round
    System of Measurement Metric
    Country of Origin Türkiye
    Hardness Min.450 Hv0.3
    Maximum Drilling Thickness 0.65 mm
    Tapping Method Self Tapping
    Tapping Screw Type C
    Shank Cross Section Round
    For Use In Sheet Metal
    Specifications Met DIN 7981
    Rounded Head Style Pan
    Rounded Head Profile Standard
    Thread Size 2.2 mm
    Length 0 - 0 mm
    Material 20 Mn-B4
    Surface Protection Metallic A2F Cr+3 /Black A2S Cr+3
