HH-049 Hand Held Enclosure

[HH-049-0-0-S-0] 170 x 130 x 25 mm http://www.altinkaya.com/web/image/product.template/1313/image_1920?unique=5f83f4d

The perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, remote control and HVAC.

Not Available For Sale

  • Color

This combination does not exist.

You can view product prices by logging in.

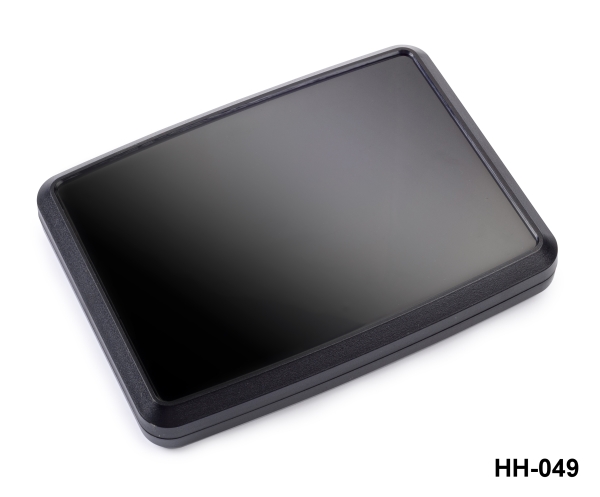

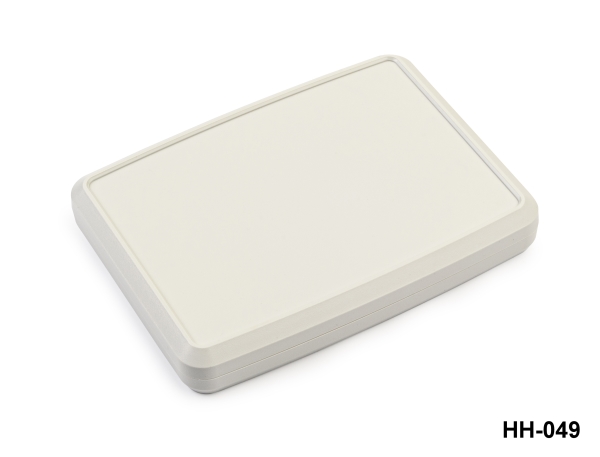

HH-049 Handheld Enclosure

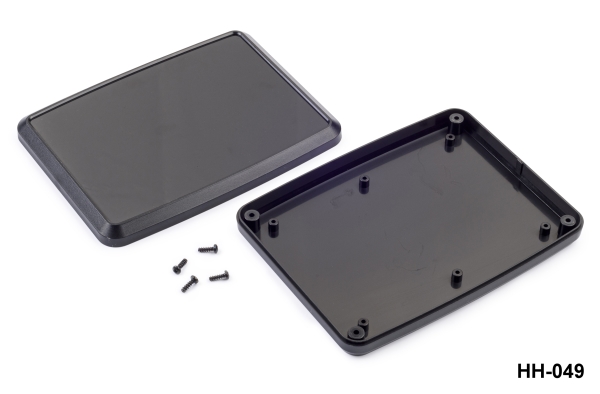

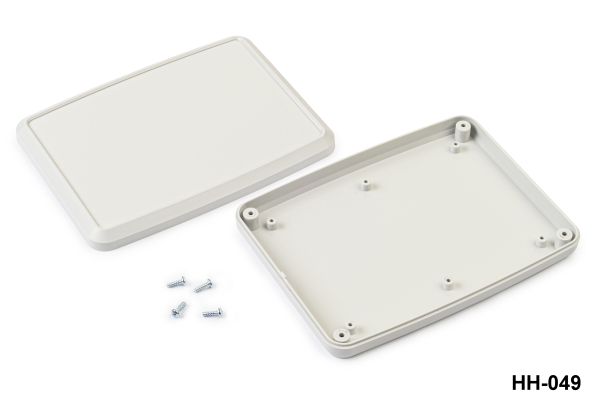

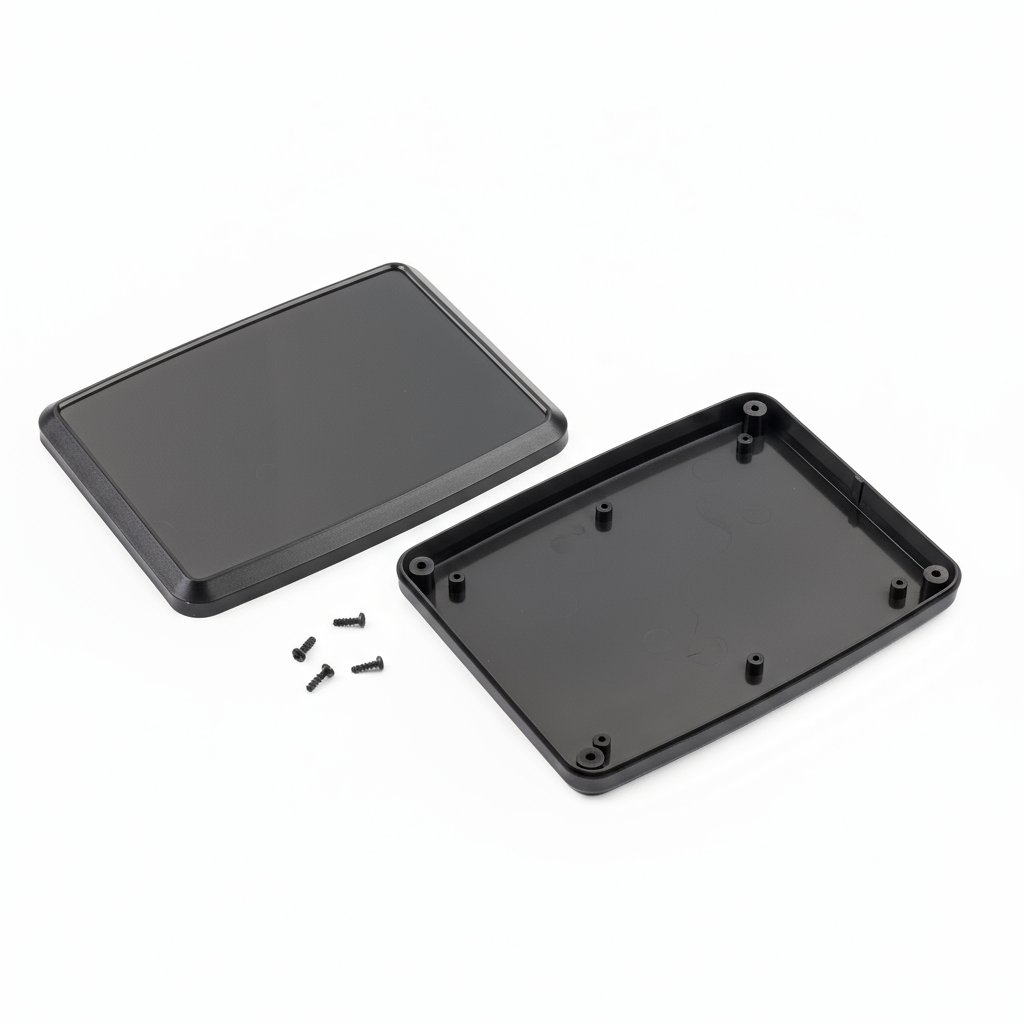

The HH-049 handheld enclosure is the perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, and HVAC. This versatile enclosure is made from high-quality ABS UL-HB material and comes in light gray or black standard color options to fit your design needs. With base cover parts and screws included, the HH-049 is easy to assemble and customize to your specific requirements.

The compact size and ergonomic design of the HH-049 make it comfortable and easy to hold, allowing for convenient use in various settings. Whether you're working on a small-scale project or a larger installation, the HH-049 provides the durability and flexibility you need to ensure a safe and effective electrical system. So why wait? Order your HH-049 handheld enclosure today and take your project to the next level!

Specifications

Color Light Gray, Black
Material ABS
UL94 HB
A (mm) 170
B (mm) 130
C (mm) 25
Operating Temperature -30° / +70°
IP Rate IP54
Units per box 10
3D
HH-049.zip

PDF
HH-049_drawing.pdf

DXF
HH-049_drawing.zip
