EC-1624 IP-67 Plastic Enclosure

[EC-1624-11-A-G-G] 160 x 240 x 53. 112 mm (6.3 x 9.45 x 2.09 in)
https://www.altinkaya.com/web/image/product.template/1212/image_1920?unique=89eb564

Certified IP67, suitable for outdoor applications. Galvanized mounting plate is optional.

Login or Register to see price

Not Available For Sale


  • Color
  • Material
  • Mounting Plate
  • Top Cover
  • Type

This combination does not exist.


Barcode :
8698651422290
Share :
Customization options available
Quality guaranteed
Worldwide delivery

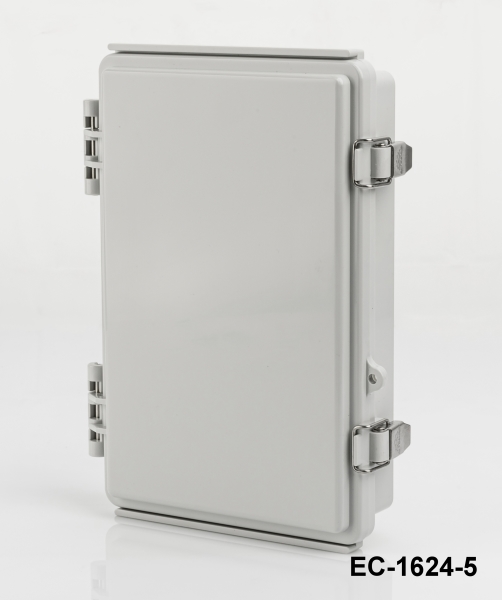

EC-1624 is a hinged plastic enclosure with IP67 certificate. Available with 2 different sizes as 160 x 240 x 53 and 160 x 240 x 112. These cabinets can be used outdoor for several electrical applications. TPE gasket ensures resistancy against water and dust. Stock material for this product is shockproof ABS. ASA is another recommended option for heavy duty applications. Another optional offer is a clear lid with PC (Polycarbonate) material. 1 mm galvanized steel mounting plate provides easy mounting of your components inside the enclosure. The cases are well protected with the stainless steel latches. Other optional related accessories are aluminum and plastic wall mounting kits, pole mounting kit, inner door set. CNC machining and UV printing customizations are available as for all Altinkaya products.

Material PC
A (mm) 160
B (mm) 240
C (mm) 53, 112
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 1
IP Certificate
EC-1624_IP.pdf
Download
DXF
EC-1624-5_drawing.zip
Download
DXF
EC-1624-11_drawing.zip
Download
PDF
EC-1624-11_drawing.pdf
Download
PDF
EC-1624-5_drawing.pdf
Download
3D
EC-1624-11_3D.zip
Download
3D
EC-1624-5_3D.zip
Download
