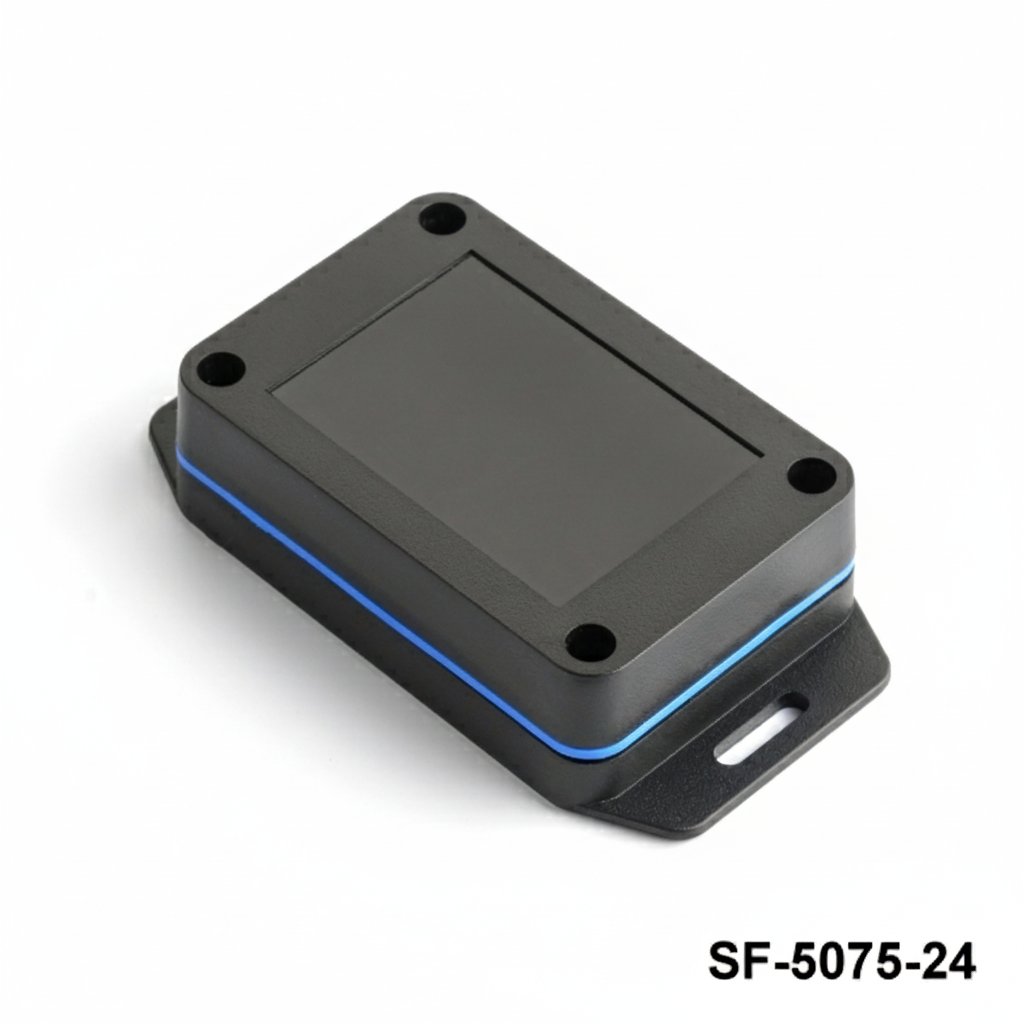

SF-5075 IP-65 Plastic Heavy Duty Enclosure

[SF-5075-19-K-G-0] 50 x 75 x 19 mm http://www.altinkaya.com/web/image/product.template/2248/image_1920?unique=2a5e27f

Not Available For Sale

  • Color
  • Type
  • Seal

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

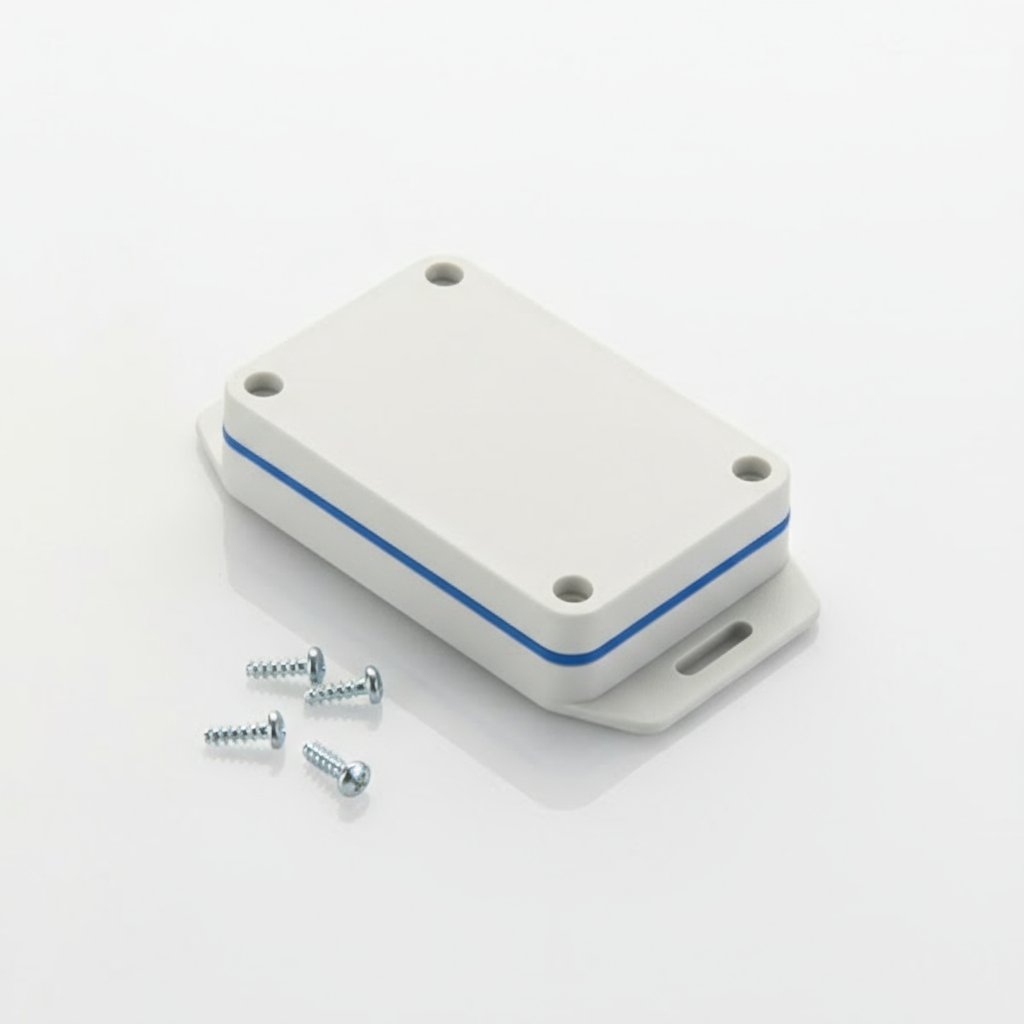

SF-5075 is a flanged heavy duty enclosure with IP65 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Light Gray, Black
Type Thickness, Thickness 24 mm
Seal Yellow, Blue, Red
Material ABS
UL94 HB
A (mm) 50
B (mm) 75
C (mm) 19, 24
Operating Temperature -30° / +70°
IP Rate IP67
3D
SF-5075-24_3D_STEP.zip

DXF
SF-5075-24_dxf.zip

PDF
SF-5075-24.pdf

3D
SF-5075-19-3D.rar

PDF
SF-5075_drawing.pdf

DXF
SF-5075_drawing.zip
