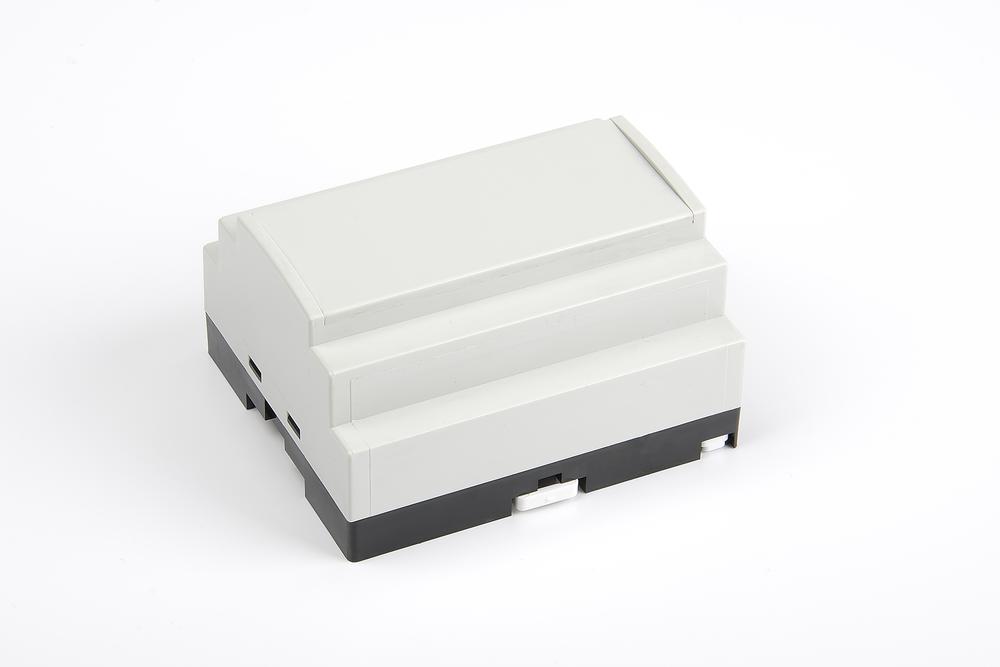

RT-206-24 Rail Enclosure

[RT-206-A-24-0-F-D-0] 105 x 91 x 58.5 mm http://www.altinkaya.com/web/image/product.template/941/image_1920?unique=ec83a9d

Designed to protect electrical and electronic devices in a variety of applications including time relays, automation, IOT, testing and measuring, smart home, and KNX.

Not Available For Sale

  • Color
  • Panel Color
  • Panel
  • Type

This combination does not exist.

You can view product prices by logging in.

RT-206 Din Rail Enclosure

The RT-206 Din Rail Enclosure is the perfect solution for time relays, automation, IOT, testing and measuring, smart home, and KNX applications. Available in light gray or black color, it offers a clean and professional look.

Constructed from UL94-V0 material, the RT-206 measures 105 mm x 91 mm x 58.5 mm and is compatible with six modules.

As a part of our Din Rail Enclosures category, the RT-206 provides reliable protection and organization for your projects, making it the ideal choice for any application.

Specifications

Color Light Gray, Black, Dark Gray
Panel Color Transparent Panel, Smoke Panel
Panel Flat Panel, Model 1, Model 2, Model 3, Model 4

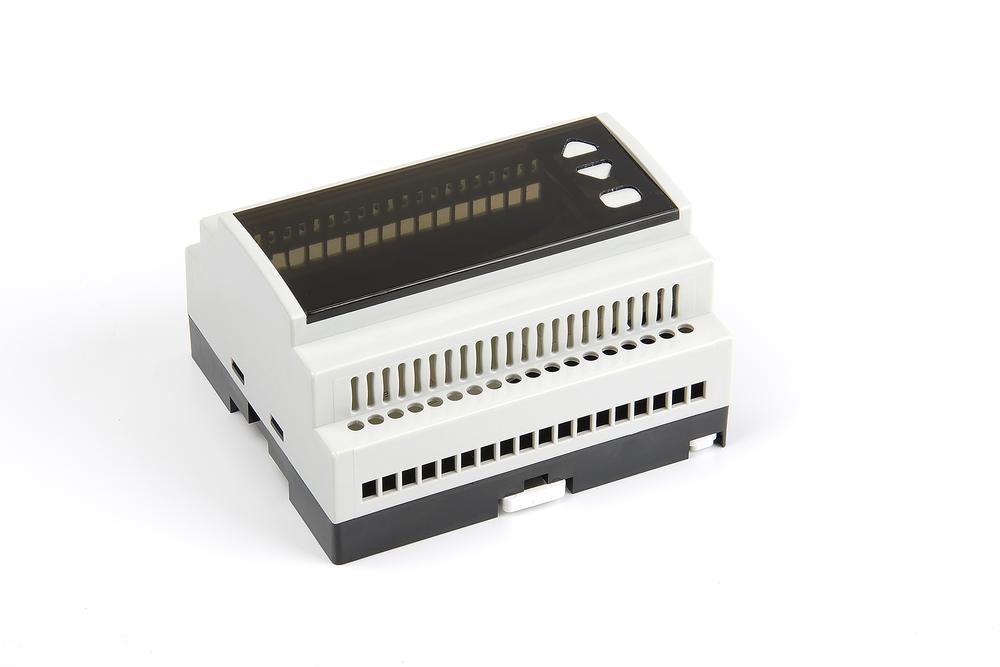

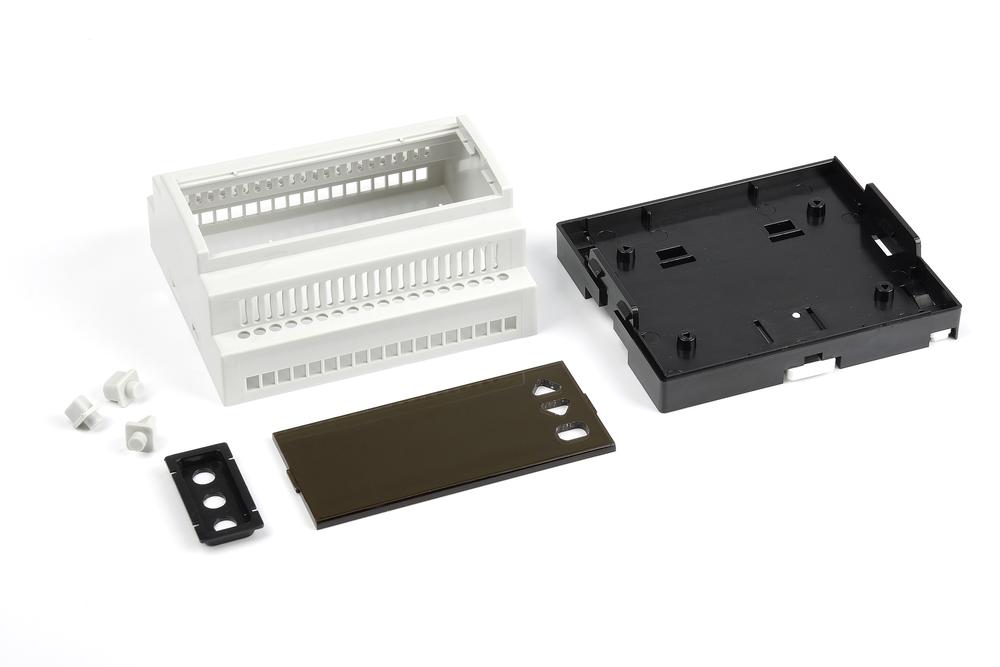

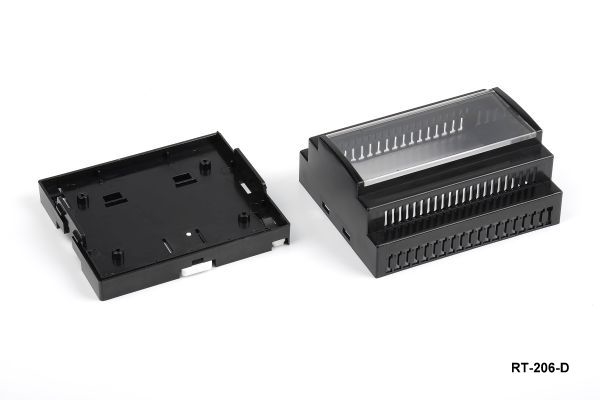

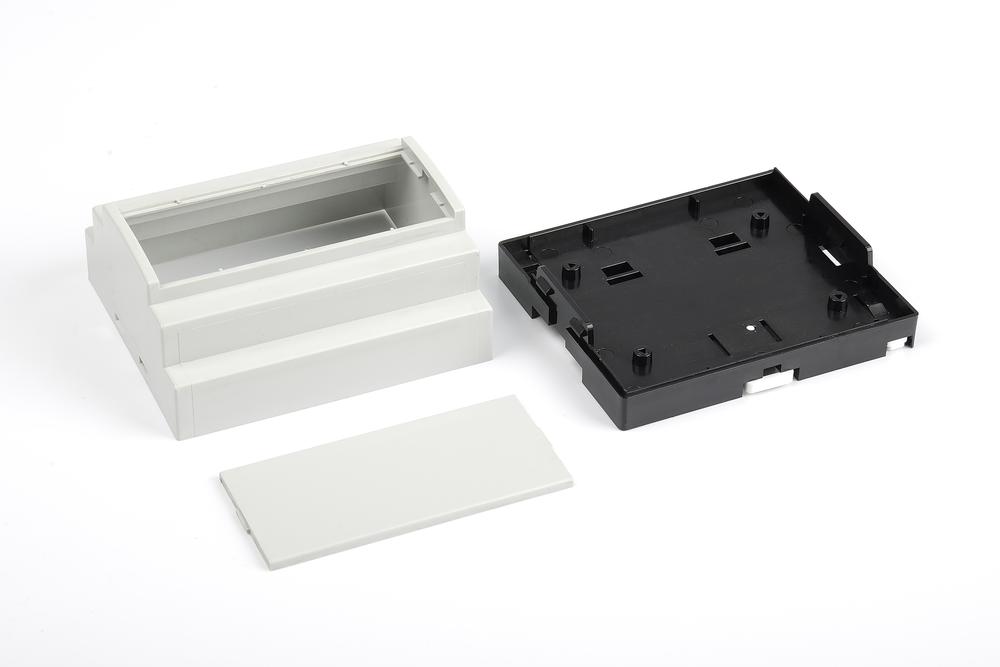

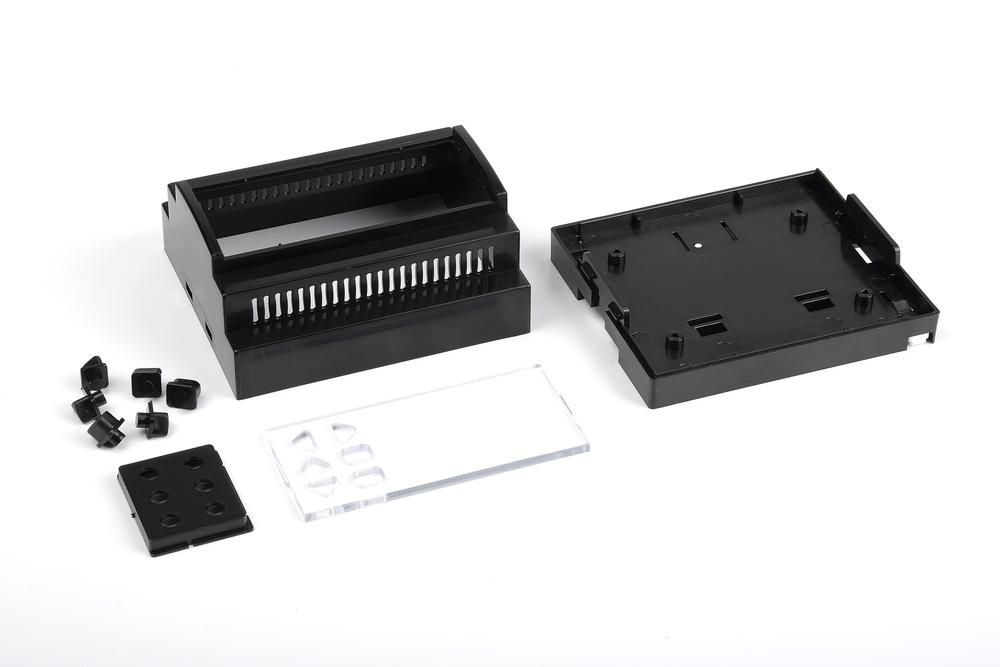

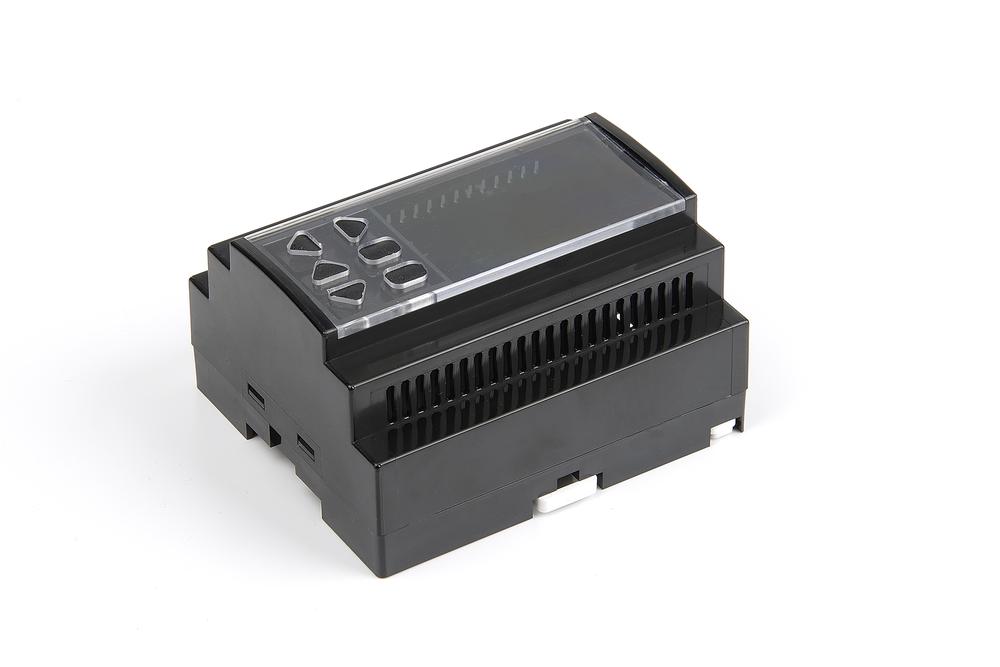

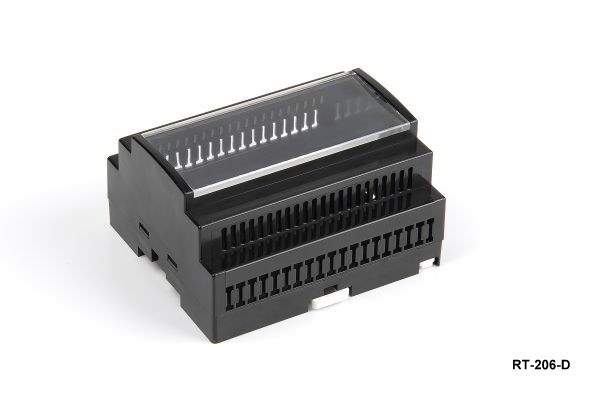

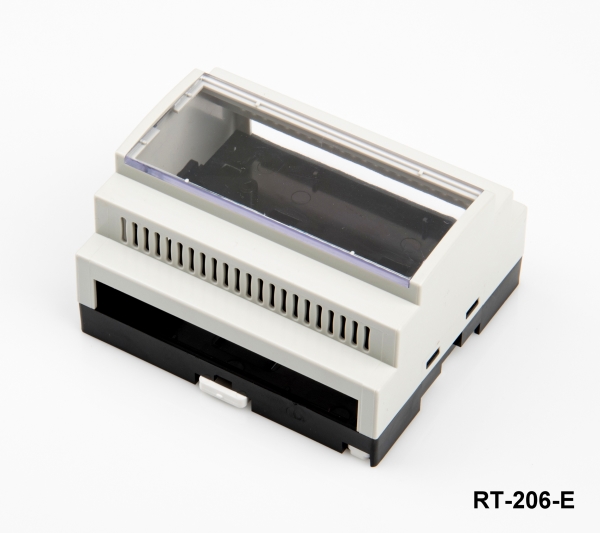

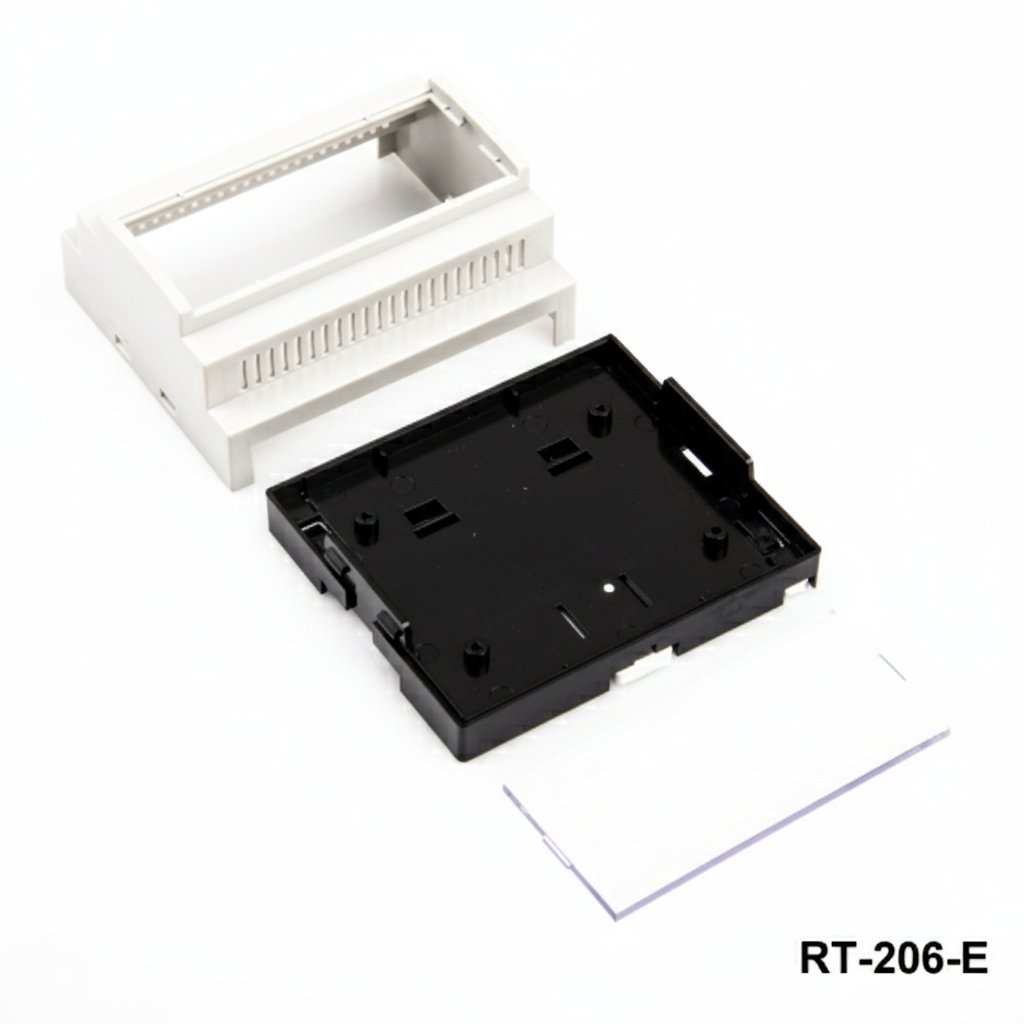

Type A-Closed, B-with Ventilation, C-For Screw Terminal, E-Open, D-For Socket Terminal
Material PC/ABS/V0
A (mm) 105
B (mm) 91
C (mm) 58.5
Operating Temperature -40° / +120°
Units per box 10
3D
RT-206-A-3D.zip

DXF
RT-206-drawing.zip

PDF
RT-206-drawing.PDF

3D
RT-206-B-3D.zip

3D
RT-206-E-3D.zip

3D
RT-206-C-3D.zip

3D
RT-206-D-3D.zip
