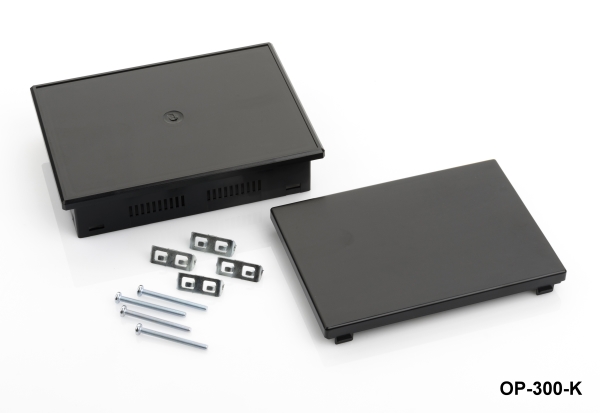

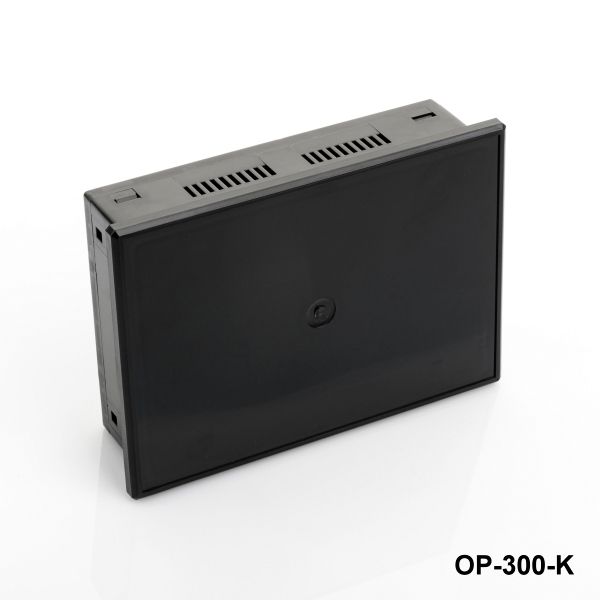

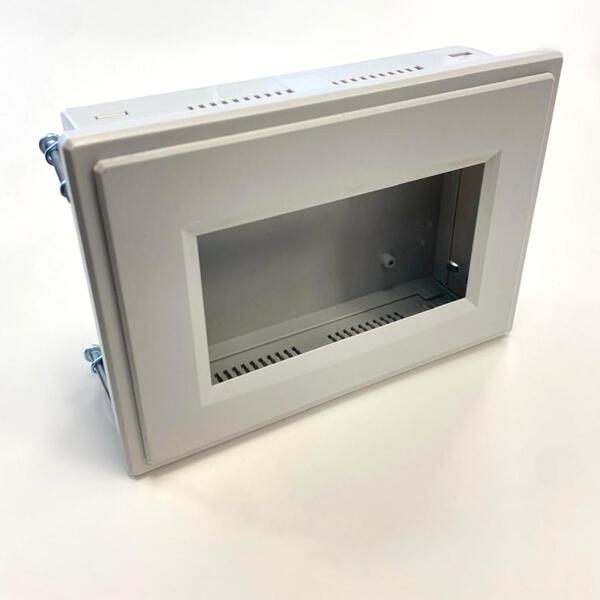

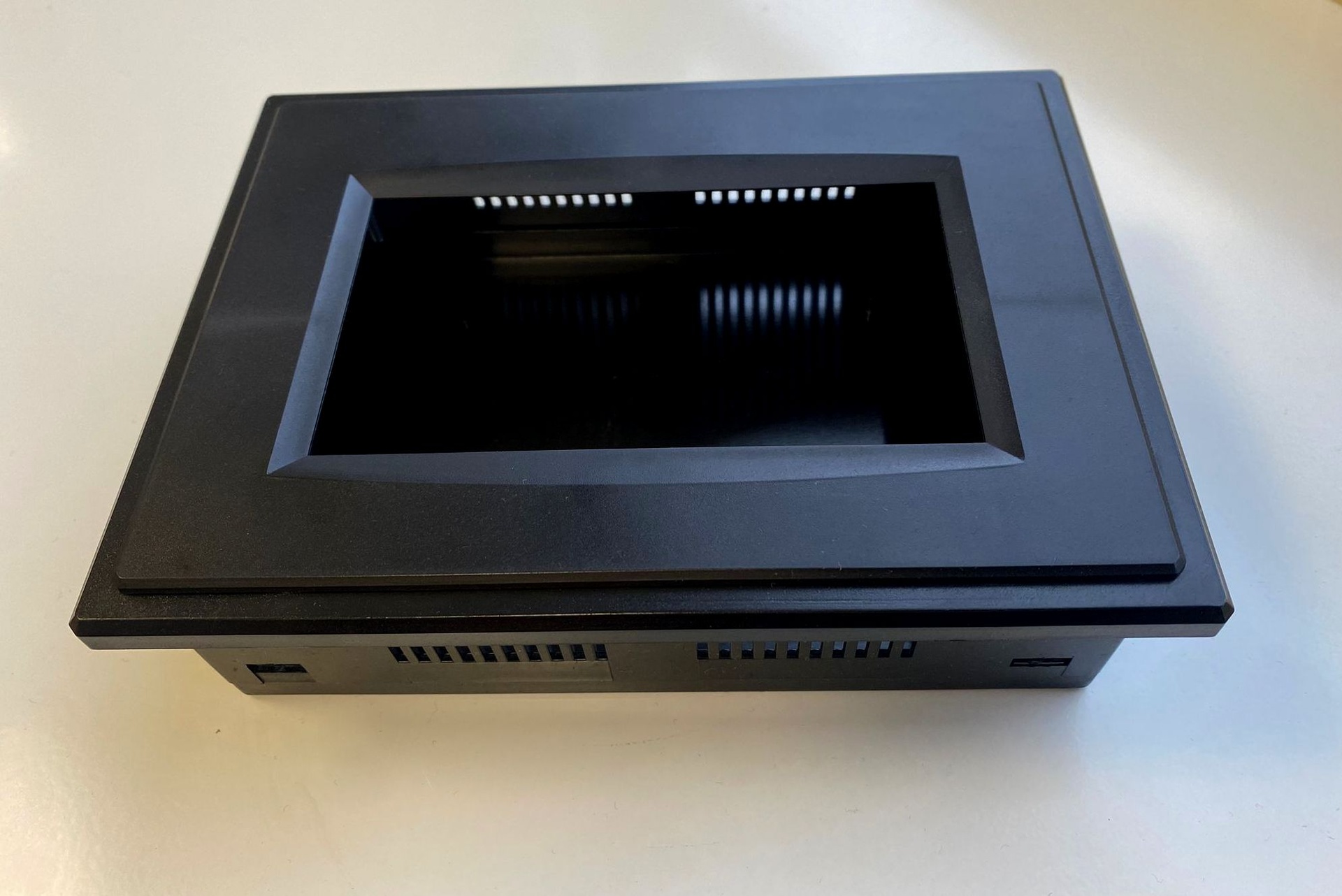

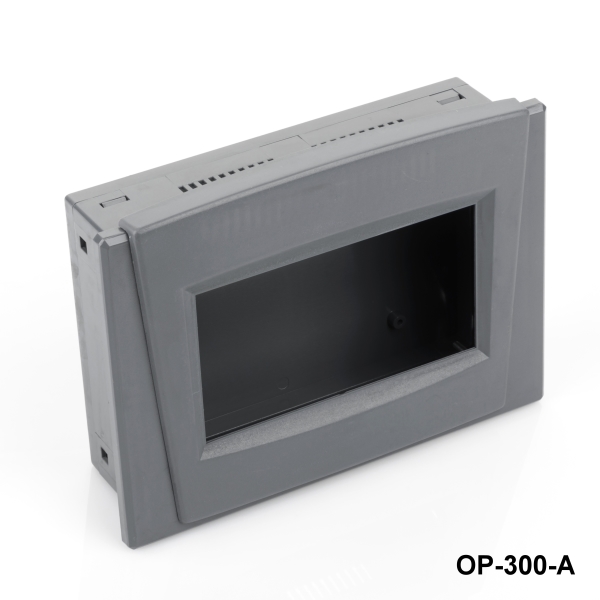

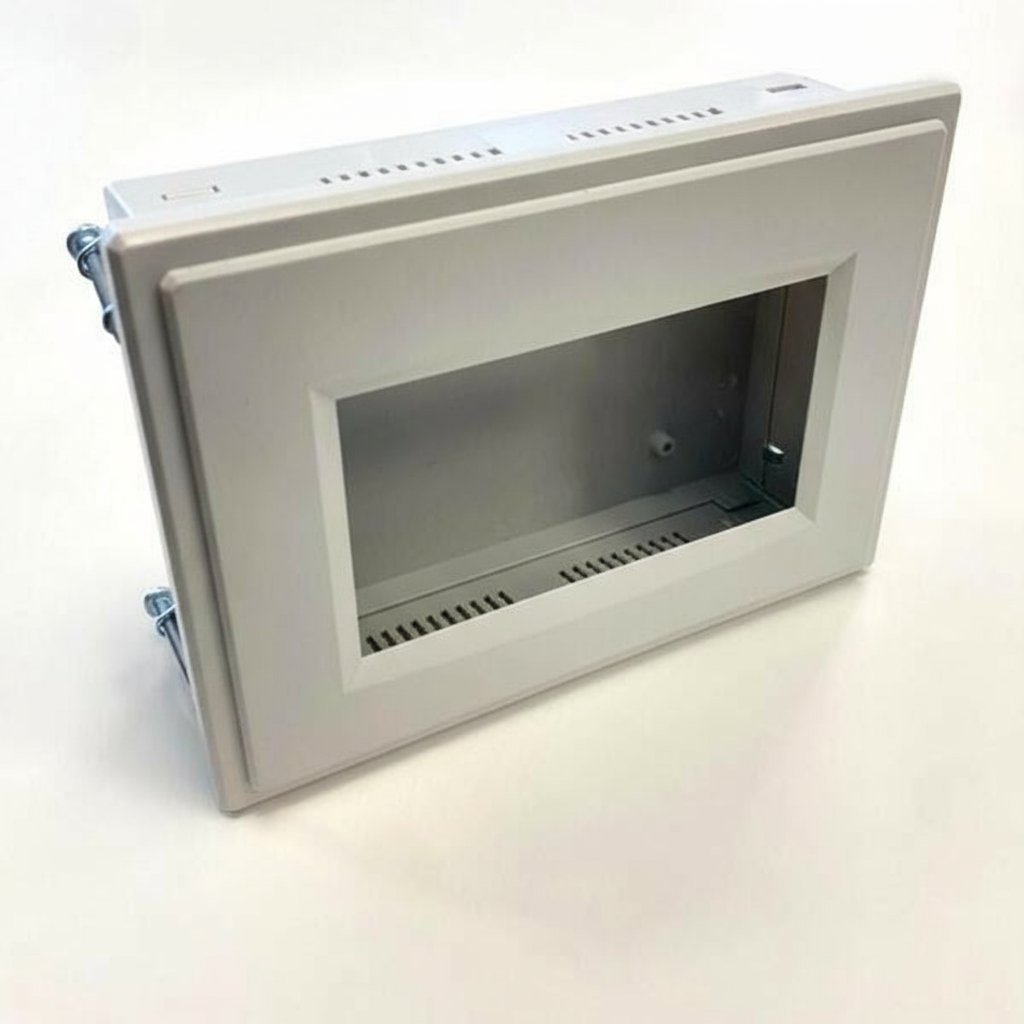

OP-300 Operator Panel Enclosure
[OP-300-0-0-S-0]
180 x 130 x 50 mm
(7.09 x 5.12 x 1.97 in)
Akıllı ev sistemleri, Soğutma kontrol üniteleri, Otomasyon kontrol cihazları dahil olmak üzere çok çeşitli uygulamalar için uygun yüksek kaliteli bir kutu.
Barcode :
8698651129236OP-300 is an operator panel type of enclosure. The material used is ABS UL-94-V0.
Specifications
| Color | Light Gray, Black, Dark Gray |
| UL94 | HB |
| Ventilation | w Ventilation |
| Screen Frame | Closed Screen Opening, Open Display Opening Flat Window, Open Display Opening Curved Window |
| Material | ABS |
| UL94 | HB |
| A (mm) | 180 |
| B (mm) | 130 |
| C (mm) | 50 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP40 |
| Units per box | 10 |
