[OP-300-0-0-S-0] OP-300 Operator Panel Enclosure (Black, HB, w Ventilation, Closed Screen Opening )

[OP-300-0-0-D-0] OP-300 Operator Panel Enclosure ( Light Gray, HB , w Ventilation , Closed Screen Opening)

[OP-300-0-0-G-0] OP-300 Operator Panel Enclosure ( Light Gray , HB , w Ventilation , Closed Screen Opening )

[OP-300-A-0-D-0] OP-300 Operator Panel Enclosure ( Dark Gray, HB, w Ventilation, Open Display Opening Curved Window )

[OP-300-A-0-G-0] OP-300 Operator Panel Enclosure (Light Gray , HB , w Ventilation , Open Display Opening Curved Window )

[OP-300-B-0-D-0] OP-300 Operator Panel Enclosure ( Dark Gray, HB , w Ventilation , Open Display Opening Flat Window )

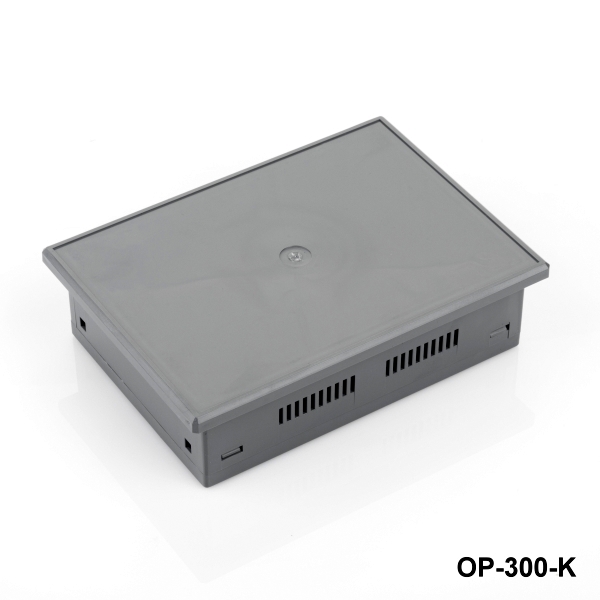

OP-300 Operator Panel Enclosure

[OP-300-0-0-S-0] 180 x 130 x 50 mm (7.09 x 5.12 x 1.97 in)

Akıllı ev sistemleri, Soğutma kontrol üniteleri, Otomasyon kontrol cihazları dahil olmak üzere çok çeşitli uygulamalar için uygun yüksek kaliteli bir kutu.

تسجيل الدخول أو التسجيل لمعرفة السعر

Color
- Light Gray
- Black
- Dark Gray
Custom Production
- Standard
UL94
- HB
Ventilation
- w Ventilation
Screen Frame

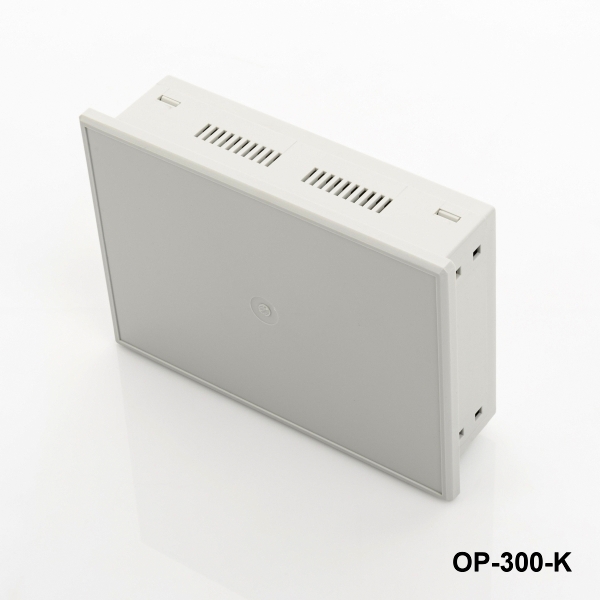

- Closed Screen Opening

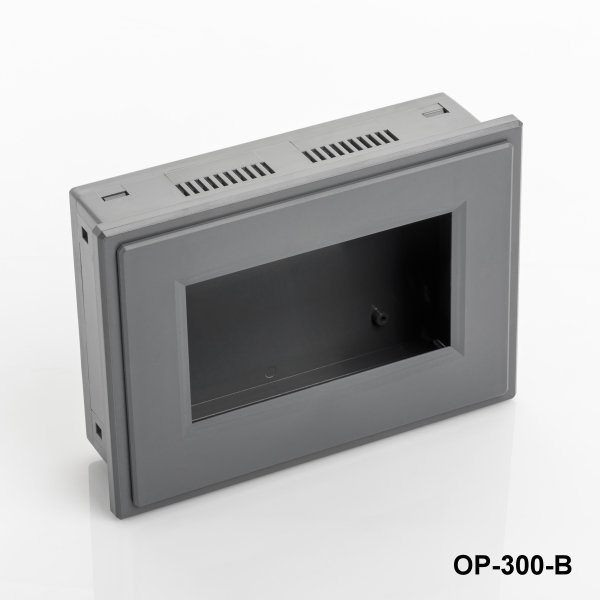

- Open Display Opening Flat Window

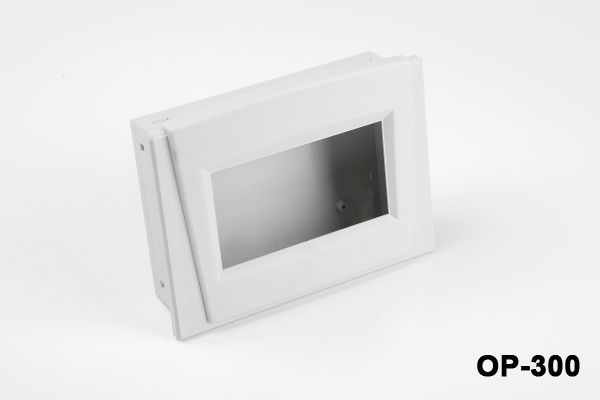

- Open Display Opening Curved Window

هذه التركيبة غير موجودة.

باركود :

8698651129236

OP-300 is an operator panel type of enclosure. The material used is ABS UL-94-V0.

المواصفات

Color	Light Gray, Black, Dark Gray
UL94	HB
Ventilation	w Ventilation
Screen Frame	Closed Screen Opening, Open Display Opening Flat Window, Open Display Opening Curved Window
Material	ABS
UL94	HB
A (mm)	180
B (mm)	130
C (mm)	50
Operating Temperature	-30° / +70°
IP Rate	IP40
Units per box	10
