RT-209-24 Rail Enclosure

[RT-209-A-24-0-F-G-0] 157.4 x 91 x 58.4 mm http://www.altinkaya.com/web/image/product.template/947/image_1920?unique=e6e1663

Designed to protect electrical and electronic devices in a variety of applications including time relays, automation, IOT, testing and measuring, smart home, and KNX.

Not Available For Sale

  • Color
  • Panel Color
  • Panel
  • Type

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

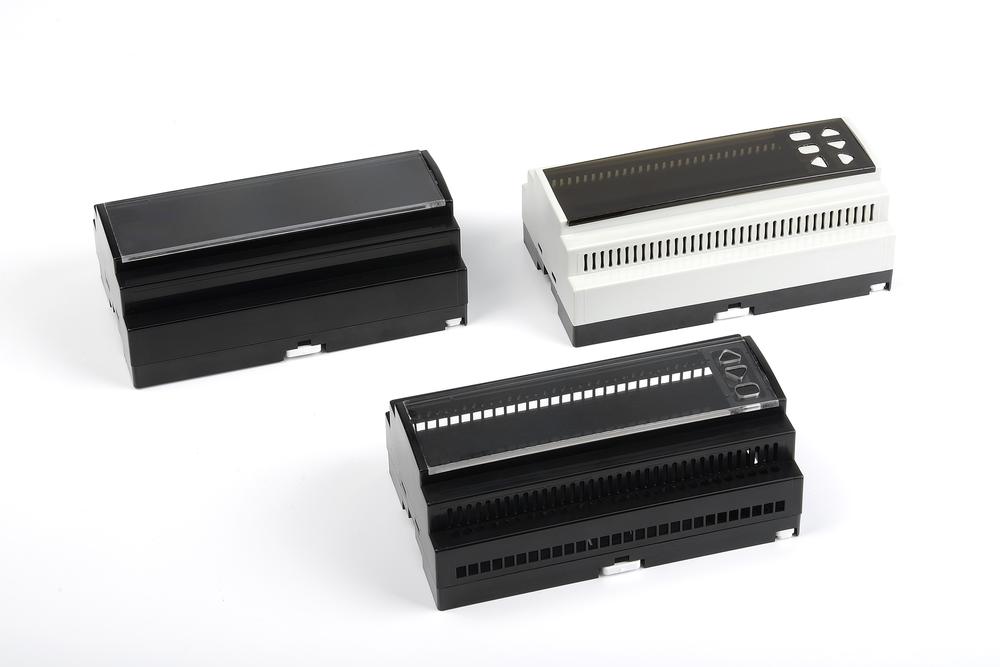

RT-209 Din Rail Enclosure

The RT-209 Din Rail Enclosure is designed to protect electric and electronic devices. Made of high-quality UL94-V0 material, this enclosure provides durability and resistance to fire. With dimensions of 157.4mm x 91mm x 58.4mm, it is compatible with nine modules and offers 5 different body options for the terminal outputs. The enclosure is available in light gray or black color, and it can also be customized with transparent or smokey panel color options and panel design.

This versatile enclosure is ideal for use in a variety of applications, including time relays, automation, IOT, testing and measuring, smart homes, and KNX.

Specifications

Color Light Gray, Black
Panel Color Transparent Panel, Smoke Panel

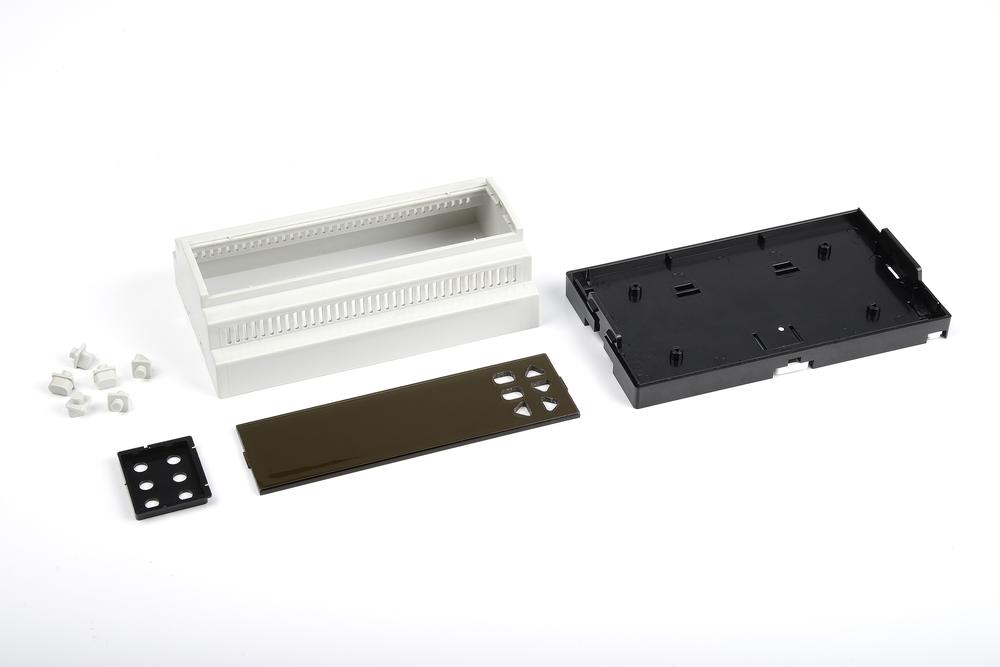

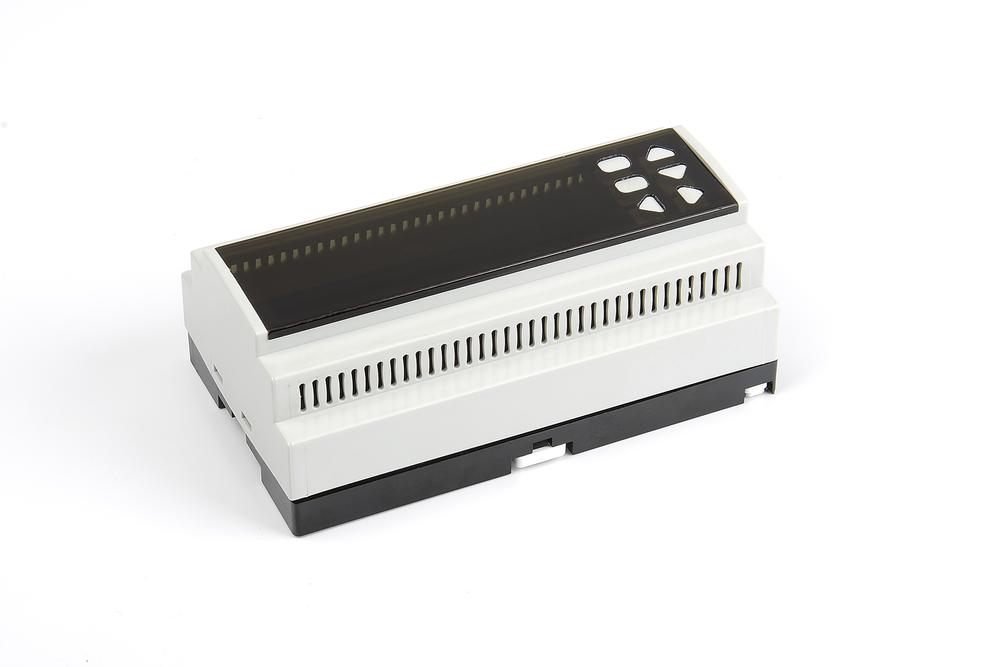

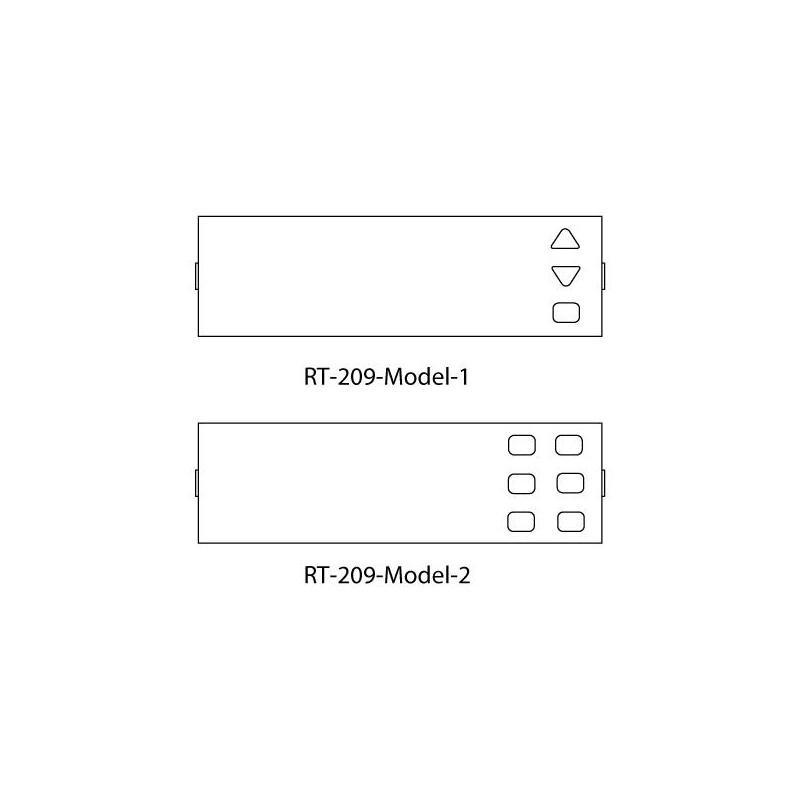

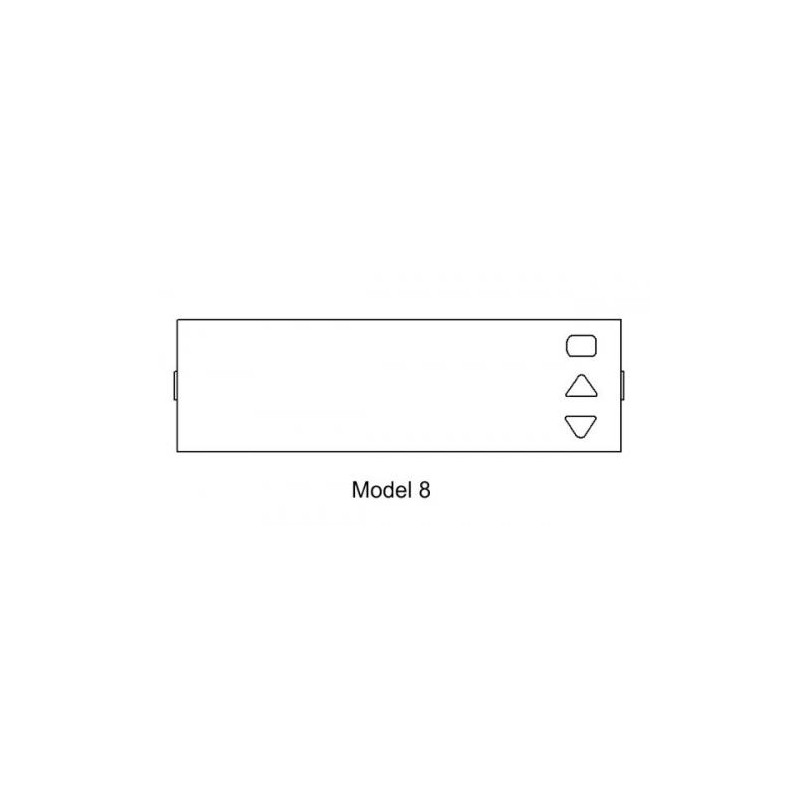

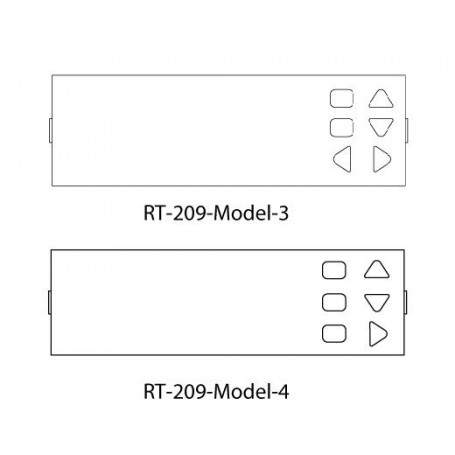

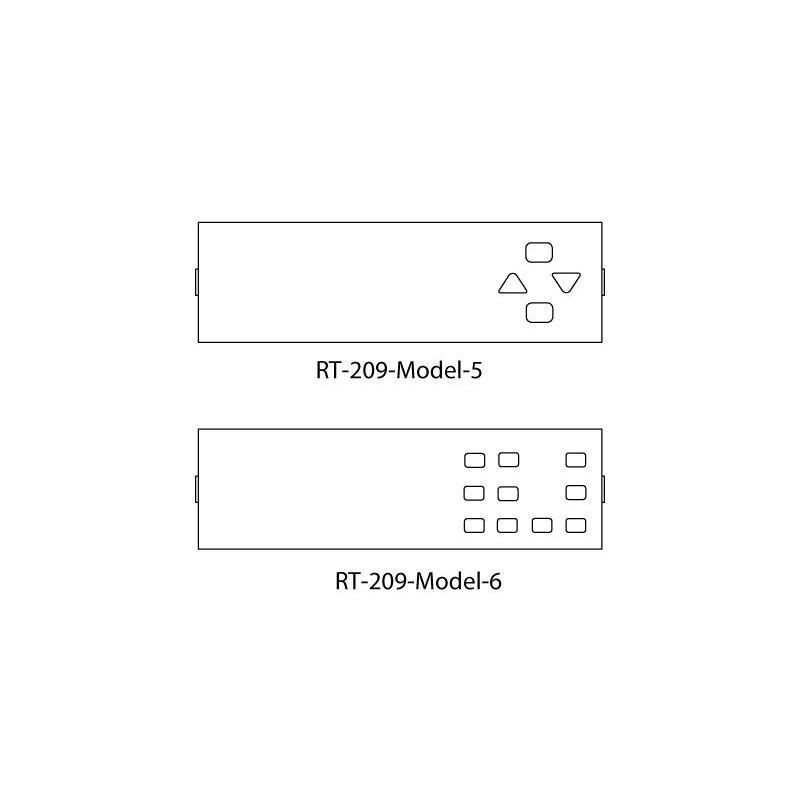

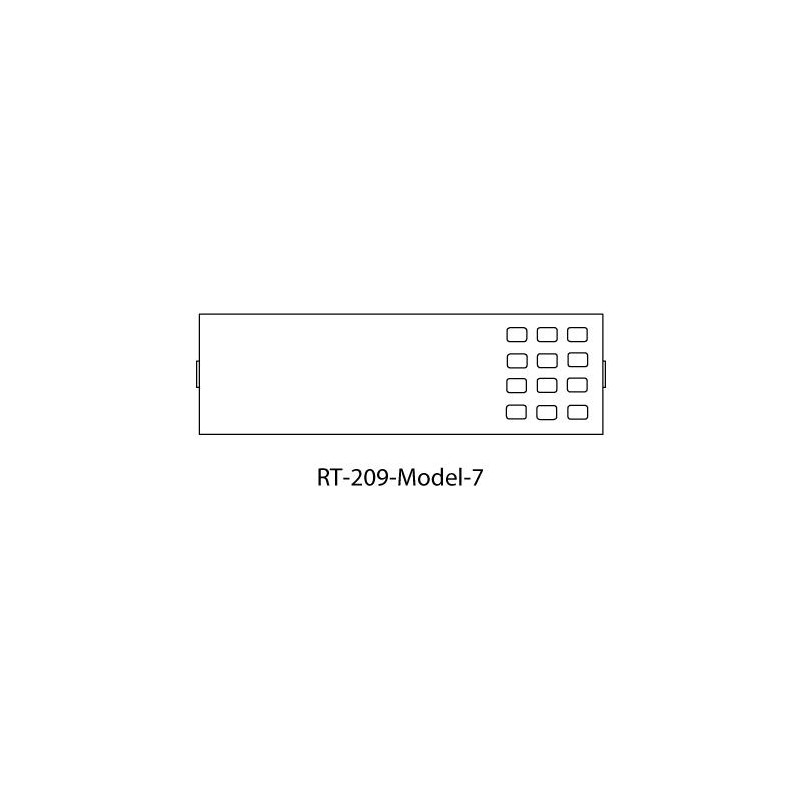

Panel Flat Panel, Model 1, Model 2, Model 3, Model 4, Model 5, Model 6, Model 7, Model 8

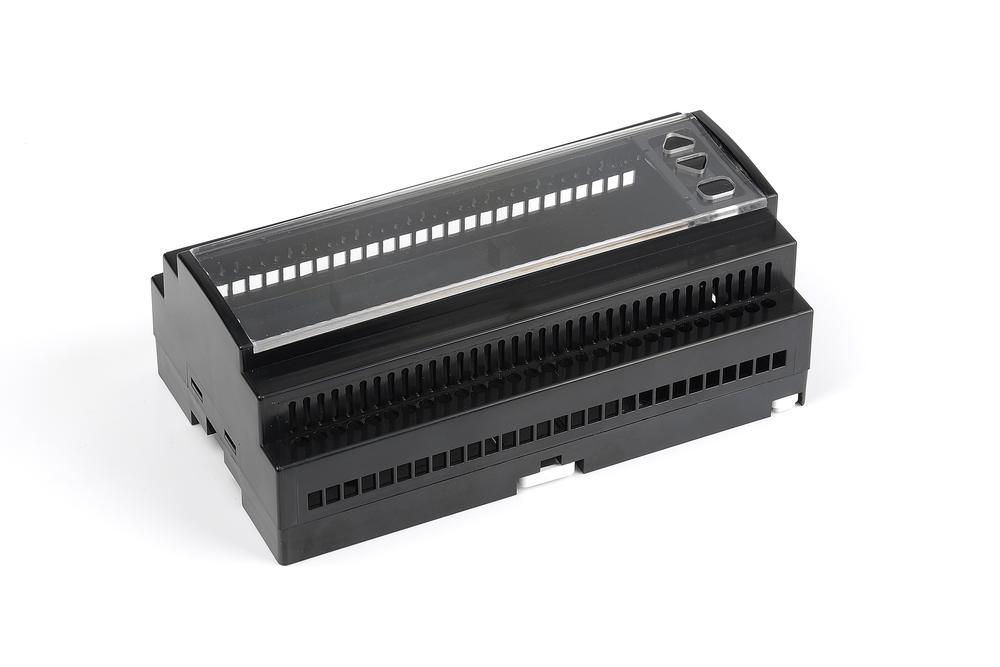

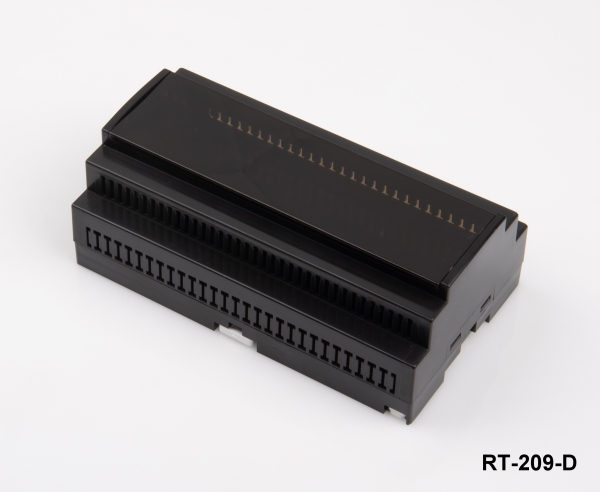

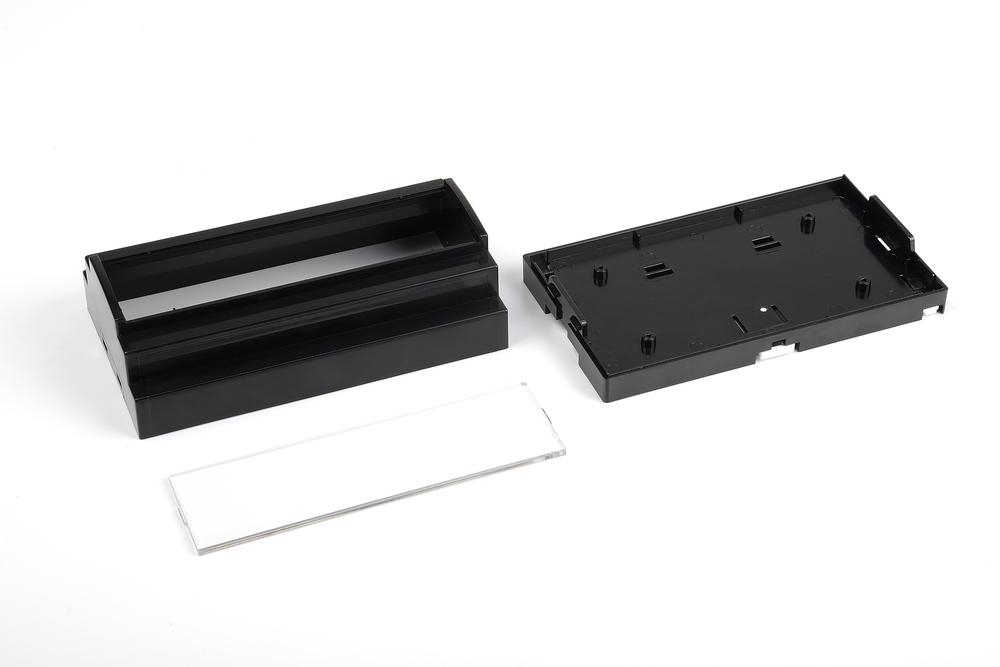

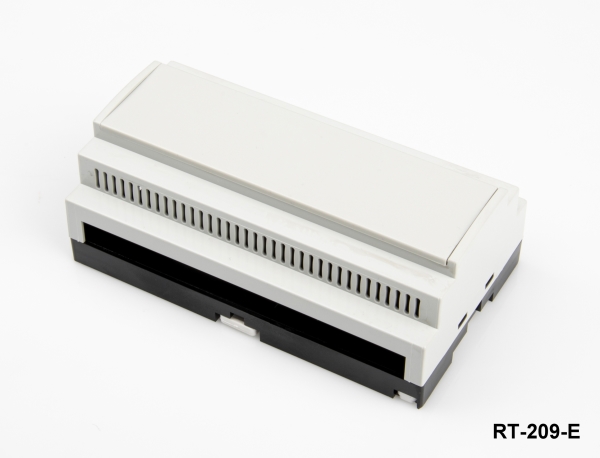

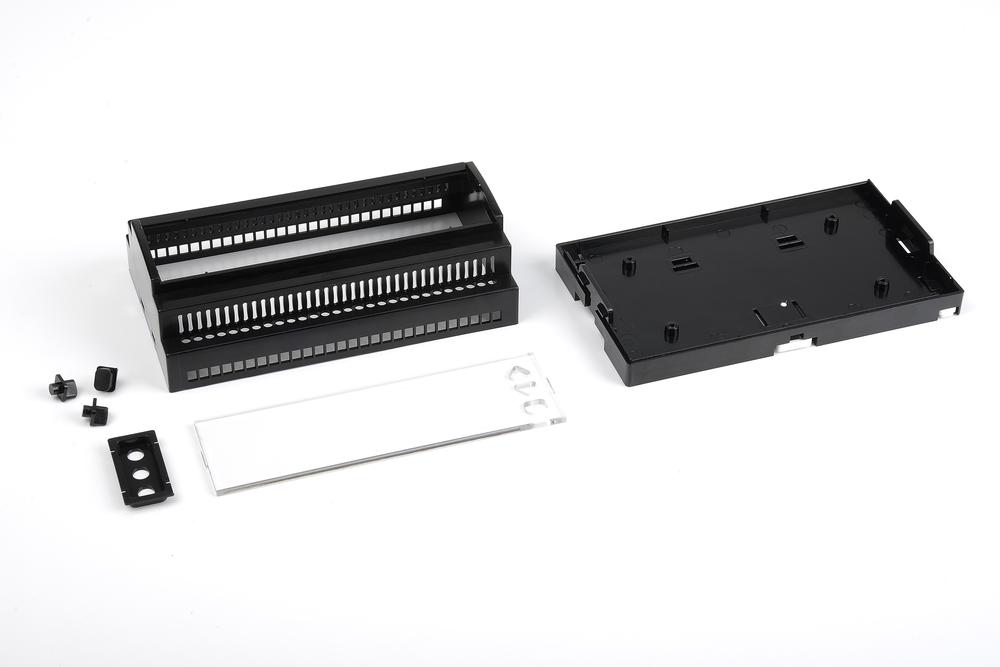

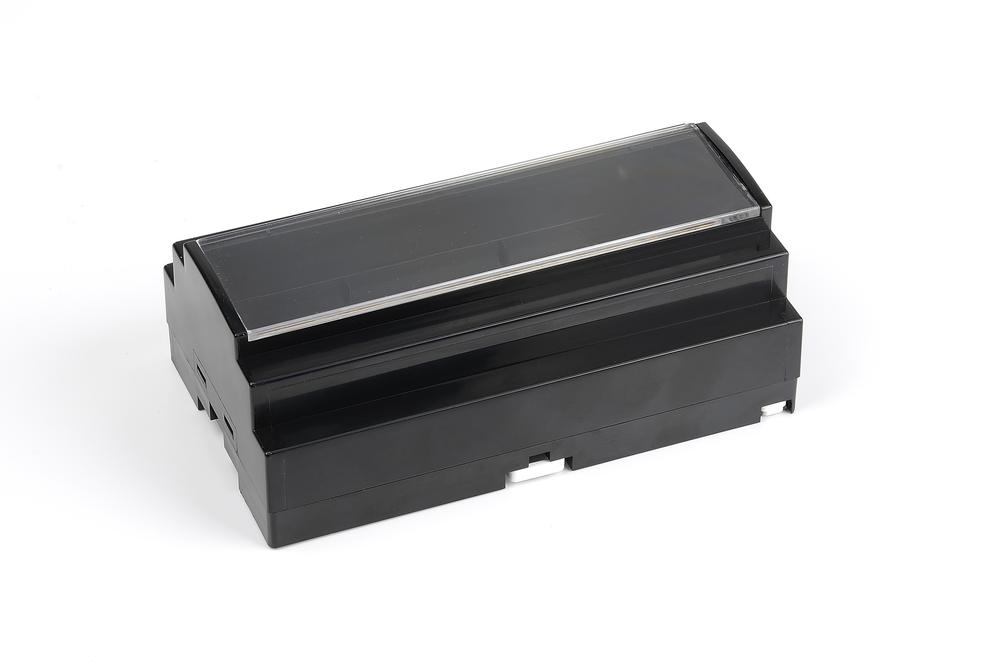

Type A-Closed, B-with Ventilation, C-For Screw Terminal, E-Open, D-For Socket Terminal
Material PC/ABS/V0
A (mm) 157.4
B (mm) 91
C (mm) 58.4
Operating Temperature -40° / +120°
Units per box 10
3D
RT-209-Assembly.exe

3D
RT-209-A-3D.zip

DXF
RT-209-drawing.zip

3D
RT-209-B-3D.zip

3D
RT-209-E-3D.zip

3D
RT-209-C-3D.zip

3D
RT-209-D-3D.zip

PDF
RT-209-drawing.PDF
