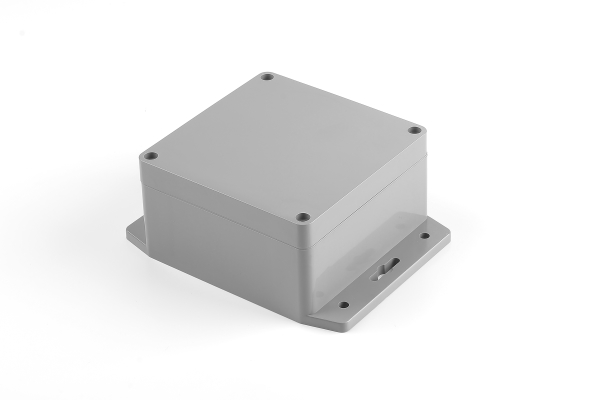

![[SF-230-C-0-DT-AP] SF-230 IP-67 Boîtiers à brides pour usage intensif ( Gris foncé, ABS, Couvercle transparent )](/web/image/base_multi_image.image/25839/image_128/%5BSF-230-C-0-DT-AP%5D%20SF-230%20IP-67%20Bo%C3%AEtiers%20%C3%A0%20brides%20pour%20usage%20intensif%20%28%20Gris%20fonc%C3%A9%2C%20ABS%2C%20Couvercle%20transparent%20%29?unique=c77552d)
![[SF-230-C-0-DT-AP] SF-230 IP-67 Boîtiers à brides pour usage intensif ( Gris foncé, ABS, Couvercle transparent )](/web/image/base_multi_image.image/25839/image_1024/%5BSF-230-C-0-DT-AP%5D%20SF-230%20IP-67%20Bo%C3%AEtiers%20%C3%A0%20brides%20pour%20usage%20intensif%20%28%20Gris%20fonc%C3%A9%2C%20ABS%2C%20Couvercle%20transparent%20%29?unique=c77552d)
Spécifications
| Couleur | Gris foncé |
| Matériel | ABS |
| Couverture supérieure | Couvercle transparent, Couverture opaque |
| E1 | 160 |
| E2 | 112 |
| E3 | 56 |
| E4 | 137,5 |
| B1 (mm) | 120 |
| B2 (mm) | 112 |
| B3 (mm) | 98 |
| B4 (mm) | 80 |
| D1 (mm) | 65 |
| D2 (mm) | 51,5 |
| D3 (mm) | 50,5 |
| D4 (mm) | 15 |
| UL94 | HB |
| A (mm) | 160 |
| B (mm) | 120 |
| C (mm) | 65 |
| Température de fonctionnement | -30° / +70° |
| Taux d'IP | IP67 |
| Unités par boîte | 10 |
