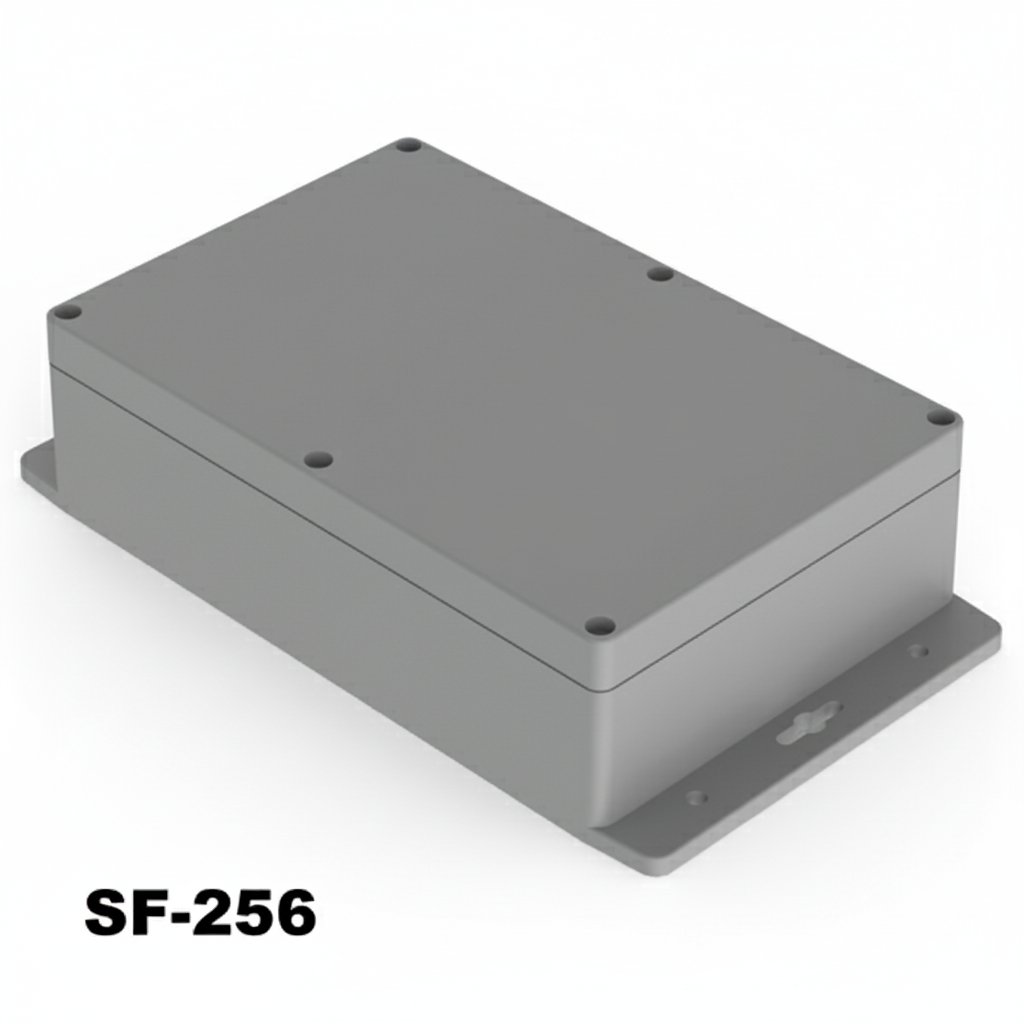

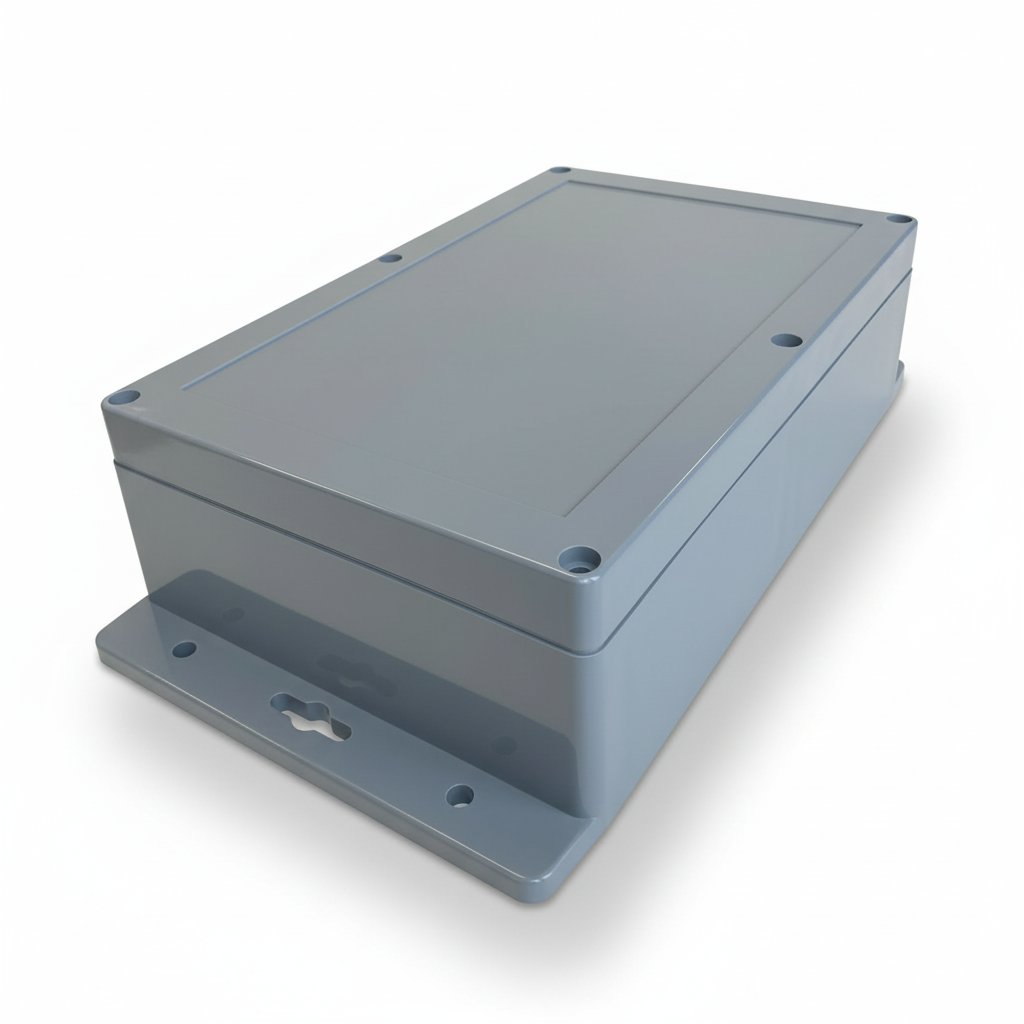

SF-256 IP-67 Flanged Heavy Duty Enclosures

[SF-256-0-0-D-0] 262 x 146 x 66 mm (10.31 x 5.75 x 2.6 in)
https://www.altinkaya.com/web/image/product.template/1878/image_1920?unique=d78bea8

Flanges facilitate mounting on surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production with ASA material resistant to sun exposure is also possible.

$ 9.50 9.5017 USD $ 9.50 لا توجد ضريبة القيمة المضافة

₺ 1.00 لا توجد ضريبة القيمة المضافة

غير متوفر للبيع

  • Color
  • Custom Production
  • Material
  • Sticker Pool
  • Top Cover
  • UL94

هذه التركيبة غير موجودة.

تواصل معنا
باركود :
8698651321043


SF-256 is a flanged heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

المواصفات

Color Dark Gray
Material ABS
Sticker Pool no Sticker Pool, w Sticker Pool

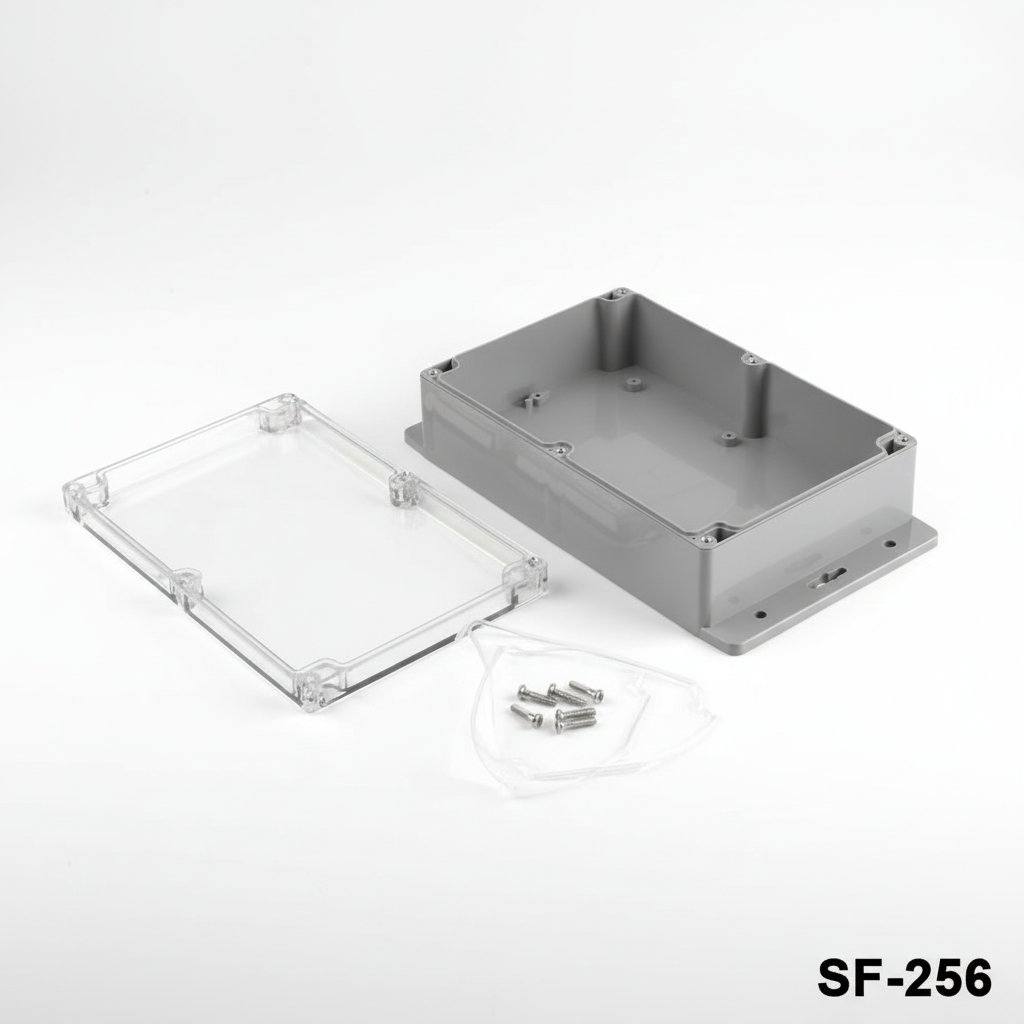

Top Cover Transparent Cover, Flat Cover
UL94 HB
E1 262
E2 214
E3 152
E4 240
B1 (mm) 146
B2 (mm) 138
B3 (mm) 100
B4 (mm) 90
D1 (mm) 66
D2 (mm) 51
D3 (mm) 51
D4 (mm) 15
A (mm) 262
B (mm) 146
C (mm) 66
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 5
​
