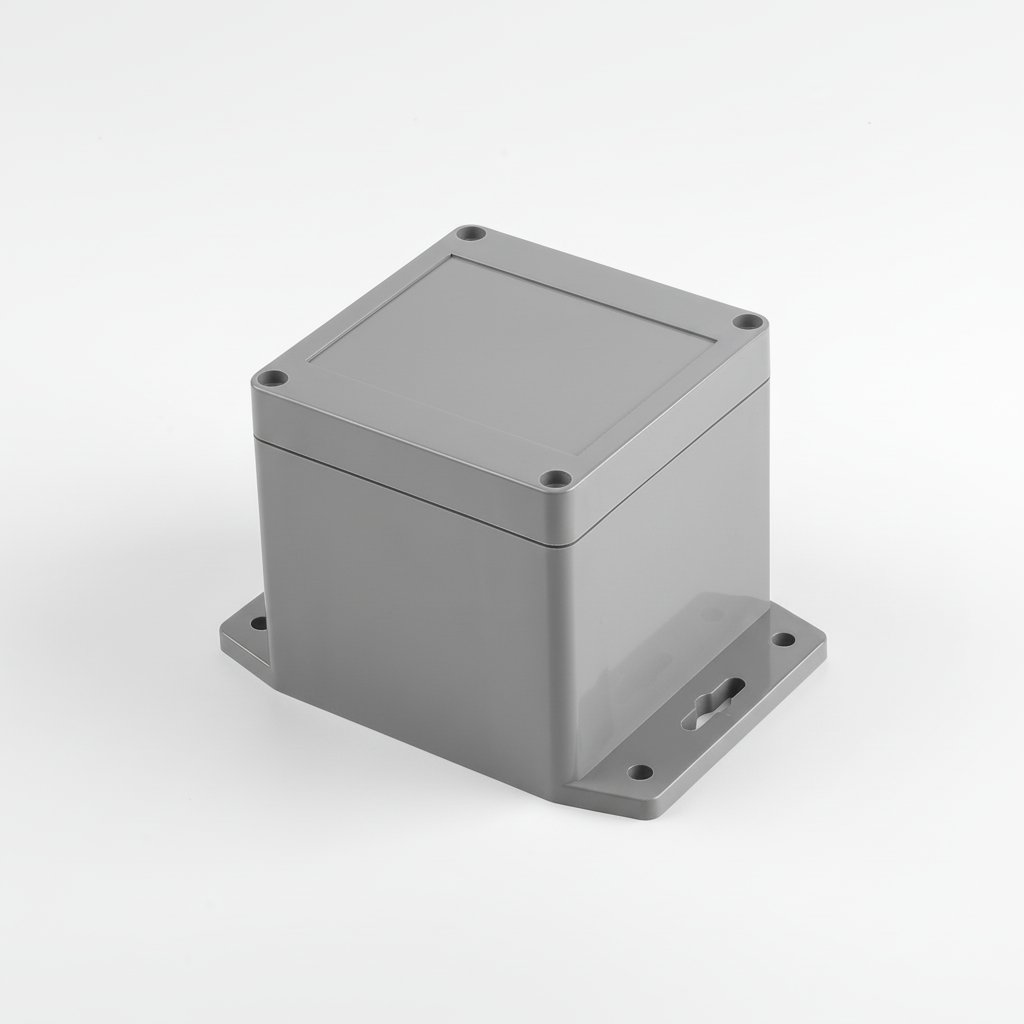

SF-220 IP-67 Flanged Heavy Duty Enclosures
[SF-220-0-0-D-0]
142 x 100 x 93 mm
(5.59 x 3.94 x 3.66 in)
Flanges ease mounting on the surfaces. It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection. For outdoor applications, production is also possible with ASA material resistant to sun exposure.
باركود :
8698651308310SF-220 is a flanged heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Flanges with screw holes provide you an easy assembly to the wall. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.
المواصفات
| Color | Dark Gray |
| E1 | 142 |
| E2 | 92 |
| E3 | 36 |
| E4 | 122,5 |
| B1 (mm) | 100 |
| B2 (mm) | 92 |
| B3 (mm) | 78 |
| B4 (mm) | 69,5 |
| D1 (mm) | 93 |
| D2 (mm) | 77,5 |
| D3 (mm) | 77,7 |
| D4 (mm) | 15 |
| Material | ABS |
| UL94 | HB |
| A (mm) | 142 |
| B (mm) | 100 |
| C (mm) | 93 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP67 |
| Units per box | 5 |
