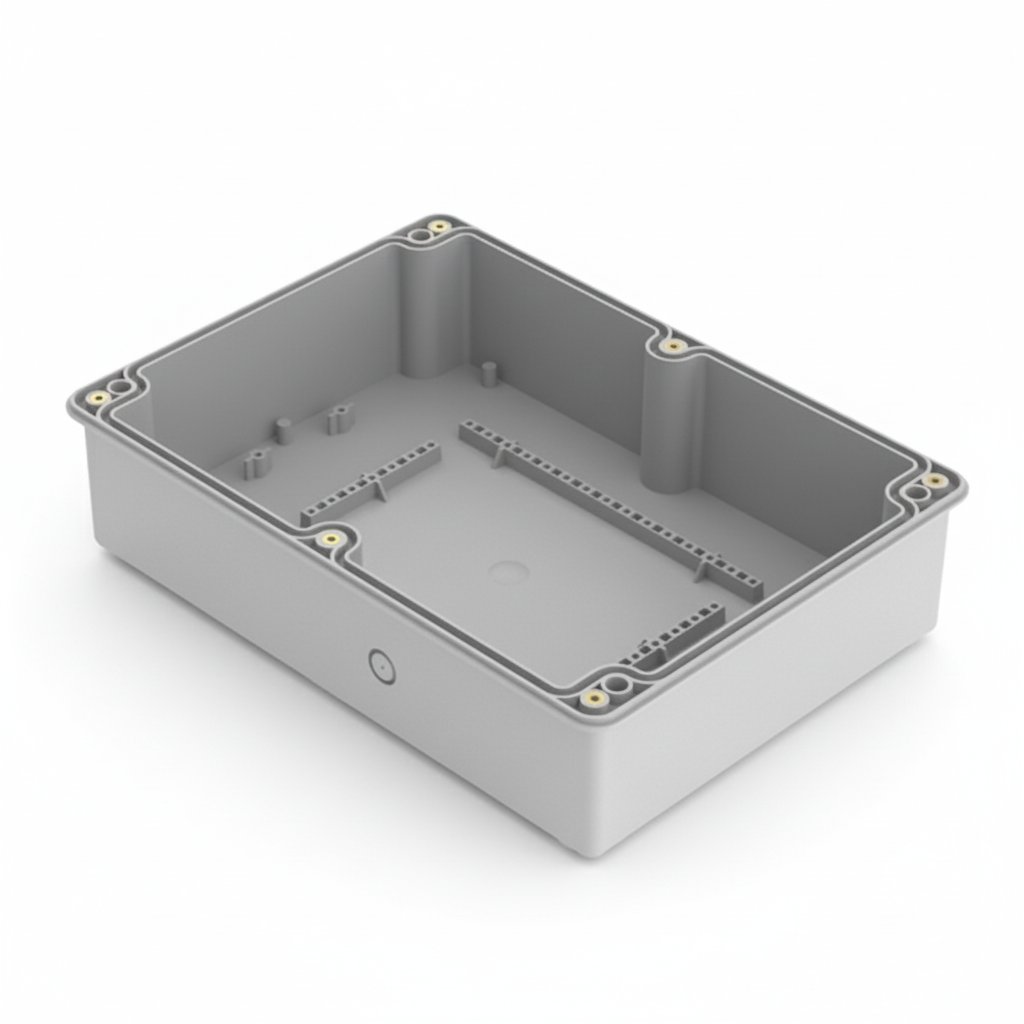

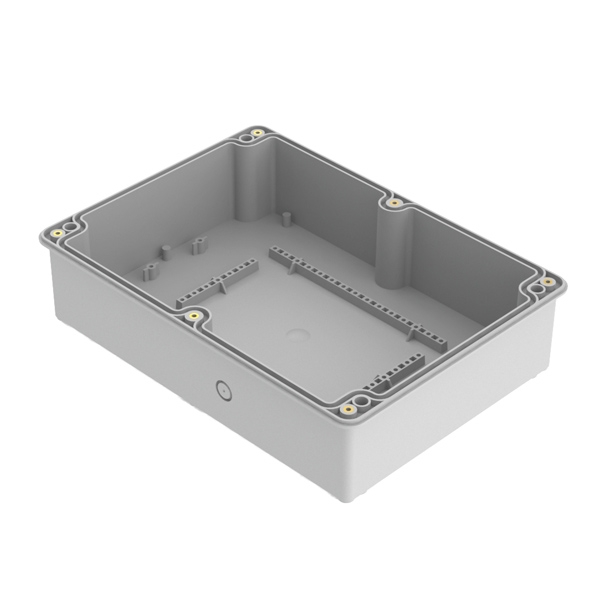

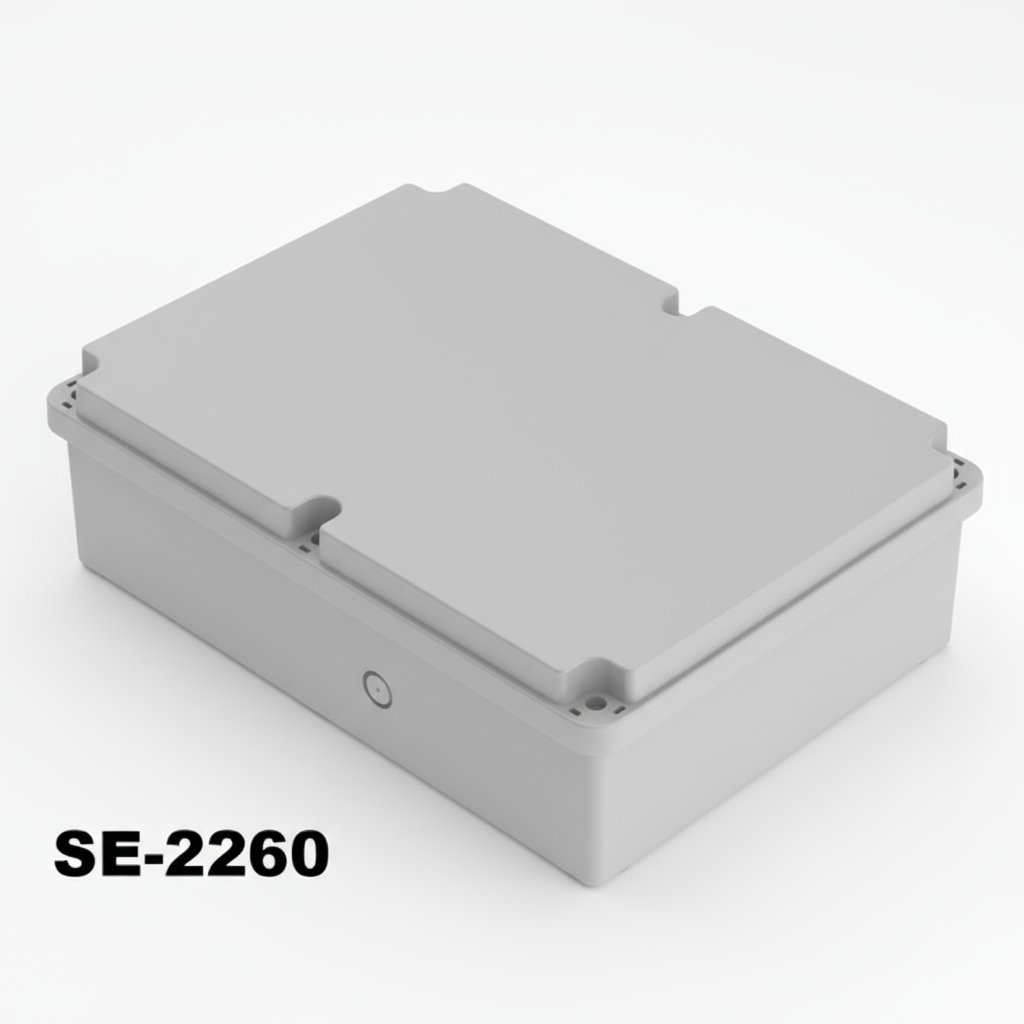

SE-2260 IP-67 Plastic Heavy Duty Enclosure
[SE-2260-0-0-G-0]
313 x 228 x 95 mm
(12.32 x 8.98 x 3.74 in)
It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection.
باركود :
8698651327014SE-2260 is a heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.
المواصفات
| Color | Light Gray |
| Type | No Hole Closed |
| E1 | 313 |
| E2 | 293 |
| E3 | 260,5 |
| E4 | 286 |
| B1 (mm) | 228 |
| B2 (mm) | 207 |
| B3 (mm) | 50 |
| B4 (mm) | 176 |
| D1 (mm) | 95 |
| D2 (mm) | 78 |
| D3 (mm) | 69 |
| D4 (mm) | 25 |
| Material | ABS |
| UL94 | HB |
| A (mm) | 313 |
| B (mm) | 228 |
| C (mm) | 95 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP67 |
