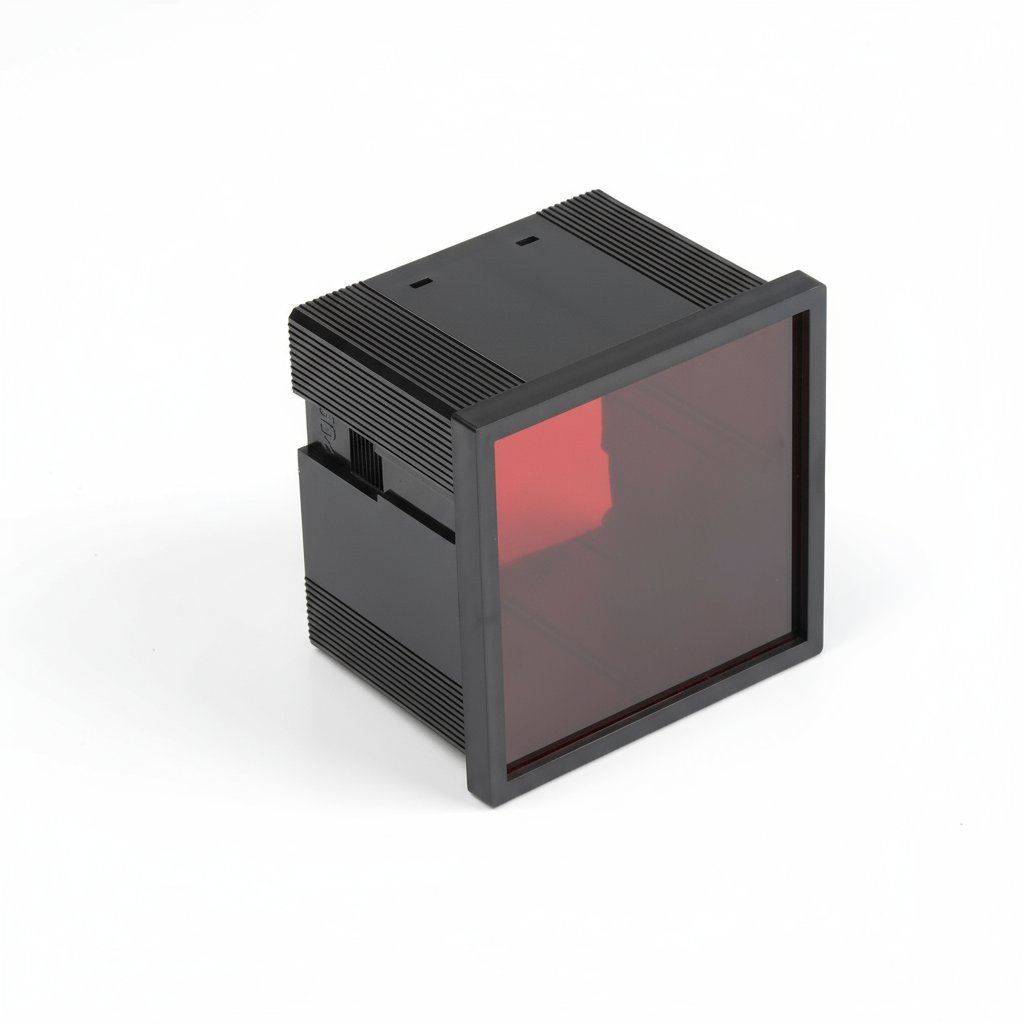

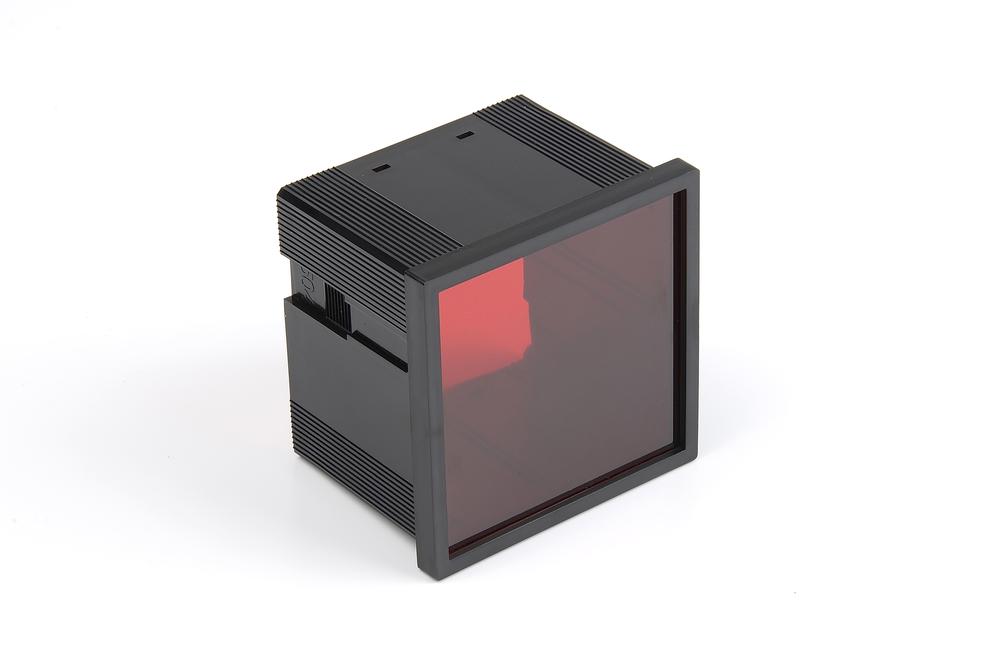

PT-230 DIN Panel Enclosure
The PT-230 DIN Panel Enclosure is made from high-quality ABS plastic in a light gray or black color and measures 96 mm x 96 mm x 75 mm. It comes with a body, frame, panel and side clamps for easy mounting. Contact our International Sales team for more information on customization and quantity details.
This enclosure is an ideal solution for analog and digital control panels used for time, temperature, and counters. Its ABS plastic construction and compact design make it a versatile and reliable option for a wide range of applications.
المواصفات
| Color | Light Gray, Black |
| Panel Color | Light Gray Board Lug, Light Gray Panel, Black Panel, Black with Board Lug, Transparent Panel, Red Panel |
| Back Cover | 12 terminal back cover, 24 terminal back cover, 5 terminal back cover, 7 terminal back cover, Back Cover W hook, Back Cover with Bosses, Back Cover w Screw, DIN Rail Mount Back Cover, Flat Back Cover, Back Cover w Terminal |
| Material | ABS |
| UL94 | HB |
| A (mm) | 96 |
| B (mm) | 96 |
| C (mm) | 75 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP40 |
| Units per box | 20 |
